2014 HONDA CR-V Technology Reference Guide

TECHNOLOGY
REFERENCE
GUIDE
2014
owners.honda.com
2014 Honda CR-V EX-L with Navigation 31T0AB20 Technology Reference Guide 00X31-T0A-B201 ©2013 American Honda Motor Co., Inc. — All Rights Reserved Printed in U.S.A.

SMS Text Messaging ................................................................................................21
iPod
®or USB Flash Drive .....................................................................................22
Bluetooth
®Audio ......................................................................................................23

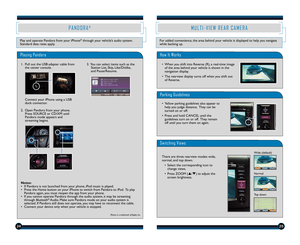

Pandora
®...................................................................................................................24
MultiView Rear Camera ......................................................................................25
Honda Owners .......................................................................................................26
Safety Reminder ......................................................................................................26
Fuel Recommendation...........................................................................................27
Instrument Panel Indicators ...................................................................................2
Eco Assist
TM................................................................................................................4
Tire Pressure Monitoring System (TPMS)...........................................................5
Intelligent MultiInformation Display (iMID) ..................................................... 6
Auto Door Locks .....................................................................................................8
Voice Recognition ................................................................................................... 1\f
Navigation................................................................................................................ .14
Bluetooth
®HandsFreeLink®(HFL) .......................................................................17
T E C H N O L O G Y R E F E R E N C E G U I D E
This Technology Reference Guide is designed to help you get
acquainted with your 2\f14 Honda CRV EXL with Navigation
and provide basic instructions on some of its technology and
convenience features.
This guide is not intended to be a substitute \1for the Owner’s
Manual. For more detailed information on vehicle controls
and operation\b please refer to the respective sections in the
Owner’s Manual and Navigation Manual.
AUDIO p.22NAVIGATION p.\b4
INSTRUMENT
PANEL p. 2
ECO
ASSIST
TMp. 4
iMIDp. \f
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f11 AM P\Aage 2
One-Touch Turn Signal ........................................................................\
.....................9

23
INSTRUMENT PANEL INDICATORS
Briefly appear with each engine start. Red and amber indicators are most critical. Blue
and green indicators are used for general information. See your Owner’s Manual for
more information.
Malfunction IndicatorsIf an indicator remains on\b there may be a problem; see your dealer
On/Off Indicators
Condition IndicatorsAction is needed by driver
PASSENGERAIRBAG
OFF&(($'
!'
OFF(next to iMID)
VSA OFF
CRUISE CONTROL on
Exterior lights on
Turn signals/hazards on
ECON mode on
Fog lights on
High beams on
Charging system
Low brake fluid\b Brake system
Low oil pressure
Antilock Brake System (ABS)
Vehicle Stability Assist®(VSA)
Supplemental restraint system
(SRS)
Electric power steering (EPS)
Transmission (blinking)
Parking brake on:
Release
Low fuel:
Refill
Low tire pressure:
Add air or calibrate system Immobilizer (blinks):
Use other vehicle key
and see dealer
Malfunction indicator lamp
(check engine light)
Seat belt reminder:
Fasten seat belt(s)
*if equipped
D
Door/Tailgate open:
\flose door(s) \b tailgate
Tire Pressure Monitoring System
(TPMS) (blinks and stays on)
CRUISE MAIN on
Daytime running lights (DRL)
AllWheel Drive (AWD) system*
Maintenance Minder™:
Make service appt
AllWheel Drive* (blinks):
Pull over and idle
SIDE AIRBAG OFF
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f11 AM P\Aage 3

45
E C O A S S I S TT M
When turned on\b performance of the vehicle’s engine\b transmission\b cruise control\b and
air conditioning system are adjusted to maximize fuel efficiency.
Ambient Meter
High fuel efficiency Moderate fuel efficiency Low fuel efficiency
Indicates realtime fuel efficiency using colorcoded bars.
What to Do
How It Works
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
1. Visually inspect the tires for damage.
2. Use a tire air pressure gauge to check
which tire(s) have low pressure.
3. Inflate the tire(s)\b if necessary\b to the recommended pressures listed on the
label on the driver’s doorjamb.
When the tire pressure drops
significantly below recommended
levels\b the low tire pressure
indicator comes on.
ECON Button
3. Press E\fON again to turn the
system off.
TPMS Calibration
Any time you inflate\b change\b or rotate one or more of the tires\b you must calibrate
the system.
1. Make sure the shift lever is inPark (P) and the vehicle is on.
2. Press and hold the TPMS button until the low tire
pressure indicator blinks
twice.
Calibration begins and will
finish automatically.
2. The E\fON mode indicator
comes on.1. Press E\fON to turn the system on.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f11 AM P\Aage 4

67
Press the Display button to
change the main displays.
Accessing the iMID
Main Displays
I N T E L L I G E N T M U L T I I N F O R M A T I O N D I S P L A Y ( i M I D )Consists of several displays that provide you with useful information.
Steering Wheel Controls
Main display
Audio display(or Phone
display during call)
Trip
computerClock
(or wallpaper)
Use the steering wheel controls to navigate through the Vehicle Menu.
( + ) Button:
Press to scroll upward.
(
t) Button:
Press to go back to the
previous display.
() Button:
Press to scroll
downward. SOUR\fE Button:
Press to enter your
selection.
(u) Button:
Press to go to the next
display.
MENU Button:
Press to go to the
Vehicle Menu for
customization and
other settings.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f11 AM P\Aage 5

\b9
A U T O D O O R L O C K SProgram how and when the vehicle doors automatically lock and unlock.A U T O D O O R L O C K S
Programmable Auto Door Lock/Unlock Settings
Below are the options you can choose. See Auto Door Locking/Unlockingin your
Owner’s Manual for instructions on programming these settings.
AUTO DOOR UNLO\fK
Auto Unlock
(all doors)
When you turn
the ignition OFFWhen you shift into Park
Auto Unlock
(only driver’s door)
When you turn
the ignition OFFWhen you shift into Park
Turn off
Auto Unlock
Operate manually
AUTO DOOR LO\fK
Auto Lock
When you
reach 1\f mphWhen you shift out of Park
Turn off
Auto Lock
Operate manually
Programming the Auto Door Unlock SettingDefault Lock/Unlock Setting
Default Lock Setting
All doors and the tailgate are
preset to lock when your vehicle
reaches about 1\f mph. Default Unlock Setting
Only the driver’s door is preset to
unlock when you shift into Park (P).
Press the (+/) buttons on the steering \1wheel to scroll through the menu options.
Press SOURCE to select an option. See page 6–7 for more information on the iMID
and its controls.
Note: The driver’s and front passenger’s door can be opened by pulling the inner
front door handle\b regardless of the setting. Changing the setting to “All Doors” is
useful for rear passengers.
1. Press MENU.
2. Select Customize Settings.
3. Select Door Setup.
4 . Select Auto Door Unlock.
5. Select All Doors with Shift to P.
6. Press MENU to exit.Press
the (+/) buttons on the steering wheel to scroll through the menu options.
Press SOURCE to select an option. See page 9for more information on the multi
information display and its controls.
1. Press MENU.
2. Select Customize Settings.
3. Select Door Setup. 4.
Select Auto Door Unlock.
5. Select All Doors with Shift to P.
6. Press MENU to exit.Pressthe (+/) buttons on the steering wheel to scroll through the menu options.
Press SOURCE to select an option. See page9for more information on the multi
information display and its controls.
1. Press MENU.
2. Select Customize Settings.
3. Select Door Setup. 4.
Select Auto Door Unlock.
5. Select All Doors with Shift to P.
6. Press MENU to exit.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f11 AM P\Aage \b
ONE-TOUCH TURN SIGNAL
Use this quick and convenient method to signal a lane change.
How It Works
• Lightly push the turn signal lever up
or down for a three-blink sequence.
• For a continuous signal, push the lever up or down until it locks into place.

1011
Key Functions by Voice Command
A U D I Op. 13
C L I M A T E C O N T R O Lp. 13
N A V I G A T I O Np. 14
B L U E T O O T H®H A N D S F R E E L I N K®p. 17
V O I C E R E C O G N I T I O N
Voice Command Tips
PickUp button: Answer an
incoming call\b or go directly to
the Phone screen.
HangUp\bBack button: End a
call\b decline an incoming call\b or
cancel a selection.
Talk button: Give navigation\b
HFL\b audio\b or climate control
commands.
Control four different systems with the steering wheel buttons and \1the ceiling
microphone.
To reduce the potential for driver distraction, certain manual and touch
screen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
To keep your eyes on the road and hands on the wheel\b use the Talk button to
say voice commands to operate certain vehicle features. For a full list of commands\b
say “Display Information” and “Voice Info.”
• Press and release the Talk button\b wait for a beep\b then say a command.
• All available voice commands are highlighted in blue when you press the Talkbutton.
• For a list of available commands\b press and release the Talk button and say “Help” at any time.
• Speak in a clear\b natural voice.
• Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
• The system also uses a touchscreen display. You can select options or icons by touching them on the screen. This is limited while the vehicle is moving.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f12 AM P\Aage 7

1213
Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
G e n e r a l C o m m a n d s(Accepted on most screens to change displays)
• Display map
• Display menu
• Display information
• Display audio
• What time is it?
• Next/previous
(to change pages)• Left/right(to change tabs)• Up/down(to scroll lists up to three pages)
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest: ATM Honda dealer
gas station airport
Mexican hospital restaurant bank
post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long/far to the destination?
• Display destination map
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display/Hide: ATM
gas station
restaurant
post office
• Display north up/heading up
• Zoom in/out
• Go home
• Display current location
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset 1/2/3/4/5/6
• DISC/USB/iPod play
• DISC/USB/iPod skip forward/back
• Auxiliary (AUX) play
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands for current screen)
• Voice info from INFO screen (list of all
available commands by category)
P h o n e C o m m a n d s(Accepted on Phone screen)
• Dial
• Speed Dial 1 (or 2)
• Redial
• Phonebook
• Phone setup
(Accepted on any screen)
• Dial by number
• Dial by voice tag
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on/off
• Rear defrost on/off
• Climate control recirculate/ fresh air
• Fan speed up/down
• Temperature # degrees (# = 57–87)
• Temperature max hot/cold
Press and release the Talk button before you say a command. Press and release the Talk button before you say a command.
14 CRV TRG_EXL NAVI\A_ATG_NEW STYLE \b/1\A3/2013 10\f12 AM P\Aage 8
