uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
88
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 353
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 90
You can choose an item to be displayed in the fuel
consumption screen. Averag e fuel economy, range,
elapsed time, or average speed can be selected.
2 Customized Features P. 90
2 Switching the Display P. 86
2.4 ℓ engine models
1Range
You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected. 2 Customized Features P. 90
2 Switching the Display P. 86
1.8 ℓ engine models
14 CIVIC 4D_SI-31TR36210.book 88 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

Continued89
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the i-MID’s customized featur es to correct the temperature.
2Customized Features P. 90
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Engine horsepower usage while driving is
displayed in the power monitor.
100% indicates that horsepower is at its
maximum.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Outside Temperature
■Instant Fuel Economy*
■Power Monitor*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
1Power Monitor*
Engine horsepower is affected by external conditions
such as driving conditions, or vehicle condition. The
power monitor can compensate for some of these
variables, but different re adings may be displayed.
■Turn-by-Turn Directions*1Turn-by-Turn Directions*
You can select whether th e turn-by-turn display
comes on during the route guidance. 2 Customized Features P. 90
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 89 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
90
Instrument Panel
Use the i-MID to customize certain features.
■How to customize
Select the Vehicle Menu screen by pressing the MENU button while the ignition
switch is in ON
(w*1, and the vehicle is at a complete stop. Select Customize
Settings , then press the SOURCE button.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Customized Features1 Customized Features
To customize other features, press the
(+ / (-
button.
2 List of customizable options P. 94
2 P. 98
MENU
SOURCE Button
Press to go to the next
display.
SOURCE Button
Press to set your selection.
MENU Button
Press to go to Vehicle Menu.(+ Button
Press to scroll upwards.
Button
Press to go back to the
previous display.
( - Button
Press to scroll downwards.
14 CIVIC 4D_SI-31TR36210.book 90 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

91
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument Panel
■Customization flow
Press the MENU button.1Customized Features
You can exit the customizing screen at any time by
pressing the MENU button.
Vehicle Menu
Vehicle Information
Odometer/Trip Meter
Adjust Clock*
Maintenance info
Trip Meter Reset
Select Trip/Odometer
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 91 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

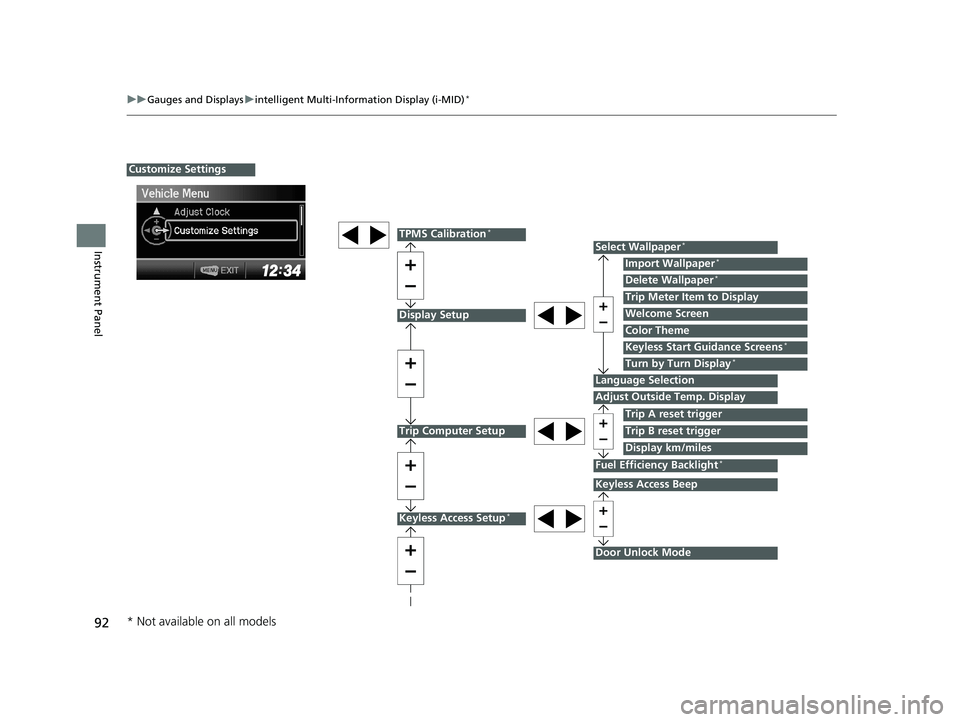

92
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel
Display Setup
Trip Computer Setup
Select Wallpaper*
Import Wallpaper*
Delete Wallpaper*
Language Selection
Adjust Outside Temp. Display
Trip A reset trigger
Display km/miles
Trip Meter Item to Display
Welcome Screen
Color Theme
Fuel Efficiency Backlight*
Customize Settings
Turn by Turn Display*
Trip B reset trigger
TPMS Calibration*
Keyless Start Guidance Screens*
Keyless Access Setup*
Door Unlock Mode
Keyless Access Beep
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 92 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

93
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument PanelLighting Setup
Door Setup
Default All
Auto Light Sensitivity*
Door Lock Mode
Auto Unlock All Doors
Keyless Lock Acknowledgment
Auto Door Lock
Security Relock Timer
Interior Light Dimming Time
Headlight Auto Off Timer
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 93 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

94
uuGauges and Displays uintelligent Multi-Information Display (i-MID)*
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group Customizable Features
Description Selectable settings
Vehicle
InformationMaintenance infoResets the Maintenance MinderTM.No/Yes
Odometer/
Trip Meter Trip Meter Reset
Resets the trip meter. Trip A/Trip B
Select Trip/Odometer Switches between odometer, trip meter A, and trip
meter B. ODO
*1/
Trip A /Trip B
Adjust
Clock*Sets time display 12 hour or 24 hour and adjust the time.12 h*1/24 h
Customize
Settings TPMS Calibration
*Calibrates the TPMS.
Cancel/Initialize
Display
Setup Select
Wallpaper
*Selects the full-size analogue clock or the wallpaper.
Clock*1/
Image 1 /Image 2 /
Image 3
Import
Wallpaper
*Imports an image file for a new wallpaper. Three images can be stored.2
Importing Wallpapers
from USB P. 98
Delete
Wallpaper*Deletes an image file for a wallpaper. Image 1/Image 2/ Image 3
* Not available on all models
14 CIVIC 4D_SI-31TR36210.book 94 ページ ２０１４年１月３０日　木曜日　午後１２時１８分

95
uuGauges and Displays uintelligent Multi-Inform ation Display (i-MID)*
Continued
Instrument Panel
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Default Setting
*3: Default Setting for 1.8 ℓ engine models
*4: Default Setting for 2.4 ℓ engine models
*5: Refer to the Navigation System Manual for complete details.
Setup Group Customizable Features
Description Selectable settings
Customize
SettingsDisplay
SetupTrip Meter
Item to
Display
Selects an item to be di
splayed along with average
fuel economy. Range
*2/
Elapsed time /
Average speed
Selects an item to be displayed along with the
instant fuel economy. Average Fuel
*2/
Range /
Elapsed time /Average speed
Welcome
Screen Selects whether the welcome screen comes on
when you turn the igni
tion switch to ON
(w*1.On*2/
Off
Color Theme Changes the color of the screen. Blue
*3/Red*4/Amber /Gray
Keyless Start
Guidance
Screens
*
Displays the push button start guidance when
conditions are met to change power mode. On*2/
Off
Turn by Turn
Display
*, *5Selects whether the turn-b y-turn display comes on
during the route guidance. On*2/
Off
Language
Selection Changes the displayed language.
English
*2/French /Spanish
1.8 ℓ engine models
2.4 ℓ engine models
* Not available on all models
