2014 HONDA CIVIC Owners Manual

224Features
Audio Error MessagesCD PlayerIf a disc error occurs, you may see the following error messages.
*1:Models with information display
*2:Models with one display
*3:Models with display audio system
Error Message
Cause
Solution
Heat Error
*2,*3
High temperature
●Turn the audio system off and allow the player to cool down until
the error message is cleared.
FORMAT
*1
Unsupported
*2
Unplayable File
*3
Track/file format not
supported
●Current track/file will be skipped. The next supported track/file
plays automatically.
BAD DISC
CHECK MANUAL
PUSH EJECT
*1
Bad Disc
Please Check Owners Manual
Push Eject
*2,*3
Mechanical error
●Press the (eject) button and remove the disc, and check that the
error message is cleared.●Check that the disc is not damaged or deformed, and insert the
disc again.
2Protecting CDs P. 231
●If the error message reappears, press the button, and pull out
the disc.●Insert a different disc.
If the new disc plays, there is a problem with the first disc.●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error
*2,*3
BAD DISC
CHECK MANUAL
*1
Bad Disc
Please Check Owners
Manual
*2,*3
Servo error
Check Disc
*2,*3
Disc error
●Check that the disc is not damaged or deformed.
2Protecting CDs P. 231

225
uuAudio Error Messages uiPod/USB Flash Drive
*
Continued
Features
iPod/USB Flash Drive
*
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
Error Message
Solution
USB Error
Appears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
Bad USB Device
Please Check Owners
Manual.
Appears when an incompatible device is connected. Disconnect the device. Then turn the audio system
off, and turn it on again. Do not reconnect the device that caused the error.
No Song
Appears when the iPod is empty. Check that compatible files are stored on the device.
Unsupported Ver
Appears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Retry Connection
Appears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable File
Appears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No Data
Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash
drive. Check that compatible files are stored on the device.
Unsupported
Appears when an unsupported device is connected. If it appears when a supported device is
connected, reconnect the device.
Models with one display* Not available on all models

226
uuAudio Error Messages uiPod/USB Flash Drive
*
Features
Error Message
Solution
USB Error
Appears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
The connected USB device
has a problem.
See Owner’s Manual
Appears when an incompatible device is connected. Disconnec t the device. Then turn the audio system
off, and turn it on again. Do not reconnect the device that caused the error.
Unsupported Version
Appears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Connect Retry
Appears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable File
Appears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No Data
Appears when the iPod is empty.
Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash
drive.
Check that compatible files are stored on the device.
Unsupported
Appears when an unsupported device is connected. If it appears when a supported device is
connected, reconnect the device.
Models with display audio system
iPodUSB flash driveiPod and USB flash drive

227
uuAudio Error Messages uPandora ®
Continued
Features
Pandora ®If an error occurs while playing Pandora ®, you may see the following error messages.
If you cannot clear the error message, contact a dealer.
Error Message
Solution
PANDORA No Station
Appears when there is no station list on the device. Use the device to create a station.
PANDORA Requires Update
Appears when Pandora version is not supported. Please update the device application.
PANDORA Unavailable
Appears when Pandora is performing system maintenance. Try again later.
PANDORA Cannot Connect
Appears when Pandora is unable to play music. Check your device.
PANDORA Loading...
Appears when Pandora is loading.
U.S. modelsModels with one display

228
uuAudio Error Messages uPandora®
Features
Error Message
Solution
The maximum number of stations that can be created is
100.
To create more, please delete one or more previously
created stations.
●Appears when the number of stations that can be created is
exceeded. Follow the message.
Unable to create new station. Please try again.
●Appears when the commanded operation is failed. Try again later.
Unable to play Pandora. Please try again later.Unable to save bookmark.This Pandora station is currently not available. Please select
another station.
●Appears when the station you selected is not available. Change a
station, or try again later.
Unable to play Pandora. When stopped, log-in to Pandora.
●Appears when you have not logged into Pandora ®. Follow the
message.
Unable to connect to Pandora. When stopped, check your
mobile phone.
●Appears when failed to connect. Check your device and try again.
Unable to play Pandora. Please try again later.Connect RetryModels with display audio system

229

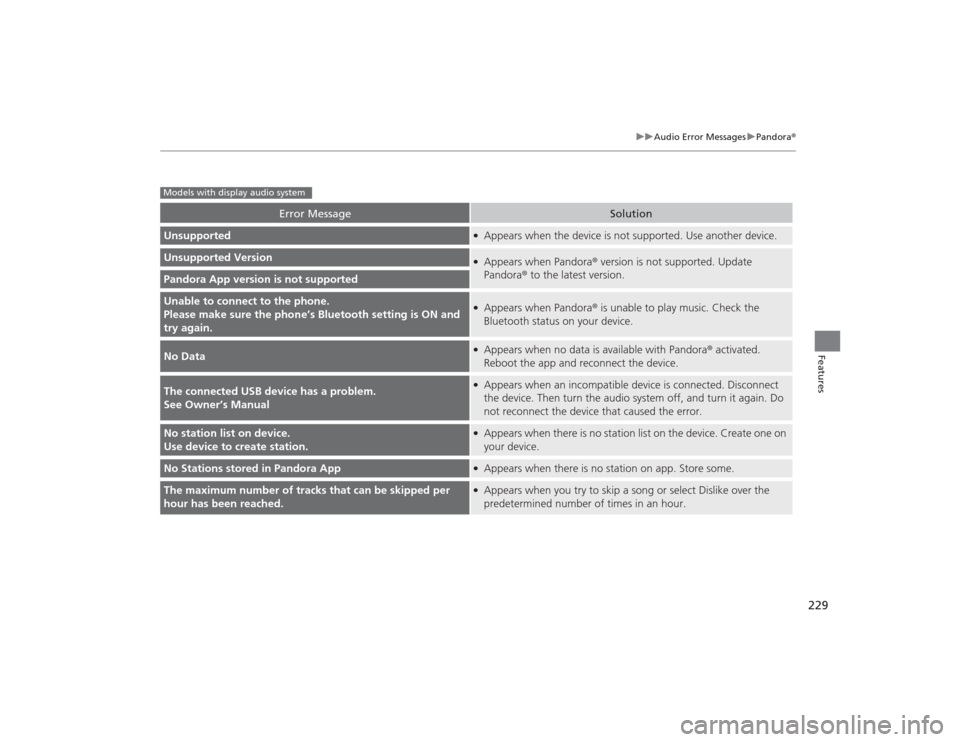

uuAudio Error Messages uPandora ®
Features
Error Message
Solution
Unsupported
●Appears when the device is not supported. Use another device.
Unsupported Version
●Appears when Pandora ® version is not supported. Update
Pandora ® to the latest version.
Pandora App version is not supportedUnable to connect to the phone.
Please make sure the phon e’s Bluetooth setting is ON and
try again.
●Appears when Pandora ® is unable to play music. Check the
Bluetooth status on your device.
No Data
●Appears when no data is available with Pandora ® activated.
Reboot the app and reconnect the device.
The connected USB device has a problem.
See Owner’s Manual
●Appears when an incompatible device is connected. Disconnect
the device. Then turn the audio system off, and turn it again. Do
not reconnect the device that caused the error.
No station list on device.
Use device to create station.
●Appears when there is no station list on the device. Create one on
your device.
No Stations stored in Pandora App
●Appears when there is no station on app. Store some.
The maximum number of tracks that can be skipped per
hour has been reached.
●Appears when you try to skip a song or select Dislike over the
predetermined number of times in an hour.
Models with display audio system

230Features
General Information on the Audio SystemRecommended CDs•Use only high-quality CD-R or CD-RW discs labeled for audio use.
• Use only CD-R or CD-RW discs on which the recordings are closed.
• Play only standard round-shaped CDs.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3 or WMA formats may be unsupported.
1Recommended CDs
A Dual-disc cannot play on this audio unit. If recorded
under certain conditions, a CD-R or CD-RW may not
play either.
■
CDs with MP3 or WMA filesThe CD packages or jackets should have one of these marks.

231
uuGeneral Information on the Audio System uRecommended CDs
Features
■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean cloth from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign objects into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer rings or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.
1Protecting CDsNOTICEDo not insert a damaged CD. It may be stuck inside
and damage the audio unit.Examples:●Damaged CDsBubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring
●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD●Bubbled, wrinkled, labeled, and
excessively thick CDs
