2014 HONDA CIVIC COUPE USB

207
uuAudio System Basic Operation uPlaying a Video Using the HDMI ®
Continued
Features
Playing a Video Using the HDMI ®
Your audio system allows you to play videos from an HDMI ®-compatible device.
Connect the device, using an HDMI ® cable, then select the HDMI® mode.
2USB/HDMI® Port* P. 161
Audio/Information Screen
BACK
Select to go back to the previous display.
VOL (Volume)
Select to adjust the volume.
MENU
Select to display the menu
items.
(Power) Button
Press to turn the audio
system on and off.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 207 ページ ２０１４年１月２９日　水曜日　午後８時９分

212
uuAudio Error Messages uiPod/USB Flash Drive
Features
iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
Error MessageSolution
USB ErrorAppears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
Bad USB Device
Please Check Owners
Manual.Appears when an incompatible device is connected. Disconnect the device. Then turn the audio system
off, and turn it on again. Do not reco nnect the device that caused the error.
No SongAppears when the iPod is empty. Check that compatible files are stored on the device.
Unsupported VerAppears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Retry ConnectionAppears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable FileAppears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No DataAppears when the USB flash drive is empty or ther e are no MP3, WMA, or AAC files in the USB flash
drive. Check that compatible fi les are stored on the device.
UnsupportedAppears when an unsupported device is connect ed. If it appears when a supported device is
connected, reconnect the device.
Models with one display
14 CIVIC 2D_SI-31TS86210.book 212 ページ ２０１４年１月２９日　水曜日　午後８時９分

213
uuAudio Error Messages uiPod/USB Flash Drive
Continued
Features
Error MessageSolution
USB ErrorAppears when there is a problem with the USB adapter unit. Check if the device is compatible with the
USB adapter unit.
The connected USB device
has a problem.
See Owner’s ManualAppears when an incompatib le device is connected. Disconnect th e device. Then turn the audio system
off, and turn it on again. Do not reco nnect the device that caused the error.
Unsupported VersionAppears when an unsupported iPod is connected. If it appears when a supported iPod is connected,
update the iPod software to the newer version.
Connect RetryAppears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable FileAppears when the files in the USB flash drive are DRM or an unsupported format. This error message
appears for about 3 seconds, then plays the next song.
No Data
Appears when the iPod is empty.
Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in the USB flash
drive.
Check that compatible files are stored on the device.
UnsupportedAppears when an unsupported device is connected. If it appears when a supported device is
connected, reconnect the device.
Models with display audio system
iPod
USB flash drive
iPod and USB flash drive
14 CIVIC 2D_SI-31TS86210.book 213 ページ ２０１４年１月２９日　水曜日　午後８時９分

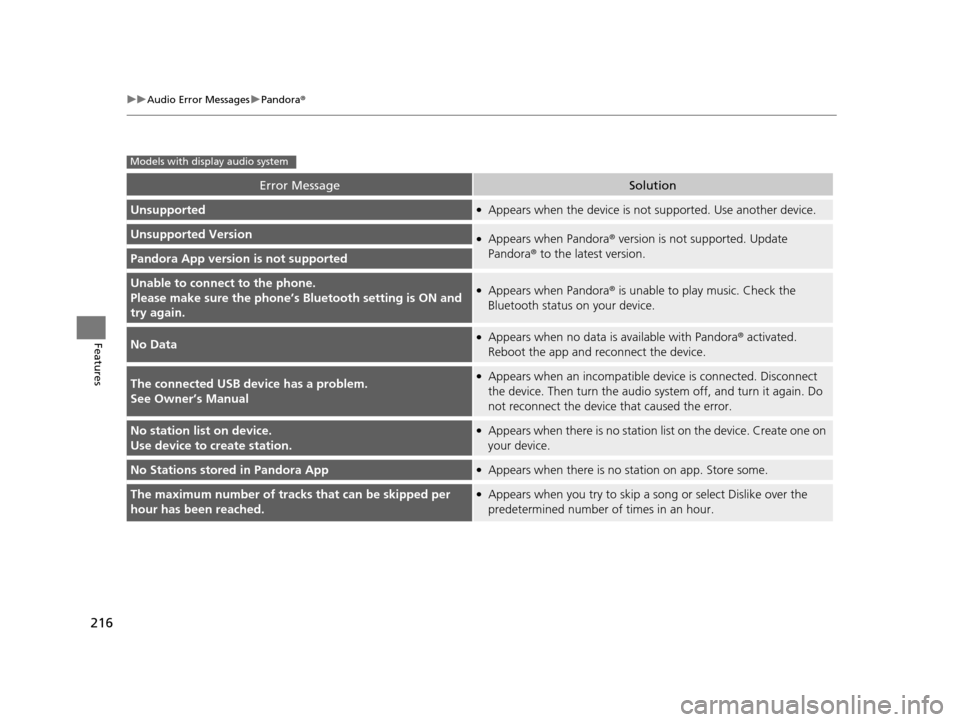

216
uuAudio Error Messages uPandora ®
Features
Error MessageSolution
Unsupported●Appears when the device is not supported. Use another device.
Unsupported Version●Appears when Pandora ® version is not supported. Update
Pandora ® to the latest version.
Pandora App version is not supported
Unable to connec t to the phone.
Please make sure th e phone’s Bluetooth setting is ON and
try again.●Appears when Pandora ® is unable to play music. Check the
Bluetooth status on your device.
No Data●Appears when no data is available with Pandora® activated.
Reboot the app and reconnect the device.
The connected USB device has a problem.
See Owner’s Manual●Appears when an incompatible de vice is connected. Disconnect
the device. Then turn th e audio system off, and turn it again. Do
not reconnect the device that caused the error.
No station list on device.
Use device to create station.●Appears when there is no station list on the device. Create one on
your device.
No Stations stored in Pandora App●Appears when there is no st ation on app. Store some.
The maximum number of tracks that can be skipped per
hour has been reached.●Appears when you try to skip a song or select Dislike over the
predetermined number of times in an hour.
Models with display audio system
14 CIVIC 2D_SI-31TS86210.book 216 ページ ２０１４年１月２９日　水曜日　午後８時９分

219
uuGeneral Information on the Audio System uCompatible iPod and USB Flash Drives
Features
Compatible iPod and USB Flash Drives
*1:Models with display audio system
• Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano
iPod touch
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5*1
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
14 CIVIC 2D_SI-31TS86210.book 219 ページ ２０１４年１月２９日　水曜日　午後８時９分

227
uuCustomized Features*u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Audio [Your selected media]
Cover Art Turns on and off the cover art display.
On
*1/Off
Display
Adjustment Display
Brightness
See System on P. 226
Contrast
Black Level
Color Color
Changes the color of the audio/information
screen. —
Tint Changes the tint of the audio/information screen. —
Aspect Ratio Adjustment Changes the aspect ratio and zoom settings of
the audio/information screen.
Normal
/Full
*1/Zoom
Change Bluetooth Audio Device Connects, disconnects or pairs a
Bluetooth®
Audio device to HFL. —
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a
paired phone.
2
Phone Setup P. 240
—
Default Cancels/Resets all customized items in the Audio

group as default. Yes
/No
iPod or USB mode
HDMI ® mode
HDMI ® mode
Bluetooth ® Audio mode
Bluetooth ® Audio mode
14 CIVIC 2D_SI-31TS86210.book 227 ページ ２０１４年１月２９日　水曜日　午後８時９分

Index
431
Index
Index
Numbers
7-Speed Manual Shift Mode................... 309
Operation ............................................... 310
A
ABS (Anti-lock Brake System) .................. 328
Accessories and Modifications ................ 336
Accessory Power Socket ........................... 150
Additives
Coolant .................................................. 355
Engine Oil ............................................... 348
Washer ................................................... 359
Adjusting Armrest .................................................. 144
Clock ...................................................... 100
Front Seats.............................................. 137
Head Restraints ....................................... 139
Mirrors.................................................... 135
Rear Seats ............................................... 143
Steering Wheel ....................................... 134
Temperature ............................................. 86
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 156
Defrosting the Windshield and Windows .............................................. 156
Dust and Pollen Filter .............................. 384
Recirculation/Fresh Air Mode................... 156 Sensor ..................................................... 157
Using Automatic Climate Control ............ 155
Air Conditioning System (Heating and Cooling System) ...................................... 152
Cooling ................................................... 154
Defrosting the Windshield and Windows ............................................... 154
Dust and Pollen Filter ............................... 384
Heating ................................................... 153
Air Pressure ............................... 373, 419, 421
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
After a Collision ......................................... 40
Airbag Care ............................................... 49
Event Data Recorder .................................. 22
Front Airbags (SRS) .................................... 40
Indicator .............................................. 47, 70
Passenger Airbag Off Indicator .................. 48
Sensors ...................................................... 37
Side Airbags .............................................. 44
Side Curtain Airbags .................................. 46
AM/FM Radio .................................... 168, 191
Anti-lock Brake System (ABS) .................. 328
Indicator .................................................... 69
Armrest ..................................................... 144
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ........................ 167, 189
Auxiliary Input Jack .................................. 162 Error Messages ........................................ 211
General Information ................................ 217
Internet Radio ................................. 177, 200
iPod ........................................................ 197
MP3/WMA/AAC ...................... 179, 202, 207
Reactivating ............................................ 163
Recommended CDs ................................. 217
Recommended Devices............................ 219
Remote Controls ..................................... 164
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Adapter Cable.......................... 161, 162
USB Flash Drives ...................................... 219
USB/HDMI
® Port ...................................... 161
Authorized Manuals ................................ 429
Auto Door Locking/Unlocking ................. 112
Customize ................................................. 94
Automatic Lighting .................................. 128
Automatic Transmission
Creeping ................................................. 304
Kickdown ................................................ 304
Shift Lever Does Not Move ...................... 406
Automatic Transmission (CVT) ................. 304
Fluid ........................................................ 357
Operating the Shift Lever........... 16, 306, 308
Shifting ........................................... 305, 307
Auxiliary Input Jack .................................. 162
Average Fuel Economy .............................. 85
Average Speed ........................................... 85
14 CIVIC 2D_SI-31TS86210.book 431 ページ ２０１４年１月２９日　水曜日　午後８時９分

438
Index
Towing Your Vehicle................................ 297
Emergency............................................... 416
TPMS (Tire Pressure Monitoring System) .................................................... 322
Indicator ............................................ 72, 412
Transmission .............................. 305, 307, 311
Automatic (CVT) .............................. 305, 307
Fluid ........................................................ 357
Manual .................................................... 311
Number ................................................... 422
Shift Lever Position Indicator ...... 68, 306, 308
Trip Meter ................................................... 84
Troubleshooting ....................................... 391
Blown Fuse ...................................... 413, 414
Brake Pedal Vibrates .................................. 20
Buzzer Sounds When Opening Door .......... 21
Emergency Towing .................................. 416
Engine Won’t Start .................................. 400
Noise When Braking .................................. 21
Overheating............................................. 407
Premium Gasoline............................ 332, 420
Puncture/Flat Tire ..................................... 393
Shift Lever Won’t Move ........................... 406
Warning Indicators .................................... 66
Trunk ......................................................... 113
Lid ........................................................... 113
Light Bulb ........................................ 418, 420
Turn Signals ............................................... 127
Turn Signals and Hazard Warning Indicators (Instrum ent Panel) ...................... 73U
Unlocking the Doors ................................ 105
Unlocking the Doo rs from the Inside........ 11
USB Adapter Cable ........................... 160, 162
USB Flash Drives ....................................... 219
USB/HDMI ® Port ................................ 160, 161
Using the Smart Entry with Push Button Start System ..................................................... 107
V
Valet Key ................................................... 103
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 422
Vehicle Stability Assist (VSA ®).................. 318
Off Button............................................... 319
Off Indicator.............................................. 71
System Indicator ........................................ 71
Viscosity (Oil) ............................ 348, 419, 421
VSA ® (Vehicle Stability Assist) .................. 318
W
Wallpaper........................................... 95, 187
Warning and Information Messages ......... 76
Warning Indicator On/Blinking ............... 409
Warning Labels ........................................... 63
Warranties (Warranty Manual provided separately) .............................................. 427
Watts ................................................. 418, 420
Wear Indicators (Tire) .............................. 377 Wheel Cover
............................................. 397
Wheel Nut Wrench (Jack Handle) ........... 396
Window Washers ..................................... 131
Adding/Refilling Fluid .............................. 359
Switch .................................................... 131
Windows (Opening and Closing) ............ 119
Windshield ............................................... 131
Cleaning ................................................. 388
Defrosting/Defogging ..................... 154, 156
Washer Fluid ........................................... 359
Wiper Blades........................................... 370
Wipers and Washers ............................... 131
Winter Tires .............................................. 380
Snow Tires .............................................. 380
Tire Chains.............................................. 380
Wipers and Washers ................................ 131
Checking and Replacing Wiper Blades..... 370
WMA ......................... 171, 179, 194, 202, 207
Worn Tires ................................................ 372
14 CIVIC 2D_SI-31TS86210.book 438 ページ ２０１４年１月２９日　水曜日　午後８時９分
