2014 HONDA ACCORD COUPE key

534

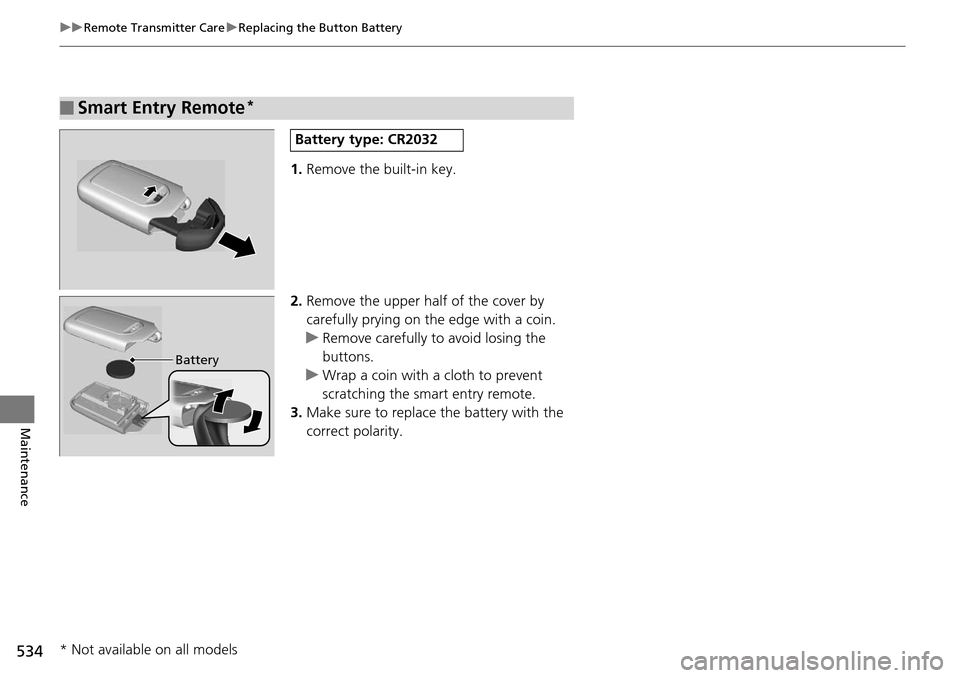

uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity.
■Smart Entry Remote*
Battery type: CR2032
Battery
* Not available on all models

555
Handling the Unexpected

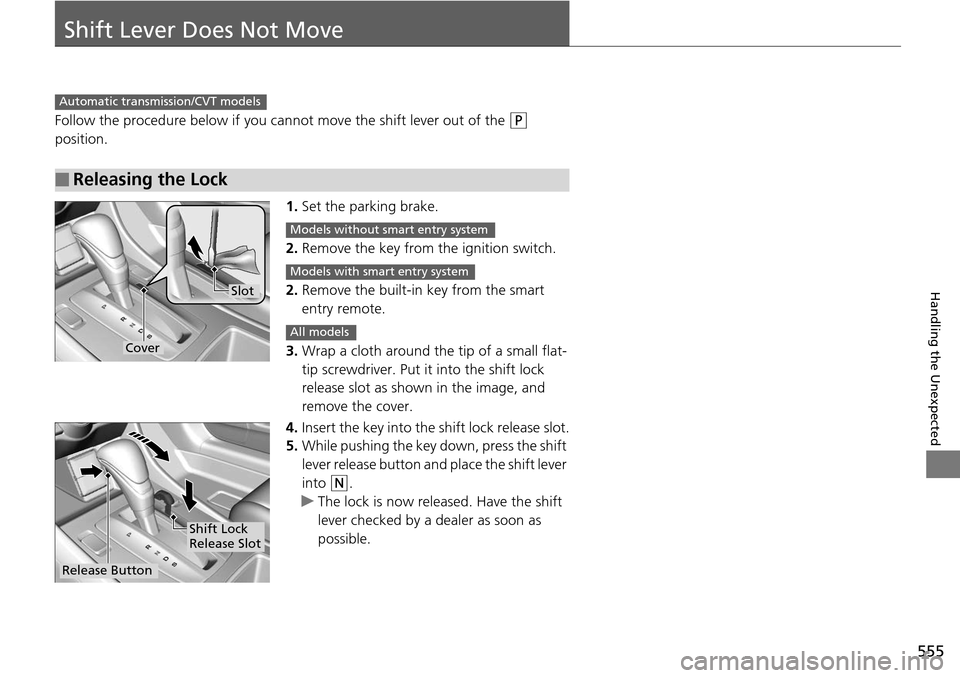

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from th e ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift
lever release button and place the shift lever
into
(N.
u The lock is now released. Have the shift
lever checked by a de aler as soon as
possible.
■Releasing the Lock
Automatic transmission/CVT models
Slot
Cover
Models without smart entry system
Models with smart entry system
All models
Release Button
Shift Lock
Release Slot

563
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1A/C7.5 A
2DRL7.5 A
3−−
4−−
5Meter7.5 A
6SRS7.5 A
7Option*(7.5 A)
8MISS SOL10 A
9Fuel Pump20 A
10ABS/VSA7.5 A
11−−
12Front Wiper7.5 A
13ACG15 A
14Rear Accessory Power Socket
(Console Compartment)(20 A)
15Driver’s Power Seat Reclining*(20 A)
16Moonroof*(20 A)
17Front Seat Heaters*(20 A)
18−−
19Passenger Side Door Unlock10 A
20Driver Side Rear Door
Unlock10 A
21Driver’s Door Lock10 A
22Passenger Side Door Lock10 A
23Driver’s Door Unlock10 A
24SRS10 A
25Illumination10 A
26Key Lock7.5 A
27Parking Lights10 A
28Lumbar Support*(10 A)
29Right Headlight High Beam10 A
30Washer15 A
31SMART*(10 A)
32Driver’s Power Window20 A
Circuit ProtectedAmps
33Front Passenger’s Power Window20 A
34Rear Driver Side Power Window20 A
35Rear Passenger Side Power Window20 A
36Driver’s Power Seat Sliding*(20 A)
37ACCESSORY7.5 A
38−−
39Left Headlight High Beam10 A
40Accessory Power Socket
(Console Panel)20 A
41Driver Side Rear Door Lock10 A
42Door Lock20 A
aAudio*(7.5 A)
bACM*(20 A)
cRear Seat Heaters*(15 A)
dPremium Amp*(20 A)
e−−
f−−
gPassenger’s Power Seat Reclining*(20 A)
hPassenger’s Power Seat Sliding*(20 A)
Circuit ProtectedAmps
* Not available on all models

573
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Remote Transmitter

586
Index
Cruise Control........................................... 445
Indicator .................................................... 80
Cup Holders ............................................... 160
Customer Service Information ................. 580
Customized Features .......................... 97, 298
D
Daytime Running Lights ........................... 139
Dead Battery ............................................. 552
Defrosting the Windshield and Windows .......................................... 168, 170
Devices that Emit Radio Waves ................ 573
Dimming Headlights ............................................... 136
Rearview Mirror ....................................... 146
Dipstick (Engine Oil) ................................. 500
Directional Signals (Turn Signal) .............. 136
Display Button .......................... 181, 206, 238
Door Mirrors ............................................. 147
Doors ......................................................... 108
Auto Door Locking .................................. 119
Auto Door Unlocking ............................... 119
Door and Trunk Open Indicator ........... 31, 74
Keys ........................................................ 108
Locking/Unlocking the Doors from the Inside ............................................... 116
Locking/Unlocking the Doors from the Outside ............................................ 111
Lockout Prevention System ...................... 115 DOT Tire Quality Grading
........................ 526
Driving ...................................................... 415
Adaptive Cruise Control (ACC) ................ 448
Automatic Transmission/CVT ................... 432
Braking ................................................... 472
Cruise Control ......................................... 445
Shifting Gear ................................... 439, 441
Shifting Position .............................. 433, 435
Starting the Engine.......................... 425, 427
Driving Position Memory System ............ 143
Dust and Pollen Filter ............................... 535
E
Eco Assist System.......................................... 7
ECON Button ............................................ 444
Elapsed Time ............................................... 95
Electric Power Steering (EPS) System
Indicator............................................ 74, 560
Electronic Stability Control (ESC) ............. 464
Emergency ................................................ 565
Emergency Engine Stop ........................... 551
Emergency Trunk Opener ........................ 123
Emissions Testing (Readiness Codes) ....... 575
Engine ....................................................... 572
Coolant ................................................... 505
Jump Starting .......................................... 552
Oil ........................................................... 499
Starting ........................................... 425, 427
Switch Buzzer.......................................... 131 Engine Coolant
........................................ 505
Adding to the Engine Coolant
Reservoir ............................................... 505
Adding to the Radiator ........................... 506
Overheating ............................................ 556
Temperature Gauge .................................. 89
Engine Oil ................................................. 499
Adding ................................................... 502
Checking ................................................ 500
Displaying Oil Life ........................... 487, 491
Low Oil Pressure Indicator ................. 69, 558
Recommended Engine Oil ....................... 499
ENGINE START/STOP Button .................... 132
EPS (Electric Power Steering)
System ............................................... 74, 560
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 64
Expanded View Driver’s Mirror ............... 147
Exterior Care (Cleaning) .......................... 538
Exterior Mirrors ........................................ 147
F
Features.................................................... 173
Filters Dust and Pollen....................................... 535
Oil .......................................................... 503
Flat Tire ..................................................... 543
Floor Mats ................................................ 537

588
Index
HomeLink® Universal Transceiver ............ 336
I
Identification Numbers
Engine and Transmission.......................... 572
Vehicle Identification ............................... 572
Ignition Switch .......................................... 131
Illumination Control Knob ....................................................... 141
Immobilizer System .................................. 124
Indicator .................................................... 77
Indicators ..................................................... 68
Adaptive Cruise Control (ACC) .................. 80
Anti-lock Brake System (ABS) ..................... 72
Brake System (Amber)................................ 68
Brake System (Red) .................................... 68
Charging System ............................... 69, 558
CRUISE CONTROL .............................. 80, 446
CRUISE MAIN .................................... 80, 445
Door and Trunk Open ................................ 74
ECON Mode ...................................... 80, 444
Electric Power Steering (EPS) System ............................................. 74, 560
Fog Light ................................................... 77
Forward Collision Wa rning (FCW) .............. 78
High Beam................................................. 76
Immobilizer System .................................... 77
Lane Departure Warning (LDW) ................. 79
Light Control ............................................. 81
Lights On ................................................... 76 Low Fuel ................................................... 72
Low Oil Pressure ................................ 69, 558
Low Tire Pressure/TPMS ............. 75, 468, 470
Maintenance Minder ......................... 80, 487
Malfunction Indicator Lamp............... 69, 559
Parking Brake and Brake System ........ 68, 560
Seat Belt Reminder .............................. 33, 71
Security System Alarm ............................... 77
Smart Entry System ................................... 81
Starter System ........................................... 81
Supplemental Restraint System ............ 49, 72
System Message ........................................ 76
Transmission ............................................. 71
Turn Signal and Hazard Warning ............... 76
Vehicle Stability Assist (VSA
®)
System ............................................ 73, 464
VSA ® OFF .......................................... 73, 465
Washer Level ............................................. 80
Information .............................................. 567
Information Display ................................... 90
Instant Fuel Economy ........................... 91, 96
Instrument Panel ........................................ 67
Brightness Control................................... 141
Interface Dial ............................................ 235
Interior Lights ........................................... 156
Interior Rearview Mirror .......................... 146
J
Jack (Wheel Nut Wrench) ........................ 546
Jump Starting ........................................... 552
K
Key Number Tag ...................................... 109
Keyless Lockout Prevention ..................... 115
Keys ........................................................... 108
Lockout Prevention ................................. 115
Master Keys ............................................ 108
Number Tag............................................ 109
Rear Door Won’t Open ........................... 118
Remote Transmitter ................................ 111
Types and Functions................................ 108
Valet Key ........................................ 109, 122
Won’t Turn ............................................... 22
Kickdown (Automatic Transmission/ CVT) ......................................................... 432
L
Lane Departure Warning (LDW) ............. 460
LaneWatchTM............................................ 466
Language (HFL) ................................ 340, 376
LATCH (Child Seats) ................................... 57
Lights ................................................ 136, 511
Automatic............................................... 137
Bulb Replacement ................................... 511
Daytime Running Lights .......................... 139
Fog Lights ............................................... 138
High Beam Indicator ................................. 76
Interior.................................................... 156
Light Switches......................................... 136
Lights On Indicator .................................... 76
Turn Signals ............................................ 136

589
Index
Load Limits............................................... 419
Locking/Unlocking ................................... 108
Auto Door Locking/Unlocking ................. 119
Childproof Door Locks ............................ 118
From Inside ............................................. 116
From Outside .......................................... 111
Keys........................................................ 108
Using a Key............................................. 115
Lockout Prevention System ..................... 115
Low Battery Charge ................................. 558
Low Fuel Indicator ..................................... 72
Low Oil Pressure Indicator ................. 69, 558
Low Smart Entry Remote Signal Strength .................................................. 110
Lower Anchors ........................................... 57
Lubricant Specifications Chart ........ 568, 570
Luggage (Maximum Load Limit) ............. 419
M
Maintenance............................................ 483
Battery .................................................... 532
Brake/Clutch Fluid ................................... 509
Cleaning ................................................. 536
Climate Control System .......................... 535
Coolant .................................................. 505
Heating and Cooling System ................... 535
Maintenance Minder
TM............................ 487
Oil .......................................................... 500
Precautions ............................................. 484
Radiator .................................................. 506 Remote Transmitter ................................. 533
Replacing Light Bulbs ............................... 511
Safety ...................................................... 485
Service Items ................................... 489, 493
Tires ........................................................ 523
Transmission Fluid ................................... 507
Under the Hood ...................................... 495
Malfunction Indicator Lamp .............. 69, 559
Manual Transmission ................................ 441
Map Lights ................................................ 157
Maximum Load Limit ............................... 419
Meters, Gauges ........................................... 89
Mirrors ....................................................... 146
Adjusting ................................................. 146
Door ........................................................ 147
Exterior .................................................... 147
Interior Rearview ..................................... 146
Modifications (and Accessories) .............. 482
Moonroof .................................................. 130
MP3 ................... 189, 197, 220, 230, 259, 283
Multi-Information Display ......................... 93
Multi-View Rear Camera .......................... 477
N
Numbers (Identification).......................... 572
O
Odometer.............................................. 91, 95 Oil (Engine)
............................................... 499
Adding .................................................... 502
Checking................................................. 500
Displaying Oil Life ............................ 487, 491
Low Oil Pressure Indicator ................. 69, 558
Recommended Engine Oil ....................... 499
Viscosity .................................................. 499
Opening/Closing
Hood....................................................... 497
Moonroof ............................................... 130
Power Windows ...................................... 127
Trunk ...................................................... 120
Outside Temperature Display .............. 92, 96
Overheating .............................................. 556
P
Paddle Shifters (7-Speed Manual Shift
Mode) ...................................................... 437
Pandora ®................................... 196, 228, 281
Panic Mode ............................................... 126
Parking ...................................................... 476
Parking Brake ........................................... 472
Parking Brake and Brake System Indicator ....
68, 560
Passenger Airbag Off Indicator ................. 50
Passing Indicators ..................................... 136
Power Windows ....................................... 127
Precautions While Driving ....................... 431
Rain ........................................................ 431
Pregnant Women ....................................... 37

591
Index
T
Tachometer................................................ 89
Temperature Outside Temperature Display .............. 92, 96
Temperature Sensor .................... 92, 96, 172
Time (Setting) ........................................... 106
Tire Pressure Monitoring System (TPMS) ..................................................... 468
Indicator ........................................... 75, 561
Tires .......................................................... 523
Air Pressure............................. 524, 569, 571
Checking and Maintaining ...................... 523
Inspection ............................................... 523
Labeling .................................................. 524
Puncture (Flat Tire) .................................. 543
Regulations ............................................. 526
Rotation.................................................. 530
Spare Tire ............................... 543, 569, 571
Summer .................................................. 531
Tire Chains.............................................. 531
Wear Indicators....................................... 528
Winter .................................................... 531
Tools ......................................................... 542
Towing a Trailer ....................................... 421
Equipment and Accessories ..................... 422
Load Limits ............................................. 421
Towing Your Vehicle ............................... 424
Emergency .............................................. 565
TPMS (Tire Pressure Monitoring System) .................................................... 468
Indicator ........................................... 75, 561 Transmission
..................... 433, 435, 439, 441
Automatic ............................................... 439
Automatic (CVT) .............................. 433, 435
Fluid ................................................ 507, 508
Manual .................................................... 441
Number ................................................... 572
Shift Lever Position Indicator .......................... 70, 434, 436, 440
Trip Meter ............................................. 91, 95
Troubleshooting ....................................... 541
Blown Fuse ...................................... 562, 563
Brake Pedal Vibrates .................................. 22
Buzzer Sounds When Opening Door .......... 23
Emergency Towing .................................. 565
Engine Won’t Start .................................. 549
Noise When Braking .................................. 23
Overheating ............................................ 556
Puncture/Flat Tire ..................................... 543
Rear Door Won’t Open ...................... 22, 118
Select Lever Won’t Move ......................... 555
Warning Indicators .................................... 68
Trunk ......................................................... 120
Lid ........................................................... 120
Light Bulb ........................................ 568, 570
Main Switch ............................................ 122
Turn Signals .............................................. 136
Indicators (Instrument Panel) ...................... 76
U
Unlocking the Doors ................................ 111 Unlocking the Front Doors from
the Inside .................................................. 11
USB Flash Drives ....................................... 297
USB Port .................................................... 175
Using the Smart Entry with Push Button Start
System ..................................................... 113
V
Valet Key ........................................... 109, 122
Vanity Mirrors ............................................... 5
Vehicle Identification Number ................ 572
Vehicle Stability Assist (VSA ®).................. 464
Off Button............................................... 465
Off Indicator.............................................. 73
System Indicator ........................................ 73
Ventilation ........................................ 166, 169
Viscosity (Oil) ............................ 499, 569, 571
VSA ® (Vehicle Stability Assist) .................. 464
W
Warning and Information Messages ... 82, 84
Warning Indicator On/Blinking ............... 558
Warning Labels ........................................... 65
Warranties (Warranty Manual provided
separately) .............................................. 577
Watts ................................................. 568, 570
Wear Indicators (Tire) .............................. 528
Wheel Nut Wrench (Jack Handle) ........... 546
