2014 FORD POLICE INTERCEPTOR UTILITY technical specifications

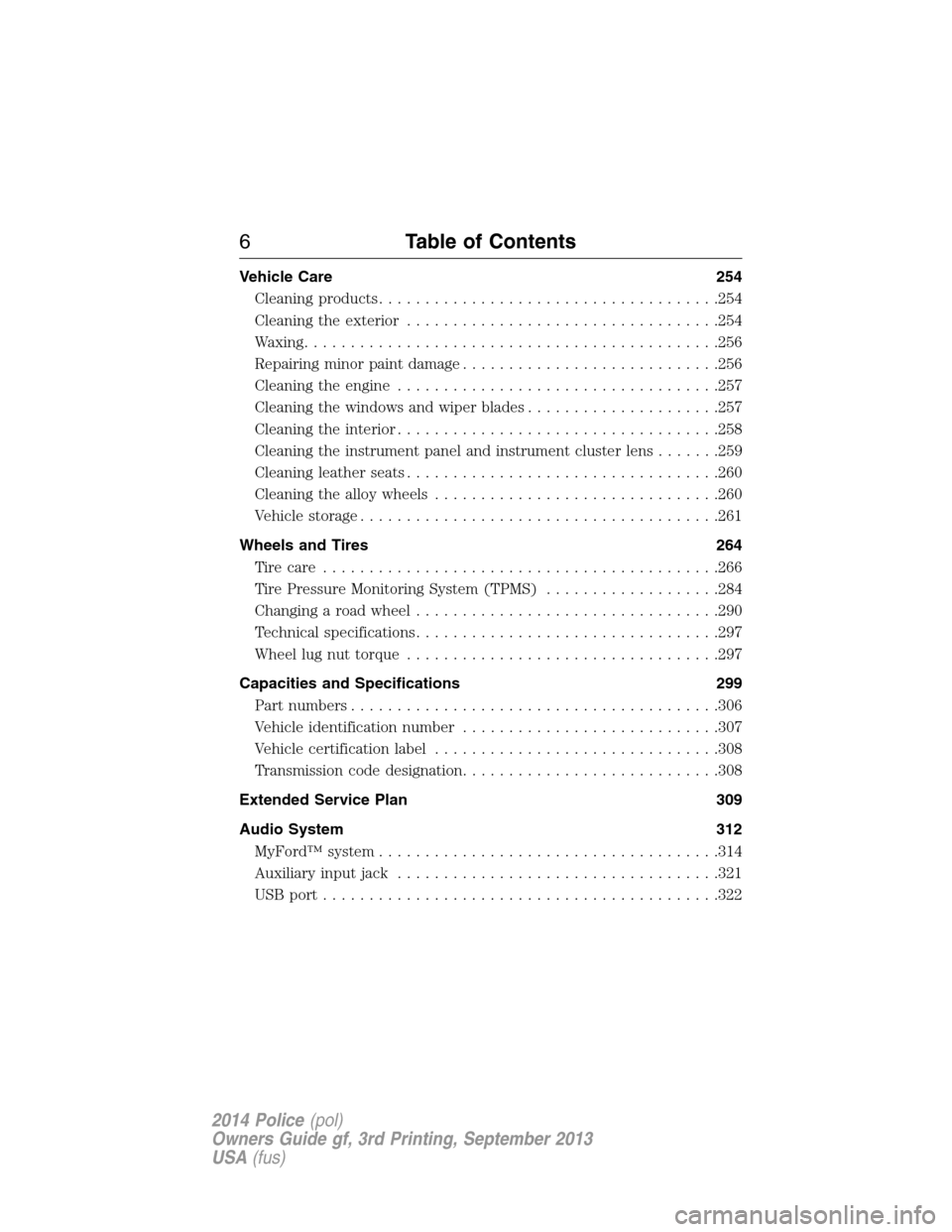

Vehicle Care 254
Cleaning products.....................................254
Cleaning the exterior..................................254
Waxing.............................................256
Repairing minor paint damage............................256
Cleaning the engine...................................257
Cleaning the windows and wiper blades.....................257
Cleaning the interior...................................258
Cleaning the instrument panel and instrument cluster lens.......259
Cleaning leather seats..................................260
Cleaning the alloy wheels...............................260
Vehicle storage.......................................261
Wheels and Tires 264
Tirecare ...........................................266
Tire Pressure Monitoring System (TPMS)...................284
Changing a road wheel.................................290
Technical specifications.................................297
Wheel lug nut torque..................................297
Capacities and Specifications 299
Part numbers........................................306
Vehicle identification number............................307
Vehicle certification label...............................308
Transmission code designation............................308
Extended Service Plan 309
Audio System 312
MyFord™ system.....................................314
Auxiliary input jack...................................321
USB port...........................................322
6Table of Contents
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short-distance radio transmissions, for example amateur radios,
medical equipment, wireless headphones, remote controls and alarm
systems. If the frequencies are jammed, you will not be able to use your
remote control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
REMOTE CONTROL (IF EQUIPPED)
If there are problems with the
remote entry system, make sure to
take all remote entry transmitters
with you to the authorized dealer in
order to aid in troubleshooting the
problem.
Keys and Remote Control65
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Note:Police pursuits, involving hard braking, result in high temperatures
in the brake system - including the brake fluid. Over time, repeated
exposure to high brake temperatures can degrade brake fluid, potentially
reducing its boiling point. A lower boiling point could cause long brake
pedal travel and a loss of braking confidence during subsequent pursuit
driving. Ford recommends that police fleets replace the brake fluid at
every brake pad service interval according to the service procedure.
Brake fluid should be replaced on vehicles involved in high speed
pursuits with heavy brake usage.
POWER STEERING FLUID CHECK
Your vehicle is equipped with an electric power steering (EPS) system.
There is no fluid reservoir to check or fill. For additional information on
the electric power steering (EPS) system, Refer toDriving Aids.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WASHER FLUID CHECK
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Add fluid to fill the reservoir if the level is low. Only use a washer fluid
that meets Ford specifications. See the technical specifications chart in
theCapacities and Specificationschapter.
Note:The front and rear washer systems are supplied from the same
reservoir.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
Maintenance235
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

3. Place the flat tire in the spare
tire well with the wheel facing up.
4. Safely secure the wheel by
screwing the large wing nut onto
the extension bolt.
TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while your vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque at 100 miles
(160 kilometers), and again at 500 miles (800 kilometers) of new vehicle
operation and after any wheel disturbance (such as tire rotation,
changing a flat tire, wheel removal).
Wheels and Tires297
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

TECHNICAL SPECIFICATIONS
Items CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraft DOT 4 LV
High Performance Motor
Vehicle Brake FluidPM-20 / WSS-M6C65-A2
Door latch, hood
latch, auxiliary hood
latch, seat tracks,
trunk and liftgate
latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic
transmission
fluid
2,3
6F35 transmission
9.0 qt (8.5L)
Motorcraft
MERCON LV ATFXT-10-QLV /
MERCON LV 6F50 transmission
10.9 qt (10.3L)
6F55 transmission
11.6 qt (11.0L)
Rear differential
fluid2.4 pt (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Sedan and Utility
Power Transfer Unit
fluid (All Wheel
Drive)
4
18 oz (0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Capacities and Specifications301
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)
