2014 FORD POLICE INTERCEPTOR UTILITY display

Security 76
Steering Wheel 77
Adjusting the steering wheel..............................77
Steering wheel controls.................................77
Pedals 80
Adjustable pedals......................................80
Wipers and Washers 81
Windshield wipers.....................................81
Windshield washers....................................81
Rear-window wiper and washer............................82
Lighting 83
Lighting control.......................................83
Instrument lighting dimmer...............................86
Daytime running lamps..................................87
Directionindicators ....................................87
Interior lamps........................................88
Windows and Mirrors 91
Power windows.......................................91
Exteriormirrors.......................................93
Interiormirrors .......................................95
Sunvisors ...........................................95
Instrument Cluster 96
Gauges.............................................97
Warning lamps and indicators.............................98
Audible warnings and indicators..........................102
Information Displays 103
Controls............................................103
Trip computer.......................................105
Information messages..................................106
2Table of Contents
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

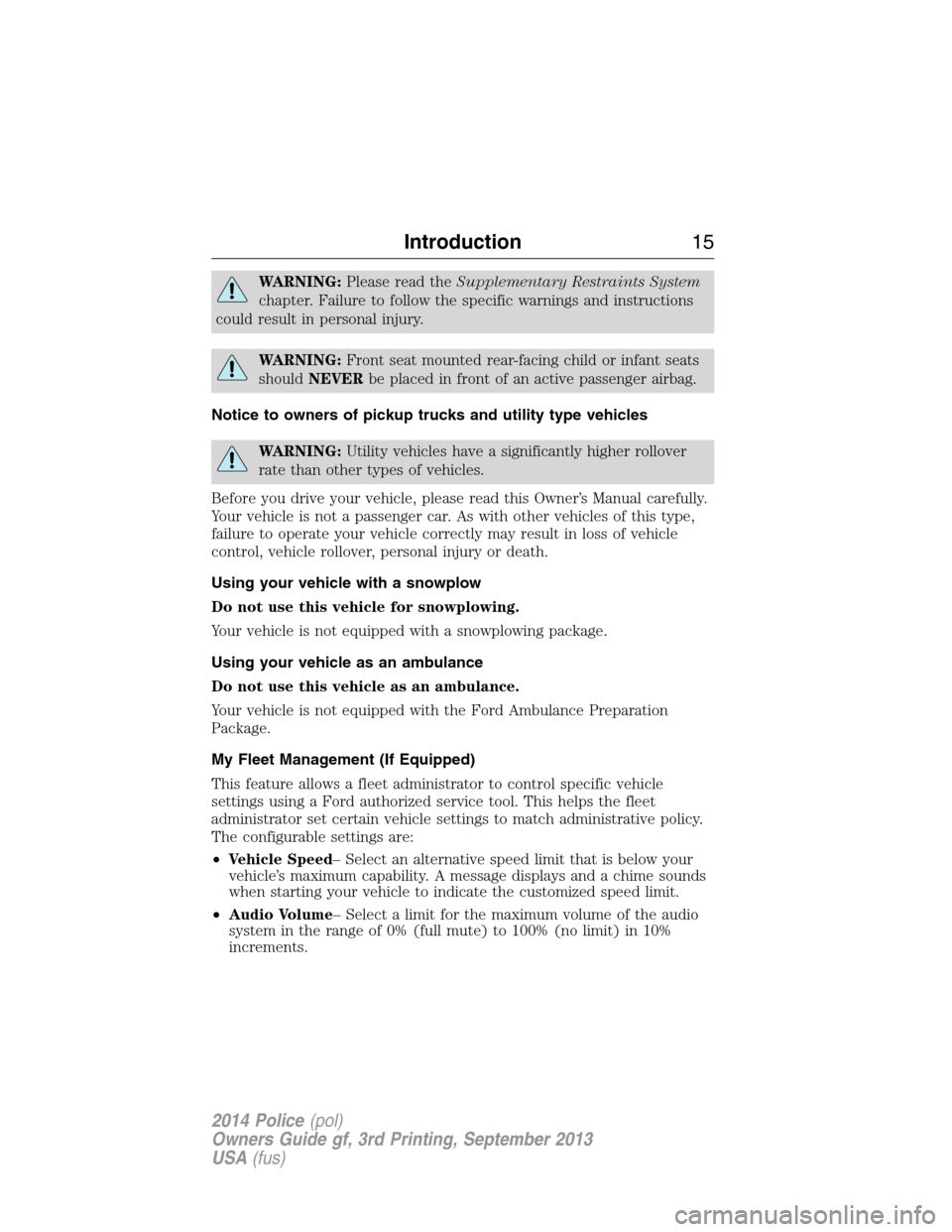

WARNING:Please read theSupplementary Restraints System
chapter. Failure to follow the specific warnings and instructions
could result in personal injury.
WARNING:Front seat mounted rear-facing child or infant seats
shouldNEVERbe placed in front of an active passenger airbag.
Notice to owners of pickup trucks and utility type vehicles
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Manual carefully.
Your vehicle is not a passenger car. As with other vehicles of this type,
failure to operate your vehicle correctly may result in loss of vehicle
control, vehicle rollover, personal injury or death.
Using your vehicle with a snowplow
Do not use this vehicle for snowplowing.
Your vehicle is not equipped with a snowplowing package.
Using your vehicle as an ambulance
Do not use this vehicle as an ambulance.
Your vehicle is not equipped with the Ford Ambulance Preparation
Package.
My Fleet Management (If Equipped)
This feature allows a fleet administrator to control specific vehicle
settings using a Ford authorized service tool. This helps the fleet
administrator set certain vehicle settings to match administrative policy.
The configurable settings are:
•Vehicle Speed– Select an alternative speed limit that is below your
vehicle’s maximum capability. A message displays and a chime sounds
when starting your vehicle to indicate the customized speed limit.
•Audio Volume– Select a limit for the maximum volume of the audio
system in the range of 0% (full mute) to 100% (no limit) in 10%
increments.
Introduction15
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

VOICE CONTROL (IF EQUIPPED)
A. Phone mode
B. Voice recognition
See theSYNCchapter.
CRUISE CONTROL
See theCruise Controlchapter for
information on this feature.
INFORMATION DISPLAY CONTROL
See theInformation Displays
chapter for more information.
S
E
E
KVOL
A
B
78Steering Wheel
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Cluster Display Control Features
This control functions the same as
the center control on the faceplate.
See theAudio Systemchapter.
CONFIGURABLE STEERING WHEEL CONTROLS (IF EQUIPPED)
The steering wheel controls can be
configured to operate frequently
used police equipment. A graphic in
the information display will show
when an auxiliary switch is
activated.
A
U
XAU
X
3
42
1
Steering Wheel79
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Press the end of the stalk to
activate the washer.
•A brief press causes a single wipe without washer fluid.
•A quick press and hold causes the wipers to swipe three times with
washer fluid.
•A long press and hold will activate the wipers and washer fluid for up
to 10 seconds.
A wipe will occur a few seconds after washing to clear any remaining
washer fluid. You can switch this feature on and off in the information
display.
REAR-WINDOW WIPER AND WASHERS (UTILITY ONLY)
Rotate the control to the desired
position. Select:
2— Intermittent operation
(shortest pause between wipes).
1— Intermittent operation (longest
pause between wipes).
0— Off.
Rotate and hold the control to either the top or bottom position to
activate the rear washer. The control will return to the2or0position
when you release it.
When you select reverse gear, the rear wiper will switch on to
intermittent if the front wipers are activated. This feature may be
enabled or disabled in the information display.
82Wipers and Washers
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

INSTRUMENT LIGHTING DIMMER
Sedan
•Press repeatedly or press and
hold until the desired level is
reached.
•
If the vehicle is not equipped with the Dark Car feature, press and hold
the top of the control to the full on position to activate the “dome on”
feature. This will turn on the interior courtesy lights. Press and hold the
bottom of the control to turn off the interior courtesy lights.
•If equipped with the Dark Car feature, courtesy illumination is
disabled. Press and hold the bottom of the control to turn off the
instrument cluster lights and the information display lights.
Utility
•Press repeatedly or press and
hold the top control to brighten
the instrument cluster and
information display lighting.
•Press repeatedly or press and hold the bottom control to dim the
instrument cluster and information display lighting. If equipped with
the Dark Car feature, you may turn off the instrument cluster and
information display lighting.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer will set the illuminated components to the
maximum setting automatically.
86Lighting
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

GAUGES
Sedan cluster shown in standard measure – optional and metric clusters
similar.
Utility cluster shown in standard measure – optional and metric clusters
similar.
A. Tachometer
B. Information display. SeeInformation displaysfor more information.
C. Speedometer
D. Fuel gauge
BCA
D
BCA
D
96Instrument Cluster
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

WARNING LAMPS AND INDICATORS
These indicators can alert you to a vehicle condition that may become
serious enough to cause expensive repairs. Many lights will illuminate
when you start your vehicle to make sure they work. If any light remains
on after starting the vehicle, refer to the respective system warning light
for additional information.
Note:Some warning indicators are reconfigurable telltales (RTT). These
indicators appear in the information display and function the same as a
warning light, but do not display on startup.
Stability Control System
Displays when the AdvanceTrac®/Traction control is active.
If the light remains on, have the system serviced immediately.
Stability Control System Off
Illuminates when AdvanceTrac®/Traction control has been
disabled by the driver.
Airbag readiness
If this light fails to illuminate when the ignition is turned on,
continues to flash or remains on, contact your authorized dealer
as soon as possible. A chime will sound when there is a
malfunction in the indicator light.
Anti-lock brake system
If the ABS light stays illuminated or continues to flash, a
malfunction has been detected. Contact your authorized dealer
as soon as possible. Normal braking is still functional unless the
brake warning light also is illuminated.
98Instrument Cluster
