2014 FORD POLICE INTERCEPTOR UTILITY display

Advanced Menu Options
This menu allows you to access settings such as prompts, language,
performing a master reset as well as returning to factory defaults.
1. Press AUX and then MENU to access the Media Menu.
2. Scroll until System Settings appears and select OK.
3. Scroll until Advanced appears.
4. Press OK and then scroll to select from the following:
When you select: You can:
PromptsHave SYNC guide you via questions, helpful
hints or ask you for a specific action.
1. Press OK to select and scroll to select
between on or off.
2. Press OK when the desired selection
appears in the display. SYNC takes you back
to the Advanced menu.
LanguagesChoose from English, Francais and Espanol.
The displays and prompts are in the selected
language.
1. Press OK to select and then scroll through
the languages.
2. Press OK when the desired selection
appears in the display.
3. If you change the language setting, the
display indicates that the system is updating.
When complete, SYNC takes you back to the
Advanced menu.
Factory DefaultsReturn to the factory default settings. This
selection does not erase your indexed
information (phonebook, call history, text
messages and paired devices).
1. Press OK to select and then press OK again
when Restore Defaults? appears in the display.
2. Press OK to confirm.
362SYNC®
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Note:Not all dealers have extended hours or body shops. Please contact
your dealer for details.
Protecting Your Investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Your vehicle is equipped with the Intelligent Oil-Life Monitor (IOLM)
system which displays a message in the information display at the proper
oil change service interval; this interval may be up to one year or
10000 miles (16000 kilometers). When ENGINE OIL CHANGE DUE or
OIL CHANGE REQUIRED appears in the information display, it is time
for an oil change; the oil change must be done within two weeks or
500 miles (800 kilometers) of the ENGINE OIL CHANGE DUE or OIL
CHANGE REQUIRED message appearing. The Intelligent Oil-Life Monitor
must be reset after each oil change; see theInformation Displays
chapter.
If your information display is prematurely reset or becomes inoperative,
you should perform the oil change interval at six months or 5000 miles
(8000 kilometers) from your last oil change. Never exceed one year or
10000 miles (16000 kilometers) between oil change intervals.
Your vehicle is very sophisticated and built with multiple, complex,
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That is why it is
important to rely upon your dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
Ford strongly recommends the use of only genuine Ford, Motorcraft or
Ford-authorized remanufactured replacement parts because they are
engineered for your vehicle.
Scheduled Maintenance381
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

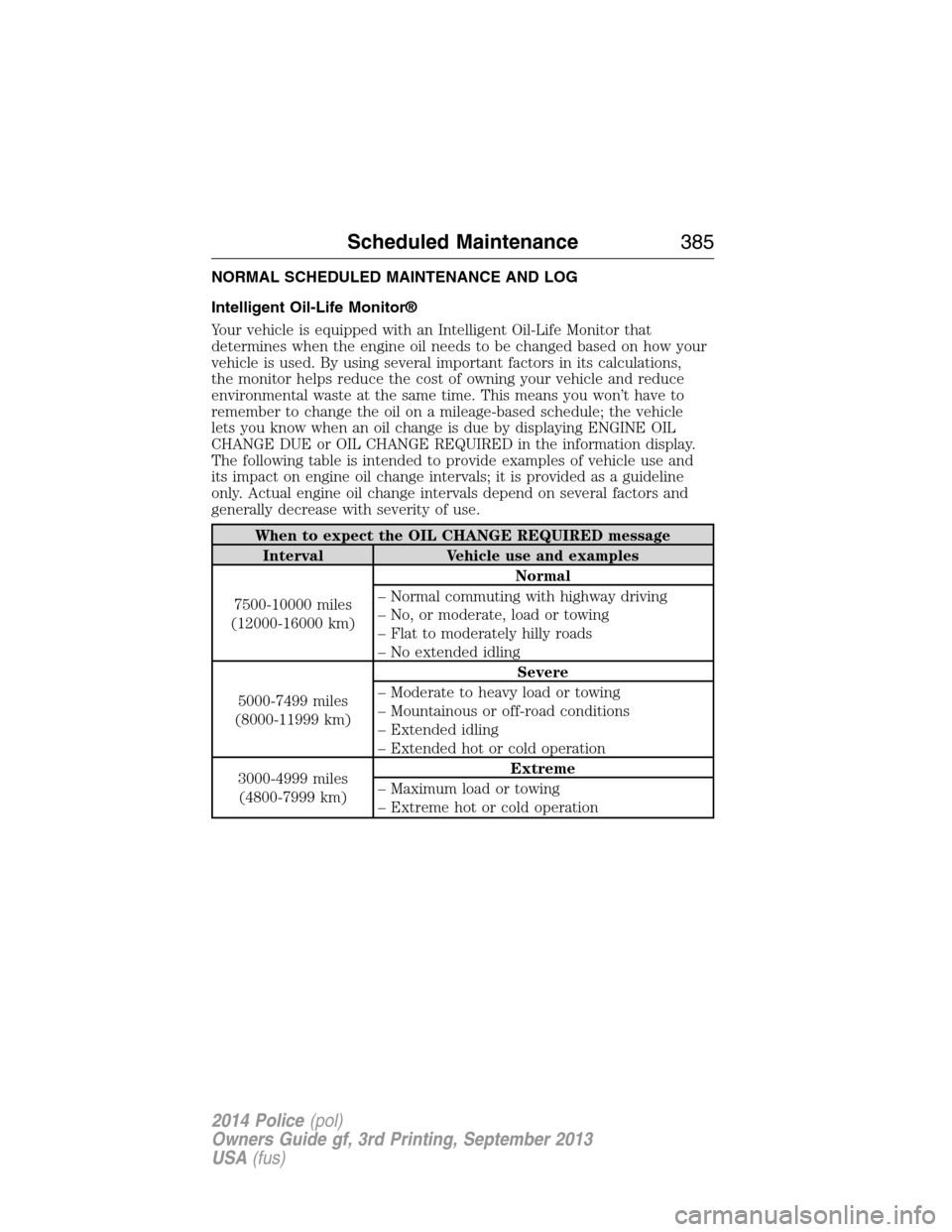

NORMAL SCHEDULED MAINTENANCE AND LOG
Intelligent Oil-Life Monitor®
Your vehicle is equipped with an Intelligent Oil-Life Monitor that
determines when the engine oil needs to be changed based on how your
vehicle is used. By using several important factors in its calculations,
the monitor helps reduce the cost of owning your vehicle and reduce
environmental waste at the same time. This means you won’t have to
remember to change the oil on a mileage-based schedule; the vehicle
lets you know when an oil change is due by displaying ENGINE OIL
CHANGE DUE or OIL CHANGE REQUIRED in the information display.
The following table is intended to provide examples of vehicle use and
its impact on engine oil change intervals; it is provided as a guideline
only. Actual engine oil change intervals depend on several factors and
generally decrease with severity of use.
When to expect the OIL CHANGE REQUIRED message
Interval Vehicle use and examples
7500-10000 miles
(12000-16000 km)Normal
– Normal commuting with highway driving
– No, or moderate, load or towing
– Flat to moderately hilly roads
– No extended idling
5000-7499 miles
(8000-11999 km)Severe
– Moderate to heavy load or towing
– Mountainous or off-road conditions
– Extended idling
– Extended hot or cold operation
3000-4999 miles
(4800-7999 km)Extreme
– Maximum load or towing
– Extreme hot or cold operation
Scheduled Maintenance385
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Normal scheduled maintenance*
At every oil change
interval as indicated by
the information displayChange engine oil and filter.**
Rotate tires, inspect tire wear and measure
tread depth.
Perform multi-point inspection
(recommended).
Inspect automatic transmission fluid level
(if equipped with dipstick). Consult dealer for
requirements.
Inspect brake pads, shoes, rotors, drums,
brake linings, hoses and parking brake.
Inspect engine cooling system strength and
hoses.
Inspect exhaust system and heat shields.
Inspect rear axle and U-joints. Lubricate if
equipped with grease fittings (All-wheel drive
vehicles).
Inspect half-shaft boots (if equipped).
Inspect steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and
U-joints. Lubricate if equipped with grease
fittings.
Inspect wheels and related components for
abnormal noise, wear, looseness or drag.
*Do not exceed one year or 10000 miles (16000 kilometers) between
service intervals.
**Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
386Scheduled Maintenance
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Perform the services shown in the following tables when specified or
within 3000 miles (4800 kilometers) of the OIL CHANGE REQUIRED
message appearing in the information display.
Example #1:The OIL CHANGE REQUIRED message comes
on at 28751 miles (46270 kilometers); perform the 30000 mile
(48000 kilometer) automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on,
but the odometer reads 30000 miles (48000 kilometers); perform the
engine air filter replacement. (for example, the Intelligent Oil-Life
Monitor was reset at 25000 miles [40000 kilometers].)
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredInspect and lubricate U-joints.
See axle maintenance items under
Exceptions.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
Extensive idling or low-speed driving for long distances as in
heavy commercial use (such as delivery, taxi, patrol car or
livery)
As required Change engine oil and filter as indicated by
the information display and perform services
listed in the Normal Scheduled Maintenance
chart.
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Replace engine air filter.
Scheduled Maintenance391
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Police interceptor equipped with an engine idle hour meter
Inspect frequently,
service as requiredReplace cabin air filter (if equipped).
Every 5000 miles
(8000 km)Inspect the brake system.
Lubricate control arm and steering ball joints if
equipped with grease fittings.
Rotate tires, inspect tires for wear and
measure tread depth.
Every 5000 miles
(8000 km) or six
months or as indicated
by time/mileage
calculation (see
description below)Change engine oil and filter.
*
Perform multi-point inspection.
Every 30000 miles
(48000 km)Change automatic transmission fluid.
Every 60000 miles
(96000 km)Replace spark plugs.
*Reset your Intelligent Oil-Life Monitor after each engine oil and filter
change. See theInstrument Clusterchapter.
ENGINE IDLE HOUR METER (IF EQUIPPED):
Your vehicle may be equipped with an idle meter to indicate how much
time the vehicle is idling in positionPorN.The meter is incorporated
with the vehicle odometer. Depressing the odometer-reset button once
displays the trip odometer (miles [kilometers] followed by a “T” for trip
odometer); depressing the odometer-reset button a second time displays
the idle meter (hours followed by an “H” for hours). The idle meter only
accumulates time when the vehicle is in positionPorN.Displayed time
is cumulative for the vehicle.It cannot be reset to zero.Police/Fleet
vehicles often experience long periods of idling, during which engine oil
continues to break down but distance is not accumulated on the
odometer.
Scheduled Maintenance393
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

fail-safe cooling .......................229
idle speed control ...................236
lubrication specifications .......301
refill capacities ........................301
service points ..................221, 223
Engine block heater .................130
Engine oil
checking and adding ..............225
dipstick ....................................225
filter, specifications ................306
refill capacities ........................301
specifications ..........................301
Event data recording ..................11
Exhaust fumes ..........................129
F
Fail safe cooling ........................229
Floor mats .................................192
Fluid capacities .........................301
Four-Wheel Drive vehicles
driving off road .......................146
Fuel
cap ...........................................137
capacity ...................................301
choosing the right fuel ...........133
filler funnel .............................134
filling your vehicle with fuel ..137
filter, specifications ........235, 306
fuel pump shut-off ..................195
octane rating ...........................134
quality ......................................133
running out of fuel .................134
safety information relating to
automotive fuels .....................132
Fuel and distance computer ....105
outside temperature
indicator ..................................105
to empty indicator ..................105trip distance ............................105
trip/reset button .....................105
Fuses ..................................207–208
G
Gas cap (see Fuel cap) ............137
Gauges .........................................97
odometer .................................105
trip odometer ..........................105
H
Hazard flashers .........................194
Headlamps
aiming ......................................242
bulb specifications ..................252
flash to pass ..............................85
high beam .................................84
replacing bulbs .......................244
Head restraints .........................117
Heating ......................................113
Hood ..........................................219
I
Ignition .......................................127
Illuminated visor mirror .............95
Information displays .................103
Inspection/maintenance (I/M)
testing ........................................142
Instrument panel
cleaning ...................................259
cluster ........................................98
J
Jack ............................................290
positioning ...............................290
Index401
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

R
Radio ..........................................314
Single CD ................................314
Radio reception .........................312
Rear view camera display ........159
Rear window defroster .............113
Receiving a text message .........336
Recommendations for
attaching safety restraints for
children ........................................24
Relays ................................207–208
Remote entry system
illuminated entry ................71–72
locking/unlocking doors ...........70
opening the trunk .....................71
replacement/additional
transmitters ...............................67
replacing the batteries .............66
Reverse sensing system ...........159
Roadside assistance ..................193
Roll stability control .................157
Roof rack ...................................173
S
Safety Belt Maintenance ............44
Safety belts (see Safety
restraints) ..............................37, 40
Safety defects, reporting ..........206
Safety information ....................324
Safety restraints ..............37–38, 40
Belt-Minder® ............................41
Belt-Minder®,
deactivating/activating .............43
extension assembly ..................39
for adults .............................37–38for children ...............................24
Occupant Classification
Sensor ........................................50
safety belt maintenance ...........44
seat belt maintenance ..............44
warning light and chime ..........41
Safety restraints - LATCH
anchors ........................................28
Safety seats for children ............24
Safety Compliance
Certification Label ....................308
Satellite Radio ...........................314
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............385
Seat belts (see Safety
restraints) ....................................37
Seats ..........................................121
child safety seats ......................24
front seats .......................119–120
second row seats ....................121
Selecting your media source
(USB, Line in, BT audio) .........355
Setting the clock .......................314
Side air curtain ...........................54
Side-curtain airbags system .......54
SIRIUS® satellite radio ............314
Snowplowing ...............................15
SOS Post Crash Alert .................47
Spark plugs, specifications .......306
Special notice
ambulance conversions ............15
utility-type vehicles ..................15
Specification chart,
lubricants ...................................301
Stability system .........................157
Index403
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)
