2014 FORD FIESTA Owners Manual

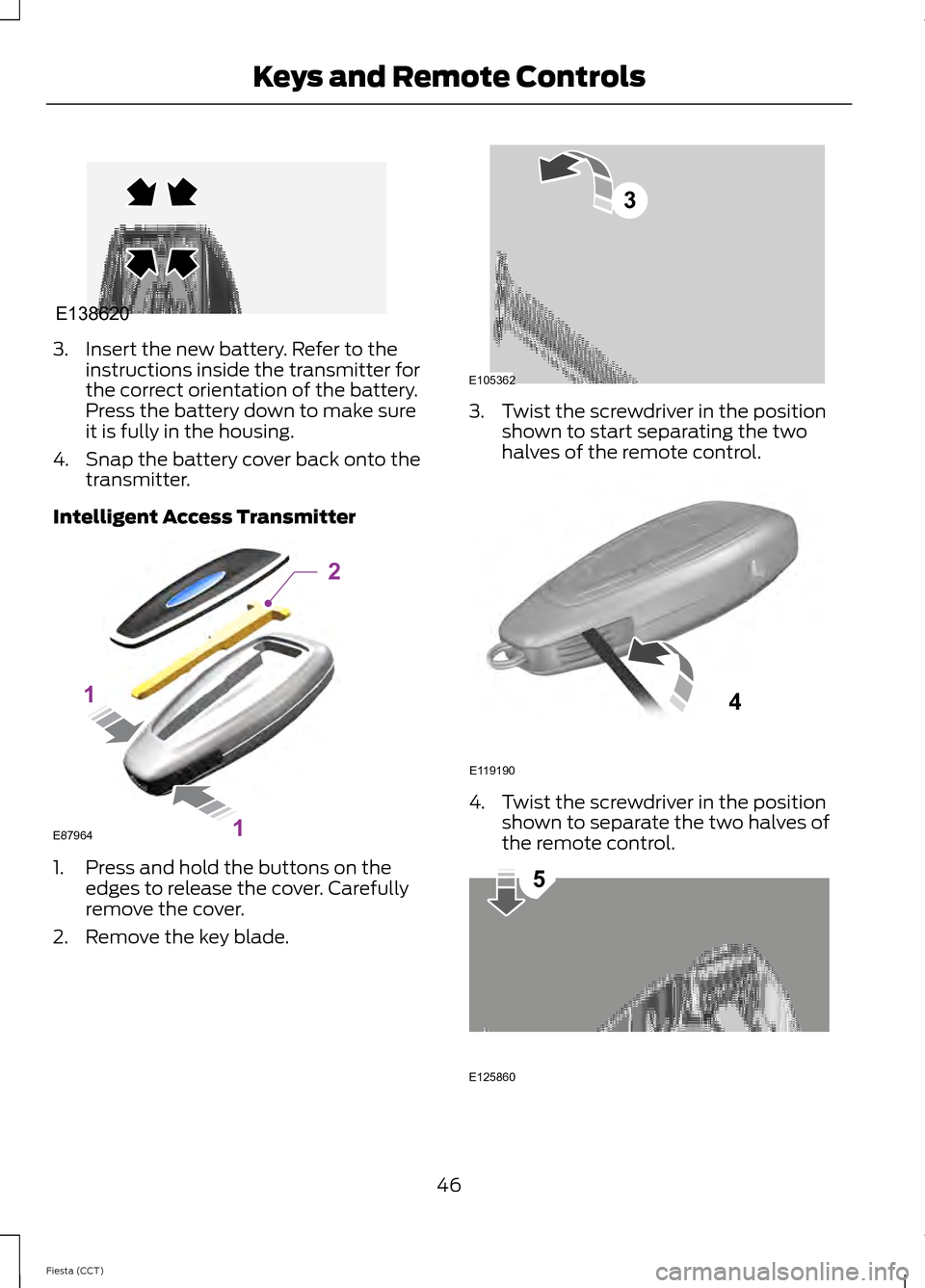

3. Insert the new battery. Refer to the
instructions inside the transmitter for
the correct orientation of the battery.
Press the battery down to make sure
it is fully in the housing.
4. Snap the battery cover back onto the transmitter.
Intelligent Access Transmitter 1. Press and hold the buttons on the
edges to release the cover. Carefully
remove the cover.
2. Remove the key blade. 3. Twist the screwdriver in the position
shown to start separating the two
halves of the remote control. 4. Twist the screwdriver in the position
shown to separate the two halves of
the remote control. 46
Fiesta (CCT) Keys and Remote ControlsE138620 E87964
2
1
1 E105362
3 E119190
4 E125860
5

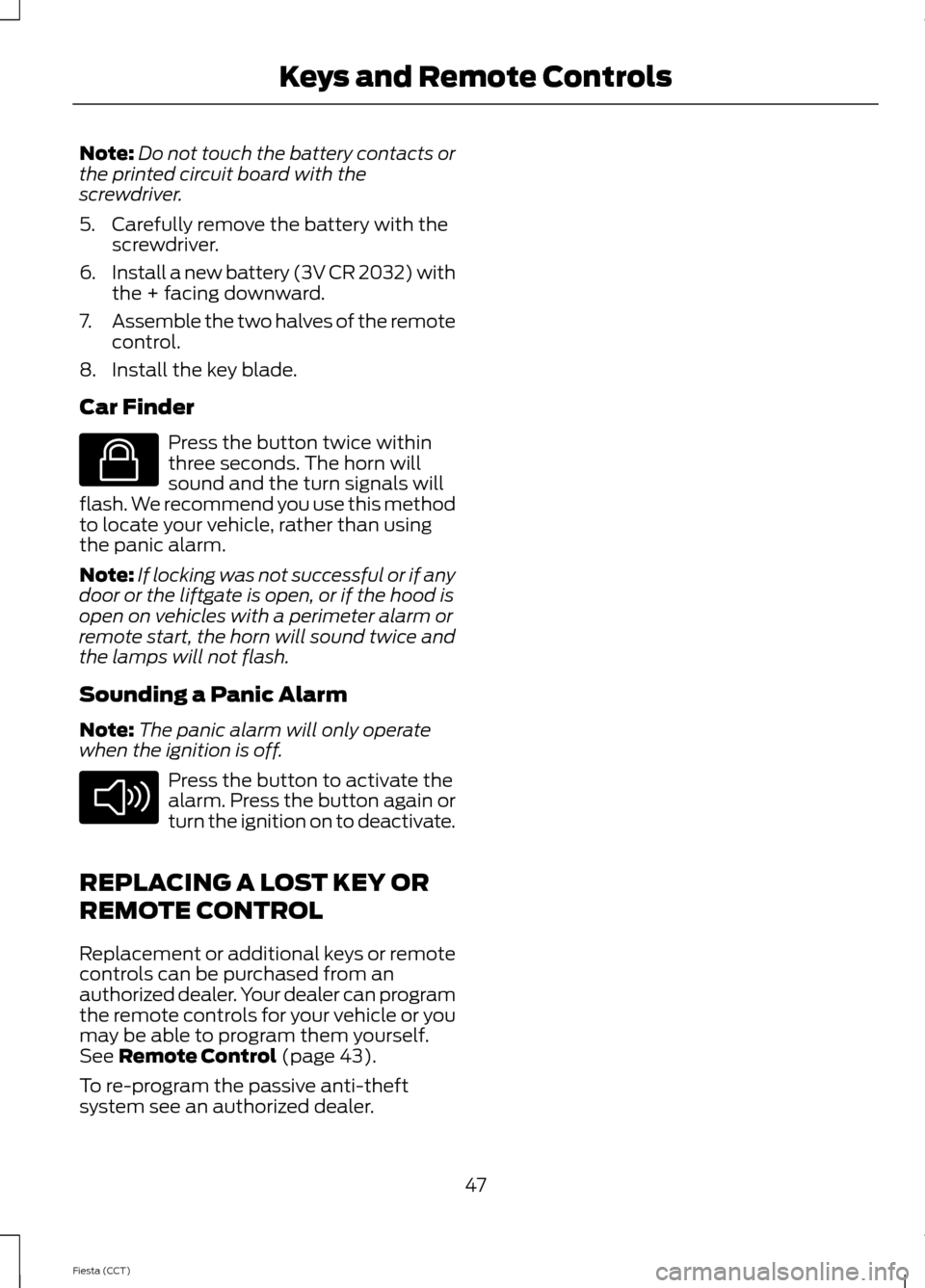

Note:
Do not touch the battery contacts or
the printed circuit board with the
screwdriver.
5. Carefully remove the battery with the screwdriver.
6. Install a new battery (3V CR 2032) with
the + facing downward.
7. Assemble the two halves of the remote
control.
8. Install the key blade.
Car Finder Press the button twice within
three seconds. The horn will
sound and the turn signals will
flash. We recommend you use this method
to locate your vehicle, rather than using
the panic alarm.
Note: If locking was not successful or if any
door or the liftgate is open, or if the hood is
open on vehicles with a perimeter alarm or
remote start, the horn will sound twice and
the lamps will not flash.
Sounding a Panic Alarm
Note: The panic alarm will only operate
when the ignition is off. Press the button to activate the
alarm. Press the button again or
turn the ignition on to deactivate.
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement or additional keys or remote
controls can be purchased from an
authorized dealer. Your dealer can program
the remote controls for your vehicle or you
may be able to program them yourself.
See Remote Control (page 43).
To re-program the passive anti-theft
system see an authorized dealer.
47
Fiesta (CCT) Keys and Remote ControlsE138623 E138624

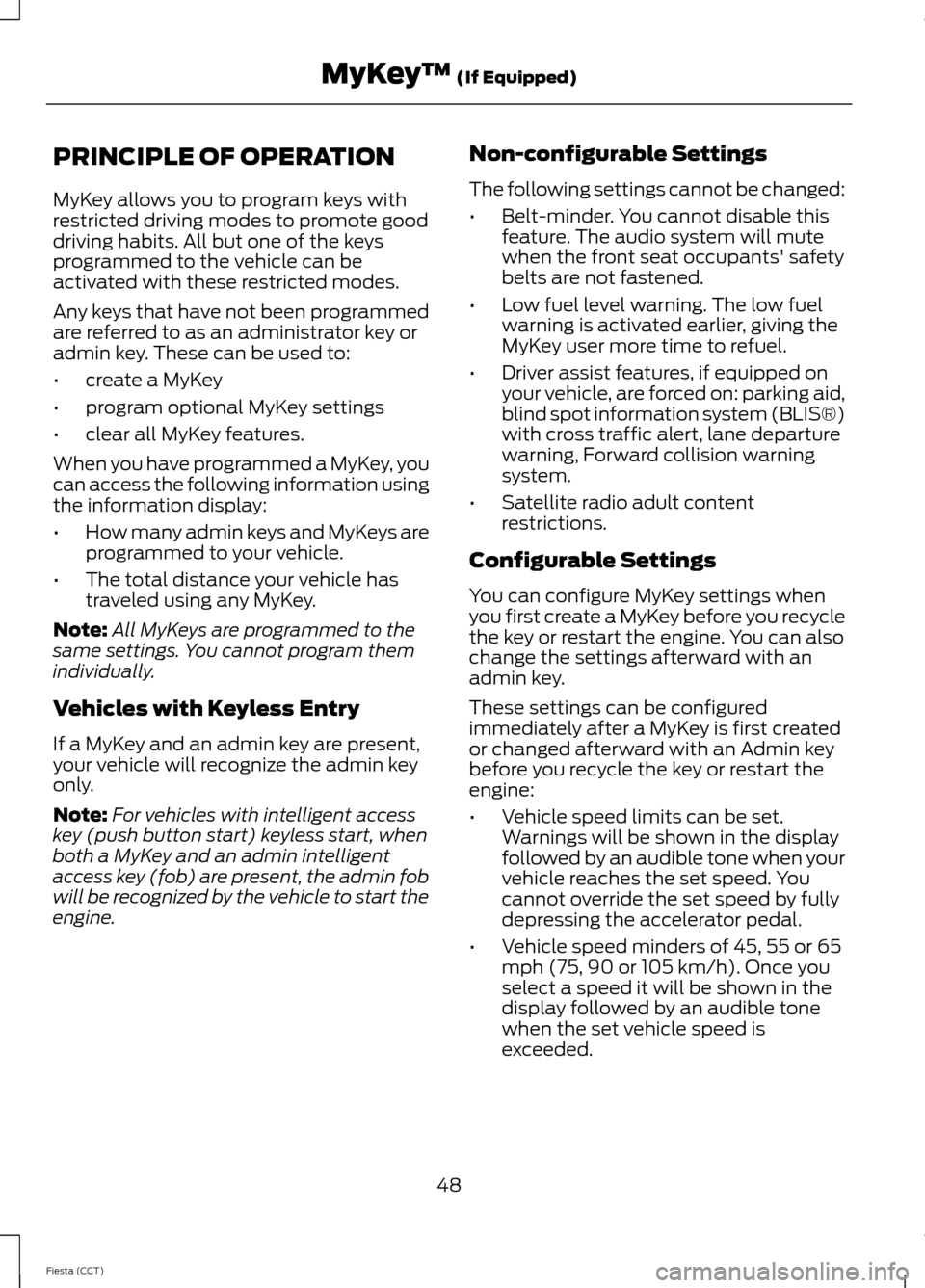

PRINCIPLE OF OPERATION
MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. All but one of the keys
programmed to the vehicle can be
activated with these restricted modes.
Any keys that have not been programmed
are referred to as an administrator key or
admin key. These can be used to:
•
create a MyKey
• program optional MyKey settings
• clear all MyKey features.
When you have programmed a MyKey, you
can access the following information using
the information display:
• How many admin keys and MyKeys are
programmed to your vehicle.
• The total distance your vehicle has
traveled using any MyKey.
Note: All MyKeys are programmed to the
same settings. You cannot program them
individually.
Vehicles with Keyless Entry
If a MyKey and an admin key are present,
your vehicle will recognize the admin key
only.
Note: For vehicles with intelligent access
key (push button start) keyless start, when
both a MyKey and an admin intelligent
access key (fob) are present, the admin fob
will be recognized by the vehicle to start the
engine. Non-configurable Settings
The following settings cannot be changed:
•
Belt-minder. You cannot disable this
feature. The audio system will mute
when the front seat occupants' safety
belts are not fastened.
• Low fuel level warning. The low fuel
warning is activated earlier, giving the
MyKey user more time to refuel.
• Driver assist features, if equipped on
your vehicle, are forced on: parking aid,
blind spot information system (BLIS®)
with cross traffic alert, lane departure
warning, Forward collision warning
system.
• Satellite radio adult content
restrictions.
Configurable Settings
You can configure MyKey settings when
you first create a MyKey before you recycle
the key or restart the engine. You can also
change the settings afterward with an
admin key.
These settings can be configured
immediately after a MyKey is first created
or changed afterward with an Admin key
before you recycle the key or restart the
engine:
• Vehicle speed limits can be set.
Warnings will be shown in the display
followed by an audible tone when your
vehicle reaches the set speed. You
cannot override the set speed by fully
depressing the accelerator pedal.
• Vehicle speed minders of 45, 55 or 65
mph (75, 90 or 105 km/h). Once you
select a speed it will be shown in the
display followed by an audible tone
when the set vehicle speed is
exceeded.
48
Fiesta (CCT) MyKey
™ (If Equipped)

•

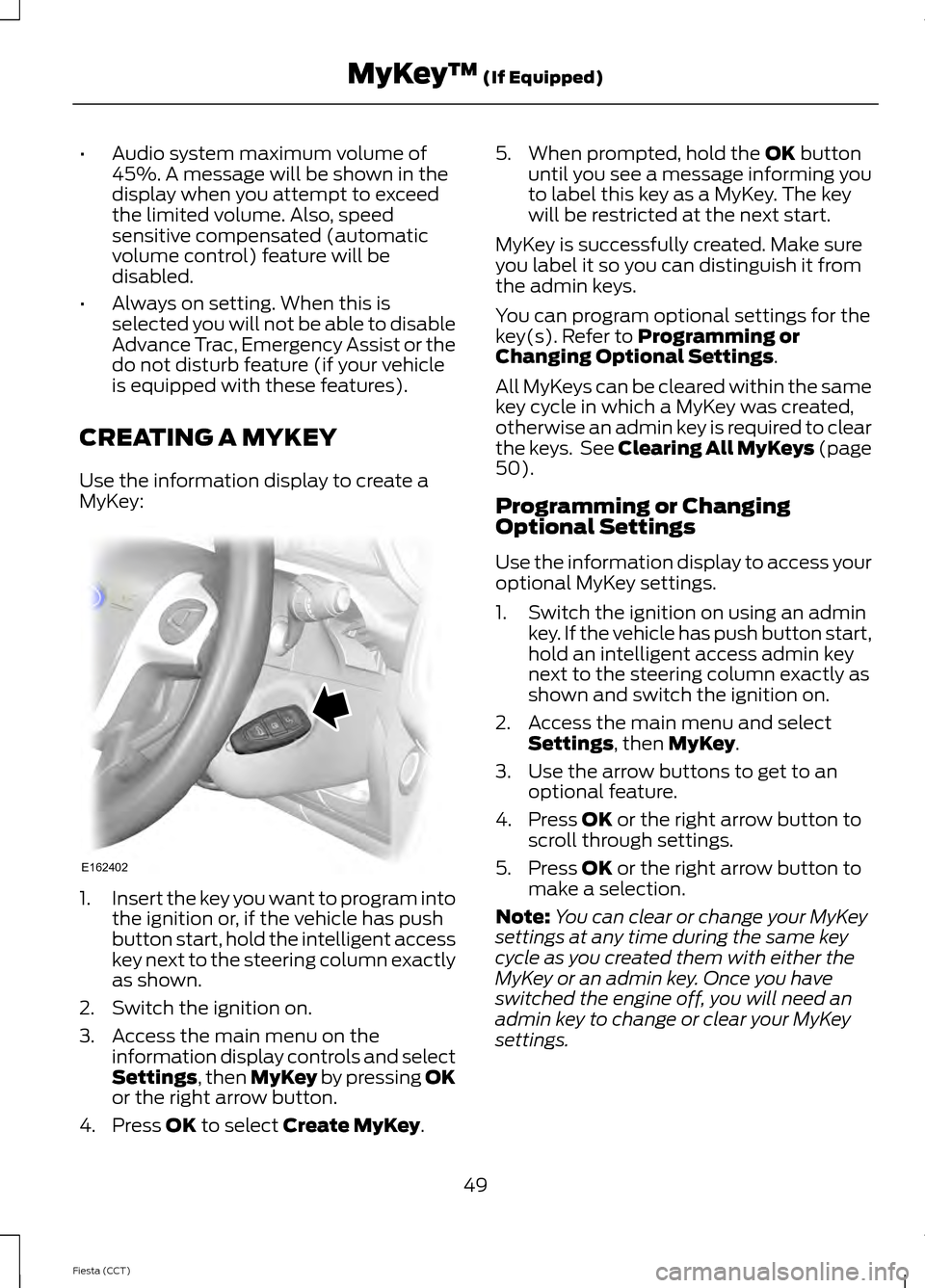

Audio system maximum volume of
45%. A message will be shown in the
display when you attempt to exceed
the limited volume. Also, speed
sensitive compensated (automatic
volume control) feature will be
disabled.
• Always on setting. When this is
selected you will not be able to disable
Advance Trac, Emergency Assist or the
do not disturb feature (if your vehicle
is equipped with these features).
CREATING A MYKEY
Use the information display to create a
MyKey: 1.
Insert the key you want to program into
the ignition or, if the vehicle has push
button start, hold the intelligent access
key next to the steering column exactly
as shown.
2. Switch the ignition on.
3. Access the main menu on the information display controls and select
Settings, then MyKey by pressing OK
or the right arrow button.
4. Press
OK to select Create MyKey. 5. When prompted, hold the
OK button
until you see a message informing you
to label this key as a MyKey. The key
will be restricted at the next start.
MyKey is successfully created. Make sure
you label it so you can distinguish it from
the admin keys.
You can program optional settings for the
key(s). Refer to
Programming or
Changing Optional Settings.
All MyKeys can be cleared within the same
key cycle in which a MyKey was created,
otherwise an admin key is required to clear
the keys. See Clearing All MyKeys (page
50
).
Programming or Changing
Optional Settings
Use the information display to access your
optional MyKey settings.
1. Switch the ignition on using an admin key. If the vehicle has push button start,
hold an intelligent access admin key
next to the steering column exactly as
shown and switch the ignition on.
2. Access the main menu and select Settings
, then MyKey.
3. Use the arrow buttons to get to an optional feature.
4. Press
OK or the right arrow button to
scroll through settings.
5. Press
OK or the right arrow button to
make a selection.
Note: You can clear or change your MyKey
settings at any time during the same key
cycle as you created them with either the
MyKey or an admin key. Once you have
switched the engine off, you will need an
admin key to change or clear your MyKey
settings.
49
Fiesta (CCT) MyKey
™
(If Equipped)E162402

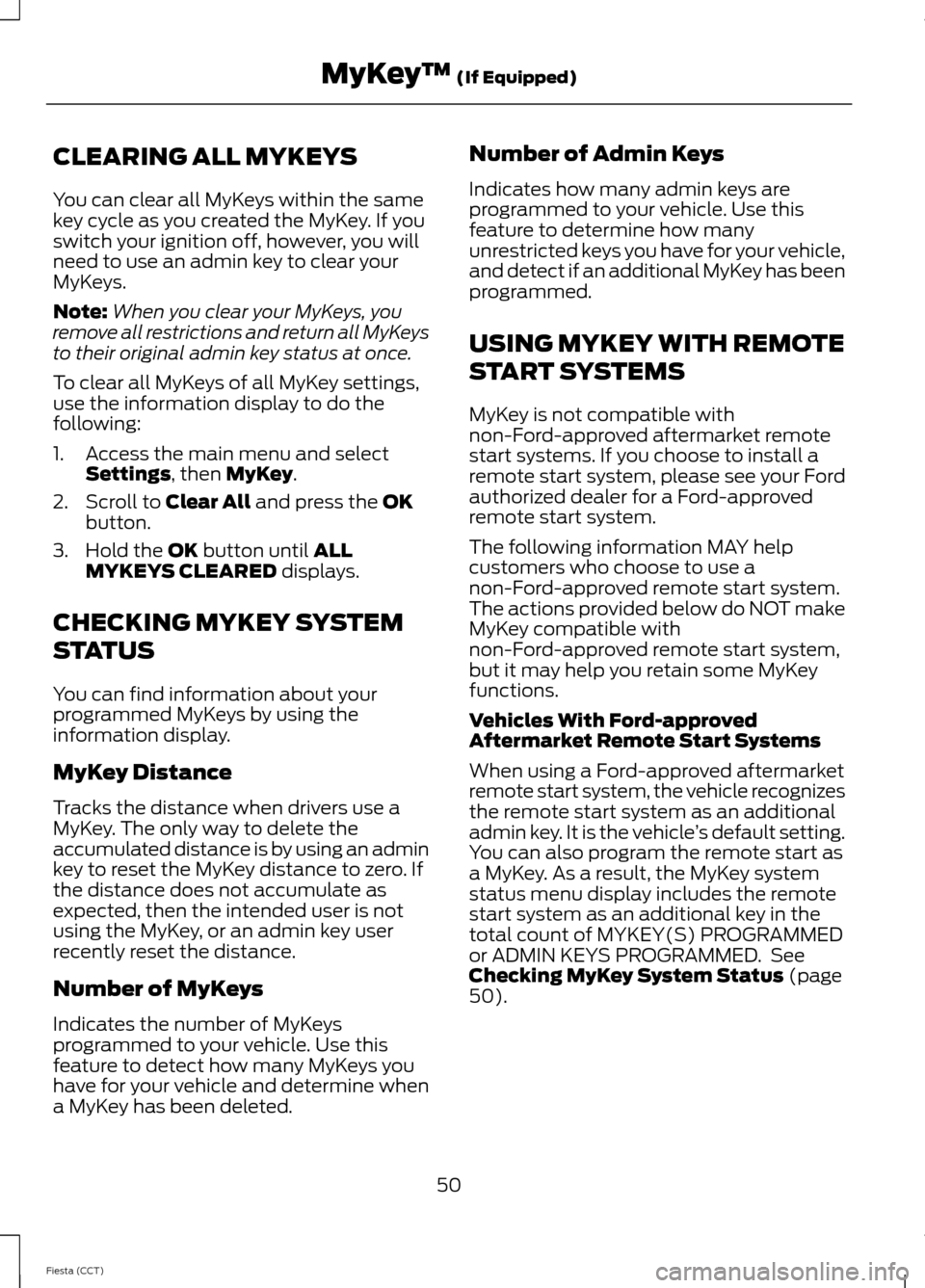

CLEARING ALL MYKEYS
You can clear all MyKeys within the same
key cycle as you created the MyKey. If you
switch your ignition off, however, you will
need to use an admin key to clear your
MyKeys.
Note:
When you clear your MyKeys, you
remove all restrictions and return all MyKeys
to their original admin key status at once.
To clear all MyKeys of all MyKey settings,
use the information display to do the
following:
1. Access the main menu and select Settings, then MyKey.
2. Scroll to
Clear All and press the OK
button.
3. Hold the
OK button until ALL
MYKEYS CLEARED displays.
CHECKING MYKEY SYSTEM
STATUS
You can find information about your
programmed MyKeys by using the
information display.
MyKey Distance
Tracks the distance when drivers use a
MyKey. The only way to delete the
accumulated distance is by using an admin
key to reset the MyKey distance to zero. If
the distance does not accumulate as
expected, then the intended user is not
using the MyKey, or an admin key user
recently reset the distance.
Number of MyKeys
Indicates the number of MyKeys
programmed to your vehicle. Use this
feature to detect how many MyKeys you
have for your vehicle and determine when
a MyKey has been deleted. Number of Admin Keys
Indicates how many admin keys are
programmed to your vehicle. Use this
feature to determine how many
unrestricted keys you have for your vehicle,
and detect if an additional MyKey has been
programmed.
USING MYKEY WITH REMOTE
START SYSTEMS
MyKey is not compatible with
non-Ford-approved aftermarket remote
start systems. If you choose to install a
remote start system, please see your Ford
authorized dealer for a Ford-approved
remote start system.
The following information MAY help
customers who choose to use a
non-Ford-approved remote start system.
The actions provided below do NOT make
MyKey compatible with
non-Ford-approved remote start system,
but it may help you retain some MyKey
functions.
Vehicles With Ford-approved
Aftermarket Remote Start Systems
When using a Ford-approved aftermarket
remote start system, the vehicle recognizes
the remote start system as an additional
admin key. It is the vehicle
’s default setting.
You can also program the remote start as
a MyKey. As a result, the MyKey system
status menu display includes the remote
start system as an additional key in the
total count of MYKEY(S) PROGRAMMED
or ADMIN KEYS PROGRAMMED. See
Checking MyKey System Status
(page
50).
50
Fiesta (CCT) MyKey
™
(If Equipped)

When you start your vehicle with a
Ford-approved aftermarket remote start
system, the system stalls the engine after
you open the door or shift the vehicle into
gear. This is intentional. When you restart
your vehicle, it reads your real key
(traditional key or intelligent key fob)
status instead of the remote start system
’s
status.
As an added precaution, owners of vehicles
equipped with traditional keys may want
to program the remote start system as a
MyKey, if the MyKey driver uses the remote
start fob. That way, when the MyKey driver
starts the vehicle with the remote start
system, the MyKey restrictions remain
active.
With a Ford-approved aftermarket remote
start system, it is possible to program all
real keys as MyKeys unintentionally. If this
happens, then the remote start fob is the
admin key. If you want to have only one
real key as a MyKey, or do not want to have
any MyKeys, then you need to use your
remote start to clear all MyKeys. In that
case, follow these steps:
• Enter the vehicle and close all doors.
• Remote start the vehicle using your
remote start fob.
• See Clearing All MyKeys (page 50).
Follow Steps 1-3.
After clearing your MyKeys, you can create
a new MyKey. See
Creating a MyKey
(page 49).
Note: For vehicles with Intelligent Access
Keys (Push-button Start), you cannot
program the remote start system as a
MyKey. Always treat the remote start fob
as you would any other admin key.
Vehicles With Non-Ford-approved
Aftermarket Remote Start Systems MyKey is not compatible with
non-Ford-approved aftermarket remote
start systems. If you choose to install a
remote start system, please see a Ford
authorized dealer for a Ford-approved
system.
The following information
may help
customers who choose to install a
non-Ford-approved remote start system.
The actions provided below do not make
MyKey compatible with
non-Ford-approved remote start systems,
but may help you retain some MyKey
functions.
When using a non-Ford-approved remote
start system, the vehicle may recognize
the remote start system as an additional
admin key with its associated privileges. If
you restart the engine by inserting a key
into the ignition cylinder and recycling the
ignition completely, then you may retain
some MyKey functions. This action forces
your vehicle to read the traditional key
instead of the remote start fob and then
uses the key's associated privileges.
Note: The MyKey system status menu
display may include the remote start system
as an additional key in the total count of
MYKEY(S) PROGRAMMED or ADMIN KEYS
PROGRAMMED. See
Checking MyKey
System Status (page 50).
As an added precaution, owners of vehicles
equipped with traditional keys may want
to program the remote start system as a
MyKey, if the MyKey driver uses the remote
start fob. That way, when the MyKey driver
starts the vehicle with the remote start
system, the MyKey restrictions will be
remain active.
51
Fiesta (CCT) MyKey
™
(If Equipped)

With a non-Ford-approved aftermarket
remote start system, it is possible to
program all real keys as MyKeys
unintentionally. If this happens, then the
remote start fob is the admin key. If you
want to have only one real key as a MyKey,
or do not want to have any MyKeys, then
you need to use your remote start to clear
all MyKeys. In that case, follow these steps:
•
Enter the vehicle and close all doors.
• Remote start the vehicle using your
non-Ford-approved remote start fob.
• See Clearing All MyKeys (page 50).
Follow Steps 1-3.
After clearing your MyKeys, you can create
a new MyKey. See
Creating a MyKey
(page 49).
Note: For vehicles with Intelligent Access
Keys (Push-button Start), you cannot
program the remote start system as a
MyKey. Always treat the remote start fob
as you would any other admin key.
MYKEY TROUBLESHOOTING Potential Causes
Condition
The key in the ignition does not have admin
privileges.
I cannot program a key.
The key in the ignition is the only admin key
(there always has to be at least one admin
key).
The intelligent access key is not in the
correct position (vehicles with push-button
start).
SecuriLock passive anti-theft system is
disabled or in unlimited mode.
The vehicle has been started using a
remote start system that is not
programmed with admin privileges. See
Using MyKey With Remote Start
Systems
(page 50).
The key in the ignition does not have admin
privileges.
I cannot program the optional settings.
MyKeys have been created. See
Creating
a MyKey (page 49).
The vehicle has been started using a
remote start system that is not
programmed with admin privileges. See
Using MyKey With Remote Start
Systems
(page 50).
The key in the ignition does not have admin
privileges.
I cannot clear the restricted keys.
52
Fiesta (CCT) MyKey
™
(If Equipped)

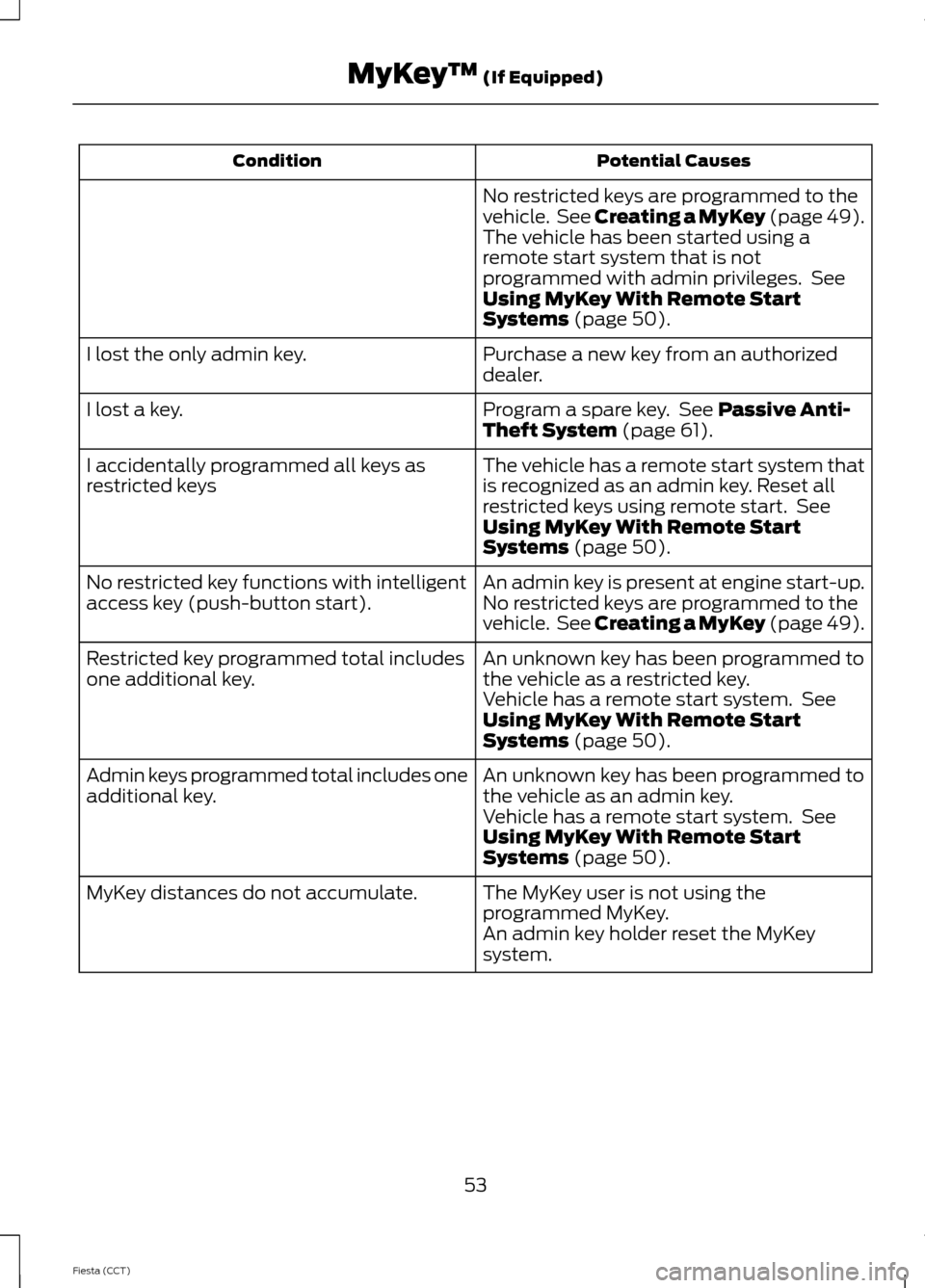

Potential Causes
Condition
No restricted keys are programmed to the
vehicle. See Creating a MyKey (page 49).
The vehicle has been started using a
remote start system that is not
programmed with admin privileges. See
Using MyKey With Remote Start
Systems (page 50).
Purchase a new key from an authorized
dealer.
I lost the only admin key.
Program a spare key. See
Passive Anti-
Theft System (page 61).
I lost a key.
The vehicle has a remote start system that
is recognized as an admin key. Reset all
restricted keys using remote start. See
Using MyKey With Remote Start
Systems
(page 50).
I accidentally programmed all keys as
restricted keys
An admin key is present at engine start-up.
No restricted key functions with intelligent
access key (push-button start). No restricted keys are programmed to the
vehicle. See Creating a MyKey (page 49).
An unknown key has been programmed to
the vehicle as a restricted key.
Restricted key programmed total includes
one additional key.
Vehicle has a remote start system. See
Using MyKey With Remote Start
Systems
(page 50).
An unknown key has been programmed to
the vehicle as an admin key.
Admin keys programmed total includes one
additional key.
Vehicle has a remote start system. See
Using MyKey With Remote Start
Systems
(page 50).
The MyKey user is not using the
programmed MyKey.
MyKey distances do not accumulate.
An admin key holder reset the MyKey
system.
53
Fiesta (CCT) MyKey
™
(If Equipped)
