2014 FORD F150 Owners Manual

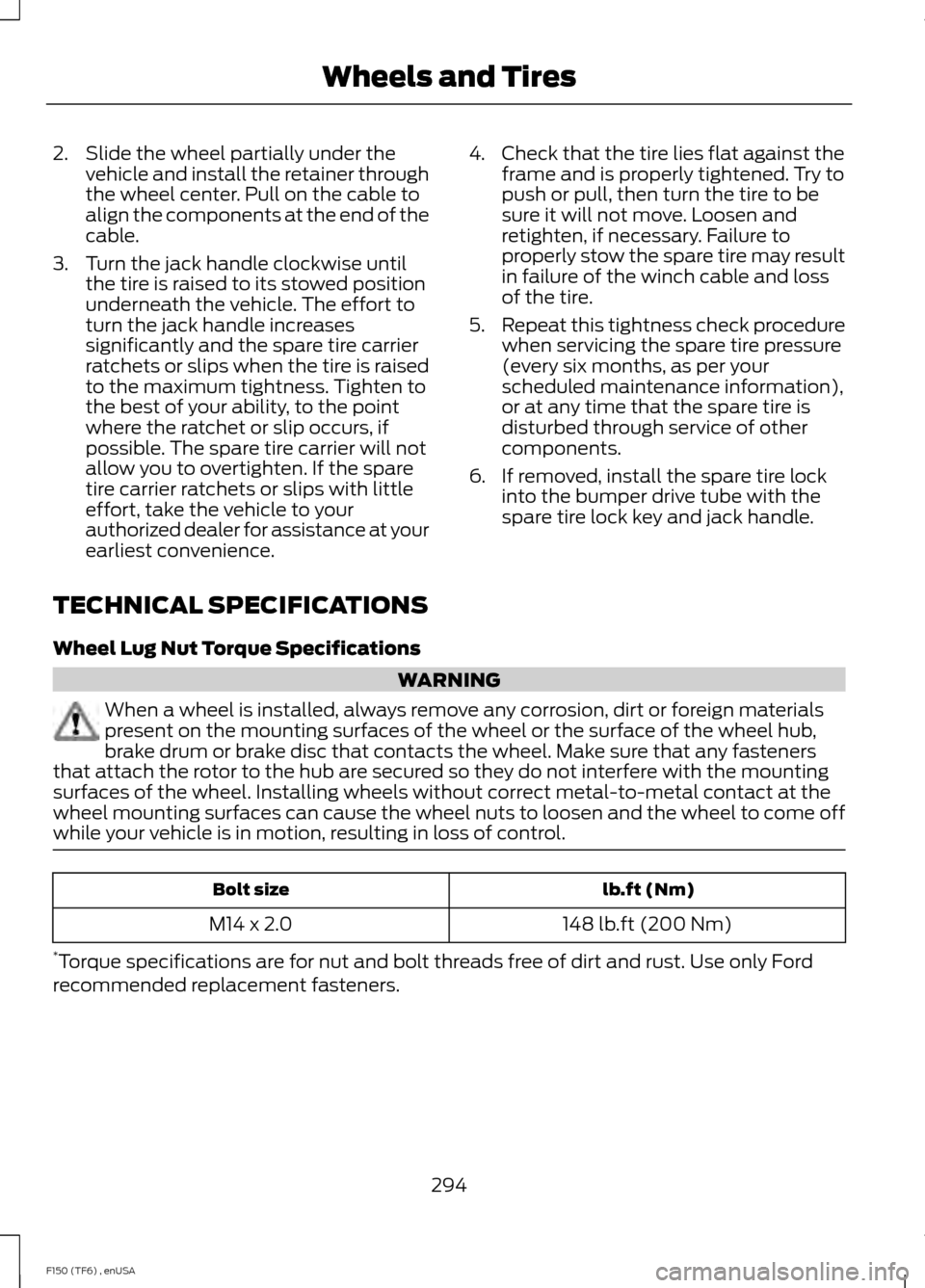

2. Slide the wheel partially under the
vehicle and install the retainer through
the wheel center. Pull on the cable to
align the components at the end of the
cable.
3. Turn the jack handle clockwise until the tire is raised to its stowed position
underneath the vehicle. The effort to
turn the jack handle increases
significantly and the spare tire carrier
ratchets or slips when the tire is raised
to the maximum tightness. Tighten to
the best of your ability, to the point
where the ratchet or slip occurs, if
possible. The spare tire carrier will not
allow you to overtighten. If the spare
tire carrier ratchets or slips with little
effort, take the vehicle to your
authorized dealer for assistance at your
earliest convenience. 4. Check that the tire lies flat against the
frame and is properly tightened. Try to
push or pull, then turn the tire to be
sure it will not move. Loosen and
retighten, if necessary. Failure to
properly stow the spare tire may result
in failure of the winch cable and loss
of the tire.
5. Repeat this tightness check procedure
when servicing the spare tire pressure
(every six months, as per your
scheduled maintenance information),
or at any time that the spare tire is
disturbed through service of other
components.
6. If removed, install the spare tire lock into the bumper drive tube with the
spare tire lock key and jack handle.
TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. lb.ft (Nm)
Bolt size
148 lb.ft (200 Nm)
M14 x 2.0
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
294
F150 (TF6) , enUSA Wheels and Tires

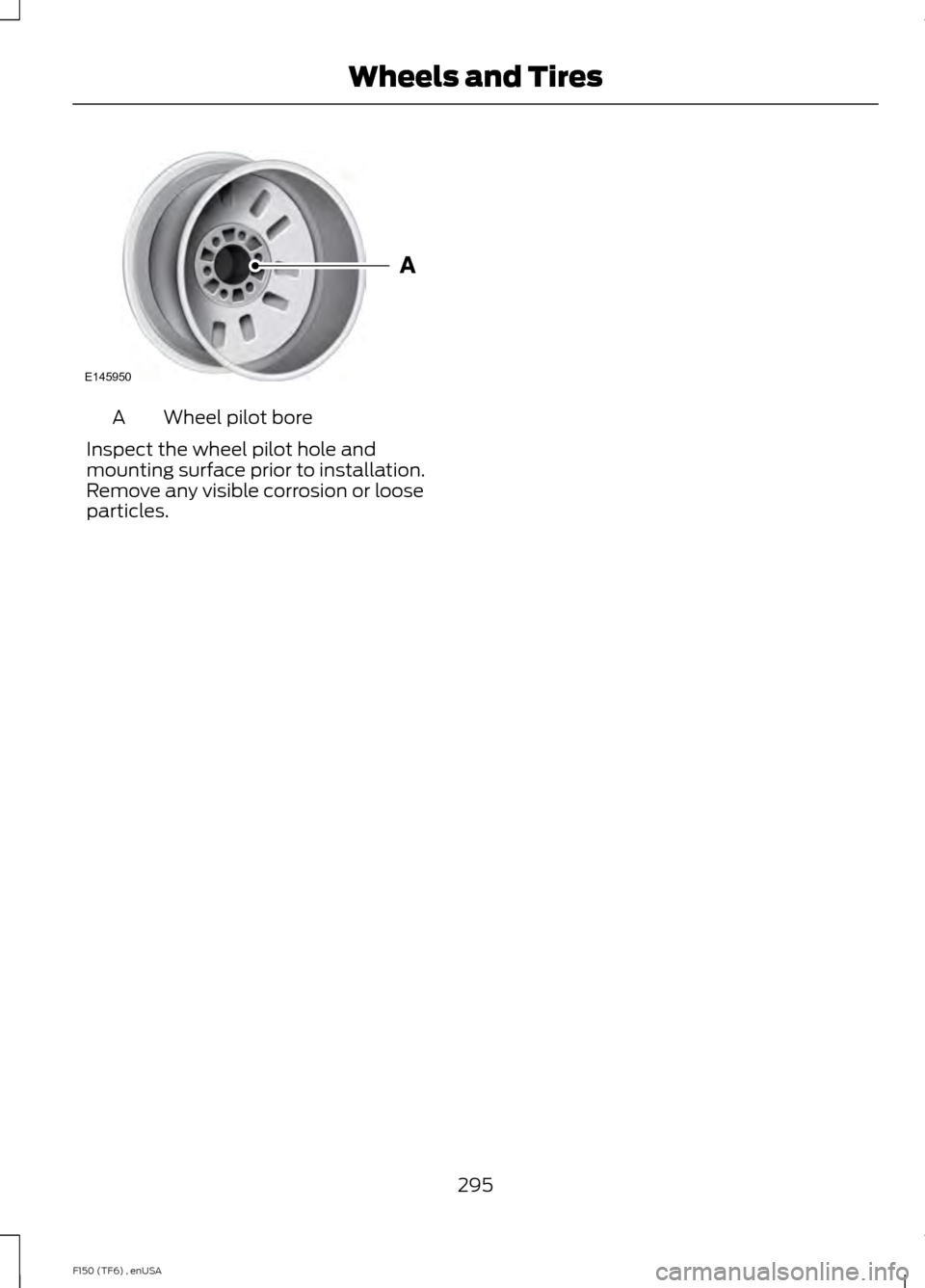

Wheel pilot bore
A
Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
295
F150 (TF6) , enUSA Wheels and TiresE145950

ENGINE SPECIFICATIONS
6.2L V8
5.0L V8
3.7 V6
3.5L V6
Ecoboost
Engine
378
302
226
214
Cubic inches
Minimum 87octane
Minimum 87
octane or E85
Minimum 87
octane or E85
Minimum 87
octane
Required fuel
1-3-7-2-6-5-4-8
1-5-4-8-6-3-7-2
1-4-2-5-3-6
1-4-2-5-3-6
Firing order
Coil on plug
Coil on plug
Coil on plug
Coil on plug
Ignition
system
.041-.047 in.
(1.04-1.20 mm)
.049-.053 in.
(1.25-1.35 mm)
.049-.053 in.
(1.25-1.35 mm)
.030-.033 in.
(.75-.85 mm)
Spark plug
gap
9.8:1
10.5:1
10.5:1
10.0:1
Compression
ratio

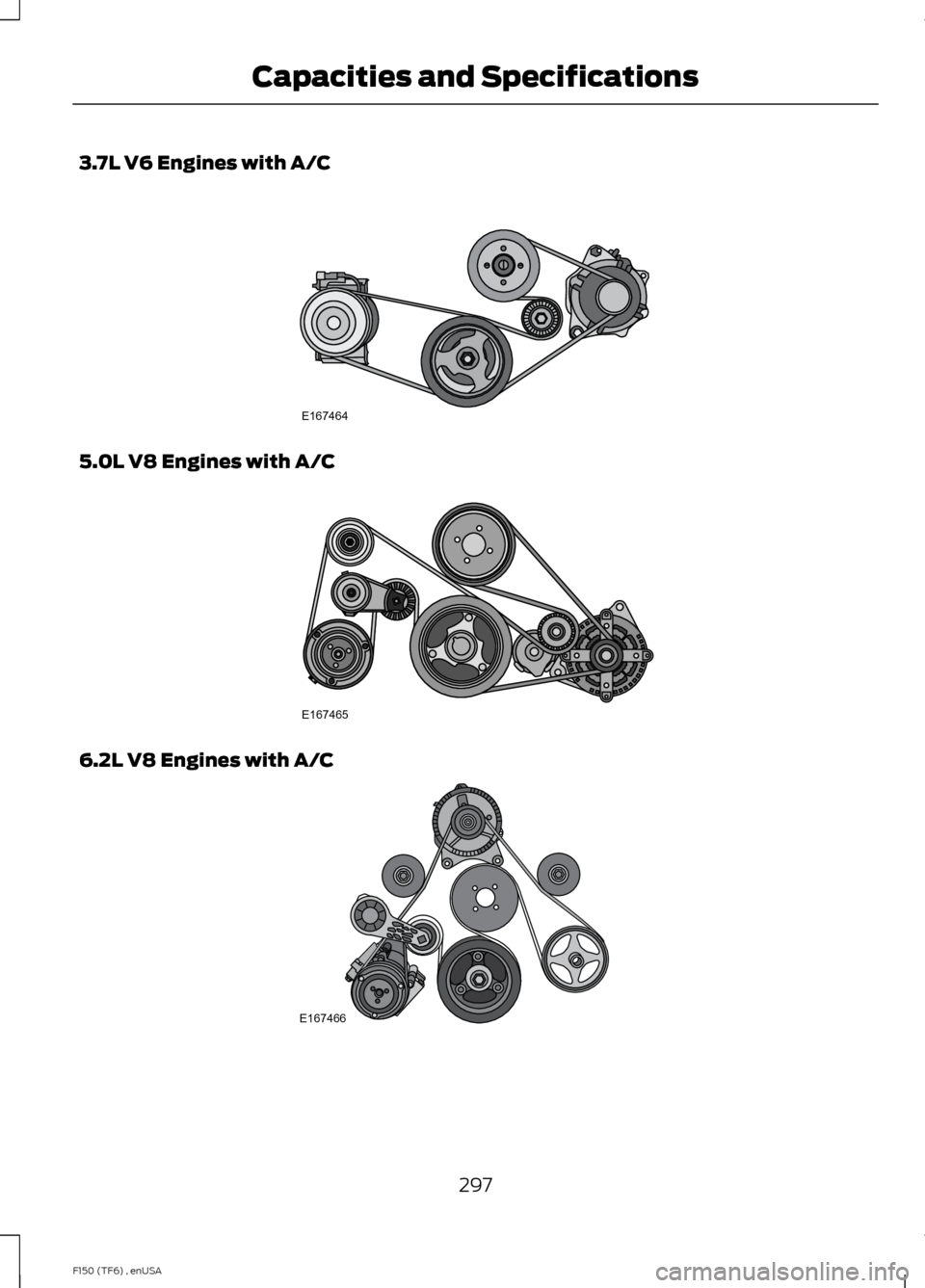

Drivebelt Routing
3.5L V6 Ecoboost Engines with A/C 296
F150 (TF6) , enUSA Capacities and SpecificationsE167467

3.7L V6 Engines with A/C
5.0L V8 Engines with A/C
6.2L V8 Engines with A/C
297
F150 (TF6) , enUSA Capacities and SpecificationsE167464 E167465 E167466

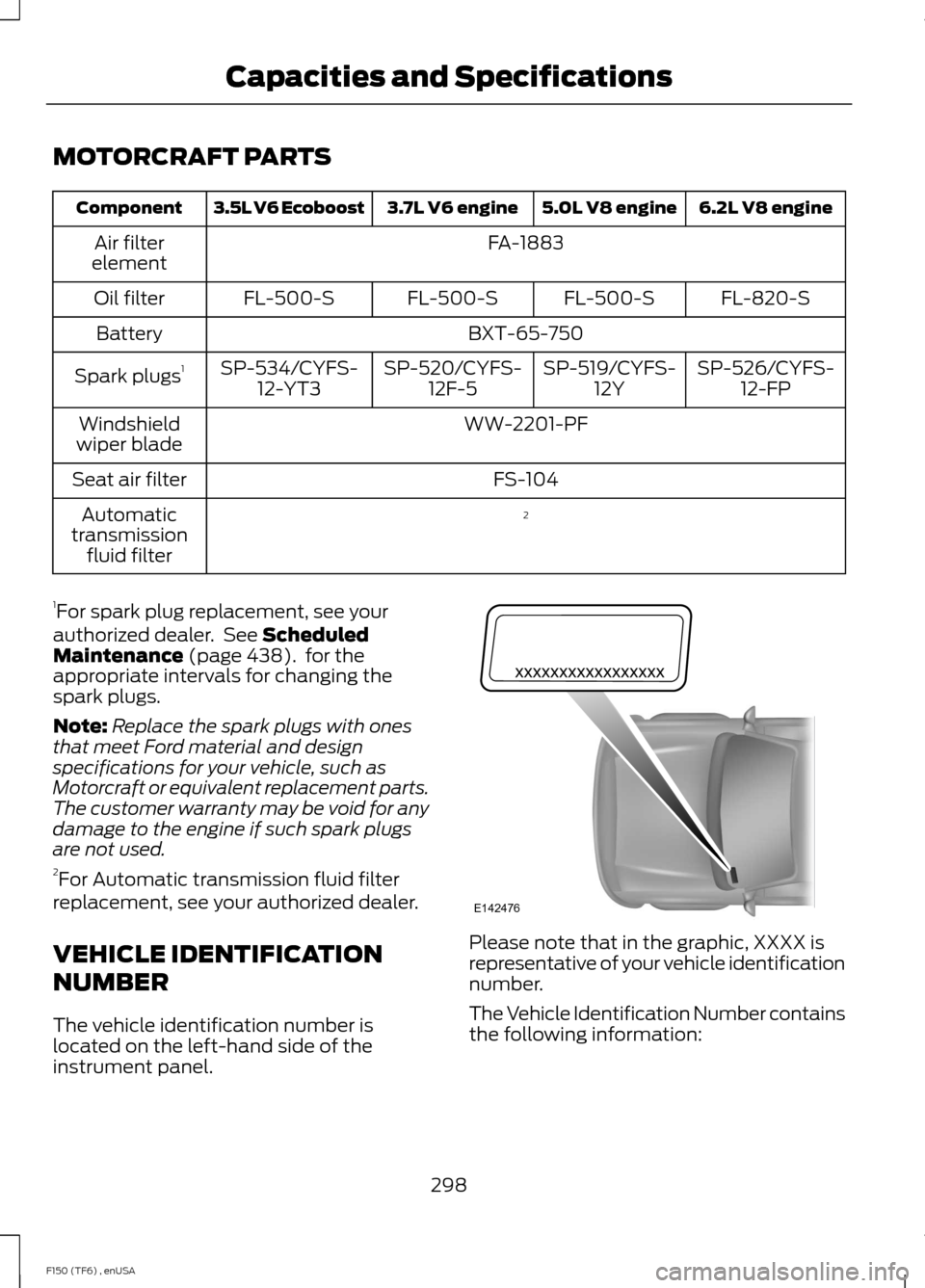

MOTORCRAFT PARTS
6.2L V8 engine
5.0L V8 engine
3.7L V6 engine
3.5L V6 Ecoboost
Component
FA-1883
Air filter
element
FL-820-S
FL-500-S
FL-500-S
FL-500-S
Oil filter
BXT-65-750
Battery
SP-526/CYFS-12-FP
SP-519/CYFS-
12Y
SP-520/CYFS-
12F-5
SP-534/CYFS-
12-YT3
Spark plugs
1
WW-2201-PF
Windshield
wiper blade
FS-104
Seat air filter
2
Automatic
transmission fluid filter
1 For spark plug replacement, see your
authorized dealer. See Scheduled
Maintenance (page 438). for the
appropriate intervals for changing the
spark plugs.
Note: Replace the spark plugs with ones
that meet Ford material and design
specifications for your vehicle, such as
Motorcraft or equivalent replacement parts.
The customer warranty may be void for any
damage to the engine if such spark plugs
are not used.
2 For Automatic transmission fluid filter
replacement, see your authorized dealer.
VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel. Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information:
298
F150 (TF6) , enUSA Capacities and SpecificationsE142476

World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number

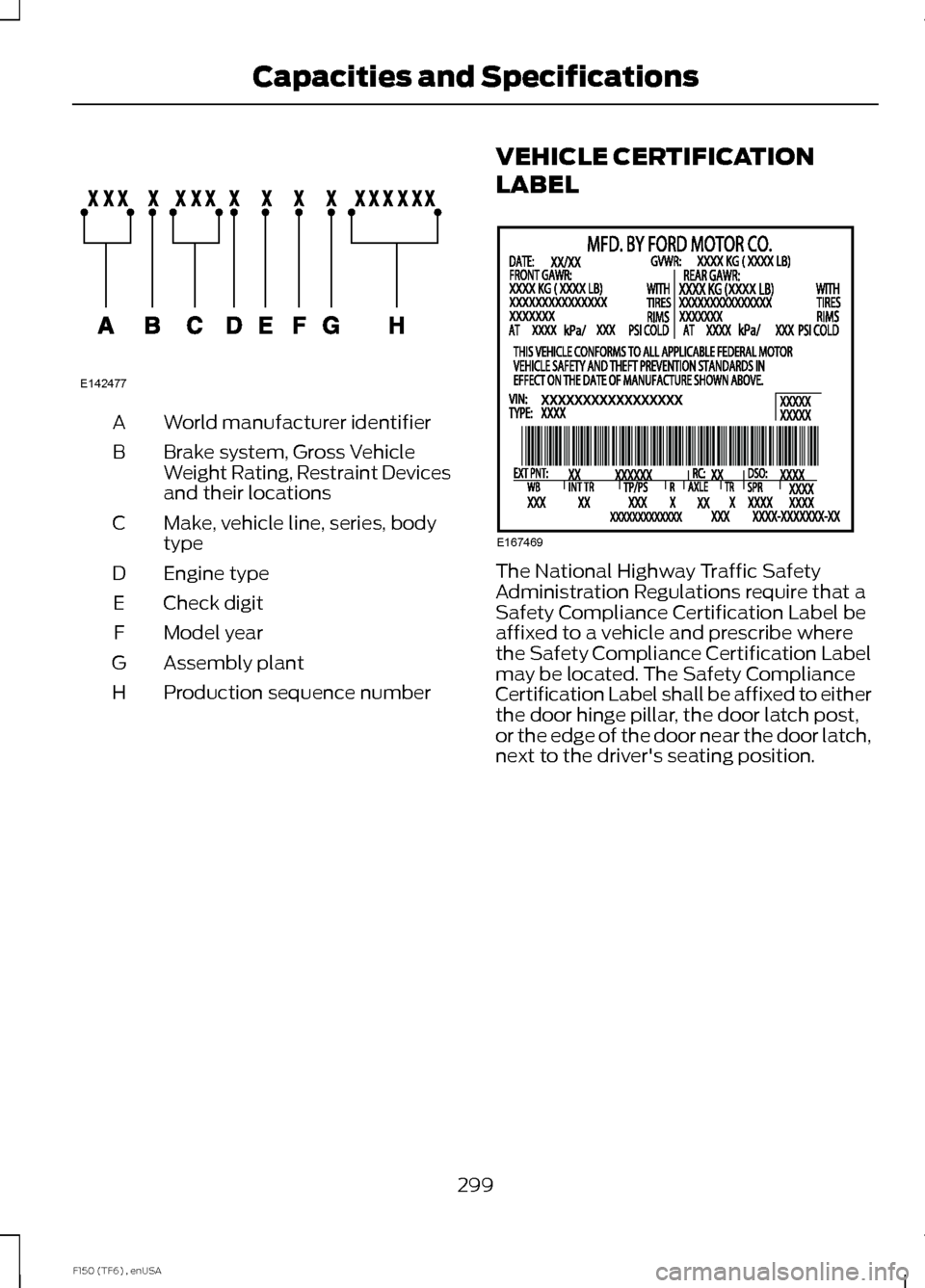

H VEHICLE CERTIFICATION
LABEL The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.
299
F150 (TF6) , enUSA Capacities and SpecificationsE142477 E167469

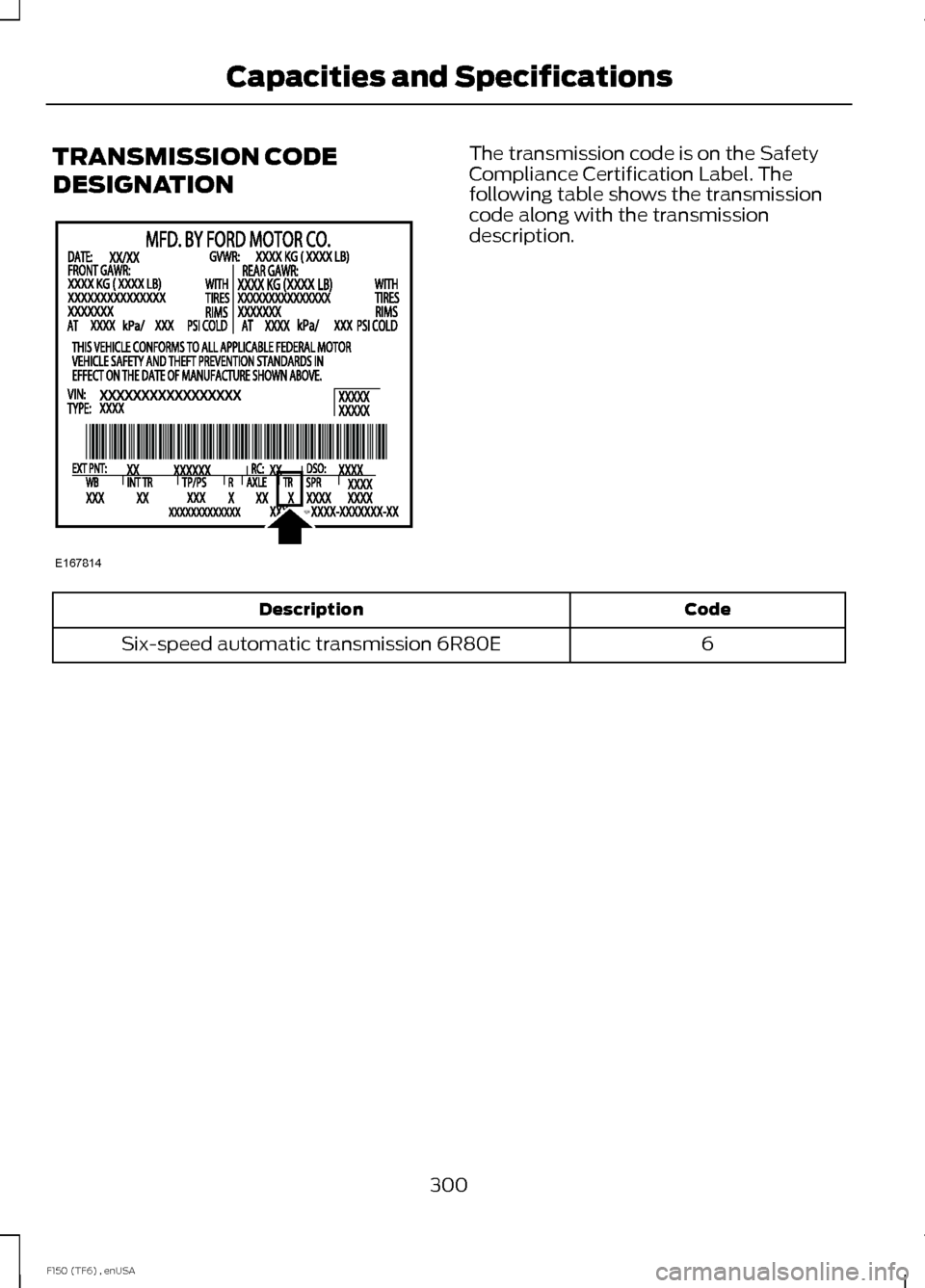

TRANSMISSION CODE
DESIGNATION The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.
Code
Description
6
Six-speed automatic transmission 6R80E
300
F150 (TF6) , enUSA Capacities and SpecificationsE167814

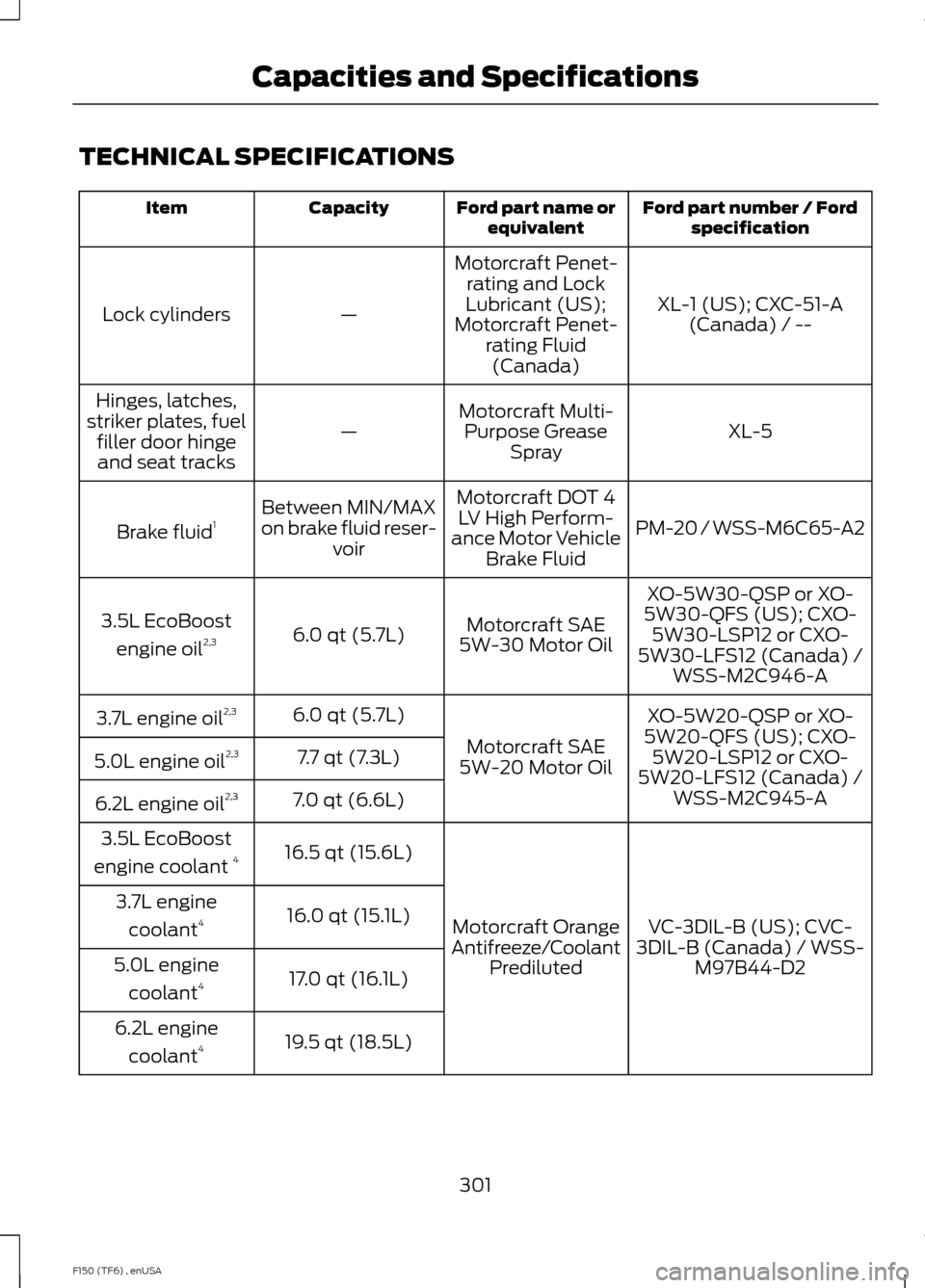

TECHNICAL SPECIFICATIONS
Ford part number / Ford
specification
Ford part name or
equivalent
Capacity
Item
XL-1 (US); CXC-51-A(Canada) / --
Motorcraft Penet-
rating and Lock
Lubricant (US);
Motorcraft Penet- rating Fluid(Canada)
—
Lock cylinders
XL-5
Motorcraft Multi-
Purpose Grease Spray
—
Hinges, latches,
striker plates, fuel filler door hingeand seat tracks
PM-20 / WSS-M6C65-A2
Motorcraft DOT 4
LV High Perform-
ance Motor Vehicle Brake Fluid
Between MIN/MAX
on brake fluid reser- voir
Brake fluid
1
XO-5W30-QSP or XO-
5W30-QFS (US); CXO- 5W30-LSP12 or CXO-
5W30-LFS12 (Canada) / WSS-M2C946-A
Motorcraft SAE
5W-30 Motor Oil
6.0 qt (5.7L)
3.5L EcoBoost
engine oil 2,3
XO-5W20-QSP or XO-
5W20-QFS (US); CXO- 5W20-LSP12 or CXO-
5W20-LFS12 (Canada) / WSS-M2C945-A
Motorcraft SAE
5W-20 Motor Oil
6.0 qt (5.7L)
3.7L engine oil 2,3
7.7 qt (7.3L)
5.0L engine oil 2,3
7.0 qt (6.6L)
6.2L engine oil 2,3
VC-3DIL-B (US); CVC-
3DIL-B (Canada) / WSS- M97B44-D2
Motorcraft Orange
Antifreeze/Coolant Prediluted
16.5 qt (15.6L)
3.5L EcoBoost
engine coolant 4
16.0 qt (15.1L)
3.7L engine
coolant 4
17.0 qt (16.1L)
5.0L engine
coolant 4
19.5 qt (18.5L)
6.2L engine
coolant 4
301
F150 (TF6) , enUSA Capacities and Specifications
