PARKING SENSORS (for versions/markets, where provided)
Parking sensors are located in the rear
bumper fig. 114and their function is to
inform the driver, through an intermittent
buzzer, about the presence of obstacles
behind the vehicle.
In order to deactivate the parking sensors,
press button A-fig. 115present between
the commands on the bridge of the cen-
tral compartment. The deactivation is sig-
nalled by the lighting of the led Bon the
button.
In order to re-activate them, press button
Aagain.
When the distance from the obstacle sit-
uated behind the vehicle diminishes, it cor-
responds with an increase in the frequen-
cy of the beeping.
WARNING The condition of the parking
sensors (activated or deactivated) is mem-
orised upon switching off the engine.BUZZER WARNINGS
When the reverse gear is engaged an in-
termittent acoustic signal is automatically
activated.
The acoustic signal:
❒
becomes louder as the distance be-
tween the vehicle and the obstacle de-
creases;
❒
becomes continuous when the distance
between the vehicle and the obstacle is
less than 30 cm and stops immediately
if the distance raises;
❒
is constant if the distance is unvaried;
if this situation concerns the side sen-
sors, the buzzer will stop after about
3 seconds to avoid, for example, warn-
ing indications in the event of manoeu-
vres along walls.FAILURE INDICATIONS
Parking sensor failures, if any, will be in-
dicated when engaging reverse by the
buzzer and the turning on of led
B-fig. 115together with the message on
the display.
fig. 114
F0P0605m
fig. 115
F0P0106m
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 92

93
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
GENERAL WARNINGS❒
When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors.
❒
Objects set close to the vehicle, under
certain circumstances are not detected
and could therefore cause damages to
the vehicle or be damaged.
❒
Indications sent by the sensors can be
altered by dirt, snow or ice deposited
on the sensors or by ultrasound sys-
tems (e.g.: truck pneumatic brakes or
pneumatic hammers) set nearby the ve-
hicle. For proper operation, the
parking sensors shall always
be clean from mud, dirt, snow
or ice. When cleaning the sen-
sors, take the utmost care to prevent
their damaging; do not use therefore
dry or rough clothes. Sensors shall be
washed with clean water and vehicle
detergent, if required.
Parking manoeuvres howev-
er are always under the dri-
ver’s responsibility that shall always
check the absence of people (spe-
cially children) or animals in the ma-
noeuvre space. This system is just a
help for the driver but she/he shall
never reduce attention during dan-
gerous manoeuvres even if performed
at low speed.
WARNING
OPERATION WITH TRAILER
Deactivate parking sensors if you use the
vehicle with trailer.
SOUND SYSTEM(for versions/markets, where provided)
For the operation of the radio with
CD/MP3 CD player (for versions/markets,
where provided), read the instructions for
use given in the Supplement attached to
this Owner Handbook.
SOUND SYSTEM PRESETTING
(for versions/markets, where provided)
For details about the radio installed on the
vehicle and the relevant system, read the
instructions for use given in Supplement
“Sound System” attached to this Owner
Handbook.
For connection to existing
vehicle presetting system,
contact Fiat Dealership to prevent
any trouble that could impair vehicle
safety.
WARNING
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 93

94SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS
RADIO TRANSMITTERS
AND CELLULAR TELEPHONES
Radio transceiver equipment (e.g.: e-tacs
mobile phones, HAM radio systems and
the like) shall not be used inside the ve-
hicle unless a separate aerial is mounted
on the roof.
IMPORTANT The use of similar devices
inside the passenger compartment (with-
out separated aerial) produces radio-fre-
quency electromagnetic fields which, am-
plified by the resonance effects inside the
passenger compartment, may cause elec-
trical systems equipping the vehicle to mal-
function. This could compromise safety in
addition to constituting a potential hazard
for the passengers.
In addition, transmission and reception of
these devices may be affected by the
shielding effect of the vehicle body.
As concerns EC-approved mobile phones
(GSM, GPRS, UMTS), strictly comply with
the instructions for use provided by the
mobile phone’s manufacturer.
ACCESSORIES
PURCHASED
BY THE OWNERIf after buying the vehicle, you decide to
install electrical accessories that require a
permanent electric supply (alarm, satellite
antitheft system, etc.) or accessories that
in any case burden the electric supply,
contact Fiat Dealership, whose qualified
personnel, besides suggesting the most
suitable devices belonging to Lineaccessori
Fiat, will also evaluate the overall electric
absorption, checking whether the vehicle
electric system is able to withstand the
load required, or whether it needs to be
integrated with a more powerful battery.
SICUREZZA
INSTALLATION OF
ELECTRIC/ELECTRONIC
DEVICES
Electric/electronic devices installed after
buying the vehicle and in after-market shall
bear the following marking:
Fiat Auto S.p.A. authorizes the installation
of transceivers, provided that installation
is workmanlike performed in compliance
with Manufacturer’s specifications at a spe-
cialised service centre.
IMPORTANT The installation of devices
involving modifications of vehicle charac-
teristics may determine the withdrawal of
the driving licence by the appointed pub-
lic authorities and the forfeiture of the
warranty as concerns defects/failures due
to said modification or leading directly or
indirectly to it.
Fiat Auto S.p.A. declines all responsibility
due to damages connected with the in-
stallation of accessories/devices not sup-
plied by or recommended by Fiat Auto
S.p.A. and installed not in compliance with
the specified prescriptions.
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 94

95
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
Refuelling
To guarantee full tank filling, carry out two
refuelling operations after the first click of
the fuel delivery gun. Avoid further top-
ping up operations that could cause dam-
ages to the fuel system.
FUEL FILLER CAP fig. 116
To carry out fuelling, open lid A, fit the ig-
nition key into the cap lock and turn it
counterclockwise, then loosen cap B.
The sealing of the tank may cause light
pressurising in the tank. A little breathing
off, while slackening the cap, is absolutely
normal.
When refuelling, secure the cap to the de-
vice Cinside the lid.
fig. 116
F0F0107m
AT THE FILLING
STATIONOperation at cold temperatures
If the outside temperature is very low, the
diesel thickens due to the formation of
paraffins and could clog the diesel fuel fil-
ter.
In order to avoid these problems, differ-
ent types of diesel are distributed ac-
cording to the season: summer type, win-
ter type and arctic type (cold, mountain
areas). If refuelling with diesel fuel not suit-
able for the current temperature, mix
diesel fuel with TUTELA DIESEL ART ad-
ditive in the proportions stated on the can,
putting first the antifreeze in the tank and
then the diesel fuel.
Refuel with local diesel fuel if the vehicle
is used/parked in the mountains or in cold
areas for a long period.
In this event you are recommended to
keep an amount of fuel higher than 50% in
the tank.The vehicle must only be filled
with diesel fuel for motor ve-
hicles, in compliance with Eu-
ropean Standard EN590. The
use of other products or mixtures may
irreparably damage the engine with in-
validation of the warranty due to the
damage caused. In the event of acci-
dentally filling with another type of fu-
el, do not start the engine and empty
the tank. If the engine has been run
even for only a very short time, in ad-
dition to the tank, it is also necessary
to drain out the whole fuel circuit.
Keep naked flames or light-
ed cigarettes away from the
fuel filler hole as there is a danger of
fire. Do not bend too close to the hole
either so as not to breathe in harmful
vapours.
WARNING
During refuelling, do not open
the left sliding door due to the
fact that the open fuel door.
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 95

96SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS
DIESEL PARTICULATE FILTER
(DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechan-
ical filter, integral with the exhaust system,
that physically traps particulates present
in the exhaust gases of Diesel engine.
The diesel particulate filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current / fu-
ture law regulations.
During normal use of the vehicle, the en-
gine control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the filter.
Since this filter physically traps particulates,
it shall be cleaned (reclaimed) at regular
intervals by burning carbon particles.
Reclaiming procedure is controlled auto-
matically by the engine control unit ac-
cording to the filter conditions and the
conditions of use of the vehicle.
During reclaiming the following phenom-
ena could take place: idling slight increase,
fan activation, slight smoke increase, high
exhaust temperatures. These situations
shall not be considered as faults and they
do not affect vehicle performance and en-
vironment.
During normal service the
diesel particulate filter (DPF)
reaches high temperatures. Do not
therefore park the vehicle over in-
flammable materials (grass, dry leaves,
pine needles, etc.): fire hazard.
WARNING
During normal service the
catalyst reaches high tem-
peratures. Do not therefore park the
vehicle over inflammable materials
(grass, dry leaves, pine needles, etc.):
fire hazard.
WARNING
PROTECTING
THE ENVIRONMENTThe devices for curtailing diesel engine
emissions are:❒
oxidising catalytic converter;
❒
exhaust gas recirculation system
(E.G.R.);
❒
diesel particulate filter (DPF) (for ver-
sions/markets, where provided).
Diesel re-ignition pump
In case of the lack of fuel, it is necessary
to re-start the circuit:
❒
fill the fuel tank with at least 5 litres of
diesel;
❒
activate the manual re-operation pump,
situated under the engine casing under
the protection, until the fuel appears in
the transparent tube;
❒
activate the starting engine, until the en-
gine starts.
fig. 117
F0F0357m
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 96

97
CORRECT USE
OF THE VEHICLEWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES

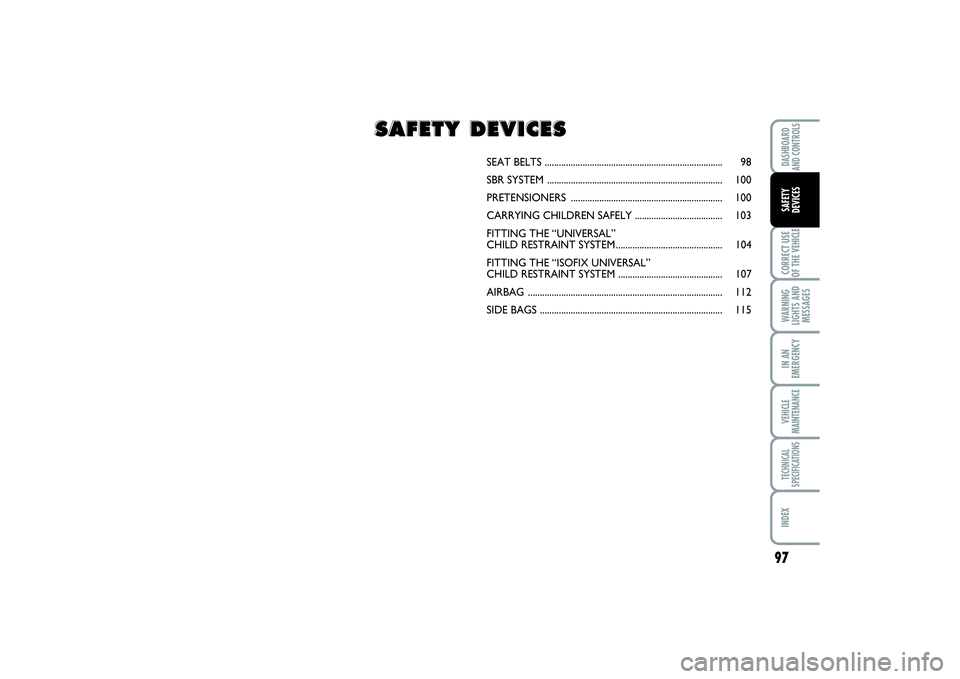

SEAT BELTS ........................................................................... 98
SBR SYSTEM .......................................................................... 100
PRETENSIONERS ................................................................ 100
CARRYING CHILDREN SAFELY ..................................... 103
FITTING THE “UNIVERSAL”
CHILD RESTRAINT SYSTEM............................................. 104
FITTING THE “ISOFIX UNIVERSAL”
CHILD RESTRAINT SYSTEM ............................................ 107
AIRBAG .................................................................................. 112
SIDE BAGS ............................................................................. 115
S S
A A
F F
E E
T T
Y Y

D D
E E
V V
I I
C C
E E
S S
097-118 SCUDO LUM GB 18/11/13 14.26 Pagina 97

98CORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSIINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES
SEAT BELTSUSING THE SEAT BELTS fig. 1
The seat belt should be worn keeping the
torso straight and rested against the seat
back.
To fasten the seat belt, hold the tongueAand insert it into the buckle B
B, until it
clicks into place.
If the seat belt jams during removal, let it
rewind for a short stretch, then pull it out
again without jerking.
To unfasten the seat belt, press button C
C.
Guide the seat belt while it is rewinding,
to prevent it from twisting.
Through the retractor, the seat belt au-
tomatically adapts to the body of the oc-
cupant wearing it, allowing freedom of
movement.
The retractor may lock when the car is
parked on a steep slope: this is normal.
Furthermore, the retractor mechanism
locks the belt if it is pulled sharply or in
the event of sudden braking, impacts or
high-speed bends.
The rear seat is fitted with inertial seat
belts with three fixing points and a re-
tractor.
fig. 1
F0P0108m
Never press button C - fig. 1
when travelling.
WARNING
USING THE FRONT
SEAT BELTS
With front airbags: driver and passenger
(for versions/markets, where provided).
The front seats are equipped with py-
rotechnic pretensioners and load limiters.
See paragraphs - pretensioners and load
limiters;
If the vehicle is equipped with a 2-seat
front bench, and the passenger front
airbag is not available, the seat belt of the
central passenger is not equipped with the
pyrotechnic pretensioner; the height of
the seat belt associated with the centre
seat cannot be adjusted.
The front seat belts are height-adjustable,
in order to adapt to the body of the oc-
cupants. This precaution may considerably
reduce the risk of injury in the event of an
impact. Correct adjustment is obtained
when the belt passes approximately half
way between the shoulder and the neck.
To carry out the adjustment, press gripAand raise or lower the cursor.
097-118 SCUDO LUM GB 18/11/13 14.26 Pagina 98

99
CORRECT USE
OF THE VEHICLEWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES

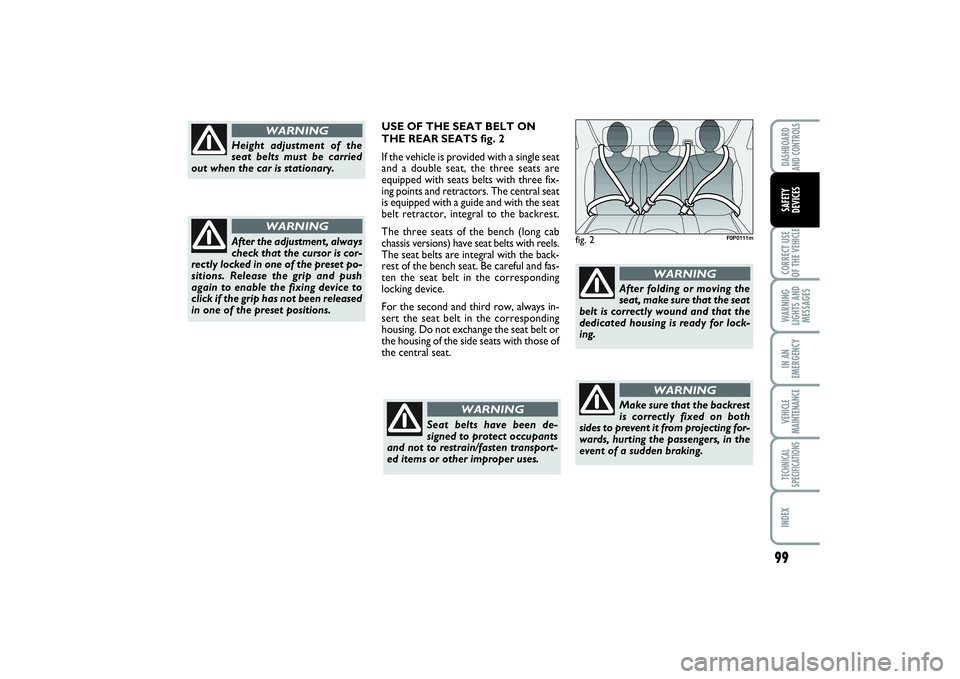

fig. 2
F0P0111m
Height adjustment of the
seat belts must be carried
out when the car is stationary.
WARNING
After the adjustment, always
check that the cursor is cor-
rectly locked in one of the preset po-
sitions. Release the grip and push
again to enable the fixing device to
click if the grip has not been released
in one of the preset positions.
WARNING
Seat belts have been de-
signed to protect occupants
and not to restrain/fasten transport-
ed items or other improper uses.
WARNING
USE OF THE SEAT BELT ON
THE REAR SEATS fig. 2
If the vehicle is provided with a single seat
and a double seat, the three seats are
equipped with seats belts with three fix-
ing points and retractors. The central seat
is equipped with a guide and with the seat
belt retractor, integral to the backrest.
The three seats of the bench (long cab
chassis versions) have seat belts with reels.
The seat belts are integral with the back-
rest of the bench seat. Be careful and fas-
ten the seat belt in the corresponding
locking device.
For the second and third row, always in-
sert the seat belt in the corresponding
housing. Do not exchange the seat belt or
the housing of the side seats with those of
the central seat.
After folding or moving the
seat, make sure that the seat
belt is correctly wound and that the
dedicated housing is ready for lock-
ing.
WARNING
Make sure that the backrest
is correctly fixed on both
sides to prevent it from projecting for-
wards, hurting the passengers, in the
event of a sudden braking.
WARNING
097-118 SCUDO LUM GB 18/11/13 14.26 Pagina 99
