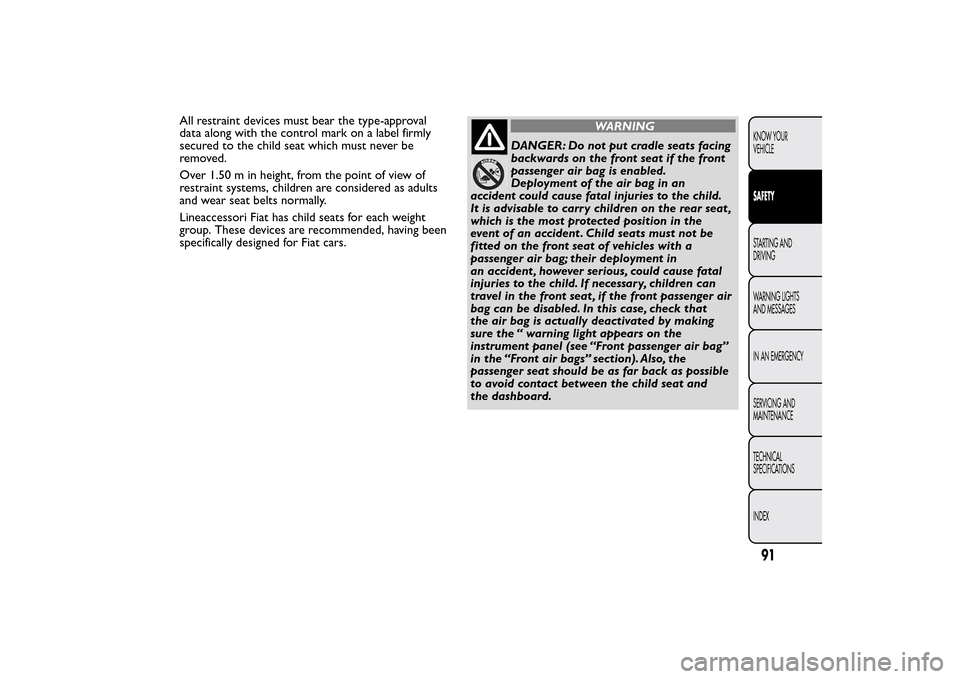

All restraint devices must bear the type-approval
data along with the control mark on a label firmly
secured to the child seat which must never be
removed.
Over 1.50 m in height, from the point of view of
restraint systems, children are considered as adults
and wear seat belts normally.
Lineaccessori Fiat has child seats for each weight
group. These devices are recommended, having been
specifically designed for Fiat cars.
WARNING
DANGER: Do not put cradle seats facing
backwards on the front seat if the front
passenger air bag is enabled.
Deployment of the air bag in an
accident could cause fatal injuries to the child.
It is advisable to carr y children on the rear seat ,
which is the most protected position in the
event of an accident . Child seats must not be
fitted on the front seat of vehicles with a
passenger air bag; their deployment in
an accident , however serious, could cause fatal
injuries to the child. If necessary, children can
travel in the front seat , if the front passenger air
bag can be disabled. In this case, check that
the air bag is actually deactivated by making
sure the “ warning light appears on the
instrument panel (see “Front passenger air bag”
in the “Front air bags” section). Also, the
passenger seat should be as far back as possible
to avoid contact between the child seat and
the dashboard.
91KNOW YOUR
VEHICLESAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

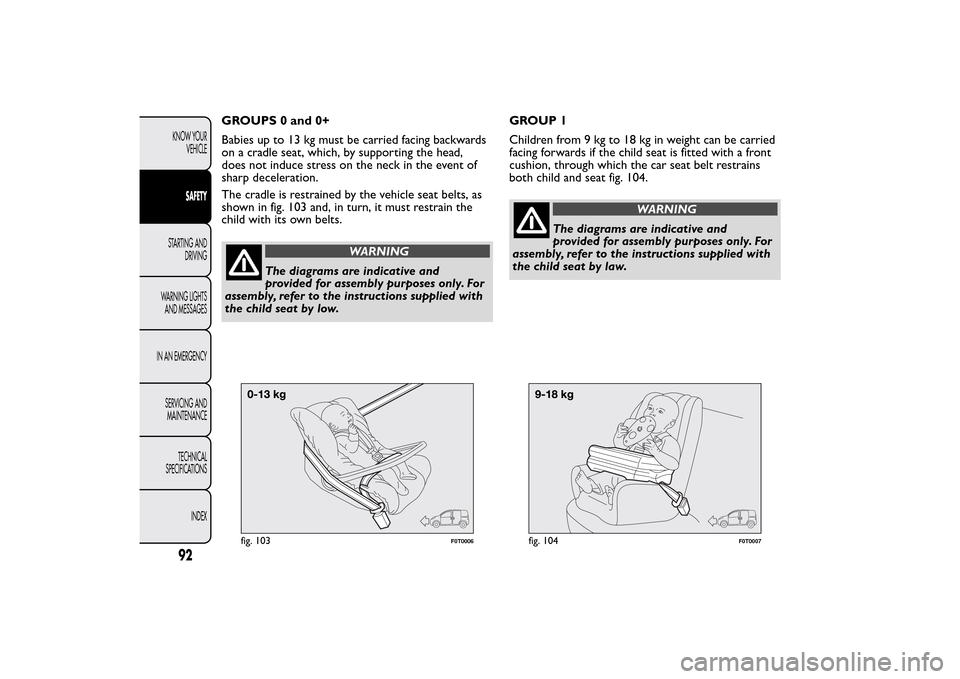

GROUPS 0 and 0+
Babies up to 13 kg must be carried facing backwards
on a cradle seat, which, by supporting the head,
does not induce stress on the neck in the event of
sharp deceleration.
The cradle is restrained by the vehicle seat belts, as
shown in fig. 103 and, in turn, it must restrain the
child with its own belts.
WARNING
The diagrams are indicative and
provided for assembly purposes only. For
assembly, refer to the instructions supplied with
the child seat by low.GROUP 1
Children from 9 kg to 18 kg in weight can be carried
facing forwards if the child seat is fitted with a front
cushion, through which the car seat belt restrains
both child and seat fig. 104.
WARNING
The diagrams are indicative and
provided for assembly purposes only. For
assembly, refer to the instructions supplied with
the child seat by law.
fig. 103
F0T0006
fig. 104
F0T0007
92KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
Some child restraint systems for weight
groups 0 and 1 have a rear attachment
to the car seat belts and their own seat belts for
securing the child. Due to their weight , they
may be dangerous if incorrectly mounted (e.g. if
fastened to the vehicle seat belts placing a
cushion in between). Follow the assembly
instructions carefully.
GROUP 2
Children from 15 to 25 kg can be secured using the
car seat belts directly fig. 105.
The child seat is needed only to position the child
correctly with respect to the belts so that the
diagonal section crosses the child's chest and never
the neck, and the lower part is snug on the hips
not the abdomen.
WARNING
The diagrams are indicative and
provided for assembly purposes only. For
assembly, refer to the instructions supplied with
the child seat by law.
fig. 105
F0T0008
93KNOW YOUR
VEHICLESAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GROUP 3
For children from 22 kg to 36 kg, the size of the
child's chest no longer requires a support to distance
the child's back from the back of the seat.
The figure fig. 106 shows proper child seat
positioning on the rear seat.
Children over 1.50 m in height can wear seat belts
like adults.
WARNING
The diagrams are indicative and
provided for assembly purposes only. For
assembly, refer to the instructions supplied with
the child seat by low.
fig. 106
F0T0009
94KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SUITABILITY OF PASSENGER SEATS FOR CHILD SEAT USE
The vehicle complies with the new European Directive 2000/3/EC which governs the arrangement
possibilities for child restraints on the seats of a vehicle as shown in the following table:
Group Weight range Front passenger seat Rear passenger seat
Groups 0, 0+ up to 13 kg
UU
Group 1 9-18 kg
UU
Group 2 15-25 kg
UU
Group 3 22-36 kg
UU
U suitable for “Universal” child seats, according to European standard ECE-R44 for the specified “Groups”.
95KNOW YOUR
VEHICLESAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Below is a summary of the rules of safety to
be followed when carrying children:
❒Install the child seats on the rear seat, which is the
most protected position in the event of an
accident.
❒If the passenger's air bag is deactivated, always
check the amber warning light
on the
instrument panel to make sure that it has actually
been deactivated.
❒Carefully follow the instructions that came with
the child seat, which the manufacturer must supply
by law. Keep the instructions in the vehicle along
with the other papers and this handbook. Do
not use child seats without instructions.
❒Always check the seat belt is well fastened by
pulling on it.
❒Only one child is to be strapped into each seat;
never carry two children using one child seat.
❒Always check the seat belts do not rest on the
child's neck.
❒While travelling, do not let the child sit incorrectly
or release the belts.
❒Never carry children on your lap, even newborns.
No-one can hold a child in the event of an
accident.
❒In the event of an accident, replace the child seat
with a new one.
WARNING
Do not arrange child seats on the front
seat in cars fitted with passenger's air
bag. Children must never travel on the front
seat .
96KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ISOFIX CHILD SEAT ASSEMBLY
SETUP(for versions/markets, where provided)
Provisions are made on some versions of the vehicle
to fit Universal Isofix child seats. Isofix is a new
European standardised system for carrying children
safely.Isofix systems can be fitted alongside traditional child
seats.
ig. 107 displays an example of a child seat.
The Universal Isofix child seat covers weight group 1.
Specific Isofix systems are provided for the other
weight groups and may be used only if specifically
designed, tested and approved for use on this vehicle
(see list attached to the child seat).
Due to its different attachment system, the child seat
must be secured using the dedicated lower metal
rings A fig. 108 , located between the rear cushion
and backrest. After removing the parcel shelf, secure
the upper belt (provided with the child seat) to the
dedicated ring B fig. 109 (one per side) located
behind the rear seat backrest.
fig. 107
F0T0010
fig. 108
F0T0145
97KNOW YOUR
VEHICLESAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F

Remember that in the case of Universal Isofix child
seats, you can use all seats approved with the
marking ECE R44/03 "Universal Isofix".
The Universal Isofix child seat "Duo Plus" is available
from Lineaccessori Fiat.
For any further details on installation/use, refer to
the instruction manual provided with the child seat.
WARNING
Fit the child seat only when the vehicle
is stationary.The child seat is correctly
anchored to the brackets when you hear it click
into place. Follow the instructions for
positioning, fitting and removing which the child
seat manufacturer must supply together with
the seat .
fig. 109
F0T0284
98KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
