2014 FIAT PANDA technical data

Dear Customer,
We would like to congratulate and thank you for choosing Fiat.
We have written this handbook to help you get to know all the features of your car and use it in the best possible way.
You are recommended to read it right through before taking to the road for the first time.
It contains important information, advice and instructions for the use of the car which will help you get the very best out
of your Fiat. The handbook also provides a description of special features and tips as well as essential information for
correct care, maintenance, safe car driving and use and preservation of your Fiat over time.
Carefully read the warnings and indications marked with the following symbols:
personal safety;car safety;environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:
❒the Warranty Certificate with terms and conditions for maintaining its validity;
❒the range of additional services available to Fiat Customers.
We are sure that these will help you get in touch with your new car and appreciate it and the care provided by the
people at Fiat.
Enjoy reading. Happy motoring!
This Owner Handbook describes all the versions of the Fiat Panda. As a
consequence, you should only consider the information which is related to the trim
level, engine and version that you have purchased. All data contained in this
publication are purely indicative. Fiat Group Automobiles can modify the
specifications of the vehicle model described in this publication at any time, for
technical or commercial reasons. For further information, contact a Fiat Dealership.

The menu includes the following items:
❒MENU
❒LIGHTING
❒SPEED BEEP
❒TRIP B ACTIVATION/DATA
❒SET TIME
❒SET DATE
❒SEE RADIO
❒AUTOCLOSE
❒MEASUREMENT UNIT
❒LANGUAGE
❒WARNING VOLUME
❒SEAT BELT BUZZER (for versions/markets, where
provided)
❒SERVICE
❒AIRBAG/PASSENGER BAG (for versions/markets,
where provided)
❒CITY BRAKE C./COLLISION MITIGATION (for
versions/markets, where provided)
❒EXIT MENU
Selecting an option from the main menu without a
submenu:
❒briefly press the
button to select the main menu
option to be set;❒press buttons
or
(with single presses) to
select the new setting;
❒briefly press the
button to store the new setting
and to go back to the same main menu option
selected previously.
Selecting an option from the main menu with a
submenu:
❒a short press on the
button will display the first
submenu option;
❒press buttons
or
(with single presses) to
scroll through all the submenu options;
❒briefly press the
button to select the displayed
submenu option and to open the relevant set-up
menu;
❒press buttonsor
(with single presses) to
select the new setting for this submenu option;
❒Briefly press button
to store the new setting
and at the same time go back to the previously
selected menu option.
9GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒press the
button: "Off" will flash on the
display;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Activation/Trip B data (Activating Trip B)
With this function it is possible to activate ("On") or
deactivate ("Off") the Trip B display (partial trip).
For more information see the "Trip computer"
paragraph.
For activation/deactivation, proceed as follows:
❒press thebutton briefly to make the display flash
"On" or "Off" according to the previous setting;
❒press the
or
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or hold the button down to return to the
standard screen without storing.
Time adjustment (Clock adjustment)
This function allows the clock to be set through two
submenus: "Time" and "Format".
To carry out the adjustment, proceed as follows:
❒press thebutton briefly: the display will show
the two submenus "Time" and "Format";
❒press the
or
button to switch between
the two submenus;❒once you have selected the submenu to be
changed, press the
button briefly;
❒when you select "Time", pressing
briefly makes
the "hours" flash on the display. press the
or
button to make the adjustment;
❒press the
button briefly: the "minutes" flash on
the display. Press the
or
button to make
the adjustment;
❒if you select the "Format" submenu, pressing the
button briefly makes the display mode flash on
the display. Press the
or
button to select
"12h" or "24h" mode. When you have carried
out the desired adjustment, press the
button
briefly to return to the submenu screen or hold
the button down to return to the main menu
screen without storing.
Hold down the
button again to return to the
standard screen or to the main menu according to
where you are in the menu.
IMPORTANT The setting will increase or decrease
by one unit each time the
or
button is
pressed. Holding the button down causes an
automatic rapid increase/decrease. Complete the
adjustment with single presses of the button when
you approach the desired value.
11GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
The pretensioner may be used only
once. After it is triggered, have it
replaced at a Fiat Dealership. Consult the data
plate in the passenger compar tment to check
the status of the device (on front door edge
panel or glove box). Go to a Fiat Dealership to
have the device replaced when the expiration
date approaches.Operations which lead to knocks,
vibrations or localised heating (over 100°C
for a maximum of 6 hours) in the area
around the pretensioners may cause damage or
trigger them.These devices are not affected by
vibrations caused by irregularities of the road
surface or low obstacles such as kerbs, etc .
Contact a Fiat Dealership for any assistance.
LOAD LIMITERS
To increase passenger safety, the front seat belt reels
contain a load limiter which allows controlled sag
in such a way as to dose the force acting on the
chest and shoulders during the belt restraining action
in the case of frontal collisions.GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTS
The driver is responsible for respecting, and ensuring
that all the other occupants of the car also respect,
the local laws in force in relation to the use of the
seat belts. Always fasten the seat belts before
starting.
Seat belts must also be worn by expectant mothers:
the risk of injury in the event of an accident is greatly
reduced for them and the unborn child if they are
wearing a seat belt. Pregnant women must position
the lower part of the belt very low down so that
it passes over the pelvis and under the abdomen (see
fig. 93).
fig. 93
F0W0010
104
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CARRYING CHILDREN SAFELYAll vehicle's occupants must be protected, babies and
children included! For optimal protection in the
event of a collision, all passengers must be seated
and wearing adequate restraint systems.
This prescription is compulsory in all EC countries
according to EC Directive 2003/20/EC.
This is even more important for children since their
head is larger and heavier than an adult's in
proportion to their body, while their muscular and
bone structures are not fully developed.
Therefore, correct restraint systems other than adult
seat belts are necessary to reduce as much as
possible the risk of injuries in case of accident,
braking or sudden manoeuvre.
Children must be suitably restrained inside the
vehicle according to their body: weight and height.
Several children restraint system types are available;
always choose the one most suitable for the child.
In Europe the characteristics of children restraint
systems are ruled by the regulation ECE-R44, dividing
them into five weight groups:Group Weight groups
Group0 upto10kg
Group 0+ up to 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kg
All restraint devices must bear the type-approval
data along with the control mark on a label firmly
secured to the child seat which must never be
removed.
Over 1.50 m in height, from the point of view of
restraint systems, children are considered as adults
and wear the seat belts normally. Lineaccessori
Fiat offers child restraint systems for each weight
group. These devices are recommended having been
specifically designed for Fiat cars.
WARNING
When an active passenger air bag is
fitted, DO NOT install backwards-facing
child seats on the front seat . Deployment of the
air bag in an accident could cause fatal injuries
to the baby regardless of the severity of the
collision. It is advisable to always carr y children
in a child seat on the rear seat , which is the
most protected position in the event of a
collision.
107GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

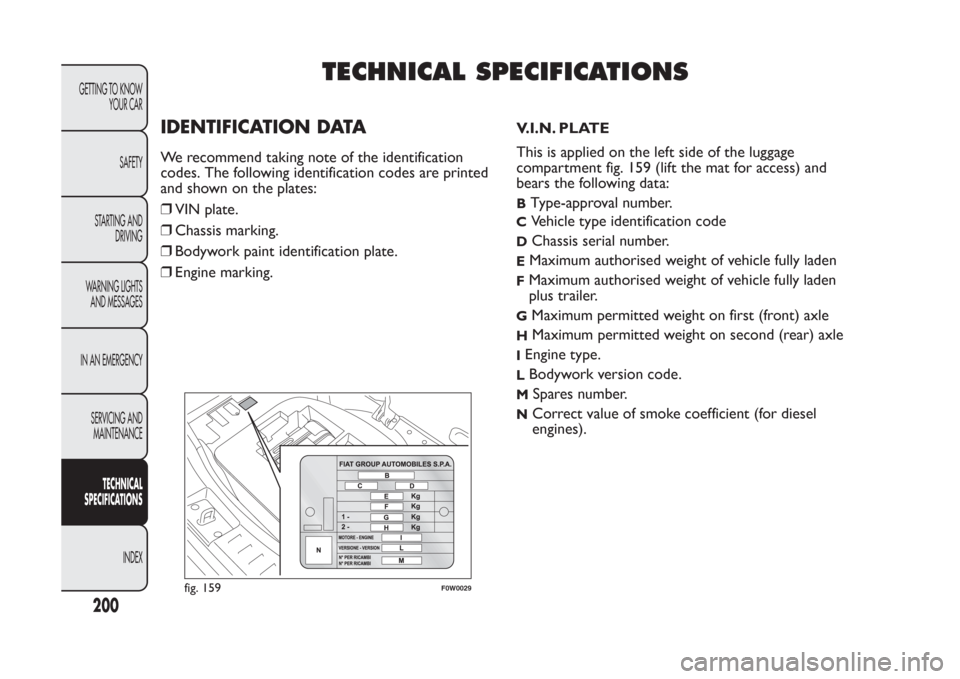

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAWe recommend taking note of the identification
codes. The following identification codes are printed
and shown on the plates:
❒VIN plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.V.I.N. PLATE
This is applied on the left side of the luggage
compartment fig. 159 (lift the mat for access) and
bears the following data:
B
Type-approval number.
C
Vehicle type identification code
D
Chassis serial number.
E
Maximum authorised weight of vehicle fully laden
F
Maximum authorised weight of vehicle fully laden
plus trailer.
G
Maximum permitted weight on first (front) axle
H
Maximum permitted weight on second (rear) axle
IEngine type.L
Bodywork version code.
M
Spares number.
N
Correct value of smoke coefficient (for diesel
engines).
fig. 159
F0W0029
200
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BODYWORK PAINT IDENTIFICATION
PLATE
This is applied inside the bonnet (left side) and bears
the following data fig. 160:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
CHASSIS MARKING
This is located on the right side of the luggage
compartment floor and gives the following
identification data:
❒type of vehicle;
❒chassis serial number.ENGINE MARKING
This is stamped on the cylinder block and gives the
model and the chassis serial number.
fig. 160
F0W0030
201GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Fuel supply ................................ 205
Fuse boxes (location) ............. 167
Fuses
– Dashboard fuse box .......... 168
– Engine compartment
fuse box ............................... 167
– fuse list ................................. 169
– replacing fuses .................... 165G
earbox (using the)............... 125
Gear Shift Indicator
(system) .................................... 7
H
andbrake ............................... 124
Hazard warning lights .............. 51
HBA (Hydraulic Brake
Assist) system ......................... 77
HBA (system)............................ 77
Headlights - fog light
alignment .................................. 72
Headlights .................................. 71
– adjusting headlights
abroad.................................... 72
– bulb replacement ............... 157
– headlight alignment
corrector .............................. 71
– light beam direction ........... 71Head restraints ......................... 26
Hill Holder system ................... 74
Hill Holder (system) ................ 74
Identification data
– bodywork paint plate........ 201
– chassis marking................... 201
– engine marking ................... 201
– identification data plate.... 200
Ignition device ........................... 22
Instrument panel ...................... 3-4
Interior fittings .......................... 53
Interiors (cleaning).................. 198"Isofix" child seat setup......... 112Jack............................................. 146K
eys
– key without remote
control................................... 19
– key with remote
control................................... 19
– replacing remote
control battery .................... 21
– request for additional
remote controls .................. 21Key with remote control
(replacing the battery) .......... 21
Knowing your car..................... 3
– Display ................................... 8
– Luggage compartment
(capacity) ............................. 215
Light clusters
– front light clusters
(changing a bulb) ................ 157
– rear light clusters
(changing a bulb) ................ 160
Load limiters ............................ 104
Luggage compartment ............ 63
Luggage compartment roof
light
– bulb replacement ............... 164M
ain beam headlights
– control................................... 46
Main/dipped beam
headlights
– bulb replacement ............... 157
Main/dipped beam
(headlights)
– bulb replacement ............... 157
Manual climate control ........... 33
– maintenance ......................... 36
274
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
