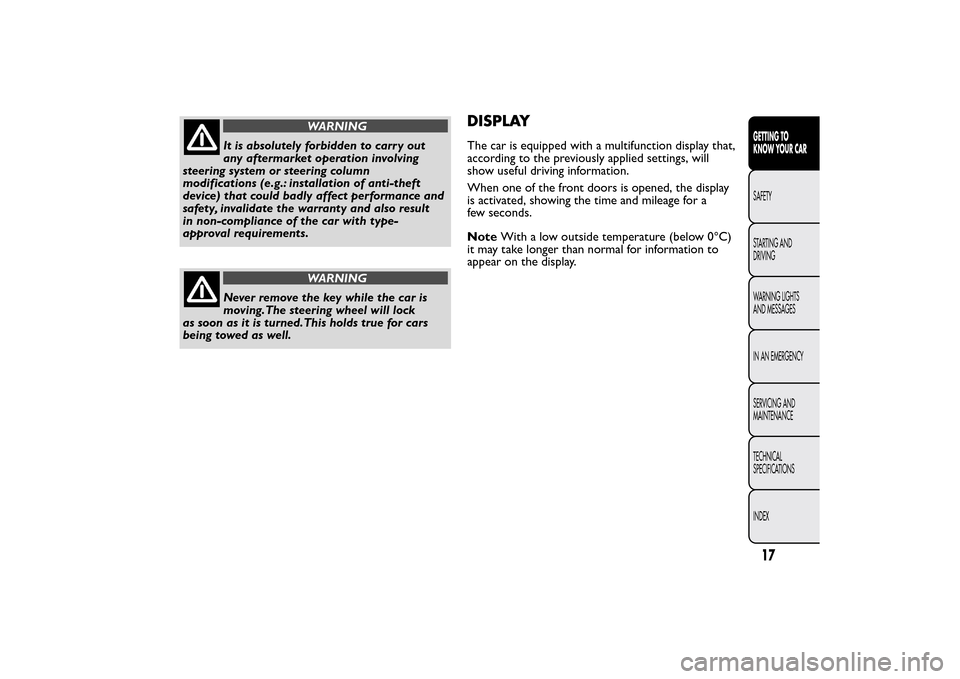

WARNING
It is absolutely forbidden to carr y out
any aftermarket operation involving
steering system or steering column
modifications (e.g.: installation of anti-theft
device) that could badly affect performance and
safety, invalidate the warranty and also result
in non-compliance of the car with type-
approval requirements.
WARNING
Never remove the key while the car is
moving.The steering wheel will lock
as soon as it is turned.This holds true for cars
being towed as well.
DISPLAYThe car is equipped with a multifunction display that,
according to the previously applied settings, will
show useful driving information.
When one of the front doors is opened, the display
is activated, showing the time and mileage for a
few seconds.
NoteWith a low outside temperature (below 0°C)
it may take longer than normal for information to
appear on the display.
17GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT When one of the front doors is
opened, the display is activated, showing the time
and mileage for a few seconds.
SETUP MENU
The menu comprises a series of functions which can
be selected using the
and
buttons to access
the different selection and setting (setup) operations
indicated below.
Some options have a submenu.
The Setup Menu can be activated by pressing the
MODE button briefly.
If the Radionavigator is installed, only the following
functions can be adjusted/set from the instrument
panel: "Lighting", “Speed beep”, "Headlight sensor"
(for versions/markets, where provided), "Belt buzzer"
and "Passenger airbag". The other functions are
shown on the Radionavigator display. You can set and
adjust them there.
The menu comprises the following options:
❒LIGHTING
❒SPEED BEEP
❒HEADLIGHT SENSOR (for versions/markets,
where provided)
❒TRIP B ACTIVATION/DATA
❒SET TIME
❒SET DATE
❒FIRST PAGE (for versions/markets, where
provided)❒SEE RADIO
❒AUTOCLOSE
❒UNITS OF MEASUREMENT
❒LANGUAGE
❒WARNINGS VOLUME
❒BUTTON VOLUME
❒SEAT BELT BEEP/BUZZ.
❒SERVICE
❒AIRBAG/PASSENGER BAG
❒CORNERING LIGHTS (for versions/markets,
where provided)
❒EXIT MENU
Selecting an option from the main menu
without a submenu:
❒briefly press the MODE button to select the main
menu option that needs to be changed;
❒press buttons
or
(with single presses) to
select the new setting;
❒briefly press the MODE button to store the new
setting and at the same time go back to the
previously selected menu option.
19GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

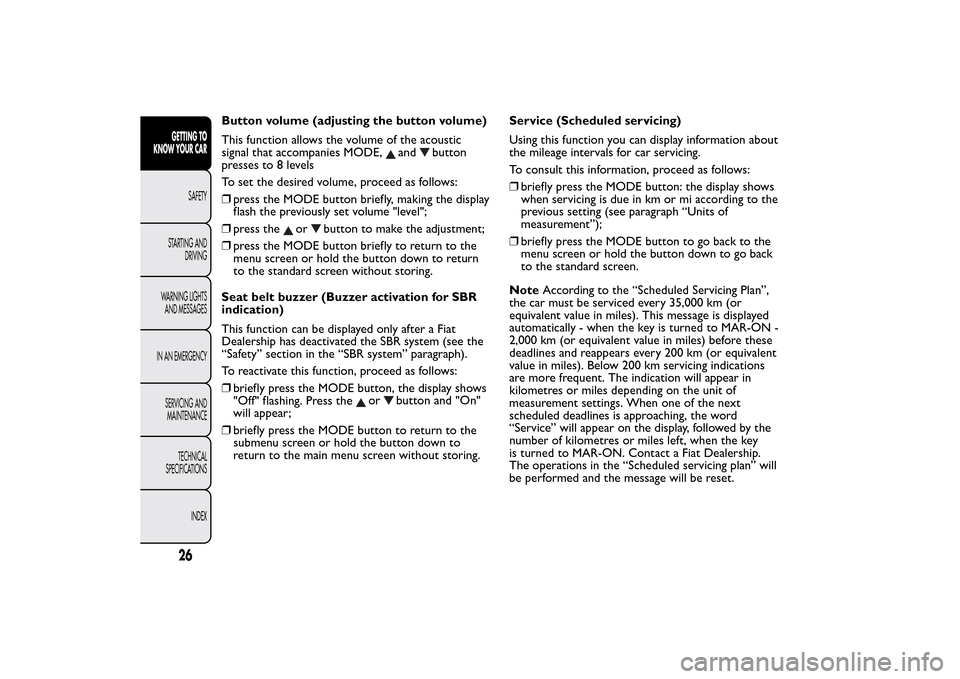

Button volume (adjusting the button volume)
This function allows the volume of the acoustic
signal that accompanies MODE,
and
button
presses to 8 levels
To set the desired volume, proceed as follows:
❒press the MODE button briefly, making the display
flash the previously set volume "level";
❒press the
or
button to make the adjustment;
❒press the MODE button briefly to return to the
menu screen or hold the button down to return
to the standard screen without storing.
Seat belt buzzer (Buzzer activation for SBR
indication)
This function can be displayed only after a Fiat
Dealership has deactivated the SBR system (see the
“Safety” section in the “SBR system” paragraph).
To reactivate this function, proceed as follows:
❒briefly press the MODE button, the display shows
"Off" flashing. Press the
or
button and "On"
will appear;
❒briefly press the MODE button to return to the
submenu screen or hold the button down to
return to the main menu screen without storing.Service (Scheduled servicing)
Using this function you can display information about
the mileage intervals for car servicing.
To consult this information, proceed as follows:
❒briefly press the MODE button: the display shows
when servicing is due in km or mi according to the
previous setting (see paragraph “Units of
measurement”);
❒briefly press the MODE button to go back to the
menu screen or hold the button down to go back
to the standard screen.
NoteAccording to the “Scheduled Servicing Plan”,
the car must be serviced every 35,000 km (or
equivalent value in miles). This message is displayed
automatically - when the key is turned to MAR-ON -
2,000 km (or equivalent value in miles) before these
deadlines and reappears every 200 km (or equivalent
value in miles). Below 200 km servicing indications
are more frequent. The indication will appear in
kilometres or miles depending on the unit of
measurement settings. When one of the next
scheduled deadlines is approaching, the word
“Service” will appear on the display, followed by the
number of kilometres or miles left, when the key
is turned to MAR-ON. Contact a Fiat Dealership.
The operations in the “Scheduled servicing plan” will
be performed and the message will be reset.
