2014 FIAT BRAVO Dashboard light

WARNING
SEVERE DANGER When an active
passenger airbag is fitted, DO NOT
install rearward facing child restraint
systems on the front seat . Deployment
of the airbag in an accident could cause fatal
injuries to the child regardless of the severity of
the impact .Therefore, always deactivate the
passenger airbag when a rearward facing child
restraint system is installed on the front
passenger seat .The front passenger seat must
also be positioned back as far as possible in
order to avoid the child restraint system from
coming into contact with the dashboard.
Immediately reactivate the passenger airbag as
soon as the child restraint system has been
removed.FRONT PASSENGER AIRBAG AND CHILD
RESTRAINT SYSTEMS
WARNING
When an active passenger airbag is
fitted, DO NOT install rear facing child
restraint systems on the front seat . Deployment
of the airbag in an accident could cause fatal
injuries to the child regardless of the severity of
the impact .

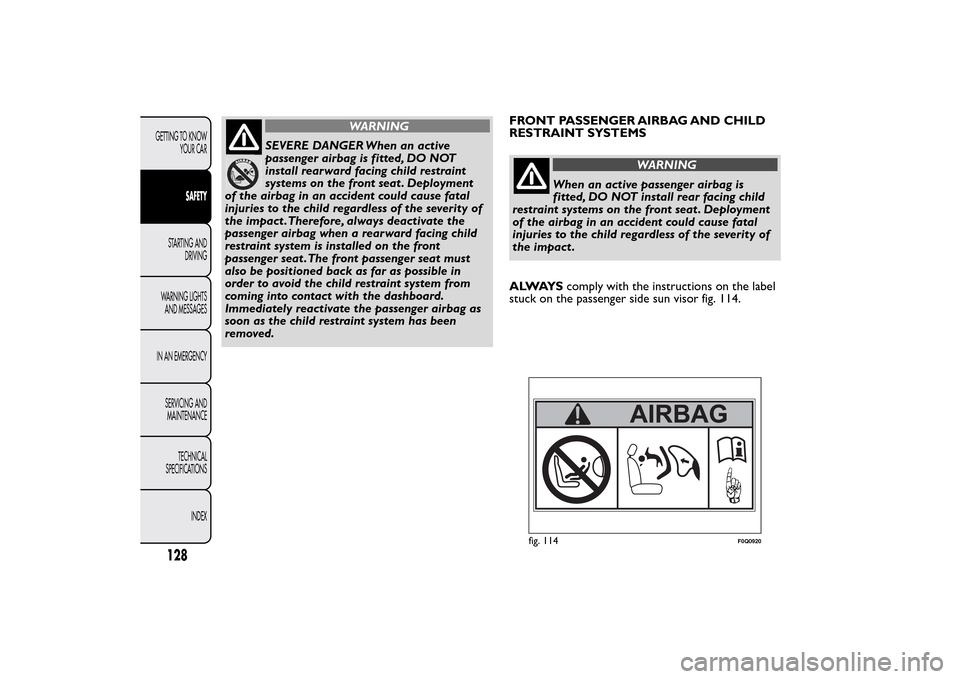

ALWAYScomply with the instructions on the label
stuck on the passenger side sun visor fig. 114.
fig. 114
F0Q0920
128GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

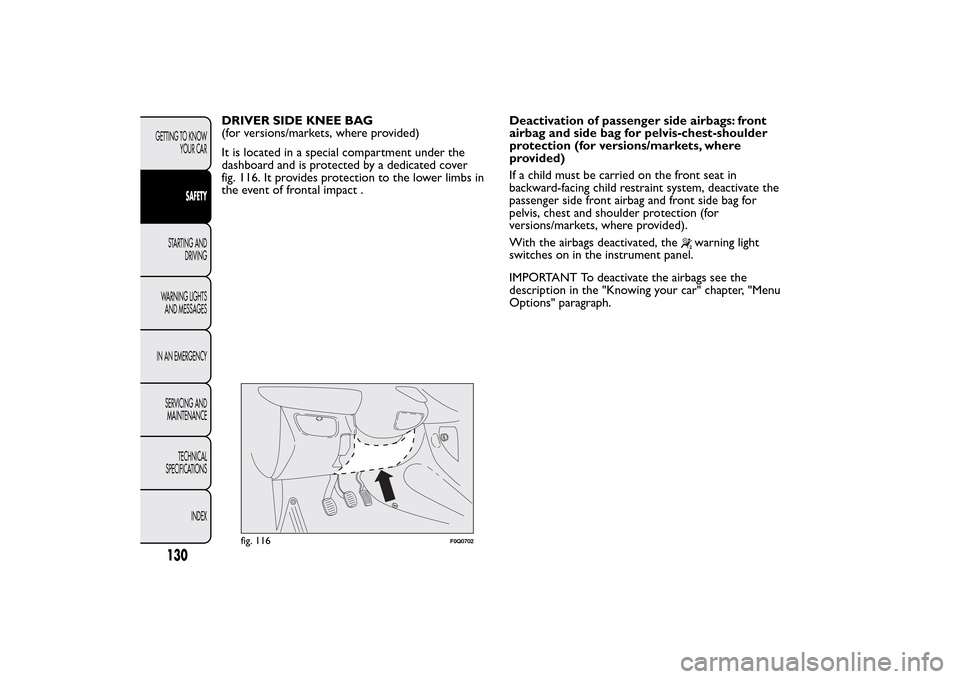

DRIVER SIDE KNEE BAG
(for versions/markets, where provided)
It is located in a special compartment under the
dashboard and is protected by a dedicated cover
fig. 116. It provides protection to the lower limbs in
the event of frontal impact .Deactivation of passenger side airbags: front
airbag and side bag for pelvis-chest-shoulder
protection (for versions/markets, where
provided)
If a child must be carried on the front seat in
backward-facing child restraint system, deactivate the
passenger side front airbag and front side bag for
pelvis, chest and shoulder protection (for
versions/markets, where provided).
With the airbags deactivated, the
warning light
switches on in the instrument panel.
IMPORTANT To deactivate the airbags see the
description in the "Knowing your car" chapter, "Menu
Options" paragraph.
AU
TO
fig. 116
F0Q0702
130GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
If the car has been stolen or in the case
of attempt to steal it , if it has been
subjected to vandalism or floods, have the
airbag system checked by a Fiat Dealership.
WARNING
When the ignition key is inserted and
turned to MAR-ON, airbags may be
deployed if another car crashes into the vehicle,
even if the engine is not running and the car is
stationary.Therefore, even if the car is
stationary, when an active passenger airbag is
fitted, DO NOT install rearward facing child
restraint systems on the front passenger seat .
Deployment of the airbag following an impact
could cause fatal injuries to the child.Therefore,
always deactivate the passenger airbag when
a rearward facing child restraint system is
installed on the front passenger seat .The front
passenger seat must also be positioned back
as far as possible in order to avoid the child
restraint system from coming into contact with
the dashboard. Immediately reactivate the
passenger airbag as soon as the child restraint
system has been removed. Also remember that ,
if the key is turned to STOP, none of the safety
devices (airbags or pretensioners) will be
deployed in the event of collision. Non-
deployment in such cases does not indicate a
system malfunction.
WARNING
When the ignition key is turned to
MAR-ON, the warning light
(with
passenger's front airbag activated) turns on and
flashes for a few seconds to remind you that
the passenger's airbag will be deployed in a
crash, after which it should go off.
WARNING
The front airbag is designed to be
deployed for impacts of a greater
intensity than for the pretensioners. For impacts
whose intensity falls between the two
activation levels, it is normal for only the
pretensioners to be activated.
WARNING
The airbag does not replace seat belts
but increases their efficiency.
Furthermore, since front airbags are not
deployed in low-speed frontal impacts, side
impacts, rear shunts or roll-overs, the
passengers are protected only by the seat belts
which must therefore be fastened at all times.
134GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

“DUALDRIVE” ELECTRIC POWER
STEERING FAILURE (red)
The warning light comes on when the ignition key is
turned to MAR-ON, but it should switch off after
a few seconds.
The electric power steering system will not work
when the warning light is on and considerably more
effort is needed on the steering wheel. The car
can still be steered. In this case, contact a Fiat
Dealership.
The display will show the dedicated message.“DUALDRIVE” ELECTRIC POWER
STEERING ACTIVATION (indication
on display)
The indication CITY switches on when the
"Dualdrive" electric power steering system is
activated by pressing the
button on the dashboard.
The indication CITY will switch off when the
button is pressed again.
EXCESSIVE ENGINE COOLANT
TEMPERATURE (red)
Turning the key to the MAR-ON position the
warning light switches on, but it should switch off
after a few seconds. The warning light turns on when
the engine is overheated. If the warning light comes
on, proceed as follows:
❒when driving normally:stop the car, switch off
the engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait
for the engine to cool down, then slowly and
carefully open the cap, top up with coolant and
check that the level is between the MIN and MAX
marks on the reservoir. Also check visually for
any fluid leaks. If, when restarting, the warning
light switches on again, contact a Fiat Dealership.
❒If the car is used under demanding
conditions(e.g. towing trailers uphill or fully
loaded): slow down and, if the light stays on, stop
the car. Wait for 2 or 3 minutes with the engine
running and slightly accelerated to further favour
the coolant circulation. Then stop the engine.
Check the correct coolant level as described
above.
IMPORTANT Over demanding routes, it is advisable
to keep the engine on and slightly accelerated for
a few minutes before switching it off.
The display will show the dedicated message.
150GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

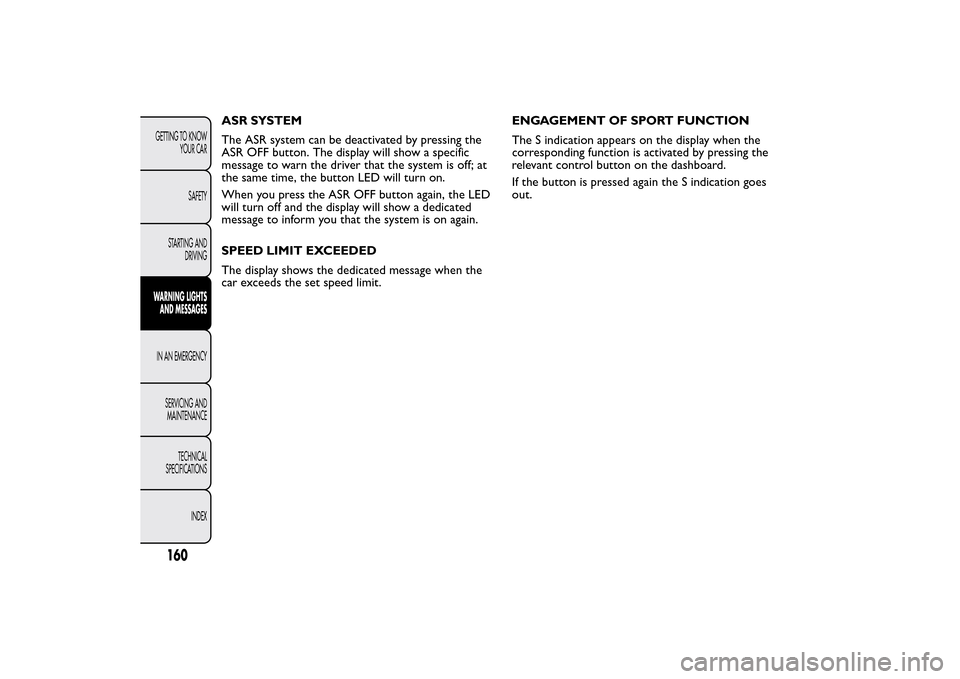

ASR SYSTEM
The ASR system can be deactivated by pressing the
ASR OFF button. The display will show a specific
message to warn the driver that the system is off; at
the same time, the button LED will turn on.
When you press the ASR OFF button again, the LED
will turn off and the display will show a dedicated
message to inform you that the system is on again.
SPEED LIMIT EXCEEDED
The display shows the dedicated message when the
car exceeds the set speed limit.ENGAGEMENT OF SPORT FUNCTION
The S indication appears on the display when the
corresponding function is activated by pressing the
relevant control button on the dashboard.
If the button is pressed again the S indication goes
out.
160GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

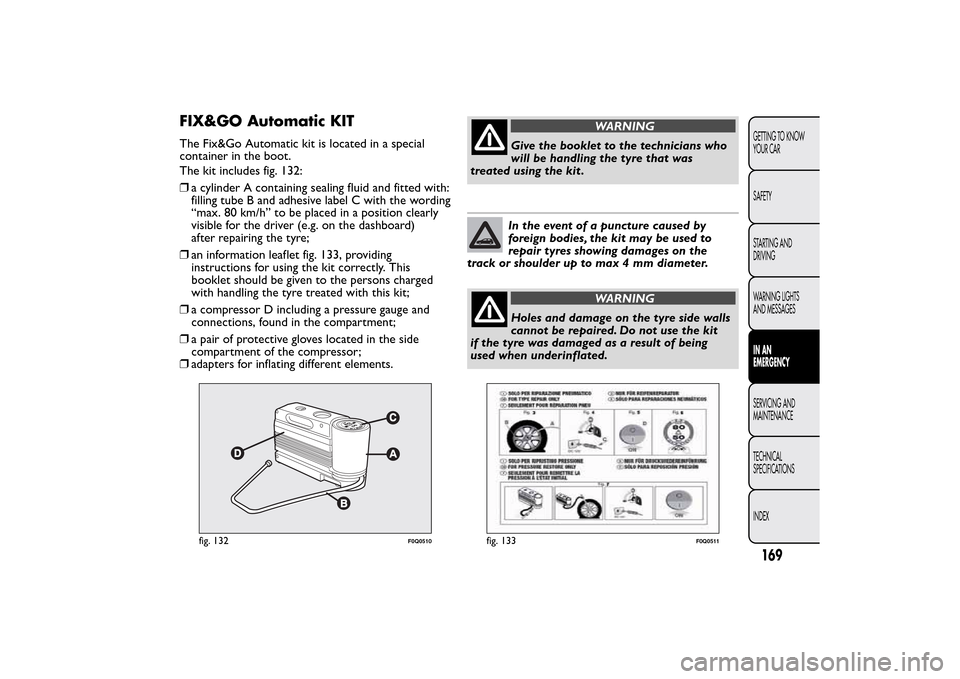

FIX&GO Automatic KITThe Fix&Go Automatic kit is located in a special
container in the boot.
The kit includes fig. 132:
❒a cylinder A containing sealing fluid and fitted with:
filling tube B and adhesive label C with the wording
“max. 80 km/h” to be placed in a position clearly
visible for the driver (e.g. on the dashboard)
after repairing the tyre;
❒an information leaflet fig. 133, providing
instructions for using the kit correctly. This
booklet should be given to the persons charged
with handling the tyre treated with this kit;
❒a compressor D including a pressure gauge and
connections, found in the compartment;
❒a pair of protective gloves located in the side
compartment of the compressor;
❒adapters for inflating different elements.
WARNING
Give the booklet to the technicians who
will be handling the tyre that was
treated using the kit .In the event of a puncture caused by
foreign bodies, the kit may be used to
repair tyres showing damages on the
track or shoulder up to max 4 mm diameter.
WARNING
Holes and damage on the tyre side walls
cannot be repaired. Do not use the kit
if the tyre was damaged as a result of being
used when underinflated.
fig. 132
F0Q0510
fig. 133
F0Q0511
169GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

COURTESY MIRROR LIGHTS
(for versions/markets, where provided)
Replace the bulb as follows:
❒open the mirror cover A fig. 163;
❒extract light B levering in the points shown by the
arrows;
❒replace bulb C releasing the side contacts, insert
the new bulb and make sure that it is correctly
locked between the contacts.
REPLACING FUSESINTRODUCTION
Fuses protect the electrical system: they intervene
(blow) in the event of a failure or improper
intervention on the system.
When a device does not work, check the condition
of its protective fuse: the conductor element A
fig. 164 must be intact. If it is not, replace the blown
fuse with another with the same amperage (same
colour).
B = intact fuse;
C = fuse with damaged filament.
To facilitate fuse replacement, use the pliers D
hooked inside the fuse box lid on the dashboard
left-hand side.
Refer to the tables on the following pages to identify
the protective fuse.
fig. 163
F0Q0753
fig. 164
F0Q0220
187GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
If the replaced fuse blows again, contact
a Fiat Dealership.
WARNING
Never replace a fuse with metal wires or
other material.
WARNING
Never replace a fuse with another with
a higher amp rating; DANGER OF FIRE.
WARNING
If a general protective fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-FUSE) blows,
contact a Fiat Dealership.
WARNING
Before replacing a fuse, make sure that
the ignition key has been removed
and that all the other services are switched off
and/or disengaged.
WARNING
Contact a Fiat Dealership if a safety
system (airbags, brakes), engine system
(engine, gearbox) or steering system general
protection fuse blows.
FUSE LOCATION
The fuses are grouped in three fuse boxes:
❒dashboard fuse box;
❒engine compartment fuse box;
❒luggage compartment fuse box.
188GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
