2014 FIAT BRAVO engine

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAThe identification data of the car are:
❒VIN plate;
❒Chassis marking;
❒Bodywork paint identification plate;
❒Engine marking.
VIN PLATE
This plate is fitted to the engine compartment front
crossmember and contains the following data
fig. 183:BType-approval number.C
Vehicle type identification code.
D
Chassis serial number.
EMaximum authorised weight of vehicle fully laden.FMaximum authorised weight of vehicle fully laden
plus trailer.G
Maximum authorised weight on first (front) axle.
H
Maximum authorised weight on second (rear)
axle.
IEngine type.LBodywork version code.M
Number for spare parts.
N
Correct value of smoke coefficient (for diesel
engines).
fig. 183
F0Q0029
225GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

CHASSIS MARKING
This is printed on the passenger compartment floor,
near the front right seat.
Slide flap A fig. 184 forward to access:
The marking includes:
❒car model (ZFA 198000);
❒chassis serial number.BODYWORK PAINT IDENTIFICATION
PLATE
This is fitted to the inside of the tailgate and bears
the following data fig. 185:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
ENGINE MARKING
This is stamped on the cylinder block and gives the
model and the chassis serial number.
fig. 184
F0Q0667
fig. 185
F0Q0100
226GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

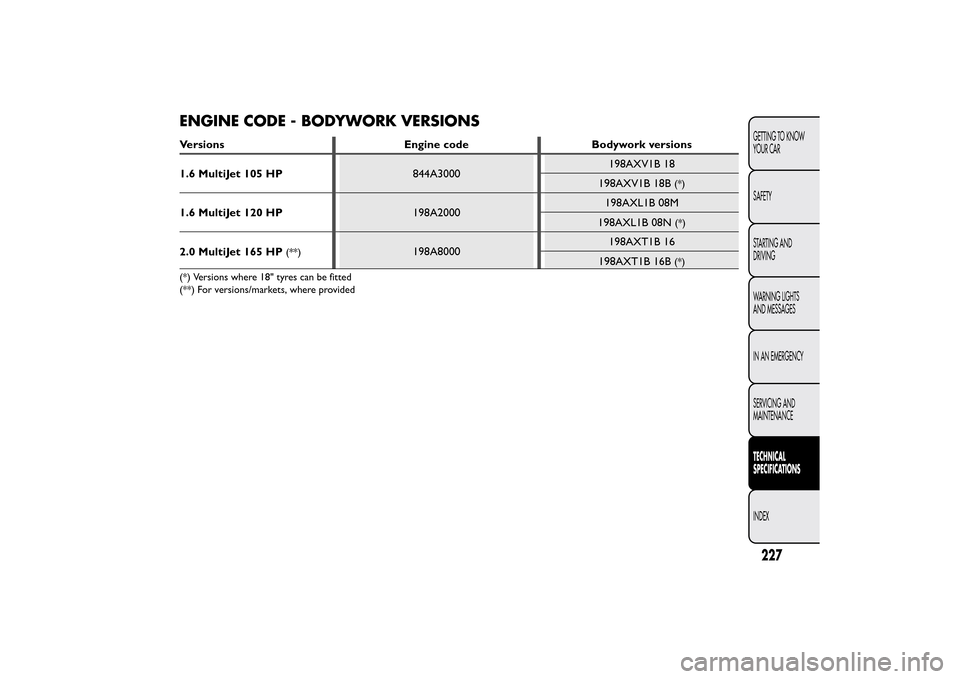

ENGINE CODE - BODYWORK VERSIONSVersions Engine code Bodywork versions
1.6 MultiJet 105 HP844A3000198AXV1B 18
198AXV1B 18B
(*)
1.6 MultiJet 120 HP198A2000198AXL1B 08M
198AXL1B 08N
(*)
2.0 MultiJet 165 HP
(**)
198A8000198AXT1B 16
198AXT1B 16B
(*)
(*) Versions where 18" tyres can be fitted
(**) For versions/markets, where provided
227GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

ENGINE
1.6 MultiJet 105 HP 1.6 MultiJet 120 HP
Type code 844A3000 198A2000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 79.5 × 80.5 79.5 × 80.5
Total displacement (cm3) 1598 1598
Compression ratio 16,5 16,5
Maximum power (EC) (kW) 77 88
Maximum power (EC) (HP) 105 120
corresponding engine speed (rpm) 4000 4000
Maximum torque (EC) (Nm) 300 300
Maximum torque (EC) (kgm) 30,6 30,6
corresponding engine speed (rpm) 1500 1500
Fuel Diesel for automotive engines (Specification EN590)
228GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

2.0 MultiJet 165 HP
(*)
Type code 198A8000
Cycle Diesel
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 83.0 x 90.4
Total displacement (cm3) 1956
Compression ratio 16,5
Maximum power (EC) (kW) 121
Maximum power (EC) (HP) 165
corresponding engine speed (rpm) 4000
Maximum torque (EC) (Nm) 350
Maximum torque (EC) (kgm) 35,6
corresponding engine speed (rpm) 1750
Fuel Diesel for automotive engines (Specification EN590)(*) For versions/markets, where provided
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

REFUELLING
1.6 MultiJet 2.0 MultiJet (*)Prescribed fuels and
original lubricants
Fuel tank (litres): 58 58
Diesel for motor vehicles
(EN 590 Specification) including a reserve of
(litres):8÷10 8÷10
Engine cooling system
(litres):7,1 7,1Mixture of demineralised
water and
50% PARAFLU
UP
(**)
Engine sump (litres): 4,3 4,3
SELENIA WR FORWARD
Engine sump and filter
(litres):4,6 4,9
Gearbox/differential casing
(litres):1,87 1,87TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS:0,56 0,56 TUTELA TOP 4
Windscreen and rear
window washer fluid
reservoir (litres):3 (6) 3 (6)Mixture of water and
TUTELA PROFESSIONAL
SC35(**) For particularly harsh climate conditions, a mixture of 60% PARAFLU
UP
and 40% demineralised water is recommended.
(*) For versions/markets, where provided
242GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONSUseFluid and lubricant specifications for a
correct use of the carGenuine fluids and
lubricantsReplacement interval
Lubricant for
diesel enginesSAE 0W-30 grade fully synthetic lubricant.
FIAT 9.55535-DS1, ACEA C2 classification.SELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
The use of products with different specifications than those indicated above could cause
damage to the engine that is not covered by the warranty.
243GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

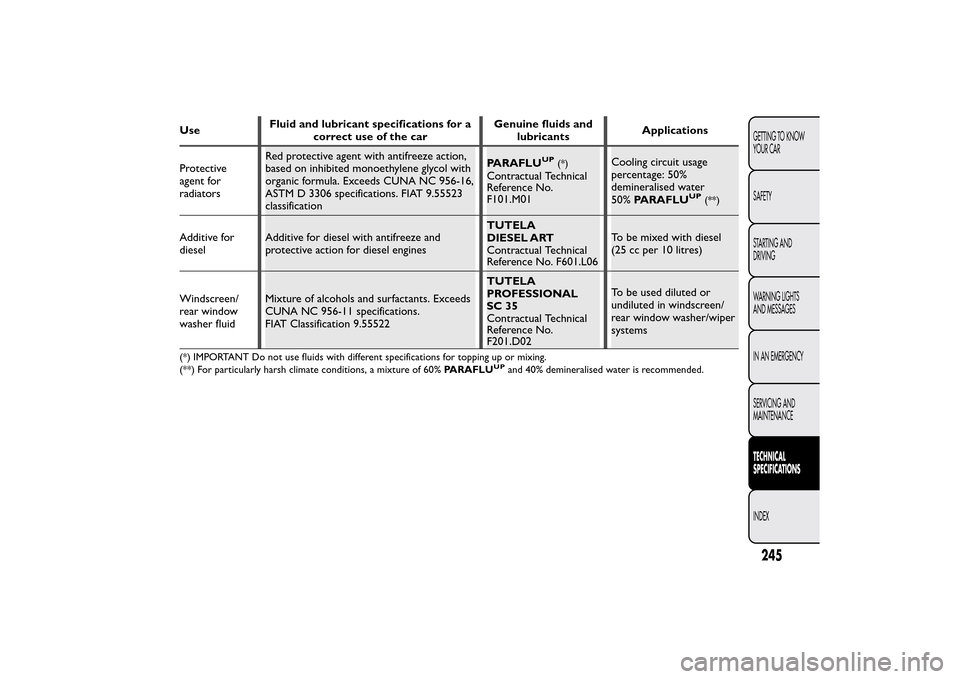

UseFluid and lubricant specifications for a
correct use of the carGenuine fluids and
lubricantsApplications
Protective
agent for
radiatorsRed protective agent with antifreeze action,
based on inhibited monoethylene glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications. FIAT 9.55523
classificationPARAFLU
UP
(*)
Contractual Technical
Reference No.
F101.M01Cooling circuit usage
percentage: 50%
demineralised water
50%PARAFLU
UP
(**)
Additive for
dieselAdditive for diesel with antifreeze and
protective action for diesel enginesTUTELA
DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen/
rear window
washer fluidMixture of alcohols and surfactants. Exceeds
CUNA NC 956-11 specifications.
FIAT Classification 9.55522TUTELA
PROFESSIONAL
SC 35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in windscreen/
rear window washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
