2014 DACIA LODGY engine

JauneNoir Noir texte
2.16
ENG_UD34810_1
Avertisseur de perte de pression des pneumatique (X92 - Dacia)
ENG_NU_975-6_X92_Dacia_2
Note:
The standard tyre pressure cannot be
less than that recommended and indi-
cated on the door frame.
Display
Display 2 on the instrument panel in-
forms you of any tyre pressure faults
(flat tyre, punctured tyre, etc.).
Check tyre pressure
The warning light
 comes on (not
flashing). This indicates that at least
one tyre is flat.
Check and, if necessary, readjust the
pressures of the four wheels when cold.
The warning light
 goes off after a
few minutes’ driving.
Puncture
The warning light
 and the red
warning light
Ò light up on the in-
strument panel, alongside a beep.
This indicates that at least one wheel
is punctured or severely underinflated.
Replace it or contact an authorised
dealer if it is punctured. Top up the tyre
pressure if the wheel is deflated.
TYRE PRESSURE LOSS WARNING (2/3)
With the engine stopped:
– repeatedly press the button 3 to
select “SEt tP” on the display 2;
– press and hold (around 3 seconds) button 3 to start initialisation. “SEt tP”
flashes then comes on steady. When
“SEt tP” disappears, the standard
tyre pressure is saved.
Reinitialisation is carried out after a few
minutes’ driving.
The sudden loss of pressure in a
tyre (burst tyre, etc.) cannot be de-
tected by the system.
2
3
The red warning light Ò
requires you to stop imme-
diately, for your own safety,
as soon as traffic conditions allow.

JauneNoir Noir texte
2.19
ENG_UD33448_2
Frein à main / Direction assistée (X67 - X92 - Renault)
ENG_NU_975-6_X92_Dacia_2
Handbrake
To release
Pull lever 1 up slightly, press button 2
and then lower the lever to the floor.
The red warning light on the instrument
panel will come on if you are driving
with an incorrectly released handbrake.
HANDBRAKE/POWER-ASSISTED STEERING
To apply
Pull lever 1 upwards and make sure the
vehicle is immobilised.
Depending on the gradient
and/or vehicle load, it may
be necessary when station-
ary to apply the brake by
at least a further two notches and
engage a gear (1
st or reverse gear).
Never switch off the igni-
tion when travelling down-
hill, and avoid doing so in
normal driving (assistance
is not provided).
Make sure that the hand-
brake is properly released
when driving (red indicator
light off), otherwise over-
heating, or even damage, may
occur.
1
2
Power-assisted steering
With the engine running, do not leave
the steering wheel at full lock while sta-
tionary as this may damage the power-
assisted steering pump.
With the engine switched off, or if there
is a system fault, it is still possible to
turn the steering wheel. The force re-
quired will be greater.

JauneNoir Noir texte
2.21
ENG_UD33476_2
Dispositifs de correction et d’assistance à la conduite (X92 - Re\
nault)
ENG_NU_975-6_X92_Dacia_2
DRIVER CORRECTION DEVICES/AIDS (2/3)
Electronic stability control
ESC with understeer control
and traction control ASR
Electronic stability control ESC
This system helps you to keep control
of the vehicle in critical driving condi-
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares driver input to
the actual trajectory of the vehicle and
corrects the trajectory if necessary by
controlling the braking of certain wheels
and/or engine power. In the event that
the system is engaged, indicator light
 flashes on the instrument panel. Operating faults
When the system detects an operating
fault, the
 and/or  warning
lights on the instrument panel come on.
In this case, the ESC and ASR are de-
activated.
Consult an approved dealer.
Understeer control
This system optimises the action of the
ESC in the case of pronounced under-
steering (loss of front axle road hold-
ing).
Traction control ASR
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au-
tomatically until the drive supplied be-
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal.

JauneNoir Noir texte
2.22
ENG_UD33476_2
Dispositifs de correction et d’assistance à la conduite (X92 - Re\
nault)
ENG_NU_975-6_X92_Dacia_2
DRIVER CORRECTION DEVICES/AIDS (3/3)
The traction control ASR offers addi-
tional safety, it is recommended that
you do not drive with the function disa-
bled. Correct this as soon as possible
by pressing switch 1 again.
Note: The function is reactivated auto-
matically when the ignition is switched
on or when a speed of approximately
30 mph (50 km/h) is exceeded.
Emergency brake assist
This is an additional system to ABS
which helps reduce vehicle stopping
distances.
Operating principle
The system detects an emergency
braking situation. In this case, the brak-
ing assistance immediately develops
maximum power and may trigger ABS
regulation.
ABS braking is maintained as long as
the brake pedal is not released.
Hazard warning lights switching on
Depending on the vehicle, these may
light up in the event of sudden decel-
eration.
Operating faults
When the system detects an operating
fault, the warning light
x is dis-
played on the instrument panel.
Consult an approved dealer.
Braking anticipation
Depending on the vehicle, when you
rapidly release the accelerator, the
system anticipates the braking ma-
noeuvre in order to reduce stopping
distances.
Disabling the function ASR
In some situations (driving on very wet
ground: snow, mud, etc. or driving with
snow chains fitted), the system may
reduce the engine output to limit wheel-
spin. If this is not required, it is possible
to deactivate the function by pressing
switch
1. In this case, the warning light
 comes on, on the instrument
panel. This action does not deactivate
the ESC.
1

JauneNoir Noir texte
3.7
ENG_UD24441_1
Air conditionné : informations et conseils utilisation (X92 - Renaul\
t)
ENG_NU_975-6_X92_Dacia_3
Fuel consumption
You will normally notice an increase in
fuel consumption (especially when driv-
ing in town) when the air conditioning is
operating.
For vehicles fitted with air conditioning
with no automatic mode, switch off the
system when it is not required.
Advice for reducing consumption
and helping to preserve the environ-
ment
Drive with the air vents open and the
windows closed.
If the vehicle has been parked in the
sun, open the doors for a few moments
to let the hot air escape before starting
the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection fre-
quency.
AIR CONDITIONING: information and advice on use
Operating faults
As a general rule, contact your ap-
proved dealer in the event of an oper-
ating fault.
– Reduction in de-icing, demisting
or air conditioning performance .
This may be caused by the passen-
ger compartment filter cartridge be-
coming clogged.
– No cold air is being produced .
Check that the controls are set cor-
rectly and that the fuses are sound.
Otherwise, switch off the system.
Presence of water under the
vehicle
After prolonged use of the air condi-
tioning system, it is normal for water
to be present under the vehicle. This is
caused by condensation.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.

JauneNoir Noir texte
3.8
ENG_UD24442_1
Vitres (X92 - Renault)
ENG_NU_975-6_X92_Dacia_3

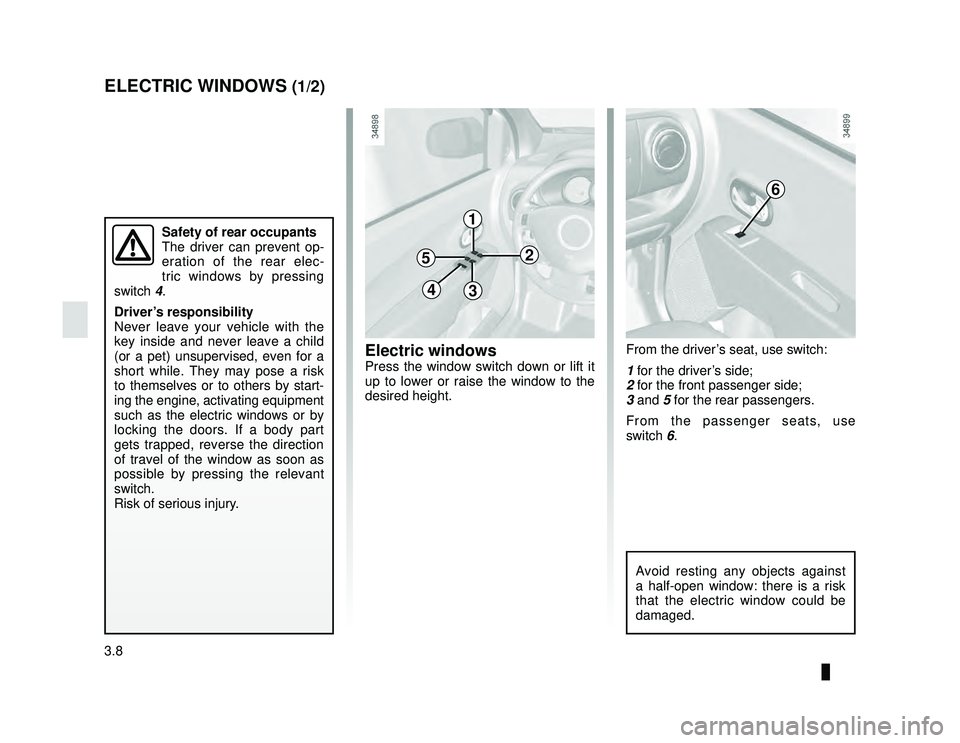

ELECTRIC WINDOWS (1/2)
Safety of rear occupants
The driver can prevent op-
eration of the rear elec-
tric windows by pressing
switch 4.
Driver’s responsibility
Never leave your vehicle with the
key inside and never leave a child
(or a pet) unsupervised, even for a
short while. They may pose a risk
to themselves or to others by start-
ing the engine, activating equipment
such as the electric windows or by
locking the doors. If a body part
gets trapped, reverse the direction
of travel of the window as soon as
possible by pressing the relevant
switch.
Risk of serious injury.1
2
4
5
3
Electric windowsPress the window switch down or lift it
up to lower or raise the window to the
desired height. From the driver’s seat, use switch:
1 for the driver’s side;
2 for the front passenger side;
3 and 5 for the rear passengers.
From the passenger seats, use
switch 6.
6
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.

JauneNoir Noir texte
3.28
ENG_UD24450_1
Coffre à bagages (X92 - Renault)
ENG_NU_975-6_X92_Dacia_3
LUGGAGE COMPARTMENT
To open
Electric central locking
With the opening elements unlocked,
press button 1 and lift the tailgate.
Manual locking
Insert the key in the boot lock, turn and
press button 1.
1
2
To close
Pull down the tailgate using handle 2
inside the tailgate to assist you.
When the tailgate reaches shoulder
height, gently push it shut.
For your safety, check that
all the vehicle’s doors are
properly closed before
starting the engine.

JauneNoir Noir texte
4.1
ENG_UD34807_6
Sommaire 4 (X92 - Renault)
ENG_NU_975-6_X92_Dacia_4
Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Engine oil level: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . 4.3
Engine oil level: topping up, filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . 4.4
Levels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 4.7
Windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 4.7
Power-assisted steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 4.8
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 4.12
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 4.14
