System which manages the duration of use of certain functions to conserve a sufficient level of charge in the battery. After the engine has stopped, you can still use functions such as the audio and telematics system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined duration of about forty minutes.
Energy economy mode
Switching to economy mode
A message then appears in the instrument panel screen indicating that the vehicle has switched to economy mode and the active functions are put on standby. If a telephone call is being made at this time, it
will be maintained for around 10 minutes with the Bluetooth hands-free system of your audio system.
Exiting economy mode
These functions are reactivated automatically next time the vehicle is driven. In order to restore the use of these functions immediately, start the engine and let it run: - for less than ten minutes, to use the equipment for approximately five minutes, - for more than ten minutes, to use the equipment for up to approximately thirty minutes. Let the engine run for the duration specified to ensure that the battery charge is sufficient. Do not repeatedly and continuously restart the engine in order to charge the battery. A flat battery prevents the engine from starting (refer to the "Battery" section).
In this energy economy mode and when starting up the hybrid system, it may take a few seconds before the Readylamp comes on.
Load reduction mode
System which manages the use of certain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air conditioning, the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.

DS5-HYBRID_EN_CHAP09_VERIFICATIONS_ED02-2013
The various caps and covers allow access for checking the levels of the various fluids, for replacing certain components and for priming the fuel system.
Diesel engine
1. Power steering reservoir. 2. Screenwash and headlamp wash reservoir. 3. Coolant reservoir. 4. Brake fluid reservoir. 5. Battery / Fuses. 6. Fusebox. 7. Air filter. 8. Engine oil dipstick. 9. Engine oil filler cap. 10. Priming pump. 11. Bleed screw. HDi 160 PEF 6- SPEED ELECTRONIC GEARBOX

259Checks
DS5-HYBRID_EN_CHAP09_VERIFICATIONS_ED02-2013
Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle fitted with headlamp washers, immobilise the
vehicle and switch of the engine.  Before opening the bonnet, ensure that the engine has completely stopped.  Open the screenwash reservoir filler cap.
Topping up
This additive must be topped up by a CITROËN dealer or a qualified workshop without delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination of the service warning lamp, accompanied by an audible warning and a message in the instrument panel screen.
Specifi cation of the fl uid
To ensure optimum cleaning and to avoid freezing, the fluid should never be topped up or replaced by plain water. In wintry conditions, the use of an ethyl alcohol or methanol base fluid is recommended.
 Take and pinch the level gauge to block its breather.  Remove the gauge completely from the reservoir to read the level in the transparent section.  Top up if necessary.  Refit the filler cap to the reservoir and close the bonnet.

11
DS5-HYBRID_EN_CHAP11C_RT6_ED02-2013
CONFIGURATION
Display configuration
Press SETUP to display the " Confi guration " menu.
Select " Choose colour " and confi rm to Choose colour " and confi rm to Choose colourselect the screen colour harmony and the map presentation mode:
- day mode,
- night mode,
- automatic day/night mode, according to whether the headlamps are on.
Select " Adjust luminosity " and confi rm to adjust the screen brightness.
Press " OK " to save the changes.
The settings for day and night are independent.
Select " Display confi guration " and confi rm.

11
321
DS5-HYBRID_EN_CHAP11C_RT6_ED02-2013

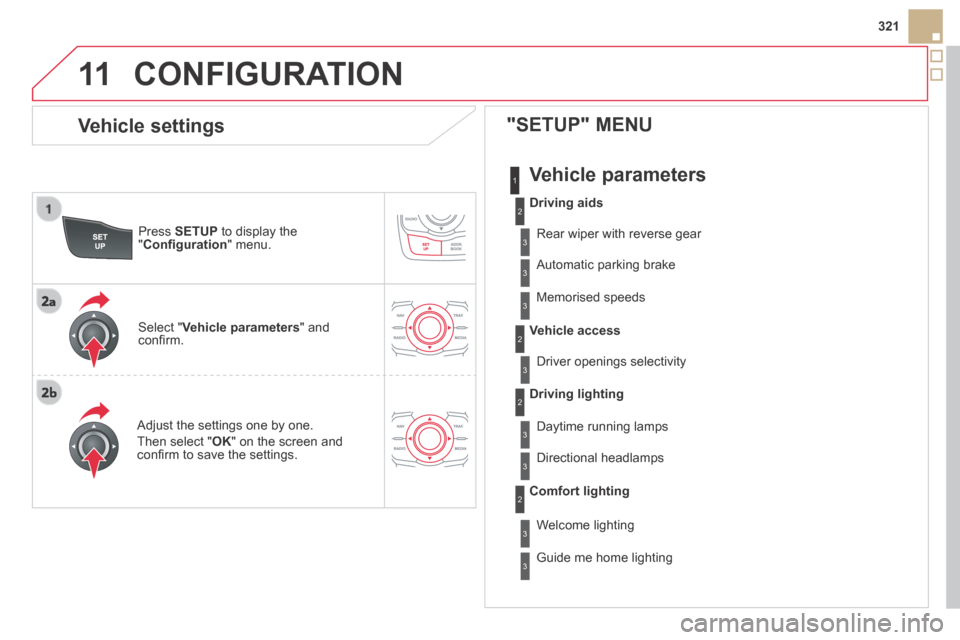

Press SETUP to display the " Confi guration " menu.
Adjust the settings one by one.
Then select " OK " on the screen and confi rm to save the settings.
Select " Vehicle parameters " and confi rm.
Vehicle settings
CONFIGURATION
"SETUP" MENU
Vehicle parameters
Driving aids
Rear wiper with reverse gear
Automatic parking brake
1
2
Memorised speeds
3
3
3
Vehicle access2
Driver openings selectivity 3
Driving lighting2
Daytime running lamps 3
Directional headlamps 3
Comfort lighting2
Welcome lighting 3
Guide me home lighting 3

07
355
DS5-HYBRID_EN_CHAP11D_RD5_ED02-2013
SCREEN MENU MAP(S)
PERSONALISATION-
CONFIGURATION
Define the vehicle parameters
Access to the vehicle
Plip action
Driving position setting
Unlocking boot only
Driving assistance
Rear wipe in reverse gear
Parking brake automatic
Speeds memorised
Vehicle lighting
Daytime lights
Directional headlamps
Interior lighting
Welcome lighting
Follow-me-home headlamps
Choice of language
Display configuration
Choice of units
Date and time adjustment
Display parameters
Brightness
Choice of sounds
1
2
3
3
3
2
3
3
3
2
3
3
2
3
3
1
1
2
2
2
2
1
