2014 CITROEN DS3 CABRIO DAG key

Contents

Contents
FAMILIARISATION MONITORING
28 Instrument panels
32 Indicator and warning lamps
42 Indicators
46 Adjustment buttons
48 Tr i p c o m p u ter
Key
safety warning
additional information
contributes to the protection of the environment
refer to the page indicated
001001
33
6 VISUAL
SEARCH
24 ECO-DRIVING
34
0 ALPHABETICAL
INDEX

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen(eMyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Window controls
98 Doors
101Boot
102Fuel tank
104Misfuel prevention (Diesel)
108Lighting controls
113LED lamps
113Headlamp adjustment
114 Wiper controls
118Courtesy lamp
119Interior mood lighting
119Boot lamp
004004005005002002003003

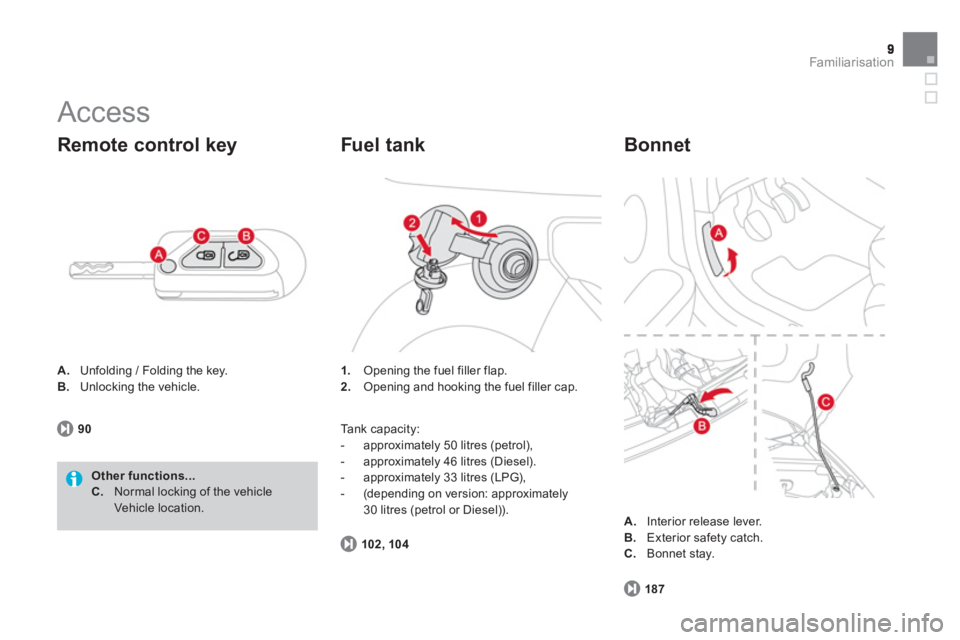

Familiarisation
90
Access
A.Unfolding / Folding the key.
B.Unlocking the vehicle.

Remote control key
Other functions...C.
Normal locking of the vehicle Vehicle location.1
.Opening the fuel filler flap.
2. Opening and hooking the fuel filler cap.
Fuel t ank
102, 104
1
87 Ta n k c a p a c i t
y:
- approximately 50 litres (petrol),
- approximately 46 litres (Diesel).
- approximately 33 litres (LPG),
- (depending on version: approximately30 litres (petrol or Diesel)).A.Interior release lever.B.
Exterior safety catch. C.
Bonnet stay.


Bonnet

Familiarisation
Passenger safety
1.
Open the glove box. 2.Inser t the key. 3.Select position:"ON"(activation), with front passenger or
"for wards facing" child seat, "OFF"
(deactivation), with "rear facing" child seat. 4.
Remove the key keeping the switch in the new position.


Front passenger's airbag
156
A.
Front seat belts not fastened or unfastenedwarning lamp.
Front seat belts and
passen
ger's front airbag
156
Customise your vehicle
These styling stickers are treated to give goodresistance to ageing and tearing.
They have been designed to allow you to customise your vehicle's bodywork.
Available also as accessories, we recommend
that you have them fitted by a CITROËN dealer or a qualified workshop.

Using expressive stickers

When using a high pressure jet wash,keep the end of the lance at least 30 centimetres from the stickers B
. Front passenger's airbag deactivation
indicator lamp.
151

Driving safely
Stop & Start
Going into engine STOP mode
174

The "ECO"warning lamp comes on
in the instrument panel and the engine
automatically goes into standby:
- with a manual
gearbox:
at speeds below
12 mph (20 km/h), when you put the gear lever in neutral, and you release the clutch pedal,

Going into engine START mode

Deactivation
/ Reactivation

You can deactivate the system at any time bypressing the "ECO OFF"
switch the warning
lamp in the switch comes on.
175
17
5
The system is automatically reactivated every time the engine is star ted withthe key.

Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key. Th
e "ECO"
warning lamp goes off
and the engine restarts automatically:


-
with a manual gearbox:when you fullydepress the clutch pedal.
-
with a 5 or 6 speed electronic gearbox:at speeds below 5 mph (8 km/h), when you press the brake pedal or when you put thegear lever in position N .

-
with a 5 or 6 speed electronic gearbox
:


●
gear lever in position A
or M, when you
release the brake pedal,

●
or gear lever in position N
and brakepedal released, when you put the gear
lever into position A
or M
,

●
or when you engage reverse.

In certain circumstances, the ST
OP modemay not be available; the "ECO"
warning lamp
flashes for a few seconds, then goes off. In certain circumstances, STA R T m o d e m ay be
invoked automatically; the "ECO"warning lamp
flashes for a few seconds, then goes off.

A few definitions…

Range
(miles or km)
Current fuel consumption
(mpg or l/100 km or km/l)
Stop & Start timecounter
(minutes / seconds or hours /
minutes)
This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop. When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).


Distance remaining to
destination
(miles or km)
This indicates the distance which can still betravelled with the fuel remaining in the tank inrelation to the average fuel consumption over
the last few miles (kilometres) travelled. This is the avera
ge fuel consumption during the last few seconds.

This is the distance remaining to be travelledto the final destination. It can be entered by the user.
If the distance is not entered, dashes are
displayed in place of the digits.

I
f your vehicle is fitted with Stop & Star t, a timecounter calculates the time spent in STOP mode during a journey.
It resets to zero every time the ignition is
switched on with the key.



Distance travelled
(miles or km)

This indicates the distance travelled since thelast trip computer zero reset.

Average speed
(mph or km/h)

This is the average speed calculated since the last trip computer zero reset (ignition on).
Average fuelconsumption
(mpg or l/100 km or km/l)

This is the average fuel consumption since the last trip computer zero reset.
This function is only displayed from 20 mph (30 km/h).

Mirrors
Each fitted with an adjustable mirror glasspermitting the lateral rearward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
Demisting - Defrosting
If your vehicle is fitted with heated mirrors, the demisting-defrosting
operates with the engine running, by switching on the heated rear screen (refer to the "Rear screen demist-defrost"page).


Adjustment
)
Move control Ato the right or to the left to select the corresponding mirror. )
Move control Bin all four directions to
adjust. )
Return control Ato the central position.
Door mirrors
The objects observed are, in reality,
closer than they appear.Take this into account in order to correctly judge the distance of vehicles approaching from behind.




Folding
)From outside: lock the vehicle using theremote control or the key. )From inside: with the ignition on, pull the control A
in the central position rear wards.


Unfolding
)From outside: unlock the vehicle using theremote control or the key. )From inside: with the ignition on, pull the control A
in the central position rearwards.

If the mirrors are folded using control A , they will not unfold when the vehicle is unlocked. Pull again on control A.

The folding and unfolding of the door mirrors using the remote control can bedeactivated by a CITROËN dealer or a qualified workshop.
Never fold or unfold the electric foldingmirrors manually.

004
Access
This section describes the functions of the remote control key, electric
windows, central locking of doors and boot and access to the fuel filler.
