10



1.
Steering wheel adjustment control.

2.
Steering mounted control paddles
for the electronic gearbox.

3.
Lighting and direction indicators
control stalk.

4.
Speaker (tweeter).

5.
Windscreen demisting vent.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Glove box / Audio/video sockets /
Passenger's airbag deactivation
switch / Fusebox.

9.
Bonnet release.

10.
Heated seat control.

11 .
Lumbar massage control.

12.
Electric parking brake.

13.
Gear lever, electronic gearbox.

14.
Large multifunctional storage unit.


INSTRUMENTS AND CONTROLS

19
FAMILIARISATION

Passenger's front airbag
Seat belts and passenger's
front airbag
Ignition switch



1.
Open the glove box.

2.
Insert the key.

3.
Select the position:
"OFF"
(deactivation), with "rear fac-
ing" child seat,
"ON"
(activation), with front pas-
senger or "forwards facing" child
seat.

4.
Remove the key keeping the switch
in the new position.



142


A.
Front left seat belt not fastened / un-
fastened warning lamp.

B.
Front right seat belt not fastened /
unfastened warning lamp.

C.
Rear right seat belt unfastened
warning lamp.

D.
Rear centre seat belt unfastened
warning lamp.

E.
Rear left seat belt unfastened warn-
ing lamp.

F.
Passenger's front airbag deactivat-
ed warning lamp.

G.
Passenger's front airbag activated
warning lamp.



138, 142


1.
Stop
position.

2.
Ignition on
position.

3.
Starting
position.



80
When switching the ignition on or off,
the speedometer needle and the rev
counter and fuel gauge bars go full
travel and then return to 0.

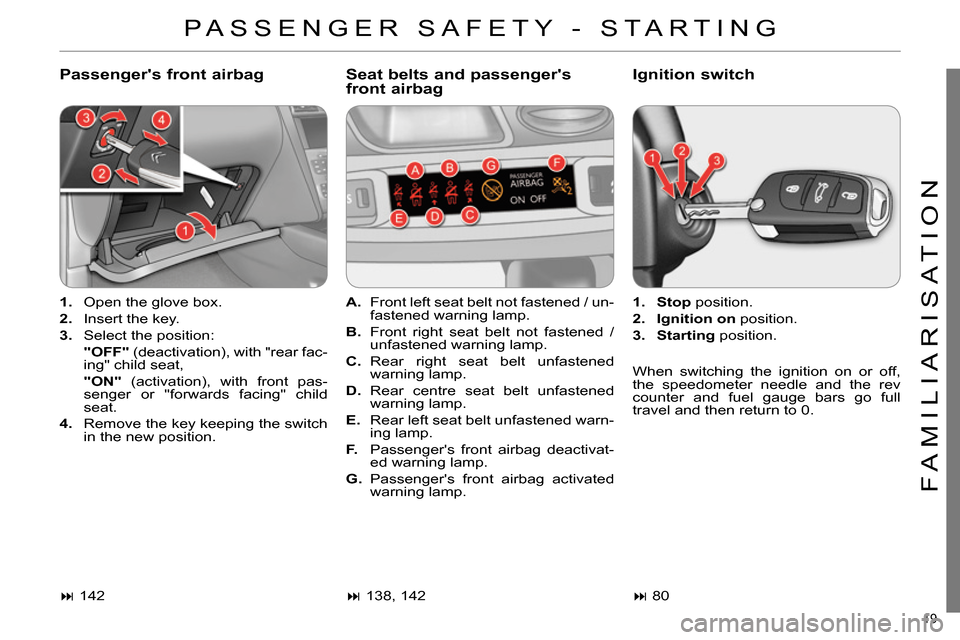

PASSENGER SAFETY - STARTING

1
MONITORING
41




Passenger's
airbag system
fi xed in the
seat belt and
passenger's front
airbag warning
lamps display. The control switch, located
in the glove box, has been
placed in the "ON"
position.
The passenger's front airbag
is activated.
In this case, do not install a
"rear facing" child seat. Move the control switch to the "OFF"

position to deactivate the passenger's
front airbag.
In this case, you can install a "rear
facing" child seat.

Warning lamp



is on



Cause



Action/Observations




Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the
engine restarts automatically in START
mode, as soon as you want to move off.

fl ashes for a few
seconds, then
goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases
with STOP mode and START mode, refer
to the "Stop & Start" section.


Parking space
sensors


fi xed. The parking space sensors
function is selected. To start measurement, operate the direction
indicator on the side of the space to be
measured, and do not exceed 12 mph
(20 km/h). A message is displayed once the
measurement has been completed.





Automatic
wiping


fi xed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate
the control stalk downwards or put the
stalk into another position.


Lighting
dimmer


fi xed. The lighting dimmer is making
an adjustment. You can adjust the level of illumination of
the instruments between 1 and 16.

1
MONITORING
42










Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.



Warning lamp



is on



Cause



Action/Observations








Passenger's
airbag system


fi xed in the
instrument panel
and/or seat
belt and front
passenger's
airbag warning
lamps display. The control switch, located
in the glove box, is set to the
"OFF" position.
The passenger's front airbag
is deactivated. Set the control to the "ON" position to
activate the passenger's front airbag.
In this case, do not fi t a child seat in the
rear-facing position.

6
FITTINGS
109




















INTERIOR FITTINGS



1.
Grab handle


2.
Sun visor

(see details on a following page)

3.
Ticket/card holder


4.
Oddments storage


5.
Illuminated
glove box

(see details on a following page)

6.
Door pocket

s


7.
Large open storage box (without
audio system)

or
Small storage box with fl ap (with
audio system)


8.
Small open storage box (without
audio system)


9.
USB port / Auxiliary socket

(see details on a following page)

10.
12 V accessory socket

(see details on following pages)

11 .
Centre armrest with storage

(see details on a following page)

6
FITTINGS
110
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.



With the ignition on, raise the con-
cealing fl ap; the mirror is lit auto-
matically.
This sun visor is also equipped with a
ticket holder.








SUN VISOR










ILLUMINATED GLOVE BOX


Its lid has locations for storing a pen, a
pair of glasses, tokens, maps, a cup...



To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag
deactivation switch A
.
If the vehicle is fi tted with air condition-
ing, it provides access to the ventilation
nozzle B
, distributing the same cooled
air as the vents in the passenger com-
partment.
It gives access to the dashboard fusebox
(see "Practical information - § Changing
a fuse").

8
SAFETY
141
AIRBAGS


System designed to maximise the safe-
ty of the occupants (with the exception
of the rear centre passenger) in the
event of violent collisions. The airbags
supplement the action of the force-limit-
ing seat belts (with the exception of the
centre rear passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front
and side impacts sustained in the im-
pact detection zones:


- in the case of a serious impact, the
airbags are deployed instantly and
contribute towards better protection
of the occupants of the vehicle (with
the exception of the rear centre pas-
senger); immediately after the im-
pact, the airbags defl ate rapidly so
that they do not hinder visibility or
the exit of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone contributes towards
ensuring your protection in these
situations.


The airbags do not operate when
the ignition is switched off.

This equipment will only deploy
once. If a second impact occurs
(during the same or a subse-
quent accident), the airbag will
not be deployed again.

A.
Front impact zone.

B.
Side impact zone.
Impact detection zones
Deployment of the airbag(s) is
accompanied by a slight emis-
sion of smoke and a noise, due
to the activation of the pyrotech-
nic cartridge incorporated in the
system.
This smoke is not harmful, but
sensitive individuals may experi-
ence slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.

















Front airbags

System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and thorax.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

Deployment
The airbags are deployed, except the
passenger's front airbag if it is deactivat-
ed, in the event of a serious front impact
to all or part of the front impact zone A
, in
the longitudinal centreline of the vehicle
on a horizontal plane and directed from
the front to the rear of the vehicle.
The front airbag infl ates between the tho-
rax and head of the front occupant of the
vehicle and the steering wheel, driver's
side, and the dashboard, passenger's
side to cushion their forward movement.

11
PRACTICAL INFORMATION
192














CHANGING A WHEEL

Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.

Access to the tools

The tools are installed in the boot under
the fl oor.
To gain access to them:



open the boot,


raise the fl oor,


secure it by hooking its cord on the
hook on the rear shelf support,


with a standard size spare wheel,
unclip and remove the box in the
middle of the wheel containing the
tools,
or


with a "space-saver" spare wheel;
lift the wheel at the rear towards you
for access to the storage box con-
taining the tools.
List of tools
All of these tools are specifi c to your
vehicle. Do not use them for other pur-
poses.


1.
Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.

2.
Jack with integral handle.
For raising the vehicle.

3.
"Bolt cover" tool.
For removing the bolt protectors
(covers) on alloy wheels.

4.
Socket for the security bolts (lo-
cated in the glove box).
For adapting the wheelbrace to the
special "security" bolts.


Wheel with trim

When removing the wheel
, detach the trim fi rst using the wheelbrace 1

pulling at the valve passage hole.

When refi tting the wheel
, refi t the trim starting by placing its notch facing
the valve and press around its edge with the palm of your hand.
