2014 Citroen C4 RHD tow

12
TECHNICAL DATA
221
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 90



HDi 90
PEF



HDi 110
PEF



e-HDi 110 PEF



Gearboxes


Manual



Manual



Manual



Manual



Electronic



Model codes:
NC...


9HJC



9HP0



9HR8



9HR8/S



9HR8/P

S

9HR8/1PS



9HR8/2PS




- Unladen weight
1 205
1 205
1 275
1 280
1 290
1 205


- Kerb weight
1 280
1 280
1 350
1 355
1 365
1 280



- Gross vehicle weight (GVW)
1 745
1 790
1 810
1 820
1 825
1 825


- Gross train weight (GTW)
on a 12 % gradient
2 545
2 890
3 110
3 120
3 125
2 225


- Braked trailer (within GTW limit)
on 12 % gradient
800
1 100
1 300
1 300
1 300
400


- Braked trailer * (with load transfer
with the GTW limit)
1 050
1 350
1 550
1 550
1 550
600


- Unbraked trailer
640
640
675
670
680
400


- Recommended nose weight
75
75
75
75

75
75

12
TECHNICAL DATA
222


WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 150 PEF



Gearboxes


Manual



Model codes:
NC...


RHE8




- Unladen weight
1 320


- Kerb weight
1 395


- Gross vehicle weight (GVW)
1 885


- Gross train weight (GTW)
on 12 % gradient
3 385


- Braked trailer (within GTW limit)
on 12 % gradient
1 500


- Braked trailer * (with load transfer
with the GTW limit)
1 750


- Unbraked trailer
695


- Recommended nose weight
75
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

04
234
Press NAV
to display the
" Navigation - guidance
" menu.
Towards a new destination

NAVIGATION - GUIDANCE













Selecting a destination


Select " Select destination
" and
confi rm, then select " Enter an address
"
and confi rm.

Select the " Country
" function then
confi rm.

Select the " Town
" or " Post code
"
function then confi rm.

Select the letters in the name of the
town or the characters in a post code
one at a time, confi rming each one with
the knob.
Selection the town from the list offered,
then confi rm .
A pre-set list (by entering the fi rst few
letters) of the towns in the country
selected can be accessed directly by
selecting and confi rming " List
" in the
screen.

If possible, enter the " Road
" and " N°/X
"
information in the same way.

Select " Archive
" to save the address entered in a contact fi le.
The system allows up to 400 contact fi les to be recorded.

Confi rm " OK
" to start guidance.

Select the guidance criteria: " Fastest
route
", " Shortest route
" or optimised
" Distance/Time
", then select the
desired restriction criteria: " With tolls
",
" With Ferry
", or " Traffi c info
" then
con
fi rm " OK
".

04
235

Towards a recent destination

Press NAV
to display the
" Navigation - guidance
" menu.

Select the desired destination and
confi rm to start guidance.


Towards a contact in the contacts directory

Select " Select destination
" and
confi rm, then select " Directory
" and
confi rm.

Selection the desired destination from
your contacts and confi rm " OK
" to start
the guidance.

Press NAV
to display the
" Navigation - guidance
" menu.
Navigation towards a contact is only possible if it has an address
entered in the audio navigation system.


Delete recent destinations

Press NAV
to display the
" Navigation - guidance
" menu.

Select " Options
" and confi rm and then
" Delete recent destinations
" and
confi rm.


NAVIGATION - GUIDANCE

04
236
Select " Select destination
" and
confi rm, then select " GPS coordinates
"
and confi rm.

Enter the GPS coordinates and confi rm
" OK
" to start the guidance.

Press NAV
to display the
" Navigation - guidance
" menu.

NAVIGATION - GUIDANCE

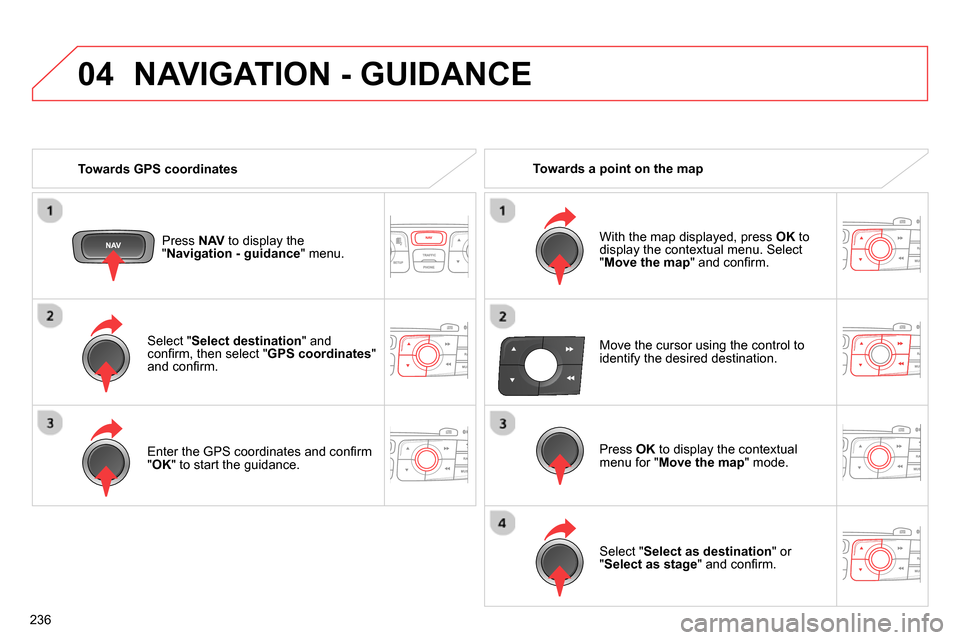

Towards GPS coordinates

Towards a point on the map

With the map displayed, press OK
to
display the contextual menu. Select
" Move the map
" and confi rm.

Press OK
to display the contextual
menu for " Move the map
" mode.

Select " Select as destination
" or
" Select as stage
" and confi rm.

Move the cursor using the control to
identify the desired destination.

04
237

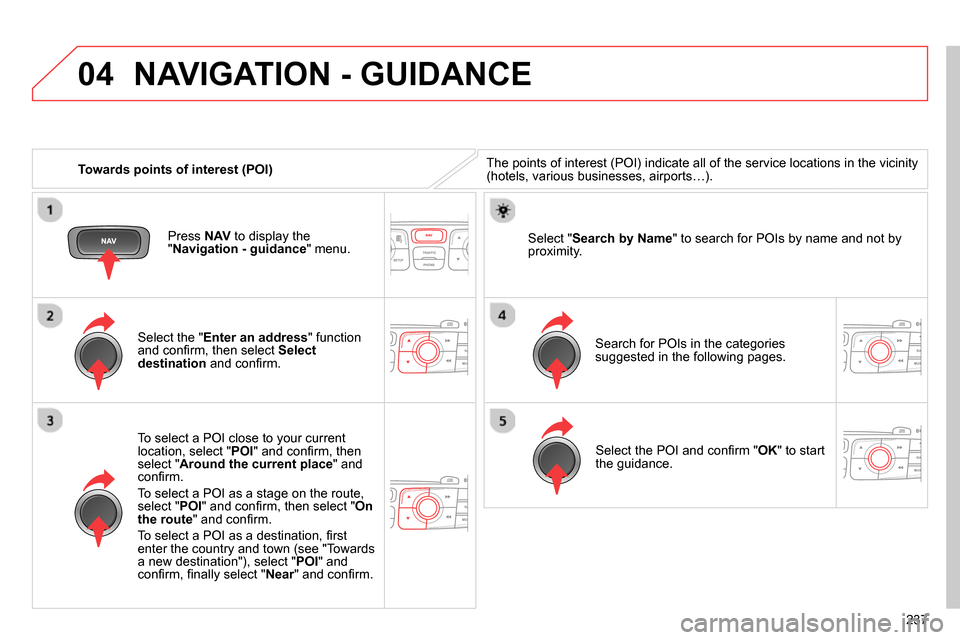

Towards points of interest (POI)

NAVIGATION - GUIDANCE

The points of interest (POI) indicate all of the service locations in the vicinity
(hotels, various businesses, airports…).

Select the " Enter an address
" function
and confi rm, then select Select
destination
and confi rm.

To select a POI close to your current
location, select " POI
" and confi rm, then
select " Around the current place
" and
confi rm.
To select a POI as a stage on the route,
select " POI
" and confi rm, then select " On
the route
" and confi rm.
To select a POI as a destination, fi rst
enter the country and town (see "Towards
a new destination"), select " POI
" and
confi rm, fi nally select " Near
" and confi rm.
Search for POIs in the categories
suggested in the following pages.
Select " Search by Name
" to search for POIs by name and not by
proximity.

Select the POI and confi rm " OK
" to start
the guidance.

Press NAV
to display the
" Navigation - guidance
" menu.

04
238
NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.

Service station
Garage
CITROËN
Covered car park
Car park
Rest area
Hotel
Restaurant
Cafeteria
Bed and breakfast Railway station
Bus station
Port
Industrial estate
Supermarket
Vending machine
Sports complex, sports centre,
sports ground
Swimming pool
Winter sports resort
Airport
Theme parks
Hospital, Chemist, Vet
Police station
Town hall
Post offi ce
Museum, Culture, Theatre,
Historic monument
Tourist information, Tourist
attraction
Risk areas / Danger areas *




List of principal points of interest (POI)


*
According to availability in the country.

School










An annual mapping update allows new points of interest to be presented to you.
You can also update the Risk areas / Danger areas every month.
The detailed procedure is available on:
http://citroen.navigation.com.

Cinema

315
VISUAL SEARCH
EXTERIOR


Remote control ........................... 78-82


- opening / closing

- anti-theft protection

- starting

- battery


Wiper controls......................... 104-106
Changing a wiper
blade .............................................. 210
Door mirrors ................................ 75-76
Blind spot sensors .................. 166-168

Boot ........................................... 78, 88
Temporary puncture
repair kit .................................. 187-191
Changing a wheel ................... 192-195


- tools

- removing / refi tting
Snow chains .................................. 196

Changing bulbs....................... 201-202


- rear lamps

- 3
rd
brake lamp

- number plate lamp


Parking sensors ...................... 176-177
Parking space sensors ........... 174-175
Towbar ........................................... 214
Towing .................................... 212-213

Accessories ............................ 216-217
Roof bars ........................................ 211
Panoramic sunroof .......................... 91

Braking assistance ........................ 135
Trajectory control .................... 136-137
Tyre under-infl ation detection ........ 161
Tyre pressures ....................... 191, 224
Lighting controls ......................... 95-99
Headlamp adjustment.................... 101
Welcome lighting ........................... 100
Directional lighting systems .... 102-103
Changing bulbs....................... 197-200


- front lamps

- front foglamps

- side repeaters


Doors ......................................... 83, 87


- opening / closing

- emergency control
Child lock ....................................... 133
Electric windows ......................... 89-90
Alarm .......................................... 85-86

Fuel tank ..................................... 92-93
Misfuel prevention ........................... 94
