PRACTICAL INFORMATION
223

Installation of radio
communication transmitters
Before installing any after-market
radio communication transmit-
ter, you can contact a CITROËN
dealer for the specifi cation of
transmitters which can be fi tted
(frequency, maximum power, aer-
ial position, specifi c installation re-
quirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).


Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning tri-
angle, breathalyzers and spare
bulbs and fuses available in the
vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your ve-
hicle's electronic system and ex-
cessive electrical consumption.
Please note this precaution.
You are advised to contact a
CITROËN representative to be
shown the range of recommend-
ed equipment and accessories.

"Multimedia":
audio systems, steering mounted au-
dio controls, speakers, Hi-Fi module,
Bluetooth hands-free system, port-
able satellite navigation system, semi-
integral support bracket for portable
navigation system, mapping update
CD, driving assistant, portable video
screen, portable video support bracket,
230 V/50 Hz socket, 230 V/50 Hz adap-
tor, iPhone
® compatible mobile phone
charger, mobile phone/smartphone
bracket, Wi-Fi on board...
By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range -, products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...

04

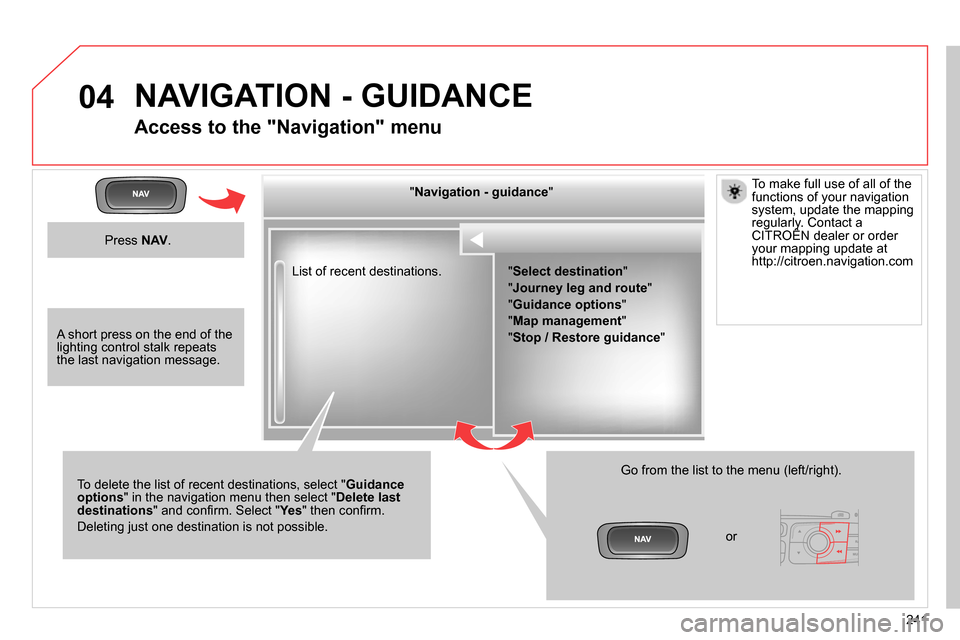

241 List of recent destinations.
" Navigation - guidance
"

To delete the list of recent destinations, select " Guidance
options
" in the navigation menu then select " Delete last
destinations
" and confi rm. Select " Ye s
" then confi rm.
Deleting just one destination is not possible.
Go from the list to the menu (left/right).
" Select destination
"
" Journey leg and route
"
" Guidance options
"
" Map management
"
" Stop / Restore guidance
"



NAVIGATION - GUIDANCE







Access to the "Navigation" menu


Press NAV
.
or

To make full use of all of the
functions of your navigation
system, update the mapping
regularly. Contact a
CITROËN dealer or order
your mapping update at
http://citroen.navigation.com

A short press on the end of the
lighting control stalk repeats
the last navigation message.

04
246
NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.

Service station
Garage
CITROËN
Covered car park
Car park
Rest area
Hotel
Restaurant
Cafeteria
Bed and breakfast Railway station
Bus station
Port
Industrial estate
Supermarket
Vending machine
Sports complex, sports centre,
sports ground
Swimming pool
Winter sports resort
Airport
Theme parks
Hospital, Chemist, Vet
Police station
Town hall
Post offi ce
Museum, Culture, Theatre,
Historic monument
Tourist information, Tourist
attraction
Risk areas / Danger areas *




List of principal points of interest (POI)


*
According to availability in the country.

School










An annual mapping update allows new points of interest to be presented to you.
You can also update the Risk areas / Danger areas every month.
The detailed procedure is available on:
http://citroen.navigation.com.

Cinema

01
290
Automatic search up / down for radio
frequencies.
Select previous / next CD, USB,
streaming track.
Navigation in a list.
Display the list of stations
received, CD/MP3 tracks or
folders.
Long press: managing the
classifi cation of MP3/WMA
fi les / update the list of stations
received.

Abandon the current
operation.
Up one level (menu or
folder).


On / Off.
Selection of AM / FM /
DAB * wavebands.
Select preset radio station.
Long press: store a station.
Select screen display
between modes:
Full screen: Audio (or
telephone if call in
progress) /
In a window: Audio
(or telephone if call in
progress) - Time or Trip
computer.
Long press: black screen
(DARK).


Audio settings:
audio ambiences, treble,
bass, loudness, distribution,
left/right balance, front/rear
fader, automatic volume.
Access to main menu.

TA (Traffi c
Announcement)
function On / Off.
Long press:
access to type of
information.
Select source:
Radio, CD, AUX, USB,
Streaming.
Accept an incoming
call.
Confi rmation or display of
contextual menu.
Manual step by step search up / down
for radio frequencies.
Select previous / next MP3 folder.
Select previous / next folder / genre /
artist / playlist in the USB device.
Navigation in a list.

Volume adjustment.

FIRST STEPS


* Depending on model.

330
ALPHABETICAL INDEX
Vehicle confi guration .....50, 52, 56, 67
Ventilation ........................ 61, 62, 64 V Replacing wiper blades ..... 109, 216
Resetting the service indicator .... 45
Resetting the trip recorder ........... 46
Rev counter ............................ 28-31
Reversing lamps ........................ 207
Risk areas (update) ................... 246
Roof bars ................................... 217
Roof blind .................................... 94
Routine checks .................. 191, 192
Running out of fuel (Diesel) ....... 186
Safety for children ...125-138, 145, 147
Satellite navigation system .... 55, 241
Screen, colour
and mapping ....... 56, 59, 239, 279
Screen menu map ...... 279, 314-316
Screen, monochrome .... 49, 51, 314
Screen, multifunction (with audio
equipment)............ 49, 51, 55, 292
Screenwash, front...................... 108
Seat adjustment..................... 70, 71
Seat belts............................ 143-145
Seat, rear bench .......................... 75
Seats, electric .............................. 71
Seats, rear ................................... 75
Selector lever,
electronic gearbox .................. 158
Serial number, vehicle ............... 231
Service indicator .......................... 44
Servicing ...................................... 26
Setting the clock ........ 46, 50, 54, 56
Short-cut menus ........................ 240
Sidelamps .... 98, 101, 203, 205, 207
Side repeater ............................. 206
Ski fl ap ....................................... 120
Snow chains .............................. 202Spare wheel............................... 198
Speakers (fi tting) ....................... 221
Speed limiter...................... 175, 176
Speedometer .......................... 28-30
Spotlamps, side ................. 103, 206
Starting using another battery ... 213
Starting the vehicle ...... 82, 158, 161
Steering mounted controls ... 238, 291
Stopping the vehicle .... 82, 158, 161
Stop & Start .............. 60, 66, 69, 95,
168, 185, 191, 213
Storage ........ 112, 113, 115-117, 121
Storage compartments ............... 115
Storage drawer ........................... 119
Storage net ................................ 121
Storing driving positions .............. 74
Stowing rings ............................. 121
Sun visor..................................... 113
Synchronising
the remote control............... 83, 84
Synthesiser, voice...................... 252
System, navigation .................... 241 S
TU
Table of weights ................. 225, 227
Tables of engines............... 224, 226
Tables of fuses........................... 209
Tank, fuel ..................................... 97
Technical data.................... 224, 231
Telephone .......................... 258, 304
Temperature control
for heated seats ........................ 72
Temporary tyre repair kit ............ 193
Three fl ashes function
(direction indicators) ............... 139
Ticket holder ............................... 112
TMC (Traffi c info) ....................... 255Under fl oor storage .................... 123
Under-infl ation (detection) ......... 166
Unlocking from the inside ............ 86
Unlocking the boot ........... 79, 80, 91
Unlocking the doors ............... 79, 80
Update risk areas ...................... 246
Updating the time ...... 46, 50, 54, 56
USB port .................................... 114 Tools .......................................... 198
Torch .......................................... 123
Total distance recorder ................ 46
Towbar ....................................... 220
Towed loads....................... 225, 227
Towing another vehicle .............. 219
Traction control (ASR) ............... 141
Traffi c information
(TA) ................................. 256, 294
Traffi c information
(TMC) ............................. 255, 256
Trailer ........................................ 220
Trajectory control systems ......... 141
Trip computer ......................... 57-60
Trip distance recorder .................. 46
Tyre pressures ........................... 231
Tyres ............................................ 26
Tyre under-infl ation detection .... 166
