2014 Citroen C4 AUTOMATIC

5
VISIBILITY
103

Switching off
On the outside, the welcome lighting
switches off automatically after a set
time, when the ignition is switched on
or on locking the vehicle.
On the inside, the welcome lighting
switches off automatically after a pre-
determined time or on opening one of
the doors. On the inside, the footwell and courtesy
lamps come on.

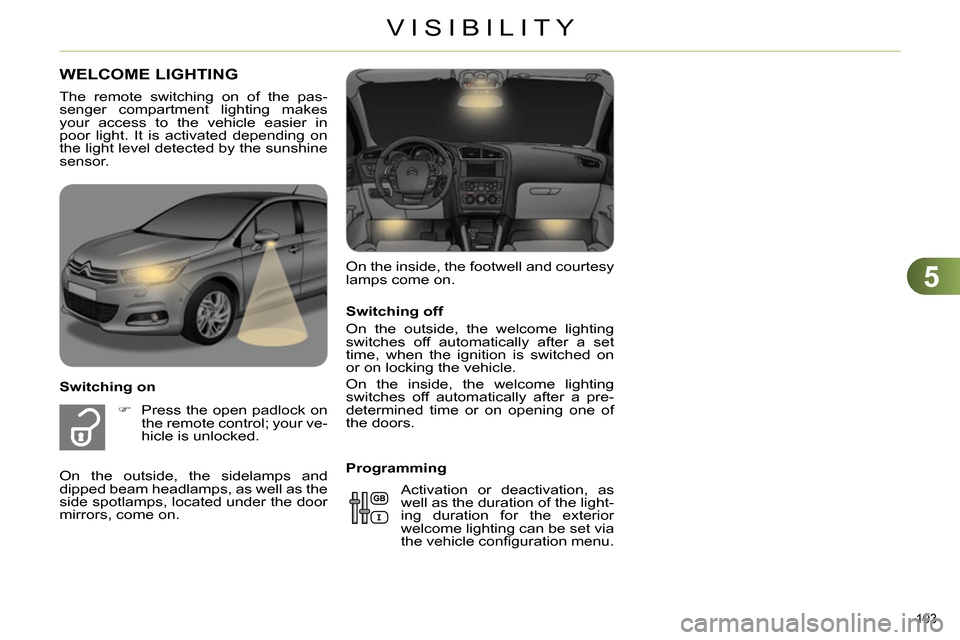

WELCOME LIGHTING


Switching on



Press the open padlock on
the remote control; your ve-
hicle is unlocked. The remote switching on of the pas-
senger compartment lighting makes
your access to the vehicle easier in
poor light. It is activated depending on
the light level detected by the sunshine
sensor.
On the outside, the sidelamps and
dipped beam headlamps, as well as the
side spotlamps, located under the door
mirrors, come on.
Programming
Activation or deactivation, as
well as the duration of the light-
ing duration for the exterior
welcome lighting can be set via
the vehicle confi guration menu.

5
VISIBILITY
104

To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
5 people.

-.
Intermediate setting.

2.
5 people + maximum authorised load.

-.
Intermediate setting.

3.
Driver + maximum authorised load.







MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
The initial setting is position "0"
.












AUTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
This system adjusts the height of the xe-
non headlamp beams automatically and
when stationary, according to the load in
the vehicle, so as to avoid causing a nui-
sance to other road user.
If a malfunction occurs, this
warning lamp is displayed
in the instrument panel, ac-
companied by an audible signal and a
message in the screen.
The system then places your headlam-
ps in the lowest position.
Do not touch the xenon bulbs.
Contact a CITROËN dealer or a
qualifi ed workshop.

5
VISIBILITY
107








WIPER CONTROLS

System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning the
screens.
The vehicle's front and rear wipers are
designed to improve the driver's visibil-
ity according to the climatic conditions.
The wipers are controlled by means of
stalk A
for the front and the ring B
for
the rear.

Programming

Various automatic wiper control modes
are also available depending on wheth-
er the following options are fi tted:


- automatic rain sensitive windscreen
wipers,

- rear wiping on engaging reverse
gear.


Model without AUTO wiping



Model with AUTO wiping



Windscreen wiper



A.
Wiping speed control stalk: raise or
lower the stalk to the desired position.
Fast wiping (heavy rain).
Normal wiping (moderate rain).
Intermittent wiping (proportional
to the speed of the vehicle).
Park.

Single wipe (press downwards
or pull the stalk briefl y towards
you, then release).

Automatic wiping (press
down, then release).
Single wipe (pull the stalk
briefl y towards you).




or

5
VISIBILITY
108











Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automat-
ically, without any action on the part of
the driver, if rain is detected (sensor be-
hind the rear view mirror), adapting their
speed to the intensity of the rainfall.
Briefl y push stalk A
down-
wards.
The instruction is confi rmed by
a wiping cycle, accompanied
by illumination of this warning lamp in
the instrument panel and an activation
message.
Switching on

Switching off
Operating fault
If an automatic rain sensitive wiper mal-
function occurs, the wipers will operate
in intermittent mode.
Contact a CITROËN dealer or a quali-
fi ed workshop.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

The automatic rain sensitive
windscreen wipers must be re-
activated if the ignition has been
off for more than one minute.
Briefl y push stalk A
downwards
again.
The instruction is confi rmed by
this warning lamp going off in
the instrument panel and/or the display
of a deactivation message.










Windscreen and headlamp
wash


Low screenwash / headlamp wash
fl uid level
On vehicle fi tted with headlamp wash-
ers, the low level of this fl uid is indicat-
ed by gauge in the reservoir fi ller neck
under the bonnet.
Checking and topping up this fl uid can
should be done with the engine off.
The level of this fl uid should be checked
regularly, particularly during winter.
Refer to "Checks - Screenwash / head-
lamp wash level" section for the proce-
dure on checking the level.



Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped or main beam head-
lamps are on
, with the vehicle moving
.

To reduce the consumption of
the fl uid by the headlamp wash-
ers, they operate only with every
seventh use of the screenwash
or every 25 miles (40 km) during
a given journey.

5
VISIBILITY
109

B.
Rear wiper selection ring: turn the
ring to place the desired symbol
against the marking.










Rear wiper


If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle carrier,
deactivate the automatic rear
wiper via the vehicle confi gura-
tion menu. Park.
Intermittent wipe.
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wiper
operates for a set duration.

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
The function is activated or de-
activated via the vehicle confi gu-
ration menu.
This function is activated by de-
fault.

Programming










Special position of the
windscreen wipers

To maintain the effectiveness
of the "fl at-blade" type of wiper
blades, it is advisable to:


- handle them with care,

- clean them regularly using
soapy water,

- avoid using them to retain
cardboard on the wind-
screen,

- replace them at the fi rst signs
of wear.

This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.




Any action on the wiper stalk in the
minute after switching off the igni-
tion places the blades vertically on
the screen.


To park the blades again, switch on
the ignition and operate the wiper
stalk.

5
VISIBILITY
111








INTERIOR MOOD LIGHTING

The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.

Switching on

At night, two interior mood lamps in the front courtesy lamp come on automatically
when the sidelamps are switched on.


Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually by ad-
justing the instrument panel lighting
rheostat button to one of the lowest set-
tings.
This comes on automatically when the
boot is opened and goes off automati-
cally when the boot is closed.




BOOT LAMP






The lighting time varies accord-
ing to the circumstances:


- when the ignition is off, ap-
proximately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running,
no limit.

8
SAFETY
139











DIRECTION INDICATORS




Left: lower the lighting stalk passing
the point of resistance.


Right: raise the lighting stalk pass-
ing the point of resistance.







HAZARD WARNING LAMPS




Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.













Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.



You can also switch them off by
pressing the button.







HORN

A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.







Three fl ashes of the direction
indicators



Press briefl y upwards or down-
wards, without going beyond the
point of resistance; the direction in-
dicators will fl ash 3 times.

If you forget to cancel the di-
rection indicators for more than
twenty seconds, the volume of
the audible signal will increase
if the speed is above 40 mph
(60 km/h). Audible warning system to alert other
road users to an imminent danger.



Press the central part of the multi-
function steering wheel.
Use the horn moderately and
only in the following circum-
stances:


- immediate danger,

- overtaking a cyclist or pe-
destrian,

- approaching a location lacking
visibility.

8
SAFETY
140
















BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:


- anti-lock braking system (ABS),

- electronic brake force distribution
(EBFD),

- emergency braking assistance (EBA).

When braking in an emergency,
press very fi rmly without releas-
ing the pressure.
When replacing wheels (tyres
and rims), ensure that they con-
form to the manufacturer's rec-
ommendations.
When braking in an emergency,
press fi rmly without releasing
the pressure.



Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces.

Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.
Operating fault
If this warning lamp comes on,
accompanied by an audible
signal and a message in the
screen, it indicates a malfunc-
tion of the anti-lock braking system
which could result in loss of control of
the vehicle when braking.
If this warning lamp comes on,
together with the STOP
and
ABS
warning lamps, accompa-
nied by an audible signal and
a message in the screen, it indicates a
malfunction of the electronic brake force
distribution which could result in loss of
control of the vehicle when braking.

You must stop as soon as it is safe
to do so.











Emergency braking assistance

System which, in an emergency, en-
ables you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.

Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
In either case, contact a CITROËN
dealer or a qualifi ed workshop.
