ACCESS
82












Anti-theft protection


Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.

In the event of a fault, you
are informed by illumina-
tion of this warning lamp,
an audible signal and a message in the
screen.
In this case, your vehicle will not start;
contact a CITROËN dealer as soon as
possible.










Starting the vehicle




Insert the key in the ignition switch.
The system recognises the starting
code.


Turn the key fully towards the dash-
board to position 3 (Starting)
.


When the engine starts, release
the key.



A heavy object (key fob...), attached to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.


Switching the vehicle off




Immobilise the vehicle.


Turn the key fully towards you to
position 1 (Stop)
.


Remove the key from the ignition
switch.










Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompa-
nied by an audible signal, to remind
you that the key is still in the ignition
switch at position 1 (Stop)
.
If the key has been left in the ignition
switch at position 2 (Ignition on)
, the
ignition will be switched off automati-
cally after one hour.
To switch the ignition back on, turn
the key to position 1 (Stop)
, then
back to position 2 (Ignition on)
.



Keep safely, away from your
vehicle, the label attached to the
keys given to you on acquisition
of the vehicle.

4
ACCESS
86











CENTRAL LOCKING CONTROL


Locking



Press this button to lock the vehicle.
The red indicator lamp in the button
comes on. If the vehicle is locked from the
outside, this button is inactive.



In this case, use the remote
control or the key to unlock
the vehicle or pull an interior
door handle to open a door.


If one of the doors is open, cen-
tral locking from the inside does
not take place.
Unlocking



Press the button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
ANTI-INTRUSION SECURITY


Operation
If one of the doors or the boot is open,
the automatic central locking does not
take place.
This control allows the simultaneous
locking or unlocking of the doors and
boot from inside the vehicle.
This system allows automatic simulta-
neous locking of the doors and boot as
soon as the speed of the vehicle ex-
ceeds 6 mph (10 km/h).

Carrying long and voluminous
objects

If you want to drive with the boot
open, you should press the central
locking button to lock the the doors.
Otherwise, every time the speed
of the vehicle exceeds 6 mph
(10 km/h), the locks will rebound
and the alerts mentioned above will
appear.
Pressing the central locking button un-
locks the vehicle.
Above 6 mph (10 km/h), this locking is
temporary.

This is signalled by the sound of the
locks rebounding, accompanied by il-
lumination of this symbol in the instru-
ment panel, an audible signal and the
display of an alert message.

4
ACCESS
91

















BOOT

Opening




After unlocking the boot or the ve-
hicle using the remote control or the
key, press the opening control, then
raise the tailgate.



Closing




Lower the tailgate using the interior
grab handle.


If necessary, press down on the tail-
gate to fully close it.







Tailgate release

System allowing the mechanical unlock-
ing of the boot in the event of a battery or
central locking system malfunction.

Unlocking



Fold back the rear seats to gain
access to the lock from inside the
boot.


Insert a small screwdriver into hole A

of the lock to unlock the tailgate.


Move the latch to the left.
If the tailgate is not closed correctly:


- when the engine is running
,
this warning lamp comes on,
accompanied by the display
of an alert message for a few
seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by
an audible signal and the display of
an alert message for a few seconds.


Locking after closing
If the fault persists after closing again,
the boot will remain locked.

4
ACCESS
95




















FUEL TANK


Capacity of the tank: approximately
60 litres.


When the low fuel level in the
tank is reached, this warning
lamp comes on in the instru-
ment panel, accompanied by an
audible warning and the display
of an alert message. When it
fi rst comes on, around 6 litres

of fuel remain in the tank.
Until suffi cient fuel has been added,
every time the ignition is switched on,
this warning lamp appears, accompa-
nied by an audible signal and an alert
message. When driving, this audible
signal and the display of this alert mes-
sage are repeated with increasing fre-
quency, as the level drops towards 0
.
You must refuel as soon as possible to
avoid running out.
If you run out of fuel (Diesel), refer also
to "Checks".


Low fuel level

Refuelling

Additions of fuel must be of at least
5 litres to be registered by the fuel
gauge.
Opening the fi ller cap may result in an
inrush of air. This vacuum is entirely
normal and results from the sealing of
the fuel system.

If you have put in the wrong
fuel for your vehicle, you must
have
the tank drained and re-
fi lled with the correct fuel be-
fore you start the engine.





Press control A
until the automatic
opening of the fuel fl ap is heard.
This control remains active for a few
minutes after switching off the igni-
tion. If necessary, switch the ignition
on again to reactivate it.

If you are fi lling your tank to the top,
do not persist after the third cut-off;
this could cause your vehicle to mal-
function.


Take care to select the pump that
delivers the correct fuel for your
vehicle.





With Stop & Start, never refuel
with the system in STOP mode;
you must switch off the ignition
with the key.



Introduce the nozzle so as to push
in the metal non-return fl ap B.


Make sure that the nozzle is pushed
in as far as possible before starting
to refuel (risk of blowback).


Maintain this position while refuelling.


Push the fuel fl ap to close it.

5
VISIBILITY
99


Model without AUTO lighting



Model with AUTO lighting

A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.

Manual controls

The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.

Lighting off / daytime running lamps.






Automatic illumination of head-
lamps.

B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk. Sidelamps.
Dipped headlamps or main
beam headlamps.

Displays

Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.







Daytime running lamps

Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users.

This function is assured:


- in countries where it is imposed by
regulations,
by illumination of the dipped beam
headlamps with the sidelamps and
number plate lamps; this function
cannot be deactivated.

- for other countries where it is pro-
vided,
by the use of dedicated lamps; this
function can be activated or deac-
tivated via the vehicle confi guration
menu.


The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, ...) are not
illuminated, except in night mode with
manual or automatic illumination of
headlamps.

5
VISIBILITY
102









Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation



Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.


Deactivation



Turn ring A
to a position other
than "AUTO"
. Deactivation is ac-
companied by a message in the
screen.

Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:


- selection of the lighting duration to
15, 30 or 60 seconds in the settings
in the vehicle confi guration menu
(except in the case of the mono-
chrome screen A, for which the
duration is set: 60 seconds),

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.


In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp is
displayed on the instrument panel and/or a
message appears in the screen, accompa-
nied by an audible signal.
Contact a CITROËN or a qualifi ed work-
shop workshop.

Operating fault
In fog or snow, the sunshine
sensor may detect suffi cient
light. Therefore, the lighting will
not come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.

5
VISIBILITY
104

To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
5 people.

-.
Intermediate setting.

2.
5 people + maximum authorised load.

-.
Intermediate setting.

3.
Driver + maximum authorised load.

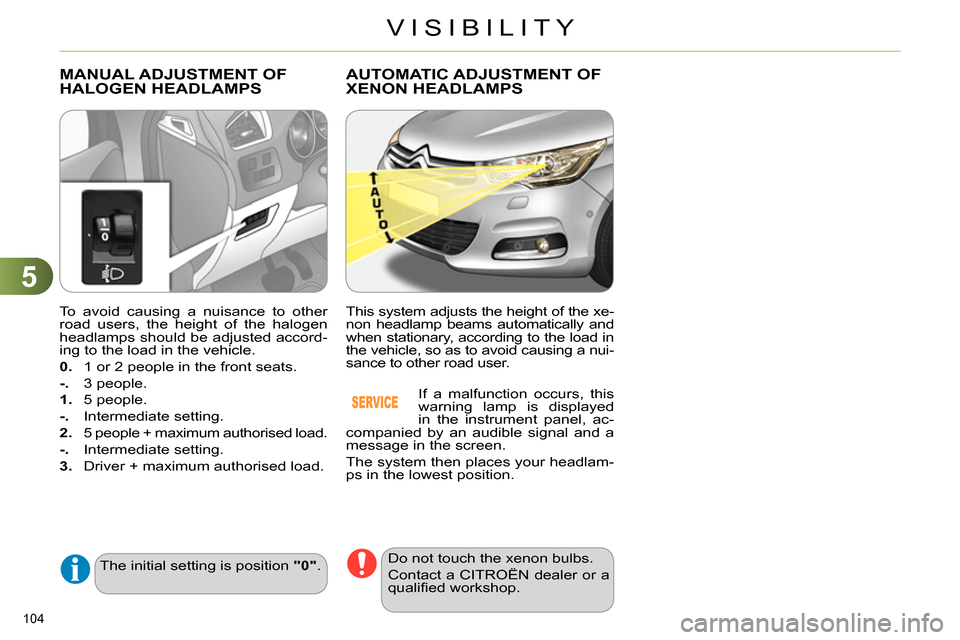

MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
The initial setting is position "0"
.












AUTOMATIC ADJUSTMENT OF
XENON HEADLAMPS
This system adjusts the height of the xe-
non headlamp beams automatically and
when stationary, according to the load in
the vehicle, so as to avoid causing a nui-
sance to other road user.
If a malfunction occurs, this
warning lamp is displayed
in the instrument panel, ac-
companied by an audible signal and a
message in the screen.
The system then places your headlam-
ps in the lowest position.
Do not touch the xenon bulbs.
Contact a CITROËN dealer or a
qualifi ed workshop.

5
VISIBILITY
108











Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automat-
ically, without any action on the part of
the driver, if rain is detected (sensor be-
hind the rear view mirror), adapting their
speed to the intensity of the rainfall.
Briefl y push stalk A
down-
wards.
The instruction is confi rmed by
a wiping cycle, accompanied
by illumination of this warning lamp in
the instrument panel and an activation
message.
Switching on

Switching off
Operating fault
If an automatic rain sensitive wiper mal-
function occurs, the wipers will operate
in intermittent mode.
Contact a CITROËN dealer or a quali-
fi ed workshop.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

The automatic rain sensitive
windscreen wipers must be re-
activated if the ignition has been
off for more than one minute.
Briefl y push stalk A
downwards
again.
The instruction is confi rmed by
this warning lamp going off in
the instrument panel and/or the display
of a deactivation message.










Windscreen and headlamp
wash


Low screenwash / headlamp wash
fl uid level
On vehicle fi tted with headlamp wash-
ers, the low level of this fl uid is indicat-
ed by gauge in the reservoir fi ller neck
under the bonnet.
Checking and topping up this fl uid can
should be done with the engine off.
The level of this fl uid should be checked
regularly, particularly during winter.
Refer to "Checks - Screenwash / head-
lamp wash level" section for the proce-
dure on checking the level.



Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped or main beam head-
lamps are on
, with the vehicle moving
.

To reduce the consumption of
the fl uid by the headlamp wash-
ers, they operate only with every
seventh use of the screenwash
or every 25 miles (40 km) during
a given journey.
