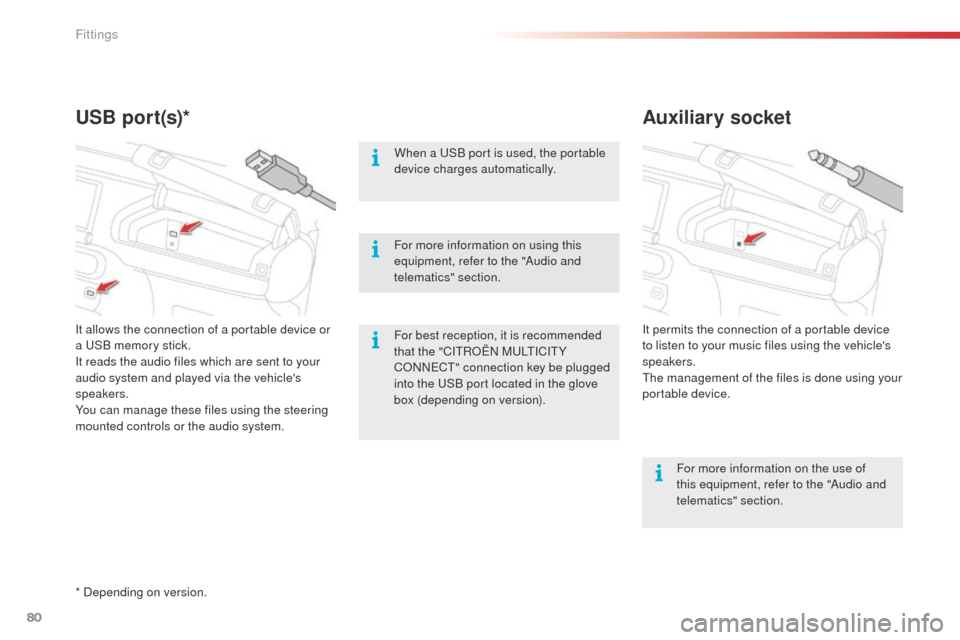

Auxiliary socket
USB por t(s)*
For best reception, it is recommended
that the "CITROËN MULTICITY
CONNECT" connection key be plugged
into the USB port located in the glove
box (depending on version). When a USB port is used, the portable
device charges automatically.
For more information on the use of
this equipment, refer to the "Audio and
telematics" section.
It permits the connection of a portable device
to listen to your music files using the vehicle's
speakers.
The management of the files is done using your
portable device.
It allows the connection of a portable device or
a USB memory stick.
It reads the audio files which are sent to your
audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system.
* Depending on version. For more information on using this
equipment, refer to the "Audio and
telematics" section.
Fittings

86
E3_en_Chap05_conduite_ed01-2014
Starting - Stopping the engine
F Insert the key in the ignition switch. The system recognises the starting code.
F

T
urn the key fully towards the dashboard to
position 3 (Starting) .
F

W
hen the engine starts, release the key.
Starting
Avoid attaching heavy objects to the
key, which could pull down in it when in
the ignition switch and cause faults.Key left in the "Ignition on"
position
On opening the driver's door, an alert
message is displayed, accompanied by an
audible signal, to remind you that the key is
still in the ignition switch at position 1 (Stop) .
F Immobilise the vehicle.
F
T urn the key fully towards you to
position 1 (Stop) .
F

R
emove the key from the ignition switch.
Switching off
If the key has been left in the ignition
switch at position 2 (Ignition on) ,
the ignition will be switched off
automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position 2 (Ignition on) .
Driving

104
E3_en_Chap05_conduite_ed01-2014
Memorising speeds
Memorisation
This function allows speeds to be saved, which can then be offered to set the two systems: the speed limiter (to limit the speed of the vehicle) or the
cruise control (for a vehicle cruising speed).
You can memorise up to six speed settings for each of the two systems. By default, some speeds are already memorised.F

I
n the secondary page, press
" Speed settings ".
For safety reasons, the driver must
carry out these operations when
stationary.
F

S
elect the system for which you want to
memorise speeds:
F

Sel
ect the "Driving assistance "
menu.
F

E
nter the new value using the numerical
keypad and confirm.
F

C
onfirm to save the modification and quit
the menu.
●

s
peed limiter or
●

c
ruise control.
F

C
hoose the speed setting you want to
m o di f y. This button restores the factory
settings.
This function is accessible in the touch screen
tablet.
Driving

127
E3_en_Chap06_visibilite_ed01-2014
Courtesy lamp
1. Courtesy lamp
2. Map reading lamps F

W
ith the ignition on, press the
corresponding switch.
Map reading lamps
With the "permanent lighting" mode,
the lighting time varies according to the
circumstances:
-

with the ignition off, approximately ten minutes,- in energy economy mode, approximately thirty seconds,
- with the engine running, unlimited.
In this position, the courtesy lamp
comes on gradually:
Permanently off.
Permanent lighting.
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-
w

hen opening a door,
-

w

hen the remote control locking button is
pressed, in order to locate your vehicle. Take care to avoid leaving anything in
contact with the courtesy lamp.
Courtesy lamp
It switches off gradually:
-
w hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.
6
Visibility

141
E3_en_Chap07_securite_ed01-2014
Deactivating the passenger's
front airbag
Only the passenger's front airbag can be
deactivated.
F
W
ith the ignition off , insert the key in the
passenger airbag deactivation switch.
F

T
urn it to the "OFF" position.
F

R
emove the key keeping the switch in the
new position.
When the ignition is on, this warning
lamp comes in the seat belt display
screen. It stays on while the airbag is
deactivated. To assure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rear ward facing" child seat on the front
passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Reactivating the passenger's
front airbag
When you remove a "
rearward facing" child
seat, with the ignition off , turn the switch to
the "ON" position to reactivate the airbag and
so assure the safety of your front passenger in
the event of an impact.
Front airbags
Deployment
The airbags are deployed, except the
passenger's front airbag if it is deactivated, in the
event of a serious front impact to all or part of the
front impact zone A , in the longitudinal centreline
of the vehicle on a horizontal plane and directed
from the front to the rear of the vehicle.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the
steering wheel, driver's side, and the dashboard,
passenger's side to cushion their forward
movement. System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag
is fitted in the roof to allow more space in the
glove box.
When the ignition is switched on, this
warning lamp comes on in the seat
belt display screen for approximately
one minute to signal that the front
airbag is activated.
7
Safety

159
E3_en_Chap08_securite_enfants_ed01-2014
Child seats
Advice
Installing a booster
cushion
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-
o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
Children at the front
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is as close as possible to the
backrest of the vehicle's seat, or in contact
if possible
The head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
Ensure that the head restraint is stowed or
attached securely so that it is not thrown around
the vehicle in the event of sharp braking.
Refit the head restraint as soon as the child
seat is removed.
The legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's airbag when a
"rear ward facing" child seat is installed on
the front seat. Otherwise, the child would risk
being seriously injured or killed if the airbag
were deployed.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum
,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it forward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r

ear ward facing child seat,
-

t

he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
8
Child safety

160
E3_en_Chap08_securite_enfants_ed01-2014
Manual child lock
Locking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
Unlocking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the left on the left-hand rear door,
-

t
o the right on the right-hand rear door.
Mechanical system to prevent opening of the rear door using its interior control.
The control is located on the edge of each rear door.
Child safety

161
E3_en_Chap09_info_pratiques_ed01-2014
Fuel tank
Capacity of the tank:
- Pe trol: approximately 50 litres.
-

D
iesel: approximately 45 or 50 litres (depending on version).
Low fuel level Refuelling
When the low fuel level is reached,
this warning lamp in the instrument
panel comes on, accompanied by
an audible warning, a message and
the last bar of the fuel gauge flashes
in red.
To refuel in complete safety:
F

Y
ou must switch off the engine.
F

O
pen the filler flap.
A label on the inside of the fuel filler flap
reminds you of the type of fuel to use,
depending on your engine type.
Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
When it first comes on, about 5 litres of fuel
remain in the tank.
Until sufficient fuel has been added, this
warning lamp appears every time the ignition
is switched on, accompanied by an audible
warning and a message. This audible warning
and message are repeated with increasing
frequency as the fuel level drops towards " 0".
Refuel as soon as possible to avoid running out. Opening the filler cap may result in an inrush of
air. This is entirely normal and results from the
sealing of the fuel system.
With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.
If you run out of fuel (Diesel), refer
also to the section "Running out of fuel
(Diesel)". F

T
ake care to select the pump that delivers
the correct type of fuel for your vehicle.
F

I
ntroduce the key into the cap and turn it to
the left.
9
Practical information
