Dashboard fusebox
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "access to the
to o ls".
Fuse tables
Fuse N° Rating Functions
FH36 5 ATrailer relay unit.
FH37 -
no

t used.
FH38 20 AHiFi amplifier.
FH39 -
no

t used.
FH40 40 ATrailer relay unit.
Fuse N° Rating Functions
F1 -
no

t used.
F2 -
no

t used.
F3 5 A
ai

rbags and pretensioners control unit.
F4 10 AAir conditioning, clutch switch, electrochromatic mirror, particle
filter pump (Diesel), diagnostic socket, air flow sensor (Diesel).
F5 30 AElectric windows panel, passenger's electric window control,
front electric window motor.
F6 30 ARear electric windows motors and driver's electric window
motor.
F7 5 ACourtesy lamp, side reading lamps.
11
Practical information

166

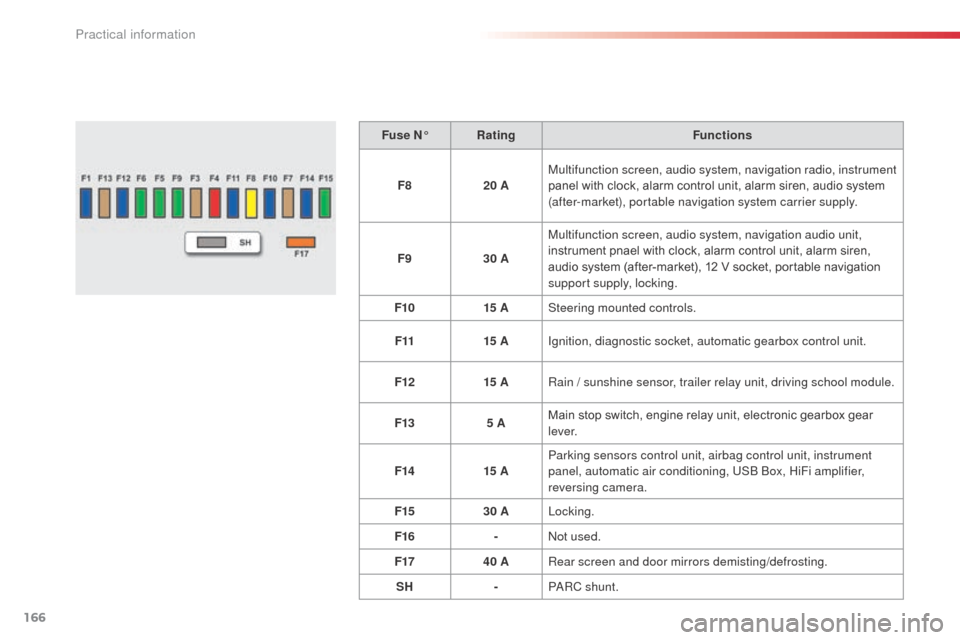

Fuse N°Rating Functions
F8 20 AMultifunction screen, audio system, navigation radio, instrument
panel with clock, alarm control unit, alarm siren, audio system
(after-market), portable navigation system carrier supply.
F9 30 AMultifunction screen, audio system, navigation audio unit,
instrument pnael with clock, alarm control unit, alarm siren,
audio system (after-market), 12 V socket, portable navigation
support supply, locking.
F10 15 ASteering mounted controls.
F11 15 AIgnition, diagnostic socket, automatic gearbox control unit.
F12 15 ARain / sunshine sensor, trailer relay unit, driving school module.
F13 5 AMain stop switch, engine relay unit, electronic gearbox gear
l eve r.
F14 15 AParking sensors control unit, airbag control unit, instrument
panel, automatic air conditioning, US
b

b
o
x, HiFi amplifier,
reversing camera.
F15 30 ALocking.
F16 -
no

t used.
F17 40 ARear screen and door mirrors demisting/defrosting.
SH -P
aR

C shunt.
Practical information

168
Fuse N°Rating Functions
F1 20 AEngine control unit supply, cooling fan unit control relay,
multifunction engine control main relay, injection pump (
die

sel).
F2 15 AHorn.
F3 10 AFront / rear wash-wipe.
F4 20 A
da

ytime running lamps, LE
d d
aytime running lamps.
F5 15 A
di

esel heater (
di
esel), particle filter additive pump (
di
esel), air
flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater
and electrovalves (VTi).
F6 10 AABS/ESP control unit, secondary stop switch.
F7 10 AElectric power steering, automatic gearbox.
F8 25 AStarter control.
F9 10 ASwitching and protection unit (Diesel).
F10 30 AFuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel),
fuel pump (VTi), injectors and ignition coils (petrol), electronic
thermostat and canister purge electrovalve (1.1i and 1.4i).
F11 40 AHeater blower.
Fuse table
