Gear shift indicator*
Operation
The system intervenes only when driving
economically.
dep
ending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one or more gears. You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated. Example:
The information appears in the instrument
panel in the form of an arrow accompanied by
the suggested gear. -

Y
ou press the accelerator pedal
moderately.
- T he system may suggest that you engage
a higher gear, if appropriate. In the case of driving which makes
particular demands on the performance
of the engine (firm pressure on the
accelerator pedal, for example, when
overtaking...), the system will not
recommend a gear change.
The system never suggests:
-
e

ngaging first gear,
-
enga

ging reverse gear,
-

e
ngaging a lower gear.
System which reduces fuel consumption by advising the driver to change up.
*
d
ep
ending on engine. -

Y
ou are in third gear.
With an electronic gearbox, the system
is only active in manual mode.
driving

129
C3Picasso_en_Chap09_conduite_ed01-2014
Hill start assist
(with the 6-speed
electronic gearbox
sy s te m)
System which holds your vehicle temporarily
(approximately 2 seconds) when starting on a
slope, the time it takes to move your foot from
the brake pedal to the accelerator pedal.
This function is only active when:
-
t
he vehicle is completely stationary, with
your foot on the brake pedal,
-

c
ertain conditions on a slope are met,
-

w
ith the driver’s door closed.
The hill start assist function cannot be
deactivated. On an ascending slope, with the vehicle
stationary, the vehicle is held momentarily
when you release the brake pedal:
-

p
rovided you are in automated mode
(position A ) or in manual mode (position M )
on an electronic gearbox. On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a malfunction of the system occurs, these
warning lamps come on. Contact a CITROËN
dealer or a qualified workshop to have the
system checked.
Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to leave the vehicle with
the engine running, manually apply
the parking brake then ensure that the
parking brake warning lamp is on (not
flashing) in the instrument panel.
Operation
9
driving

130
C3Picasso_en_Chap09_conduite_ed01-2014

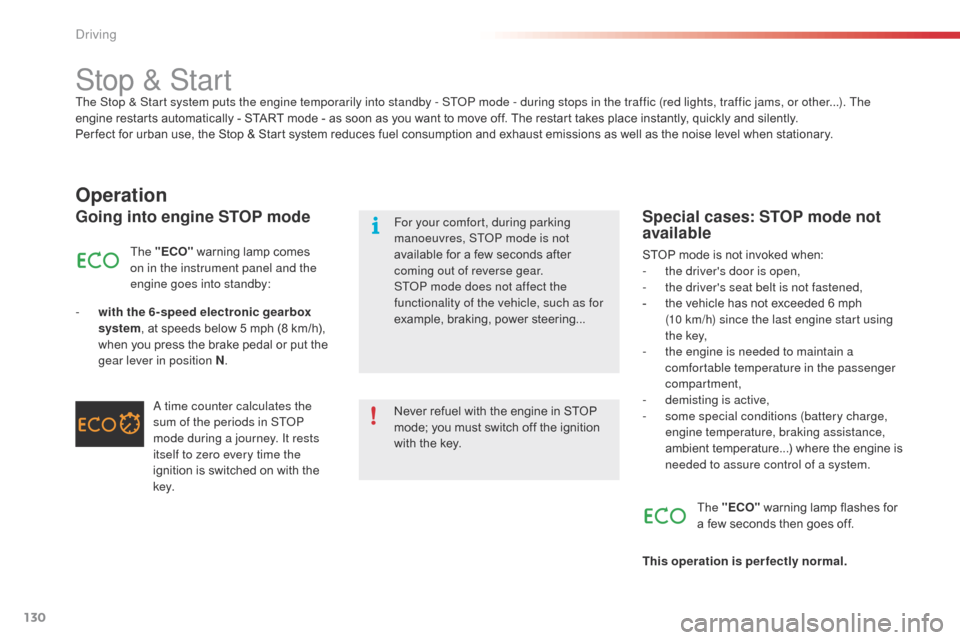

Stop & StartThe Stop & Start system puts the engine temporarily into standby - SToP mode - during stops in the traffic (red lights, traffic jams, or other...). The
engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
The "ECO" warning lamp comes
on in the instrument panel and the
engine goes into standby:
-

w

ith the 6-speed electronic gearbox
system, at speeds below 5 mph (8 km/h),
when you press the brake pedal or put the
gear lever in position N .
a

time counter calculates the
sum of the periods in ST
oP
m

ode during a journey. It rests
itself to zero every time the
ignition is switched on with the
key.
Special cases: STOP mode not
available
STOP mode is not invoked when:
- t he driver's door is open,
-

t
he driver's seat belt is not fastened,
-

t
he vehicle has not exceeded 6 mph
(10
km/h) since the last engine start using
t h e key,
-

t
he engine is needed to maintain a
comfortable temperature in the passenger
compartment,
-
d

emisting is active,
-
s

ome special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
The "ECO" warning lamp flashes for
a few seconds then goes off.
This operation is perfectly normal.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the key. For your comfort, during parking
manoeuvres, ST
oP m

ode is not
available for a few seconds after
coming out of reverse gear.
ST
oP m

ode does not affect the
functionality of the vehicle, such as for
example, braking, power steering...
driving

131
C3Picasso_en_Chap09_conduite_ed01-2014
Going into engine START mode
The "ECO" warning lamp goes
off and the engine starts with the
electronic gearbox system:
-

g

ear lever in position A or M , when you
release the brake pedal,
-

o

r gear lever in position N and the brake
pedal released, when you move the gear
lever to position A or M ,
-

o

r when you engage reverse gear.
Special cases: START invoked
automatically
For reasons of safety and for your comfort,
START mode is invoked automatically when:
-
y
ou open the driver's door,
-
y

ou unfasten the driver's seat belt,
-

t
he speed of the vehicle exceeds 7 mph
(11
km/h) with the electronic gearbox
system,
-
s

ome special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
The "ECO" warning lamp flashes for
a few seconds, then goes off.
This operation is perfectly normal.
Deactivation
at any time, press the "ECO OFF" switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by a message in the
screen.
If the system has been deactivated
in ST
oP m

ode, the engine restarts
immediately.
9
driving

132
C3Picasso_en_Chap09_conduite_ed01-2014
Operating fault
In the event of a fault with the system, the
"ECO OFF" switch warning lamp flashes then
comes on continuously.
Have it checked by a CITR
oËn
dealer or a
qualified workshop.
In the event of a fault in ST
oP m

ode, the
vehicle may stall. All of the warning lamps
in the instrument panel come on. It is then
necessary to switch off the ignition and start
the engine again using the key.
Maintenance
This system requires a battery with a special
specification and technology (reference
numbers available from a CITR
oËn

dealer or a
qualified workshop).
Fitting a battery not listed by
CITR
oËn

introduces the risk of malfunction of
the system.
be
fore doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from automatic operation of
S T a
R
T m o d e .
The Stop & Start system makes use
of advanced technology. All work
on this type of battery must be done
by a CITR
oËn

dealer or a qualified
workshop.
Press the "ECO OFF" switch again.
The system is active again; this is confirmed
by the switch warning lamp going off,
accompanied by a message in the screen.
The system is reactivated automatically
at every new start using the key.
Reactivation
driving

138
C3Picasso_en_Chap09_conduite_ed01-2014
DeactivationReactivation
With the engine running, press button A to
deactivate the system permanently. The
indicator lamp in the button comes on.
The system will be deactivated
automatically when towing a trailer or
when a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITR
oËn)

.In bad or wintry weather, ensure that
the sensors are not covered with mud,
frost or snow.
Press button A again to reactivate the system.
The indicator lamp in the button goes off.
If there is an operating fault, when reverse gear
is engaged, the service warning lamp comes
on, accompanied by an audible signal (short
beep) and a message in the multifunction
screen.
driving

140
