2014 Citroen C3 window

57
C3_en_Chap04_ouvertures_ed01-2014
Window controlsSystem which opens or closes a window manually or automatically. It is fitted with a system which provides protection if an obstacle is detected on the
one-touch models and a deactivation system to prevent misuse of the rear switches on all models.
1.
D

river's electric window.
2.
P

assenger's electric window.
3.
R

ear right electric window.
4.
R

ear left electric window.
5.
D

eactivating the rear electric window
and door switches.
Electric windowsF Press or pull the switch. The window stops as soon as the
switch is released.
One-touch electric
windows
There are two methods of
operation:
-

m

anual mode
F

P

ress or pull the switch gently. The
window stops as soon as the switch is
released.
-

a

utomatic mode
F

P

ress or pull the switch fully. The window
opens or closes completely when the
switch is released.
F

P

ressing the switch again stops the
movement of the window.
The electric window switches remain
operational for approximately
45 seconds after the ignition is switched
off or until a front door is opened.
du

ring this period of 45 seconds, if you
open a door while opening a window,
the window stops. The ignition must
then be switched on again to operate
the windows.
4
access

58
C3_en_Chap04_ouvertures_ed01-2014
Safety anti-pinch
The one-touch front electric windows are fitted
with a safety anti-pinch function.
When the window rises and meets an obstacle,
it stops and partially lowers again.
Deactivating the rear window and
door switches
F For the safety of your children, press
switch 5 to prevent operation of the rear
windows irrespective of their position.
With the lamp on, the rear controls are
deactivated.
With the lamp off, the rear controls are
activated.
Reinitialisation
In the event of a malfunction you have to
reinitialise the operation of the electric windows:
F

r
elease the switch and pull it again until the
window closes completely,
F

h
old the switch for approximately
one


second after closing,
F

press the switch to lower the window automatically.The safety anti-pinch function is not active
during these operations.
Always remove the key from the ignition when
leaving the vehicle, even for a short time.
In the event of unwanted opening of the
window on closing (for example in the
presence of frost):
F

p

ress the switch beyond the point of
resistance and then release it: the
window opens completely,
F

t

hen pull it immediately without
passing the point of resistance until
the window closes completely,
F

c

ontinue to hold the switch for
approximately one second after the
window has closed.
The safety anti-pinch function is not
active during these operations. In the event of contact during operation
of the windows, reverse the movement of
the window. To do this, press the switch
concerned.
When the driver operates the passenger
electric window switches, they should
ensure that no one is preventing correct
closing of the windows.
The driver should ensure that passengers
use the electric windows correctly.
Be particularly aware of children when
operating the windows.
This control also deactivates the interior
rear door controls (see "Child safety - §
Electric child lock").
access

94
C3_en_Chap07_Securite-enfants_ed01-2014

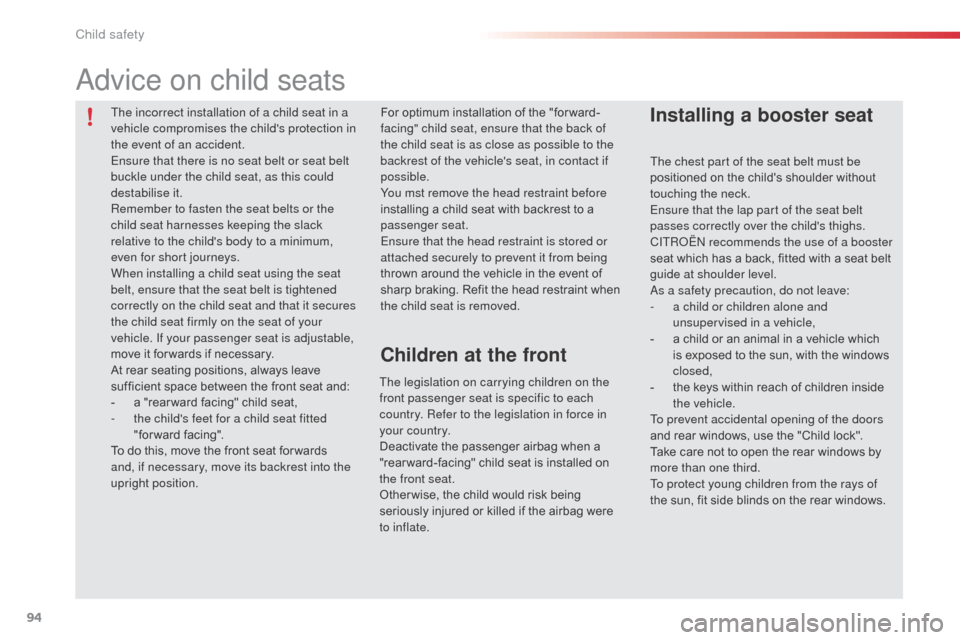

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITR
oËn
recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
as a s

afety precaution, do not leave:
-

a c
hild or children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the "Child lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
Children at the front Installing a booster seat
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger airbag when a
"rear ward-facing" child seat is installed on
the front seat.
Other wise, the child would risk being
seriously injured or killed if the airbag were
to inflate.For optimum installation of the "for ward-
facing" child seat, ensure that the back of
the child seat is as close as possible to the
backrest of the vehicle's seat, in contact if
possible.
You mst remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
-

a "

rear ward facing" child seat,
-

t

he child's feet for a child seat fitted
"forward facing".
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.
advice on child seats
Child safety

95
C3_en_Chap07_Securite-enfants_ed01-2014
Manual child lock
Locking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the right on the left-hand rear door,
-

t
o the left on the right-hand rear door.
Unlocking
F With the ignition key, turn the red control one quarter of a turn:
-

t
o the left on the left-hand rear door,
-

t
o the right on the right-hand rear door.
Electric child lock
Activation
F Press this button.The indicator lamp on the button comes on,
accompanied by a message in the multifunction screen.
This indicator lamp remains on until the child
lock is deactivated.
Deactivation
F Press the button again.The indicator lamp on the button switches off,
accompanied by a message in the multifunction screen.
This indicator lamp remains off until the child
lock is activated.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
Remote control system to prevent opening of
the rear doors using their interior controls and
use of the rear electric windows.
The control is located on the driver's door, with
the electric window controls.
Mechanical system to prevent opening of the
rear door using its interior control.
The control is located on the edge of each rear
d o o r.
7
Child safety

108
C3_en_Chap08_Securite_ed01-2014
Lateral airbags
Deployment
a lateral airbag is deployed unilaterally in the
e vent of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel.
Impact detection zones
A. Front impact zone.
B. S ide impact zone.
Curtain airbags
Deployment
The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.
System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.
System which contributes towards improving
the protection of the driver and passengers
(with the exception of the rear centre
passenger) in the event of a serious side
impact in order to limit the risk of injury to the
side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area.
Safety

162
C3_en_Chap11_Info-pratiques_ed01-2014
Dashboard fusebox
The fusebox is located in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "access to the
to o ls".
Fuse tables
Fuse N° Rating Functions
FH36 5 ATrailer relay unit.
FH37 -
no

t used.
FH38 20 AHi-Fi amplifier.
FH39 20 AHeated seats.
FH40 40 ATrailer relay unit.
Fuse N° Rating Functions
F1 -
no

t used.
F2 -
no

t used.
F3 5 A
ai

rbags and pretensioners control unit.
F4 10 AAir conditioning, clutch switch, electrochrome mirror, particle
filter pump (Diesel), diagnostic socket, air flow sensor (Diesel).
F5 30 AElectric windows panel, passenger's electric window control,
front electric window motor.
F6 30 ARear electric windows motors and driver's electric window motor.
F7 5 ACourtesy lamp, glove box lighting, side reading lamps.
Practical information

179
C3_en_Chap11_Info-pratiques_ed01-2014
"Comfort"
sun blinds, door deflectors, insulated module,
smoking kit, fragrance cartridges, front centre
armrest, moveable mirror, reading lamp,
front and rear parking sensors, cup holder,
coat hanger for head restraint, solar film for
windows, security film for windows... "Security and safety":

anti-theft alarm, wheel security bolts, stolen
vehicle tracking system, breathalyser, first aid
kit, warning triangle, high visibility vest, dog
guard, snow chains, non-slip covers, foglamps
kit, child seats and booster cushions, pet
transpor t protectors...
Conversion kits
You can obtain an "Enterprise" kit to convert a
trade vehicle to a private car and vice-versa.
"Style":
leather steering wheel, gear lever knobs,
front spoiler, rear diffuser, bumper trims, front
foglamp trims, parking brake lever trims,
aluminium footrest, alloy wheels, wheel trims,
chrome tailgate finisher, chrome tailpipe
finisher, chrome mirror shells, chrome door
handles... "Transport solutions":
boot tray, boot carpet, boot net, boot
containers, transverse roof bars, bicycle
carrier, ski carrier, roof boxes, towbars, towbar
wiring harnesses...
accessoriesA wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
*

T
o avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
"Protection":

mats*, mudflaps, seat covers, door sill
protectors, bumper protection strips, vehicle
protective cover, side protectors, boot mat, boot
liner...
If a towbar and wiring are fitted outside
the CITROËN
dealer network, this must
be done making use of the vehicle's
electrical pre-equipment and following
the manufacturer's recommendations.
11
Practical information

03
199
C3_en_Chap13b_RT6-2-8_ed01-2014
For the details of the menus, refer to the "Screen menu map"
section.
For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
"RADIO"
"TELEPHONE"
(If conversation in progress)
SETUP: P
a

R
a
METERS
date and time, display configuration, sound, vehicle
settings. Changing the audio source:
RADIO: Rad I o broadcasts.
MUSIC: playing MUSIC.
Press the MODE button several times in succession for access to the following displays:
"FULL SCREEN MAP" "MAP IN WINDOW"
(If navigation guidance in
progress)
GENERAL OPERATION
