Warning/indicator lampis on Cause Action / Observations
Anti-lock
Braking System
(ABS) fixed.
The anti-lock braking system has a
fault. The vehicle retains conventional braking.
dr

ive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without
d e l ay.
Electronic
stability
programme
(ESP/ASR) flashing.
The ESP/
aS

R regulation is operating. The system optimises traction and improves the directional stability of the vehicle.
fixed. Unless it has been deactivated
(button pressed and its indicator lamp
on) the ESP/
aS

R system has a fault.Have it checked by a CITR
oËn

or a qualified
workshop.
Engine
autodiagnosis
system flashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITR
oËn

dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.If it does not go off, contact a CITRoËn dealer or
qualified workshop without delay.
Braking
fixed, associated with
the STOP warning
lamp. The braking system fluid level is too
low.
You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.
+ fixed, associated with
the ST
oP a

nd
ab
S
w

arning lamp.
The electronic brake force distribution
(E
bFd) s

ystem has a fault.
You must stop as soon as it is safe to do so.
Have it checked by a CITR
oËn
dealer or a qualified
workshop.
Monitoring

27
C3_en_Chap01_Controle-de-marche_ed01-2014
C3_en_Chap01_Controle-de-marche_ed01-2014
Screen in the instrument panel
Monochrome screen A
Information displays
F Press the button, located at the end of the wiper stalk , to display the various items of
trip computer information in succession.
Zero reset
F Press the control for more than two seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.
The trip computer provides the following
information:
-


range,
-

c

urrent fuel consumption,
-
t
he Stop & Start time counter*, -
d

istance travelled,
-
a
verage fuel consumption,
F
T
he next press then returns you to the
normal display.
Tr i p c o m p u t e r
System that gives you information on the
current journey (range, fuel consumption…).
-
a

verage speed.
* Available only with the monochrome screen A.
1
Monitoring

28
C3_en_Chap01_Controle-de-marche_ed01-2014
C3_en_Chap01_Controle-de-marche_ed01-2014

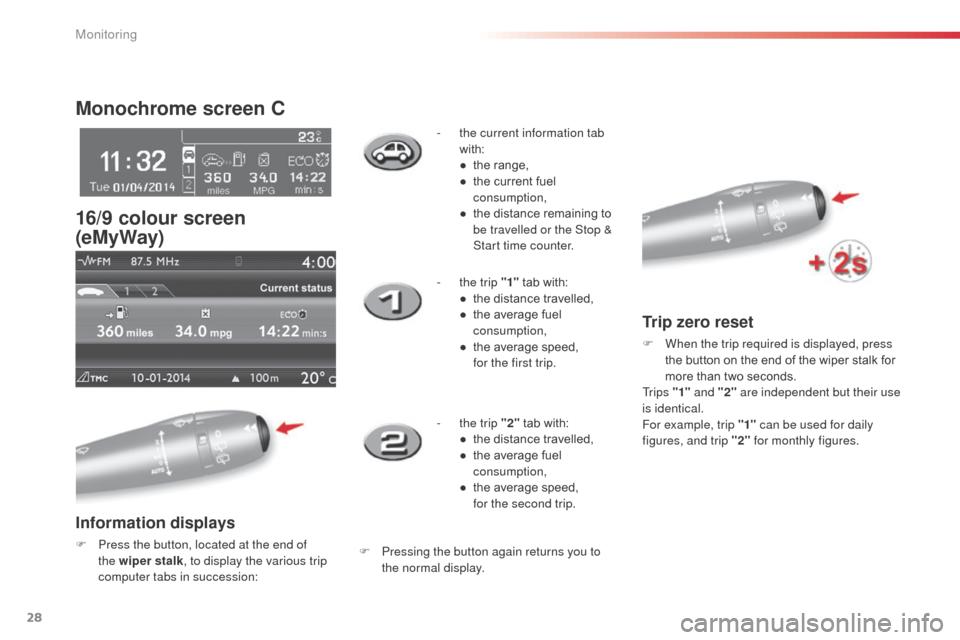

Monochrome screen C
16/9 colour screen
(eMyWay)
Information displays
F Press the button, located at the end of the wiper stalk , to display the various trip
computer tabs in succession: -

t
he current information tab
with:
●
t
he range,
●
t
he current fuel
consumption,
●
t
he distance remaining to
be travelled or the Stop &
Start time counter.
-
t
he trip "1"
tab with:
●
t
he distance travelled,
●
t
he average fuel
consumption,
●
t
he average speed,
f

or the first trip.
-
t
he trip "2"
tab with:
●
t
he distance travelled,
●
t
he average fuel
consumption,
●
t
he average speed,
f

or the second trip.F Pressing the button again returns you to
the normal display.
Trip zero reset
F When the trip required is displayed, press the button on the end of the wiper stalk for
more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Monitoring

43
C3_en_Chap03_Confort_ed01-2014
With the heating /
ventilation system
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air intake control to the "Exterior air
intake" position
(

manual control to the right or electric
control with indicator lamp off).
F

P
ut the air distribution control to the
"Windscreen" position.
Front demist - defrost
These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.
With the manual air
conditioning system
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air intake control to the "Exterior air
intake" position
(

manual control to the right or electric
control with indicator lamp off).
F

P
ut the air distribution control to the
"Windscreen" position.
F

S
witch on the air conditioning by pressing
the "A /C " button; the associated green
warning lamp comes on.
With Stop & Start, when the demisting,
air conditioning and air flow functions
are activated, ST
oP m

ode is not
available.
3
Comfort

44
C3_en_Chap03_Confort_ed01-2014
digital air conditioning
The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start.
Automatic operation
1. Automatic "comfort" programme
Press the "AUTO" button.
The "AUTO" symbol is displayed.
We recommend that you use this mode.
It provides optimised automatic control of
all of the following functions: passenger
compartment temperature, air flow, air
distribution and air intake, in accordance with
the comfort value that you have chosen.
This system is designed to operate effectively
in all seasons, with the windows closed.
2. Temperature adjustment
The value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit. Press the " 5" and " 6" buttons to
change this value.
a setting around
the value 21 enables optimum
comfort to be obtained. However,
depending on your requirements, a
setting between 18 and 24 is usual.
3. Automatic "visibility" programme
The automatic comfort programme may
not be sufficient for rapid demisting or
defrosting of the windscreen and side
windows (humidity, several passengers,
i c e , e t c .) .
In this case, select the automatic visibility
programme. The button 3 indicator lamp comes
on.
The system automatically controls the air
conditioning and the flow of air and provides
optimum air distribution to the windscreen and
side windows. It deactivates air recirculation 5 .
To exit this programme, press button 3 again or
"AUTO" , the indicator lamp on the button goes
off and "AUTO" is displayed.
Manual override
It is possible to adjust one or more functions
manually while leaving the other functions in
automatic mode.
The "AUTO" symbol switches off.
To return to automatic mode, press the
"AUTO"


button.
For your comfort, when the engine is
switched off, the settings are retained
until the engine is switched on again.
To prevent too great a distribution of
cold air when the engine is cold, the air
flow will only reach its optimum level
gradually.
on e

ntering the vehicle, if the interior
is very cold or hot, there is no need to
change the value displayed in order
to reach the required level of comfort.
The system corrects the temperature
difference automatically and as quickly
as possible. Switching to manual mode may not be
suitable (temperature, humidity, odour,
condensation) and does not provide
optimum comfort.
Comfort

46
C3_en_Chap03_Confort_ed01-2014
Rear screen demist - defrost
Switching on
The rear screen demisting/defrosting can only
operate when the engine is running.
F
P
ress this button to demist /defrost the
rear screen and (depending on version)
the door mirrors. The indicator lamp
associated with the button comes on.
Switching off
The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
F

I
t is possible to stop the demisting/
defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button switches off.
The control button is located on the heating or air conditioning system control panel.
F
S
witch off the demisting/defrosting
of the rear screen and door mirrors
as soon as appropriate as lower
current consumption results in
reduced fuel consumption.
With Stop & Start, when demisting has
been activated, the ST
oP m

ode is not
available.
If the engine is switched off before the
demisting/defrosting is switched off
automatically, demisting/defrosting will
resume next time the engine is switched on.
Comfort

54
C3_en_Chap04_ouvertures_ed01-2014
Folding the key
F First press this button to fold the key.
If you do not press the button when folding
the key, there is a risk of damage to the
mechanism.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.
Ignition switch
- Position 1: Stop
- P osition 2: Ignition
-

P
osition 3: Starting
Starting the vehicle
F Insert the key in the ignition switch. The system recognises the starting code.
F

T
urn the key fully towards the dashboard to
position 3 (Starting) .
F

W
hen the engine starts, release the key.Locating your vehicle
F Press the closed padlock to locate your locked vehicle in a
car park.
This is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds. In this case, your vehicle will not start; contact
a CITR
oËn

dealer as soon as possible.
Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle.
access

56
C3_en_Chap04_ouvertures_ed01-2014
Lost keys
Go to a CITROËN dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
do n

ot repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency
services more difficult in an emergency.
as a s

afety precaution, never leave children alone in the vehicle, except for a very short period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITRoËn dealer, to
ensure that only your keys can be used to open and start the vehicle. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
access
