2014 Citroen C3 boot

59
C3_en_Chap04_ouvertures_ed01-2014
doors
Opening
From outside
F after unlocking the vehicle using the
remote control or the key, pull the door
handle.
From inside
F Pull the front door control to open the door; this unlocks the vehicle completely.
F

P
ull the rear door control to open the door;
this unlocks only the door opened.
Closing
- When the engine is running , this
warning lamp comes on, accompanied
by a message in the multifunction
screen for a few seconds,
When a door or the boot is not closed correctly:
-

W
hen the vehicle is moving (speed
higher than 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message in the
multifunction screen for a few seconds.
4
access

60
C3_en_Chap04_ouvertures_ed01-2014
Manual central locking
control
Locking
F Press button A to lock the vehicle.
The red indicator lamp on the button comes on.
Unlocking
F Press button A again to unlock the vehicle.
The red indicator lamp on the button switches
off.
Automatic central
locking
Locking
When the speed exceeds 6 mph (10 km/h), the
doors and the boot lock automatically.
Unlocking
F above 6 mph (10 km/h), press button A to unlock the doors and the boot temporarily.
If the vehicle is locked from the outside,
the red indicator lamp flashes and
button A is inactive.
F

I

n this case, use the remote control
or the key to unlock the vehicle. If one of the doors is open, the
automatic central locking does not
take place.
If the boot is open, the automatic central
locking of the doors is active.
If one of the doors is open, central
locking from the inside does not take
place.
System which provides full manual locking or
unlocking of the doors from the inside.
System which provides full automatic locking
or unlocking of the doors and the boot while
driving.
You can activate or deactivate this function.
Driving with the doors locked can make
access more difficult for the emergency
services in the event an emergency.
access

61
C3_en_Chap04_ouvertures_ed01-2014
Emergency control
Locking the driver's door
F Insert the key in the lock, then turn it to
the right.
Unlocking the driver's door
F Insert the key in the lock, then turn it to the left.
Locking the front and rear
passenger doors
F Remove the black cap, located on the edge of the door, using the key.
F

I
nsert the key in the socket, then turn it to
the stop.
F

R
emove the key and refit the cap.
Unlocking the front and rear
passenger doors
F Pull the interior door opening control.
In the event of failure of the central
locking system, the battery must be
disconnected to lock the boot and
so ensure that the vehicle is locked
completely.
Check that the rear doors child lock is
not on.
System allowing the doors to be locked and
unlocked manually in the event of a fault with
the central locking system or a battery failure.
Activation
F Press button A for more than two seconds.a
confirmation message appears on the
multifunction screen, accompanied by an
audible signal.
Deactivation
F Press button A again for more than two seconds.
a

confirmation message appears on the
multifunction screen, accompanied by an
audible signal.
Driving with the doors locked may make
access more difficult for the emergency
services in an emergency.
4
access

62
C3_en_Chap04_ouvertures_ed01-2014
boot
F after unlocking the vehicle using the
remote control or the key, pull the handle
and raise the tailgate. F

L
ower the tailgate using the interior grab
handle.
-
when the engine is running
, this
warning lamp comes on, accompanied
by a message on the multifunction
screen for a few seconds,
Tailgate release
Unlocking
F Fold back the rear benchseat to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
If the tailgate is not closed correctly:
Opening
Closing
- when the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message on the multifunction screen for
a few seconds. System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.
access

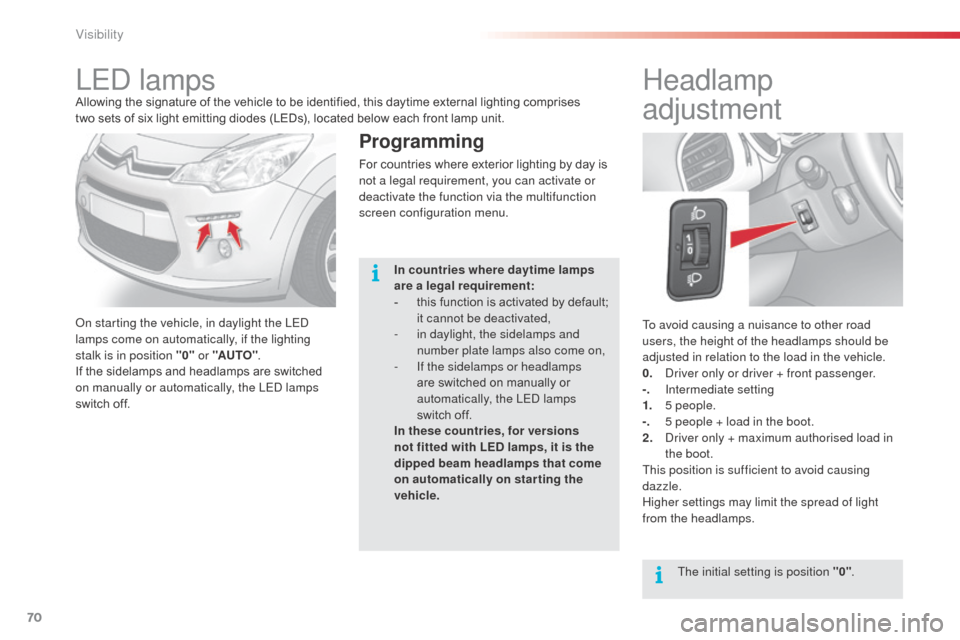

70
C3_en_Chap05_Visibilite_ed01-2014
To avoid causing a nuisance to other road
users, the height of the headlamps should be
adjusted in relation to the load in the vehicle.
0. d
r
iver only or driver + front passenger.
-.

I
ntermediate setting
1.
5

people.
-.

5 p
eople + load in the boot.
2.


d
r
iver only + maximum authorised load in
the boot.
This position is sufficient to avoid causing
dazzle.
Higher settings may limit the spread of light
from the headlamps.
Headlamp
adjustment
The initial setting is position "0" .
LEd lampsAllowing the signature of the vehicle to be identified, this daytime external lighting comprises
two
sets of six light emitting diodes (LEDs), located below each front lamp unit.
on s

tarting the vehicle, in daylight the LE
d

lamps come on automatically, if the lighting
stalk is in position "0" or "AUTO".
If the sidelamps and headlamps are switched
on manually or automatically, the LE
d

lamps
switch off.
Programming
For countries where exterior lighting by day is
not a legal requirement, you can activate or
deactivate the function via the multifunction
screen configuration menu.
In countries where daytime lamps
are a legal requirement:
-

t
his function is activated by default;
it cannot be deactivated,
-

i
n daylight, the sidelamps and
number plate lamps also come on,
-

I
f the sidelamps or headlamps
are switched on manually or
automatically, the LE
d

lamps
switch off.
In these countries, for versions
not fitted with LED lamps, it is the
dipped beam headlamps that come
on automatically on starting the
vehicle.
Visibility

75
C3_en_Chap05_Visibilite_ed01-2014
Interior mood lighting
Switching on
at night, the illumination of the central
dashboard storage compartment comes
on automatically when the sidelamps are
switched on.
on c

ertain versions, three lamps located in the
support between the roof and the automatic
day/night interior mirror come on as well.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched
off.
It can be switched off manually using the
instrument panel lighting rheostat button.
F

W
ith the lighting on, press several times on
the left hand button of the instrument panel
to progressively reduce the dashboard
lighting level.
F

P
ress again to reduce the lighting level
to the minimum and switch off the interior
mood lighting. This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
boot lamp
The dimmed passenger compartment lighting improves visibility in the vehicle when the light
i s
p o o r.
The lighting time varies according to
the


circumstances:
-

w
hen the ignition is off,
approximately ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-
w

hen the engine is running, no limit.
5
Visibility

81
C3_en_Chap06_amenagement_ed01-2014
Boot fittings
1. Rear parcel shelf (
see following page for details)
2.
Hoo

ks
(

see following page for details)
3.
L

ocation for Hi-Fi amplifier
4.
S

towing rings
5.
S

torage box (version equipped with a
temporary puncture repair kit)
(

see following page for details)


or
T

ool box (version equipped with a spare
wheel)
(

refer to section "Practical Information -
§ Changing a wheel")
6
Fittings

82
C3_en_Chap06_amenagement_ed01-2014
Rear parcel shelf
To remove the shelf:
F
u nhook the two cords,
F

r
aise the shelf slightly, then unclip it on
each side.
Hooks
The hooks can be used to hold shopping bags.
Storage box
F Raise the boot carpet by pulling the strap upwards to gain access to the storage box.
This has areas for storing a temporary puncture
repair kit, a box of spare bulbs, a first aid kit,
two warning triangles, ...
F

r
efit the boot floor carpet by folding it
slightly in the middle.
Fittings
