2008–2015 MODEL YEARS: CHRYSLER TOWN & COUNTRY/DODGE GRAND CARAVAN

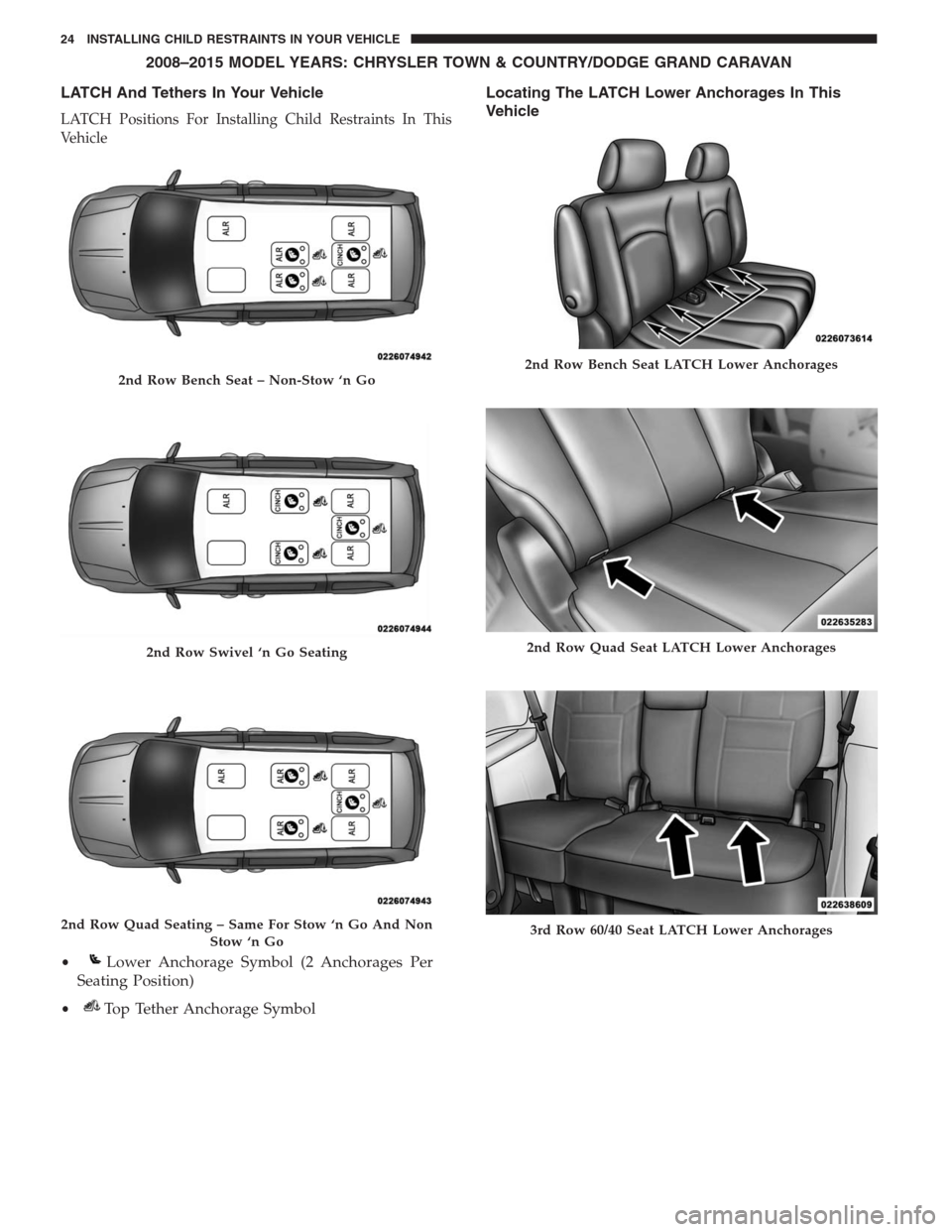

LATCH And Tethers In Your Vehicle
LATCH Positions For Installing Child Restraints In This
Vehicle
Locating The LATCH Lower Anchorages In This
Vehicle
2nd Row Bench Seat – Non-Stow ‘n Go
2nd Row Swivel ‘n Go Seating
2nd Row Quad Seating – Same For Stow ‘n Go And Non
Stow ‘n Go
•Lower Anchorage Symbol (2 Anchorages Per
Seating Position)
•Top Tether Anchorage Symbol
2nd Row Bench Seat LATCH Lower Anchorages
2nd Row Quad Seat LATCH Lower Anchorages
3rd Row 60/40 Seat LATCH Lower Anchorages
24 INSTALLING CHILD RESTRAINTS IN YOUR VEHICLE

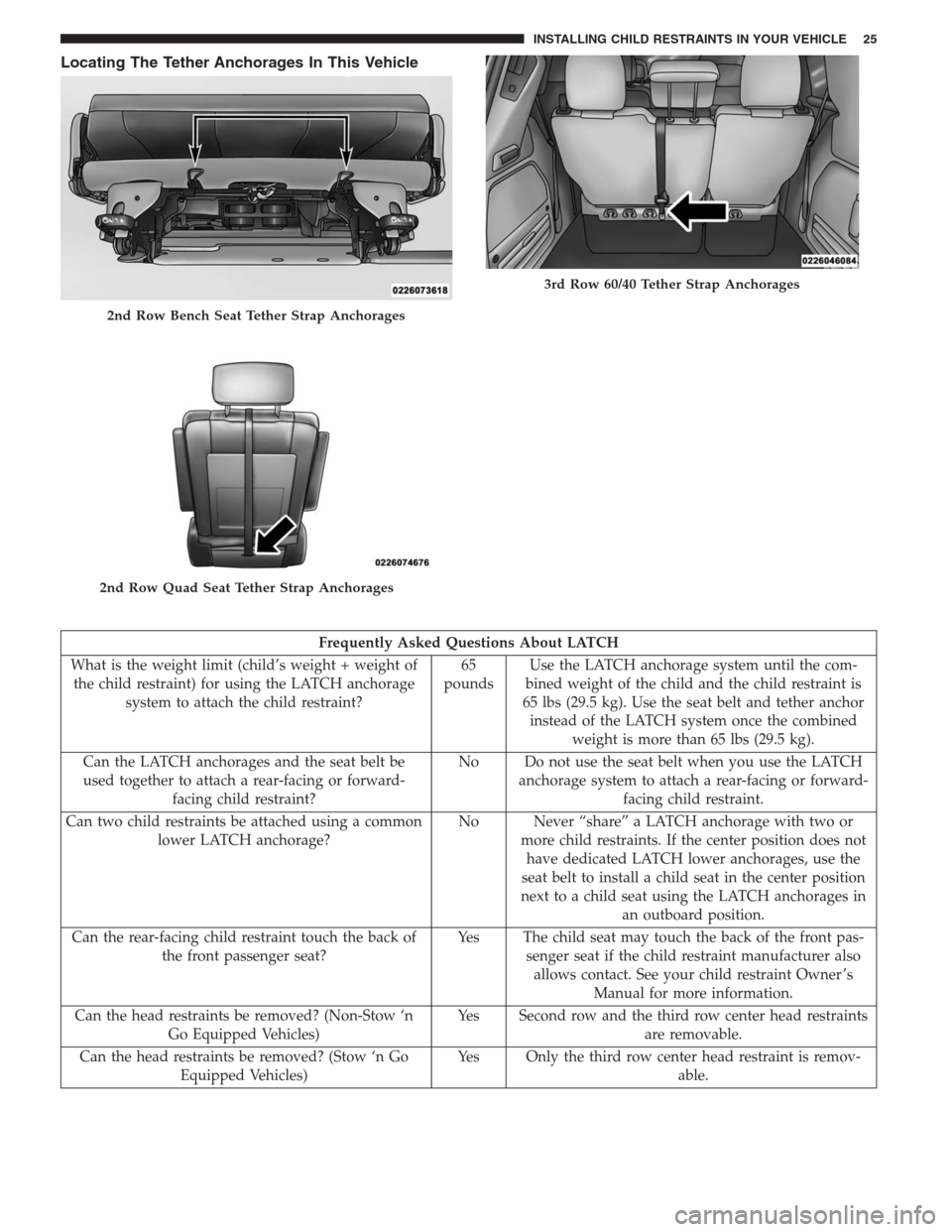

Locating The Tether Anchorages In This Vehicle
Frequently Asked Questions About LATCH
What is the weight limit (child’s weight + weight of
the child restraint) for using the LATCH anchorage
system to attach the child restraint?65
poundsUse the LATCH anchorage system until the com-
bined weight of the child and the child restraint is
65 lbs (29.5 kg). Use the seat belt and tether anchor
instead of the LATCH system once the combined
weight is more than 65 lbs (29.5 kg).
Can the LATCH anchorages and the seat belt be
used together to attach a rear-facing or forward-
facing child restraint?No Do not use the seat belt when you use the LATCH
anchorage system to attach a rear-facing or forward-
facing child restraint.
Can two child restraints be attached using a common
lower LATCH anchorage?No Never “share” a LATCH anchorage with two or
more child restraints. If the center position does not
have dedicated LATCH lower anchorages, use the
seat belt to install a child seat in the center position
next to a child seat using the LATCH anchorages in
an outboard position.
Can the rear-facing child restraint touch the back of
the front passenger seat?Yes The child seat may touch the back of the front pas-
senger seat if the child restraint manufacturer also
allows contact. See your child restraint Owner ’s
Manual for more information.
Can the head restraints be removed? (Non-Stow ‘n
Go Equipped Vehicles)Yes Second row and the third row center head restraints
are removable.
Can the head restraints be removed? (Stow ‘n Go
Equipped Vehicles)Yes Only the third row center head restraint is remov-
able.
2nd Row Bench Seat Tether Strap Anchorages
2nd Row Quad Seat Tether Strap Anchorages
3rd Row 60/40 Tether Strap Anchorages
INSTALLING CHILD RESTRAINTS IN YOUR VEHICLE 25

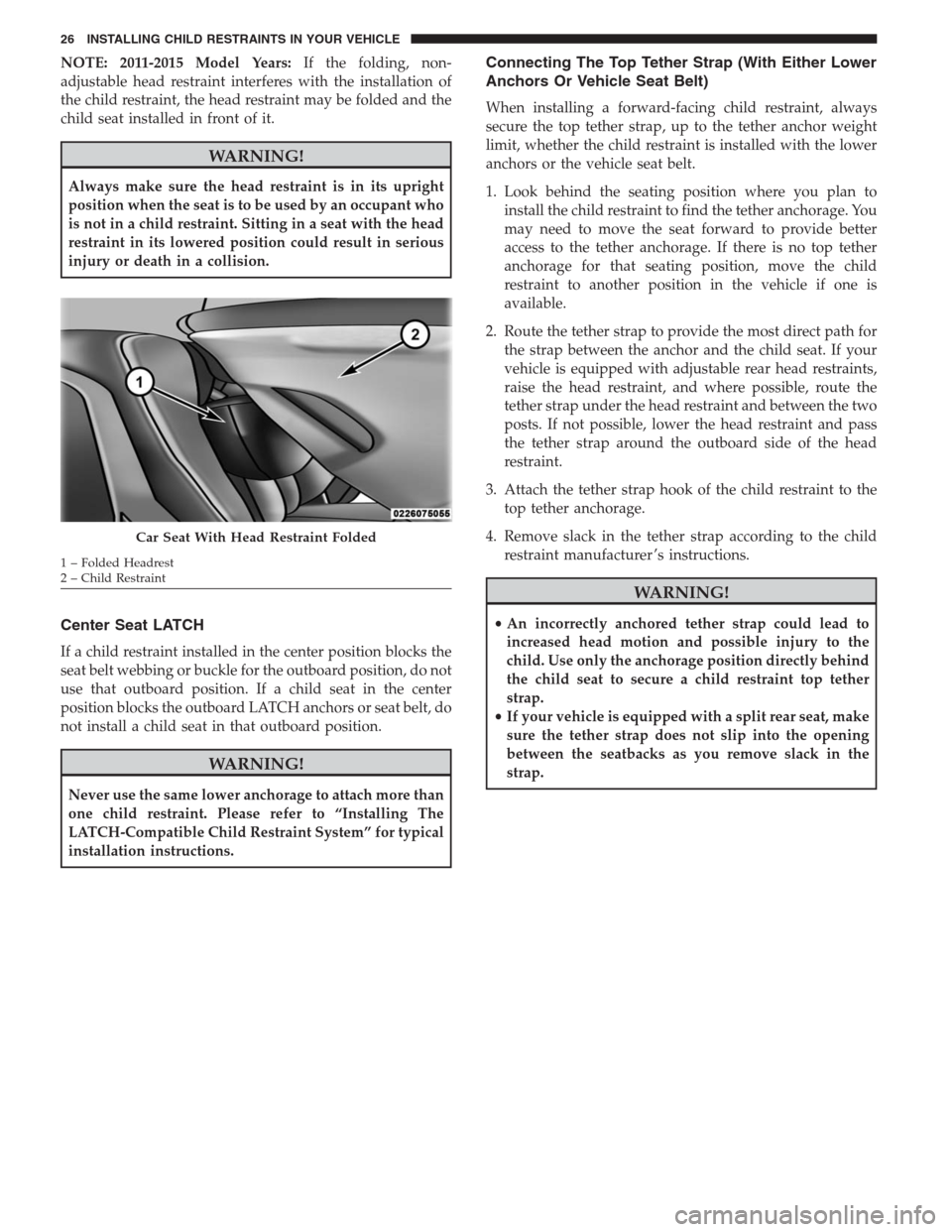

NOTE: 2011-2015 Model Years:If the folding, non-
adjustable head restraint interferes with the installation of
the child restraint, the head restraint may be folded and the
child seat installed in front of it.
WARNING!
Always make sure the head restraint is in its upright
position when the seat is to be used by an occupant who
is not in a child restraint. Sitting in a seat with the head
restraint in its lowered position could result in serious
injury or death in a collision.
Center Seat LATCH
If a child restraint installed in the center position blocks the
seat belt webbing or buckle for the outboard position, do not
use that outboard position. If a child seat in the center
position blocks the outboard LATCH anchors or seat belt, do
not install a child seat in that outboard position.
WARNING!
Never use the same lower anchorage to attach more than
one child restraint. Please refer to “Installing The
LATCH-Compatible Child Restraint System” for typical
installation instructions.
Connecting The Top Tether Strap (With Either Lower
Anchors Or Vehicle Seat Belt)
When installing a forward-facing child restraint, always
secure the top tether strap, up to the tether anchor weight
limit, whether the child restraint is installed with the lower
anchors or the vehicle seat belt.
1. Look behind the seating position where you plan to
install the child restraint to find the tether anchorage. You
may need to move the seat forward to provide better
access to the tether anchorage. If there is no top tether
anchorage for that seating position, move the child
restraint to another position in the vehicle if one is
available.
2. Route the tether strap to provide the most direct path for
the strap between the anchor and the child seat. If your
vehicle is equipped with adjustable rear head restraints,
raise the head restraint, and where possible, route the
tether strap under the head restraint and between the two
posts. If not possible, lower the head restraint and pass
the tether strap around the outboard side of the head
restraint.
3. Attach the tether strap hook of the child restraint to the
top tether anchorage.
4. Remove slack in the tether strap according to the child
restraint manufacturer ’s instructions.
WARNING!
•An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchorage position directly behind
the child seat to secure a child restraint top tether
strap.
•If your vehicle is equipped with a split rear seat, make
sure the tether strap does not slip into the opening
between the seatbacks as you remove slack in the
strap.
Car Seat With Head Restraint Folded
1 – Folded Headrest
2 – Child Restraint 26 INSTALLING CHILD RESTRAINTS IN YOUR VEHICLE

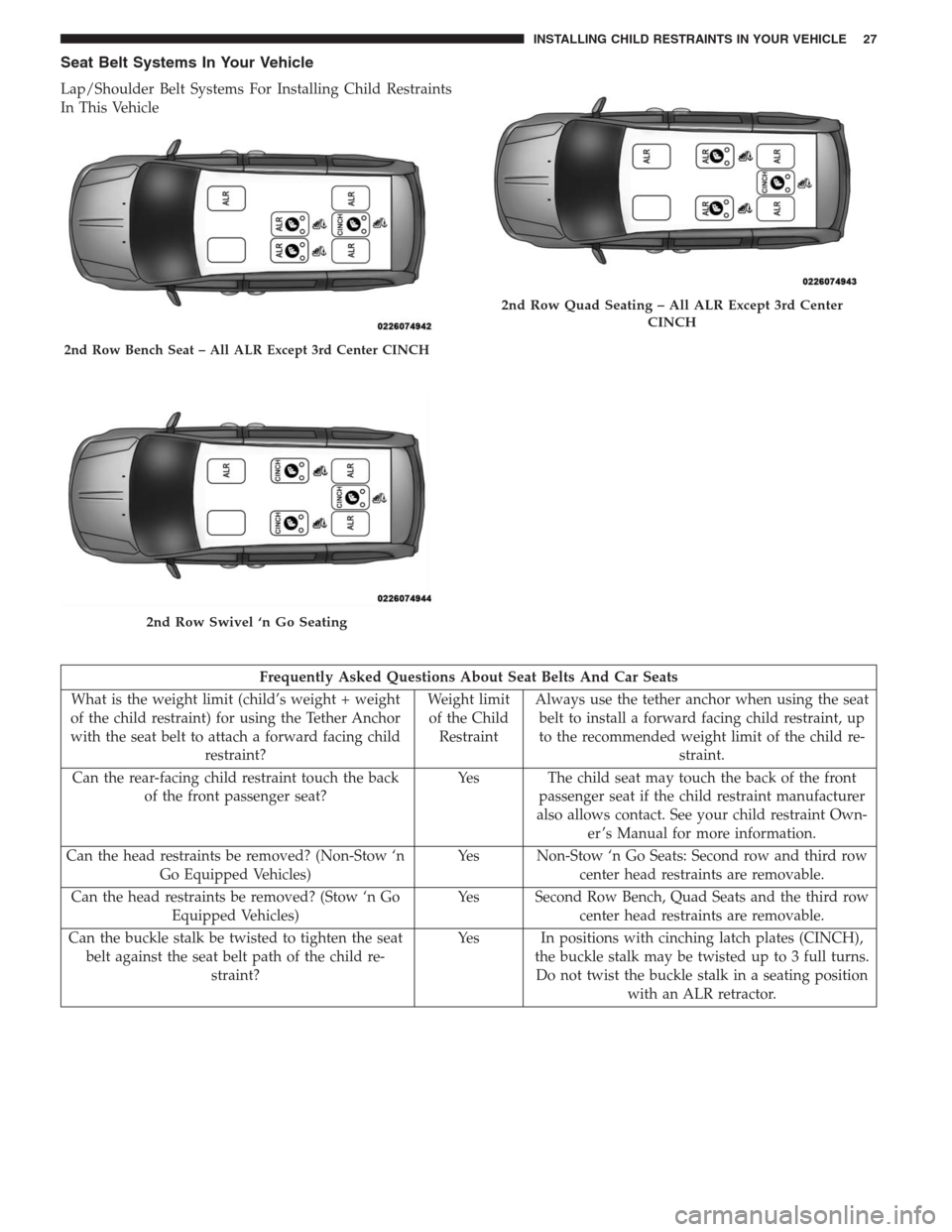

Seat Belt Systems In Your Vehicle
Lap/Shoulder Belt Systems For Installing Child Restraints
In This Vehicle
Frequently Asked Questions About Seat Belts And Car Seats
What is the weight limit (child’s weight + weight
of the child restraint) for using the Tether Anchor
with the seat belt to attach a forward facing child
restraint?Weight limit
of the Child
RestraintAlways use the tether anchor when using the seat
belt to install a forward facing child restraint, up
to the recommended weight limit of the child re-
straint.
Can the rear-facing child restraint touch the back
of the front passenger seat?Yes The child seat may touch the back of the front
passenger seat if the child restraint manufacturer
also allows contact. See your child restraint Own-
er ’s Manual for more information.
Can the head restraints be removed? (Non-Stow ‘n
Go Equipped Vehicles)Yes Non-Stow ‘n Go Seats: Second row and third row
center head restraints are removable.
Can the head restraints be removed? (Stow ‘n Go
Equipped Vehicles)Yes Second Row Bench, Quad Seats and the third row
center head restraints are removable.
Can the buckle stalk be twisted to tighten the seat
belt against the seat belt path of the child re-
straint?Yes In positions with cinching latch plates (CINCH),
the buckle stalk may be twisted up to 3 full turns.
Do not twist the buckle stalk in a seating position
with an ALR retractor.
2nd Row Bench Seat – All ALR Except 3rd Center CINCH
2nd Row Swivel ‘n Go Seating
2nd Row Quad Seating – All ALR Except 3rd Center
CINCH
INSTALLING CHILD RESTRAINTS IN YOUR VEHICLE 27

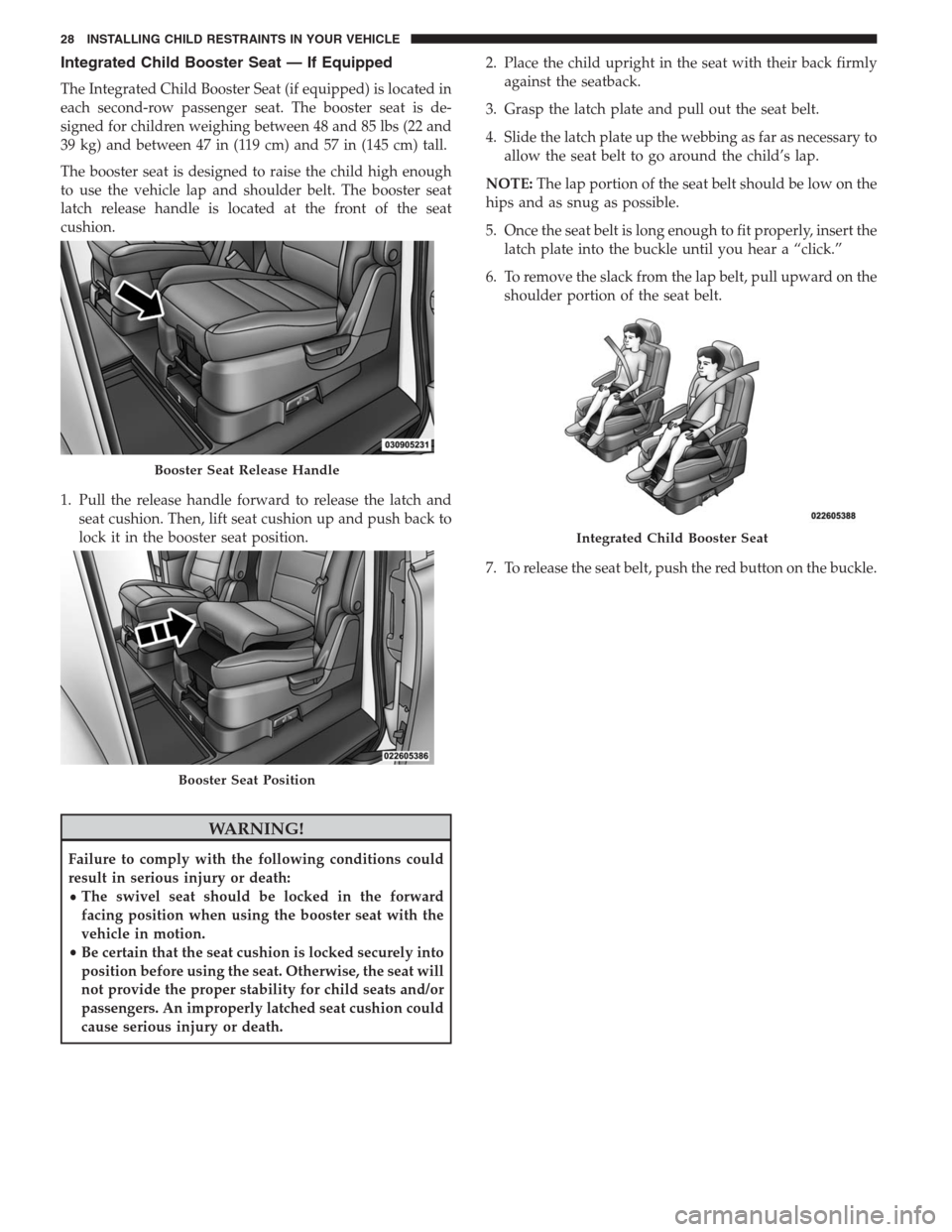

Integrated Child Booster Seat — If Equipped
The Integrated Child Booster Seat (if equipped) is located in
each second-row passenger seat. The booster seat is de-
signed for children weighing between 48 and 85 lbs (22 and
39 kg) and between 47 in (119 cm) and 57 in (145 cm) tall.
The booster seat is designed to raise the child high enough
to use the vehicle lap and shoulder belt. The booster seat
latch release handle is located at the front of the seat
cushion.
1. Pull the release handle forward to release the latch and
seat cushion. Then, lift seat cushion up and push back to
lock it in the booster seat position.
WARNING!
Failure to comply with the following conditions could
result in serious injury or death:
•The swivel seat should be locked in the forward
facing position when using the booster seat with the
vehicle in motion.
•Be certain that the seat cushion is locked securely into
position before using the seat. Otherwise, the seat will
not provide the proper stability for child seats and/or
passengers. An improperly latched seat cushion could
cause serious injury or death.2. Place the child upright in the seat with their back firmly
against the seatback.
3. Grasp the latch plate and pull out the seat belt.
4. Slide the latch plate up the webbing as far as necessary to
allow the seat belt to go around the child’s lap.
NOTE:The lap portion of the seat belt should be low on the
hips and as snug as possible.
5. Once the seat belt is long enough to fit properly, insert the
latch plate into the buckle until you hear a “click.”
6. To remove the slack from the lap belt, pull upward on the
shoulder portion of the seat belt.
7. To release the seat belt, push the red button on the buckle.
Booster Seat Release Handle
Booster Seat Position
Integrated Child Booster Seat
28 INSTALLING CHILD RESTRAINTS IN YOUR VEHICLE

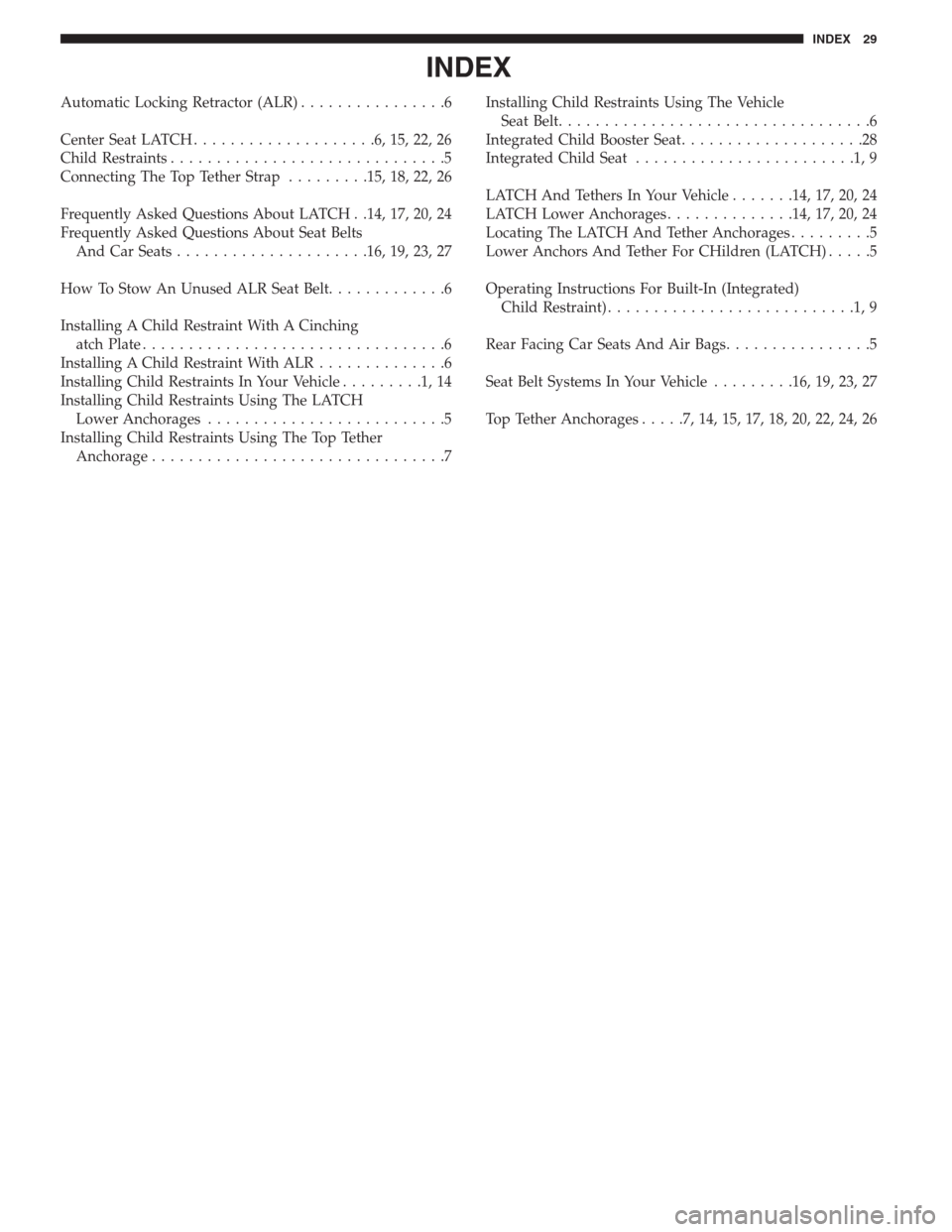

INDEX
Automatic Locking Retractor (ALR)................6
Center Seat LATCH....................6,15,22,26
Child Restraints..............................5
Connecting The Top Tether Strap.........15, 18, 22, 26
Frequently Asked Questions About LATCH . .14, 17, 20, 24
Frequently Asked Questions About Seat Belts
And Car Seats.....................16, 19, 23, 27
How To Stow An Unused ALR Seat Belt.............6
Installing A Child Restraint With A Cinching
atch Plate.................................6
Installing A Child Restraint With ALR..............6
Installing Child Restraints In Your Vehicle.........1,14
Installing Child Restraints Using The LATCH
Lower Anchorages..........................5
Installing Child Restraints Using The Top Tether
Anchorage................................7Installing Child Restraints Using The Vehicle
Seat Belt..................................6
Integrated Child Booster Seat....................28
Integrated Child Seat........................1,9
LATCH And Tethers In Your Vehicle.......14, 17, 20, 24
LATCH Lower Anchorages..............14, 17, 20, 24
Locating The LATCH And Tether Anchorages.........5
Lower Anchors And Tether For CHildren (LATCH).....5
Operating Instructions For Built-In (Integrated)
Child Restraint)...........................1,9
Rear Facing Car Seats And Air Bags................5
Seat Belt Systems In Your Vehicle.........16, 19, 23, 27
Top Tether Anchorages.....7,14,15,17,18,20,22,24,26
INDEX 29
