2014 BUICK ENCLAVE Get To Know Guide

Review this Quick Reference Guide for an overview of some important features in your Buick Enclave. More detailed information can be found in your Owner Manual. Some option\
al equipment described in this guide may not be included in your vehicle.
If you have additional questions about the features and controls in your vehicle, press the blue OnStar button to speak with a customer assistance representative who can provide more information.
www.buick.com

2
Ambient Light ControlExterior Lamps Control
Instrument Panel
Tilt/Telescope Steering Wheel Lever
Instrument Panel Illumination Control/Dome Lamp Off Button
Symbols
Low Fuel
Traction Control Off
Engine Coolant
Temperature
Brake System
Cruise Control Set
Low Tire Pressure
StabiliTrak Active
StabiliTrak Off
Security
Check Engine
Oil Pressure
Charging System
Safety Belt Reminder
Airbag Readiness
Antilock Brake System
Side Blind Zone Alert
Cruise Control Buttons
Driver Information CenterAudio Steering Wheel ControlsF
Turn Signal Lever/Windshield Wipers Lever

3
Refer to your Owner Manual to learn about the information being relayed \
by the lights, gauges and indicators on the instrument cluster.
See In Brief in your Owner Manual.
F Optional equipment
Driver Information Center ButtonsF
Audio System/ Navigation SystemFHazard Warning Flashers Button
USB Port (inside storage compartment)
Accessory Power
Outlet
Driver’s Heated/Cooled Seat ButtonsF
Rear Wiper Switch/ Traction Control Off
Button/Tow/ Haul Mode ButtonF/ Power Liftgate SwitchF
Passenger’s Heated/Cooled Seat ButtonsF
Lane Departure Warning ButtonF/Forward Collision Alert ButtonF
Climate Controls

4
Front Seats
A. Seat Adjustment
Move the horizontal control to move the seat forward or rearward and to raise, lower or tilt the seat.
B. Seatback Recline Adjustment
Move the vertical control to recline or raise the seatback.
C. Lumbar AdjustmentF
Press the switch to adjust the amount of lumbar support.
D. Lumbar Adjustment
Pull up/push down the lever on the inboard side of the seatback to adjust the amount of lumbar support.
Power Seats
Head Restraints
Manual Lumbar
ABC
D
F Optional equipment
The driver and front passenger head restraints are adjustable.
Press the button on the left side of the head restraint to raise or lower the head restraint, or move it rearward. Move the head restraint forward by pulling it forward.
See Seats and Restraints in your Owner Manual.

5
2nd-Row Seats
Slide the Seat
1. Make sure nothing is on the 2nd-row seat or the floor in front of or behind the seat.
2. Fold up the armrest(s) and make sure the safety belt is unfastened and in the stowed position.
3. Rotate the release lever (A) on the upper-outboard side of the seatback forward.
4. Push the top of the seatback forward. The seat cushion will fold and the entire seat will slide forward.
5. After entering/exiting, push the top of the seatback rearward until the seatback and floor tracks lock.
6. Push down at the rear of the seat
cushion to lock it in place.
1. Make sure nothing is on the floor in front of or behind the 2nd-row seat.
2. Pull outward on the handle (B) on the outboard side of the seat cushion and slide the seat forward or rearward.
3. Release the handle.
1. Make sure the seat is all the way rearward (when folding the seat), the armrest(s) are upright and the safety belt is unfastened.
2. Pull forward on the strap (C) on the
outboard side of the seatback.
3. Fold down or recline the seatback.
B
Fold/Recline the Seatback
See Seats and Restraints in your Owner Manual.
Enter or Exit the 3rd-Row Seats
C
A

6
Lighting
Off/On
AUTO Automatic Headlamp System
Activates the Daytime Running Lamps (DRLs) in the
daytime and the headlamps and other exterior lamps at night or when necessary.
Parking Lamps
Headlamps
Ambient Off
The ambient lighting illuminates across the instrument panel. Press the button to turn the ambient lighting on or off. Turn the instrument panel brightness knob to adjust the lighting. The headlamps must be on for the ambient lighting to operate.
Note: Only the instrument panel ambient lighting, not the door panel ambient lighting, can be turned off.
Instrument Panel Brightness
Press the small knob to extend it. Turn the knob to adjust the instrument panel lighting. Turn the knob fully to turn on the dome lamps when all doors are closed.
Dome Off
Press the button to turn off the dome lamps. The button indicator will illuminate when the dome lamps are turned off. With the button depressed, the dome lamps will not turn on when a door is open.
Press the button again to have the dome lamps turn on when a door is open.
See Lighting in your Owner Manual.
Exterior Lamps
Rotate the knob to operate the exterior lamps.
Ambient Lighting
Interior Lighting

Dome Lamps

7
Audio Steering Wheel Controls
Cruise Control
F Optional equipment
Volume
Pull up the + or – button to adjust the volume.
SRCE Source
Press to select an audio source.
Next/Previous
Press the up or down arrow to go to the next or previous favorite radio station, track, or file.
Seek
Press to go to the next radio station on the same band or CD track.
Push to Talk/Mute
Press to start voice recognition to interact with the audio, OnStar®, Bluetooth or navigationF system.
Press and hold for two seconds to mute the speakers.
End Call
Press to end or reject an OnStar or a Bluetooth call.
Setting Cruise Control
1. Press the On/Off button. The Cruise Control symbol will illuminate in white on the instrument cluster.
2. When traveling at the desired speed, press the SET/– button to set the speed. The symbol will illuminate in green on the instrument cluster.


Adjusting Cruise Control
RES/+ Resume/Accelerate
Press to resume a set speed.
When the system is active, press to increase speed.
SET/– Set/Coast
When the system is active, press to decrease speed.
Cancel
Press to cancel the cruise control but retain the set speed in memory.
Pressing the brake pedal also will cancel the cruise control.
The cruise control set speed is erased when cruise control or the vehicle ignition is turned off.
See Driving and Operating in your Owner Manual.
See Instruments and Controls in your Owner Manual.

8

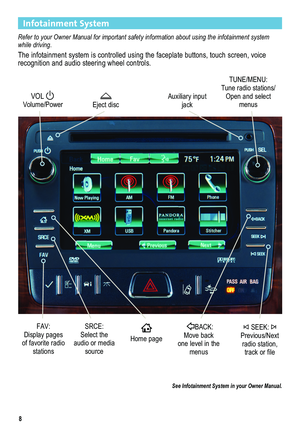

Infotainment System
VOL Volume/Power Eject disc
TUNE/MENU: Tune radio stations/Open and select menus
FAV: Display pages of favorite radio stations
HOME Home page
BACK: Move back one level in the menus
SEEK: Previous/Next radio station, track or file
SRCE: Select the audio or media source
Auxiliary input jack
Refer to your Owner Manual for important safety information about using \
the infotainment system while driving.
The infotainment system is controlled using the faceplate buttons, touch screen, voice
recognition and audio steering wheel controls.
See Infotainment System in your Owner Manual.
