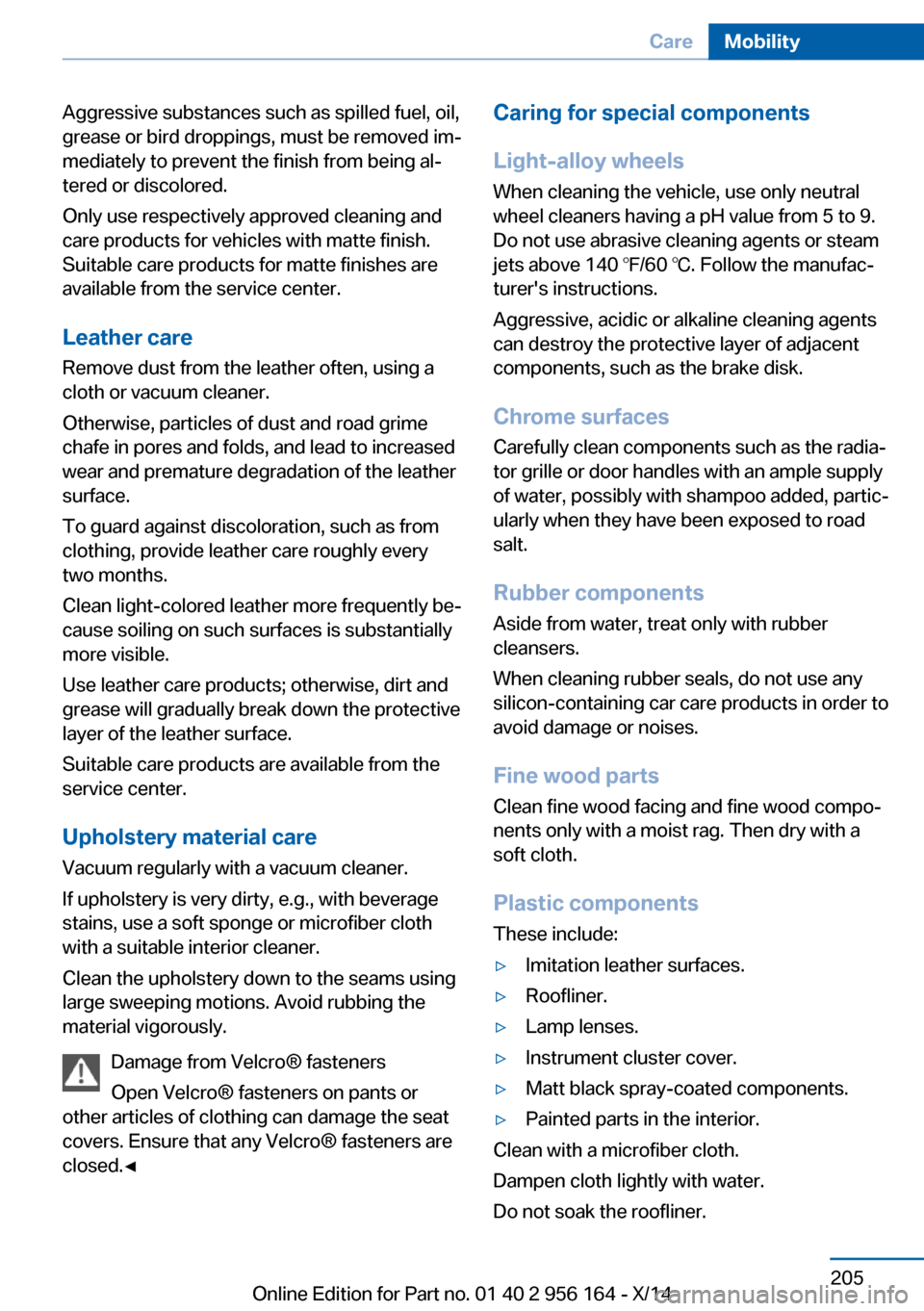

Aggressive substances such as spilled fuel, oil,
grease or bird droppings, must be removed im‐
mediately to prevent the finish from being al‐
tered or discolored.
Only use respectively approved cleaning and
care products for vehicles with matte finish.
Suitable care products for matte finishes are
available from the service center.
Leather care
Remove dust from the leather often, using a
cloth or vacuum cleaner.
Otherwise, particles of dust and road grime
chafe in pores and folds, and lead to increased
wear and premature degradation of the leather
surface.
To guard against discoloration, such as from
clothing, provide leather care roughly every
two months.
Clean light-colored leather more frequently be‐
cause soiling on such surfaces is substantially
more visible.
Use leather care products; otherwise, dirt and
grease will gradually break down the protective
layer of the leather surface.
Suitable care products are available from the
service center.
Upholstery material care Vacuum regularly with a vacuum cleaner.
If upholstery is very dirty, e.g., with beverage
stains, use a soft sponge or microfiber cloth
with a suitable interior cleaner.
Clean the upholstery down to the seams using
large sweeping motions. Avoid rubbing the
material vigorously.
Damage from Velcro® fasteners
Open Velcro® fasteners on pants or
other articles of clothing can damage the seat
covers. Ensure that any Velcro® fasteners are
closed.◀Caring for special components
Light-alloy wheels When cleaning the vehicle, use only neutral
wheel cleaners having a pH value from 5 to 9.
Do not use abrasive cleaning agents or steam
jets above 140 ℉/60 ℃. Follow the manufac‐
turer's instructions.
Aggressive, acidic or alkaline cleaning agents
can destroy the protective layer of adjacent
components, such as the brake disk.
Chrome surfaces Carefully clean components such as the radia‐
tor grille or door handles with an ample supply of water, possibly with shampoo added, partic‐
ularly when they have been exposed to road
salt.
Rubber components Aside from water, treat only with rubber
cleansers.
When cleaning rubber seals, do not use any
silicon-containing car care products in order to
avoid damage or noises.
Fine wood parts
Clean fine wood facing and fine wood compo‐ nents only with a moist rag. Then dry with a
soft cloth.
Plastic components These include:▷Imitation leather surfaces.▷Roofliner.▷Lamp lenses.▷Instrument cluster cover.▷Matt black spray-coated components.▷Painted parts in the interior.
Clean with a microfiber cloth.
Dampen cloth lightly with water.
Do not soak the roofliner.
Seite 205CareMobility205
Online Edition for Part no. 01 40 2 956 164 - X/14

No cleansers that contain alcohol or sol‐
vents
Do not use cleansers that contain alcohol or
solvents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead
to surface damage.◀
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety
belts until they are dry.
Carpets and floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the pedal area; otherwise, the
function of the pedals could be impeded while
driving and create the risk of an accident.
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly attached to
floor.
Ensure that the floor mats are securely fas‐
tened again after they were removed for clean‐
ing, e.g.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.Sensors/cameras
To clean sensors and cameras, use a cloth
moistened with a small amount of glass
cleaner.
Displays/monitors Cleaning displays and screens
Do not use any chemical or household
cleaning agents; otherwise, surfaces can be af‐
fected.◀
Keeping out moisture
Keep all fluids and moisture away from
the unit; otherwise, electrical components can
be damaged.◀
Avoid pressure
Avoid pressing too hard when cleaning
and do not use abrasive materials; otherwise,
damage can result.◀
Clean with a clean, antistatic microfiber cloth.
Long-term When the vehicle is shut down for longer than
three months, special measures must be
taken. Additional information is available from
the service center.Seite 206MobilityCare206
Online Edition for Part no. 01 40 2 956 164 - X/14

Seite 207CareMobility207
Online Edition for Part no. 01 40 2 956 164 - X/14

Online Edition for Part no. 01 40 2 956 164 - X/14

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 01 40 2 956 164 - X/14

Technical dataVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are notnecessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
Note
The technical data and specifications in this
Owner's Manual are used as guidance values.
The vehicle-specific data can deviate from this,
for example, due to the selected special equip‐
ment, country version or country-specific
measurement method. Detailed values can befound in the approval documents, on informa‐
tion signs on the vehicle or can be obtained
from the service center.
The information in the vehicle documents al‐
ways has priority.
Dimensions
Note
The dimensions can vary depending on the
model version, equipment or country-specific
measurement method.
The specified heights do not take into account
attached parts, for example, a roof antenna,roof racks or spoiler. The heights can deviate,
for example, due to the selected special equip‐
ment, tires, load and chassis version. BMW M6 Gran CoupeWidth with mirrorsinches/mm82.9/2,106Width without mirrorsinches/mm74.8/1,899Heightinches/mm54.9/1,395Lengthinches/mm197.5/5,016Wheelbaseinches/mm116.7/2,964Smallest turning radius diam.ft/m41/12.5
Weights
The values preceding the slash apply to vehi‐
cles with manual transmission; the values fol‐lowing the slash apply to vehicles with M dou‐
ble-clutch transmission.Seite 210ReferenceTechnical data210
Online Edition for Part no. 01 40 2 956 164 - X/14

M6Approved gross vehicle weightlbs/kg5,315/2,411Loadlbs
kg920/885
417/401Approved front axle loadlbs/kg2,600/1,179Approved rear axle loadlbs/kg2,780/1,261Cargo area capacitycu ft/l16.2/460–44.7/1,265
Capacities

US gal/litersNotesFuel tank, approx.21.1/80Fuel quality, refer to
page 172Seite 211Technical dataReference211
Online Edition for Part no. 01 40 2 956 164 - X/14

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 123
Acceleration Assistant, refer to Launch Control 76
Activated-charcoal filter 141
Active Blind Spot Detec‐ tion 118
Active M differential 125
Active Protection 120
Active seat, front 51
Active seat ventilation, front 52
Adaptive brake lights, refer to Brake force display 120
Adaptive Light Control 97
Additives, oil 186
Adjusting, steering wheel 58
Adjustments, seats/head re‐ straints 49
After washing vehicle 204
Airbags 101
Airbags, indicator/warning light 102
Air circulation, refer to Recir‐ culated-air mode 140
Air, dehumidifying, refer to Cooling function 140
Air distribution, manual 139
Air flow, automatic climate control 140
Air outlets, see ventila‐ tion 143
Air pressure, tires 174
Alarm system 43
Alarm, unintentional 45
All around the center con‐ sole 16
All around the interior rear‐ view mirror 17 All around the steering
wheel 14
All-season tires, refer to Win‐ ter tires 179
Alternating-code hand-held transmitter 146
Alternative oil types 187
Ambient light 99
Animal detection, see Night Vision 114
Antifreeze, washer fluid 72
Antilock Brake System, ABS 123
Anti-slip control, refer to DSC 123
Approved axle load 210
Approved engine oils 187
Armrest, refer to Front center armrest 153
Armrest, refer to Rear center armrest 153
Arrival time 91
Ashtray 147
Ashtray, rear 148
Assistance, Roadside Assis‐ tance 198
Assistance when driving off 123
Attentiveness assistant 120
AUTO intensity 139
Automatic car wash 203
Automatic Curb Monitor 56
Automatic deactivation, front- seat passenger airbags 103
Automatic headlight con‐ trol 97
Automatic locking 43
Automatic recirculated-air control 140
Automatic Soft Closing, doors 40 AUTO program, automatic cli‐
mate control 139
AUTO program, intensity 139
Auto Start/Stop function 66
Average fuel consumption 90
Average speed 90
Axle loads, weights 210
B Backrest curvature, refer to Lumbar support 50
Backrest, seats 49
Backrest, width 51
Band-aids, refer to First aid kit 198
Bar for tow-starting/ towing 201
Battery replacement, vehicle battery 195
Battery replacement, vehicle remote control 34
Battery, vehicle 195
Belts, safety belts 52
Beverage holder, cu‐ pholder 154
Blinds, sun protection 46
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 189
BMW M technology 158
Bottle holder, refer to Cu‐ pholder 154
Brake assistant 123
Brake discs, break-in 160
Brake force display 120
Brake lights, adaptive 120 Seite 212ReferenceEverything from A to Z212
Online Edition for Part no. 01 40 2 956 164 - X/14
