cating in an emergency, enable certain vehicle
data to be transmitted from the vehicle.

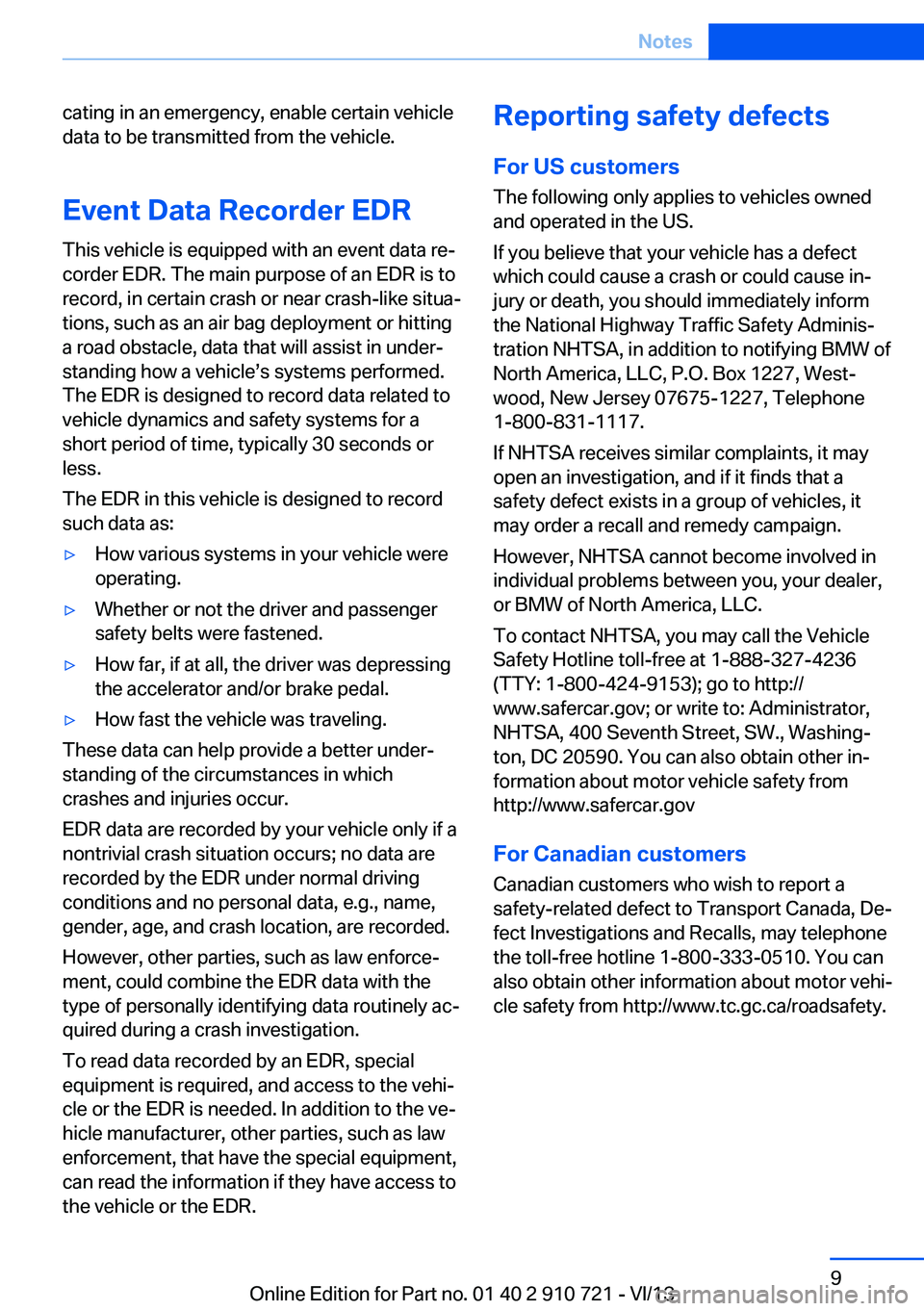

Event Data Recorder EDR
This vehicle is equipped with an event data re‐
corder EDR. The main purpose of an EDR is to
record, in certain crash or near crash-like situa‐
tions, such as an air bag deployment or hitting
a road obstacle, data that will assist in under‐
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to record
such data as:▷How various systems in your vehicle were
operating.▷Whether or not the driver and passenger
safety belts were fastened.▷How far, if at all, the driver was depressing
the accelerator and/or brake pedal.▷How fast the vehicle was traveling.
These data can help provide a better under‐
standing of the circumstances in which
crashes and injuries occur.
EDR data are recorded by your vehicle only if a
nontrivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data, e.g., name,
gender, age, and crash location, are recorded.
However, other parties, such as law enforce‐
ment, could combine the EDR data with the
type of personally identifying data routinely ac‐
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required, and access to the vehi‐
cle or the EDR is needed. In addition to the ve‐
hicle manufacturer, other parties, such as law
enforcement, that have the special equipment,
can read the information if they have access to
the vehicle or the EDR.
Reporting safety defects
For US customers
The following only applies to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause in‐
jury or death, you should immediately inform
the National Highway Traffic Safety Adminis‐
tration NHTSA, in addition to notifying BMW of
North America, LLC, P.O. Box 1227, West‐
wood, New Jersey 07675-1227, Telephone
1-800-831-1117.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer,
or BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washing‐
ton, DC 20590. You can also obtain other in‐
formation about motor vehicle safety from
http://www.safercar.gov
For Canadian customers Canadian customers who wish to report a
safety-related defect to Transport Canada, De‐
fect Investigations and Recalls, may telephone
the toll-free hotline 1-800-333-0510. You can
also obtain other information about motor vehi‐
cle safety from http://www.tc.gc.ca/roadsafety.Seite 9Notes9
Online Edition for Part no. 01 40 2 910 721 - VI/13

Online Edition for Part no. 01 40 2 910 721 - VI/13

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 910 721 - VI/13

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
All around the steering wheel
1Opening and closing the rear win‐
dow   422Open and close side windows and rear
window together   423Open and close rear windows   414Open and close front windows   415Exterior mirror operation  576Driver assistance systemsActive Blind Spot Detec‐
tion   117Intelligent Safety   105Lane departure warning   116Night Vision with pedestrian de‐
tection   112Head-up Display   1547LampsFront fog lamps  94Parking lamps  91Seite 12At a glanceCockpit12
Online Edition for Part no. 01 40 2 910 721 - VI/13

Low beams  91Automatic headlamp con‐
trol   92
Daytime running lights   92
Adaptive Light Control   92
High-beam Assistant   93Instrument lighting  948Steering column stalk, leftTurn signal  69High beams, head‐
lamp flasher   69High-beam Assistant   93Roadside parking lamps   92Computer  879Shift paddles   7410Steering wheel buttons, leftStore speed  139,  130Resume speed   141,  133Cruise control on/off, interrupt‐
ing   131Cruise control on/off, interrupt‐
ing   139Reduce distance   133Increase distance   133Congestion Assistant ON/OFF,
Pause   136Congestion Assistant: setting
cruise control distance   130Cruise control rocker switch   141,  13211Instrument cluster   7612Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  22Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   8713Steering column stalk, rightWindshield wipers  70Rain sensor  71Clean the windshields and head‐
lamps   7114Start/stop the engine and switch
the ignition on/off   6415Automatic Engine Start/Stop
Function   6516Horn17Steering wheel heating   5918Adjust the steering wheel   5919Unlocking the hoodSeite 13CockpitAt a glance13
Online Edition for Part no. 01 40 2 910 721 - VI/13

20Open the trunk lid  37
All around the center console
1All around the interior rearview mir‐
ror   152Control Display   163Glove compartment   1694Air vent  1605Hazard warning system   216Central locking system  366Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication7Automatic climate control   1578Controller with buttons  169Parking brake  67Automatic Hold   6810Opening and closing the
convertible top   4411PDC Park Distance Control   142
Top View   146
Rearview camera   144
Parking assistant   150Side View  148HDC Hill Descent Control   124Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 910 721 - VI/13

12Driving Dynamics Control  126DSC Dynamic Stability Con‐
trol   12213Transmission selector lever

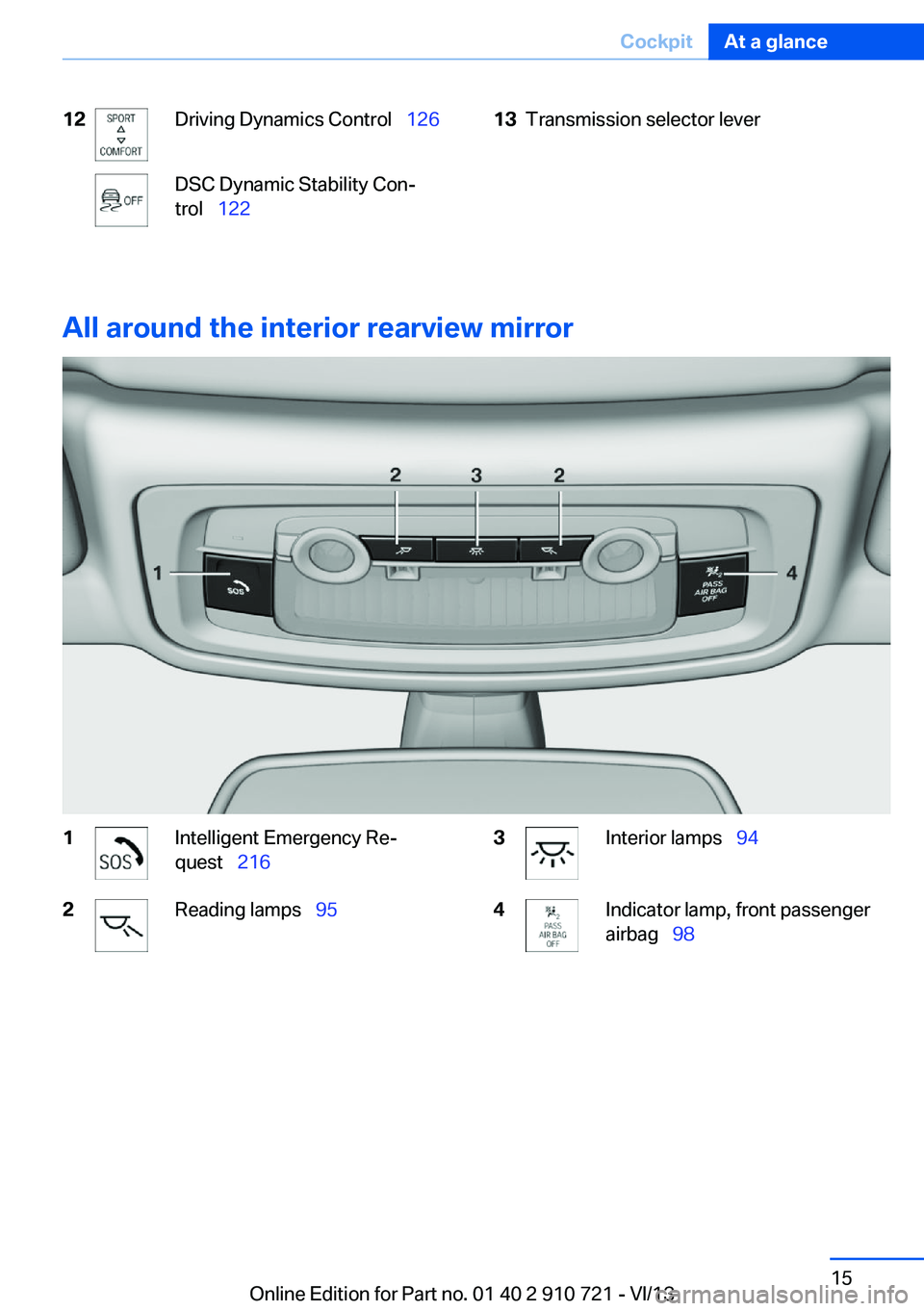

All around the interior rearview mirror
1Intelligent Emergency Re‐
quest   2162Reading lamps   953Interior lamps  944Indicator lamp, front passenger
airbag   98Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 910 721 - VI/13

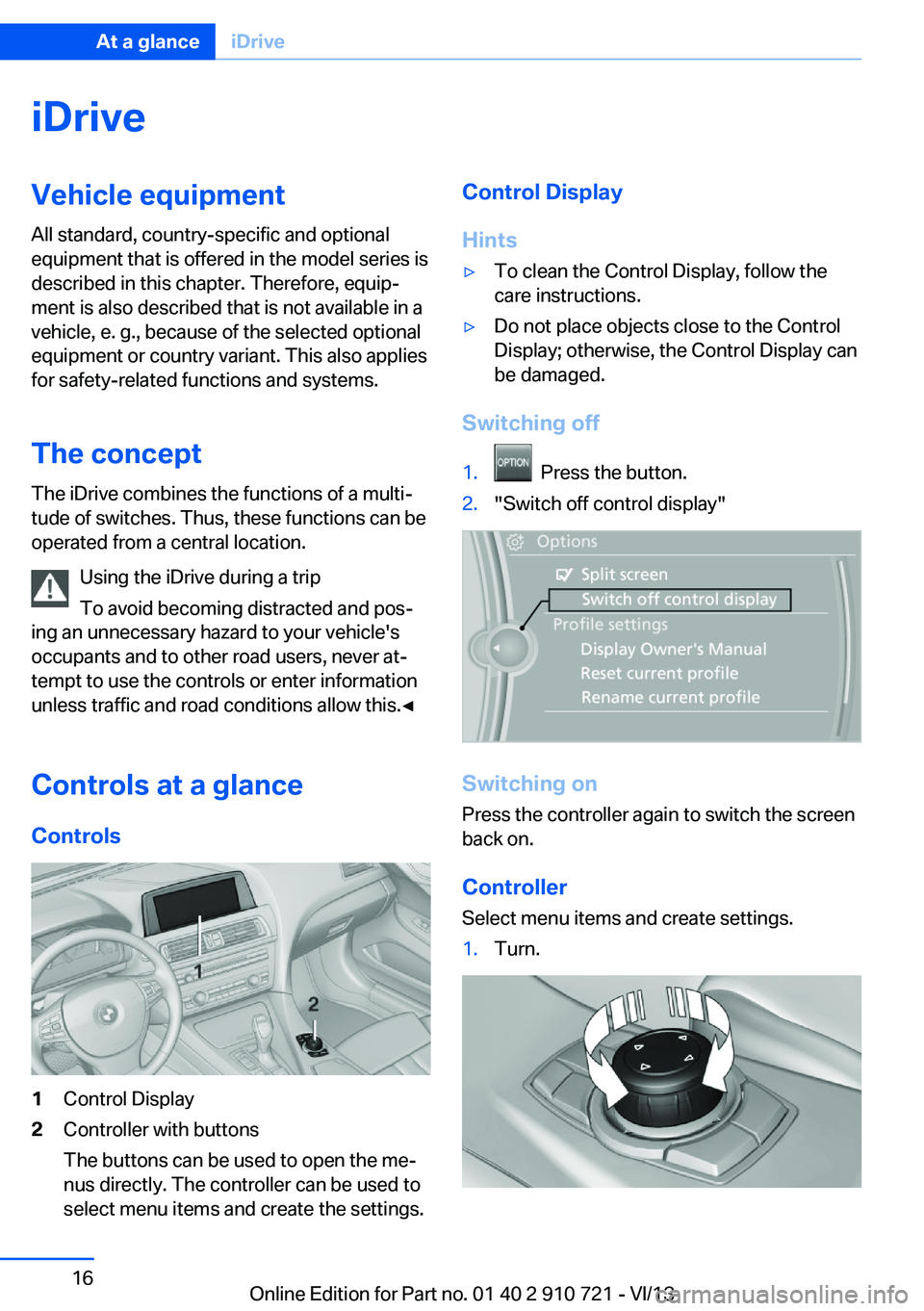

iDriveVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
The concept The iDrive combines the functions of a multi‐
tude of switches. Thus, these functions can be
operated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other road users, never at‐
tempt to use the controls or enter information
unless traffic and road conditions allow this.◀
Controls at a glance Controls1Control Display2Controller with buttons
The buttons can be used to open the me‐
nus directly. The controller can be used to
select menu items and create the settings.Control Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Controller
Select menu items and create settings.
1.Turn.Seite 16At a glanceiDrive16
