cating in an emergency, enable certain vehicle
data to be transmitted from the vehicle.

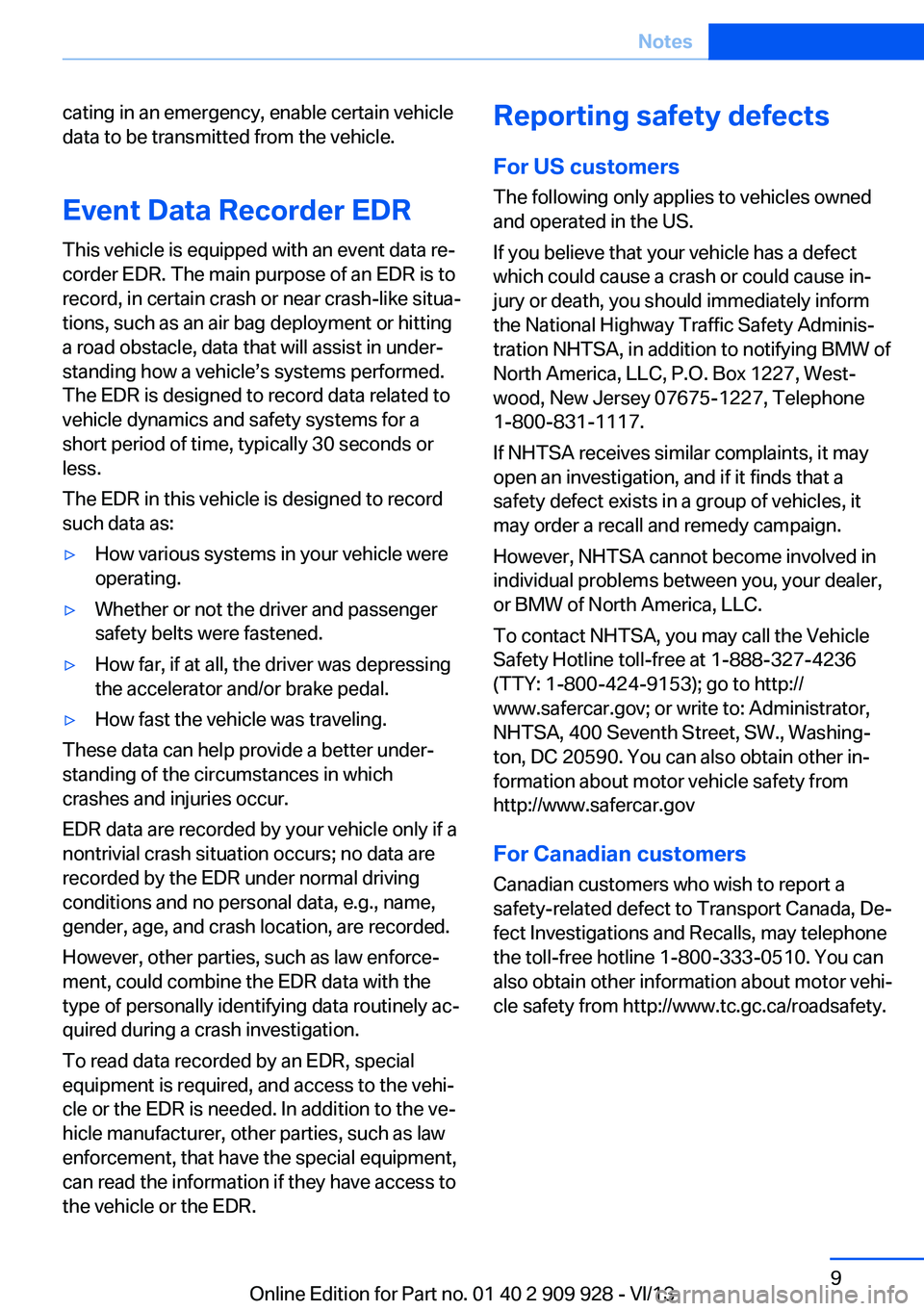

Event Data Recorder EDR
This vehicle is equipped with an event data re‐
corder EDR. The main purpose of an EDR is to
record, in certain crash or near crash-like situa‐
tions, such as an air bag deployment or hitting
a road obstacle, data that will assist in under‐
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to record
such data as:▷How various systems in your vehicle were
operating.▷Whether or not the driver and passenger
safety belts were fastened.▷How far, if at all, the driver was depressing
the accelerator and/or brake pedal.▷How fast the vehicle was traveling.
These data can help provide a better under‐
standing of the circumstances in which
crashes and injuries occur.
EDR data are recorded by your vehicle only if a
nontrivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data, e.g., name,
gender, age, and crash location, are recorded.
However, other parties, such as law enforce‐
ment, could combine the EDR data with the
type of personally identifying data routinely ac‐
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required, and access to the vehi‐
cle or the EDR is needed. In addition to the ve‐
hicle manufacturer, other parties, such as law
enforcement, that have the special equipment,
can read the information if they have access to
the vehicle or the EDR.
Reporting safety defects
For US customers
The following only applies to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause in‐
jury or death, you should immediately inform
the National Highway Traffic Safety Adminis‐
tration NHTSA, in addition to notifying BMW of
North America, LLC, P.O. Box 1227, West‐
wood, New Jersey 07675-1227, Telephone
1-800-831-1117.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer,
or BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washing‐
ton, DC 20590. You can also obtain other in‐
formation about motor vehicle safety from
http://www.safercar.gov
For Canadian customers Canadian customers who wish to report a
safety-related defect to Transport Canada, De‐
fect Investigations and Recalls, may telephone
the toll-free hotline 1-800-333-0510. You can
also obtain other information about motor vehi‐
cle safety from http://www.tc.gc.ca/roadsafety.Seite 9Notes9
Online Edition for Part no. 01 40 2 909 928 - VI/13

Online Edition for Part no. 01 40 2 909 928 - VI/13

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 909 928 - VI/13

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.

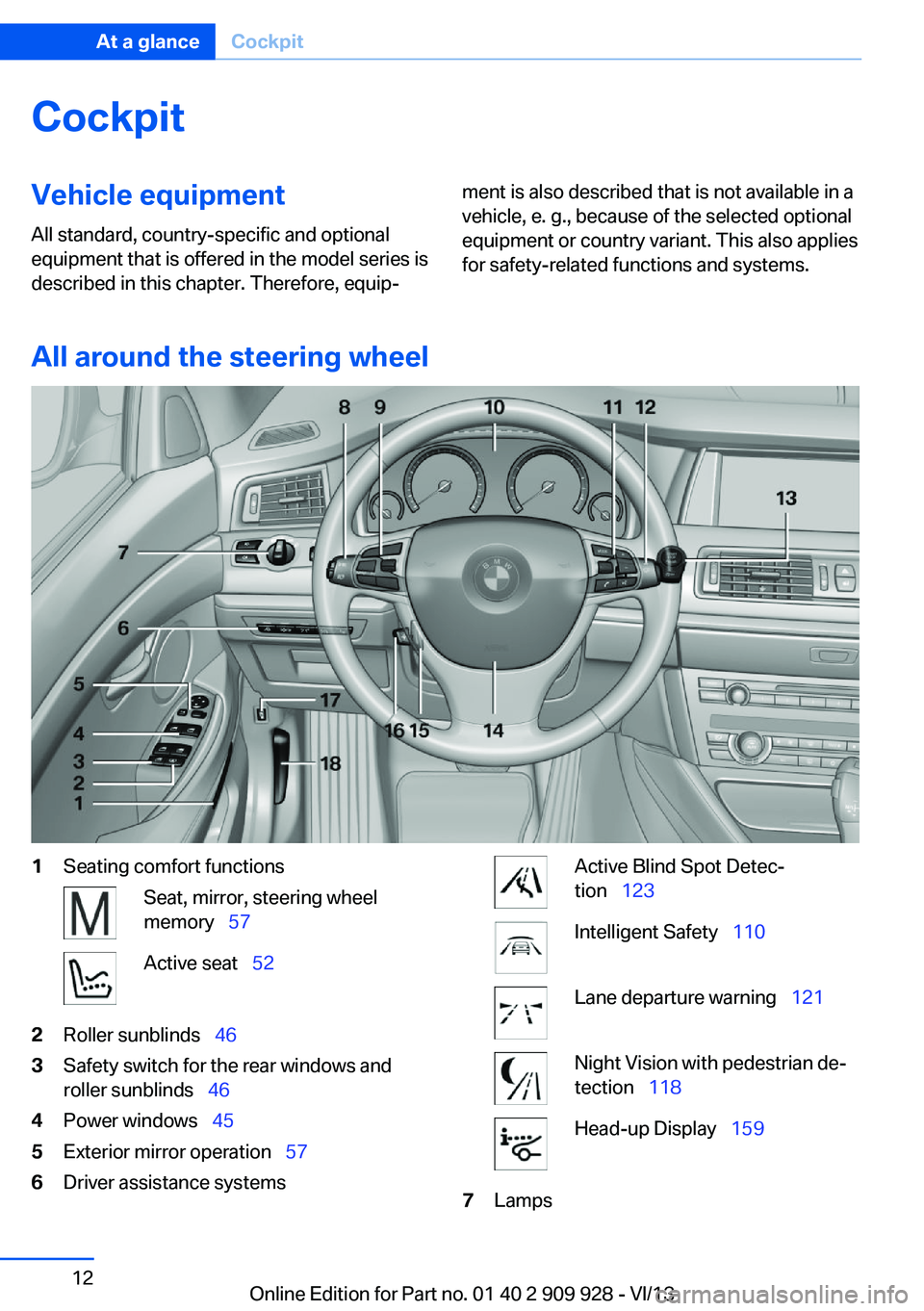

All around the steering wheel
1Seating comfort functionsSeat, mirror, steering wheel
memory   57Active seat   522Roller sunblinds   463Safety switch for the rear windows and
roller sunblinds   464Power windows   455Exterior mirror operation   576Driver assistance systemsActive Blind Spot Detec‐
tion   123Intelligent Safety   110Lane departure warning   121Night Vision with pedestrian de‐
tection   118Head-up Display   1597LampsSeite 12At a glanceCockpit12
Online Edition for Part no. 01 40 2 909 928 - VI/13

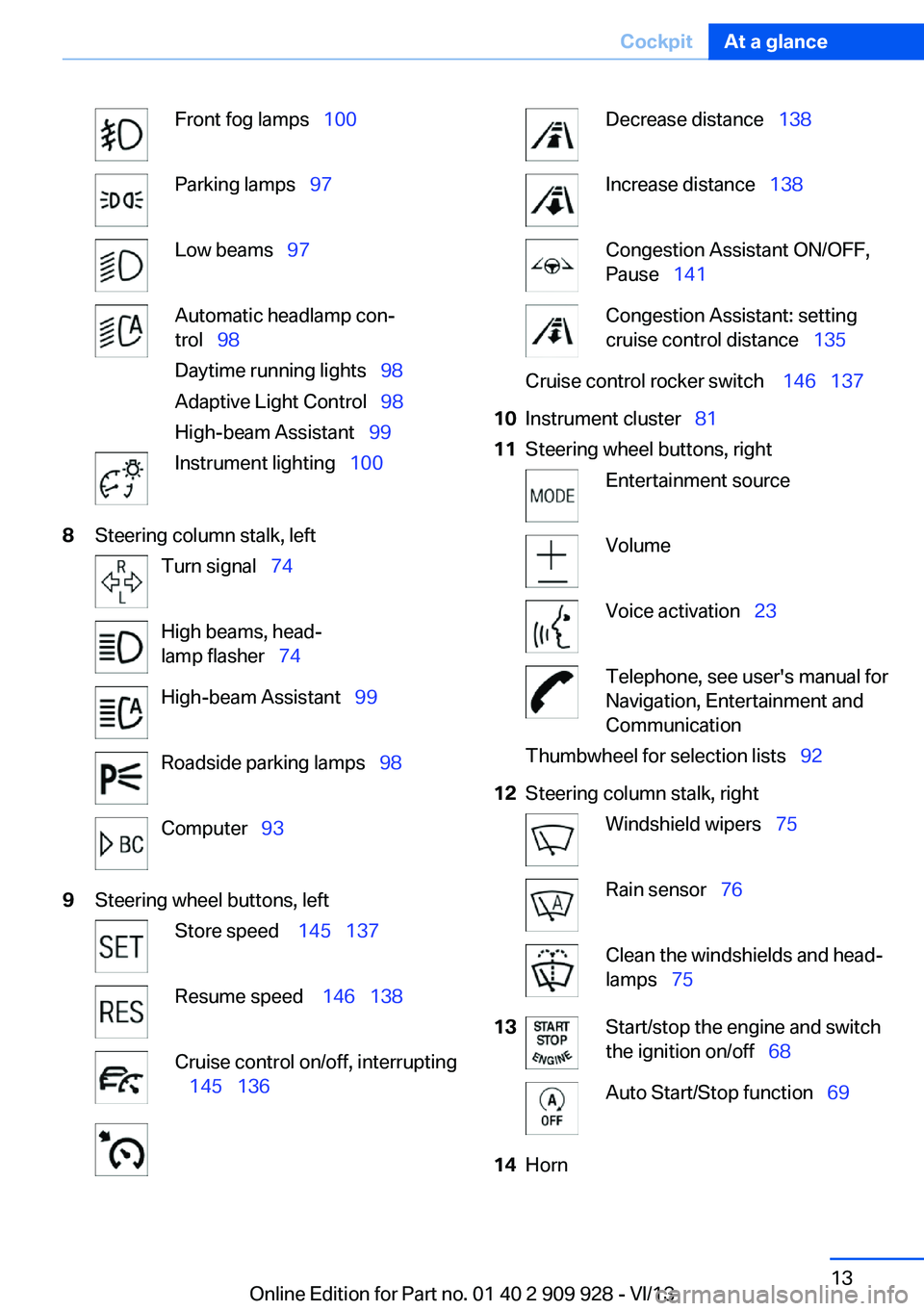

Front fog lamps  100Parking lamps  97Low beams  97Automatic headlamp con‐
trol   98
Daytime running lights   98
Adaptive Light Control   98
High-beam Assistant   99Instrument lighting  1008Steering column stalk, leftTurn signal  74High beams, head‐
lamp flasher   74High-beam Assistant   99Roadside parking lamps   98Computer  939Steering wheel buttons, leftStore speed    145  137Resume speed    146  138Cruise control on/off, interrupting
   145   136Decrease distance   138Increase distance  138Congestion Assistant ON/OFF,
Pause   141Congestion Assistant: setting
cruise control distance   135Cruise control rocker switch    146  13710Instrument cluster   8111Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  23Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   9212Steering column stalk, rightWindshield wipers  75Rain sensor  76Clean the windshields and head‐
lamps   7513Start/stop the engine and switch
the ignition on/off   68Auto Start/Stop function   6914HornSeite 13CockpitAt a glance13
Online Edition for Part no. 01 40 2 909 928 - VI/13

15Steering wheel heating  6016Adjust the steering wheel   5917Open the tailgate  3818Unlocking the hood

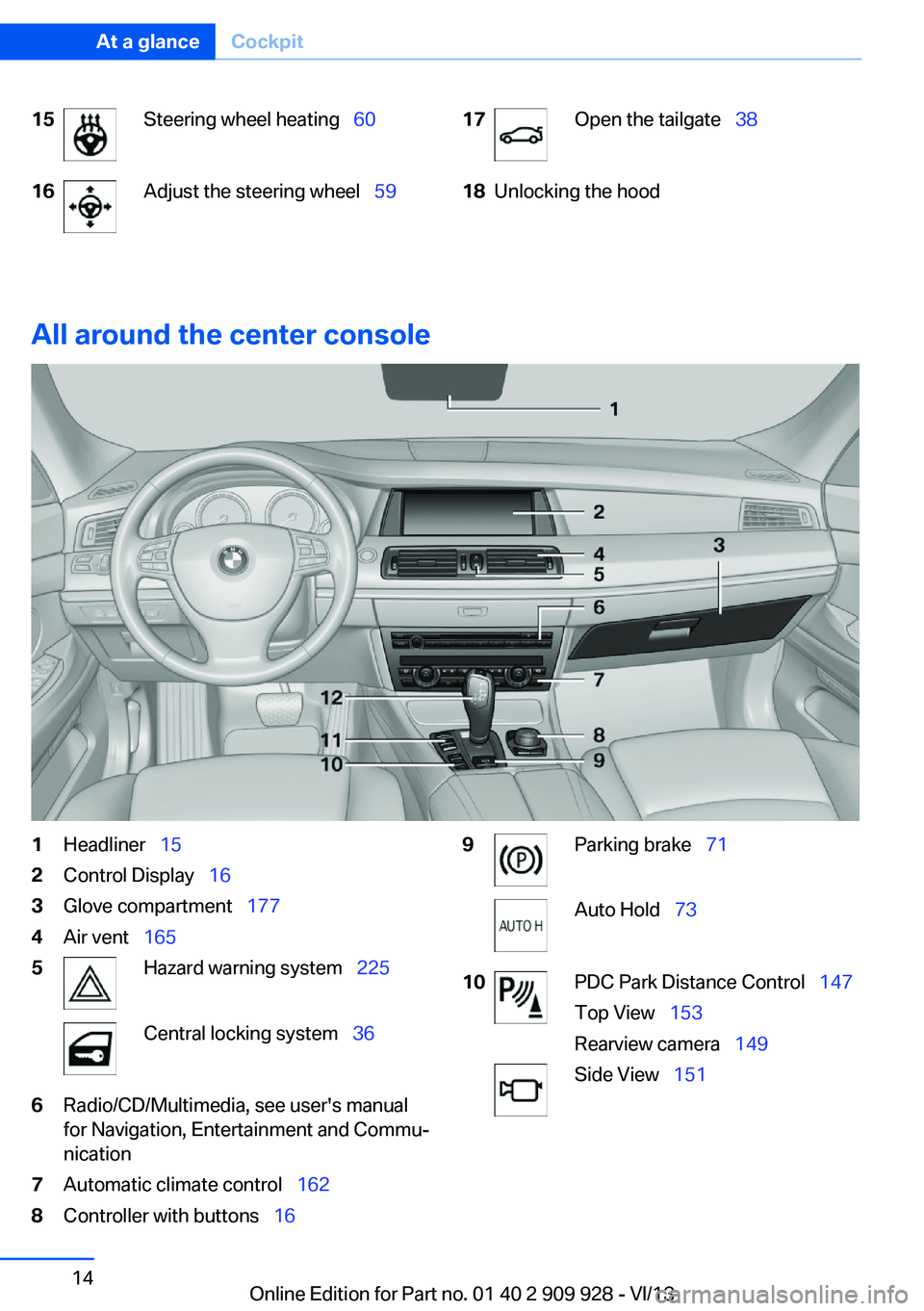

All around the center console
1Headliner  152Control Display   163Glove compartment   1774Air vent  1655Hazard warning system   225Central locking system  366Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication7Automatic climate control   1628Controller with buttons  169Parking brake  71Auto Hold  7310PDC Park Distance Control   147
Top View   153
Rearview camera   149Side View  151Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 909 928 - VI/13

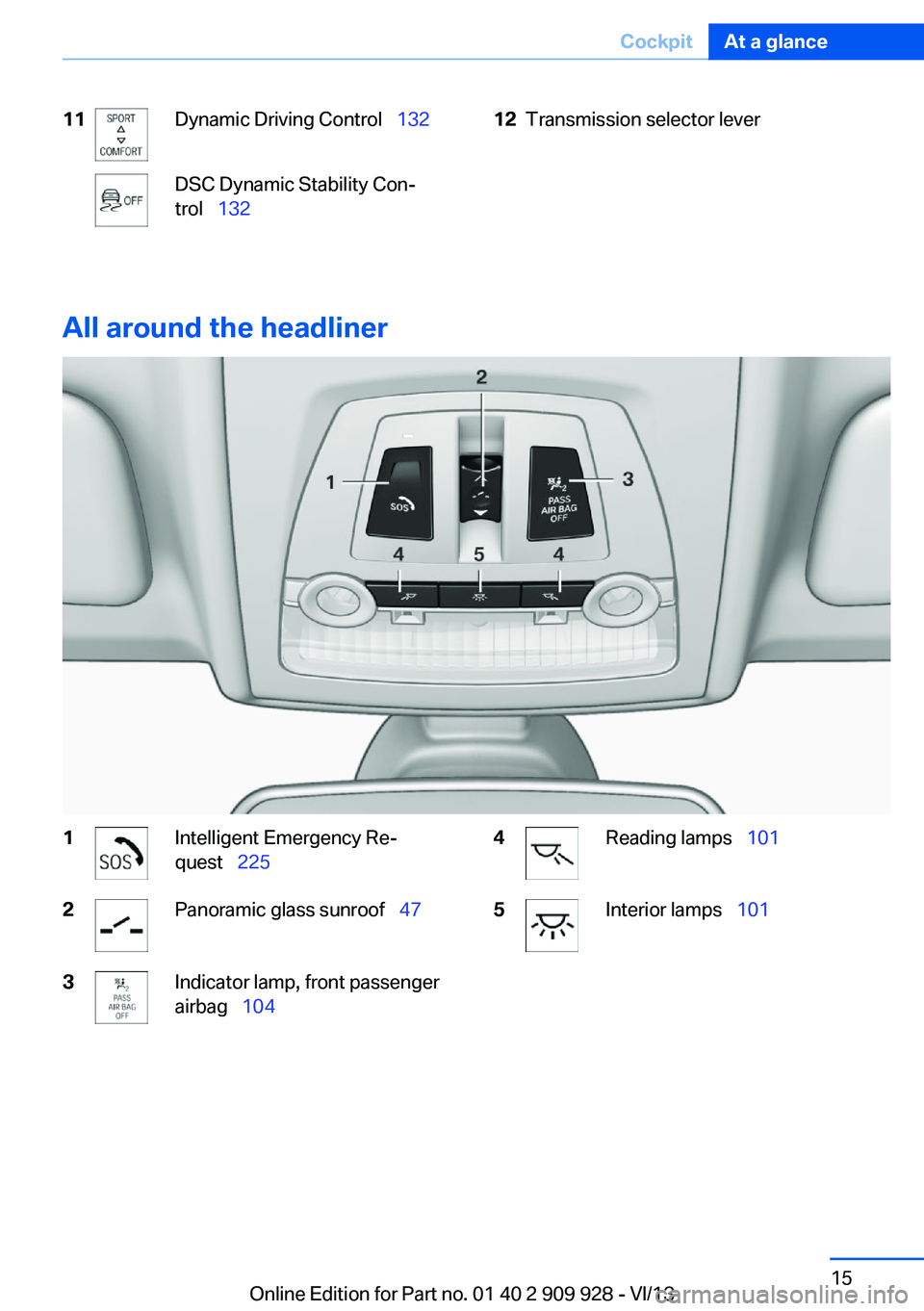

11Dynamic Driving Control  132DSC Dynamic Stability Con‐
trol   13212Transmission selector lever
All around the headliner
1Intelligent Emergency Re‐
quest   2252Panoramic glass sunroof   473Indicator lamp, front passenger
airbag   1044Reading lamps   1015Interior lamps  101Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 909 928 - VI/13

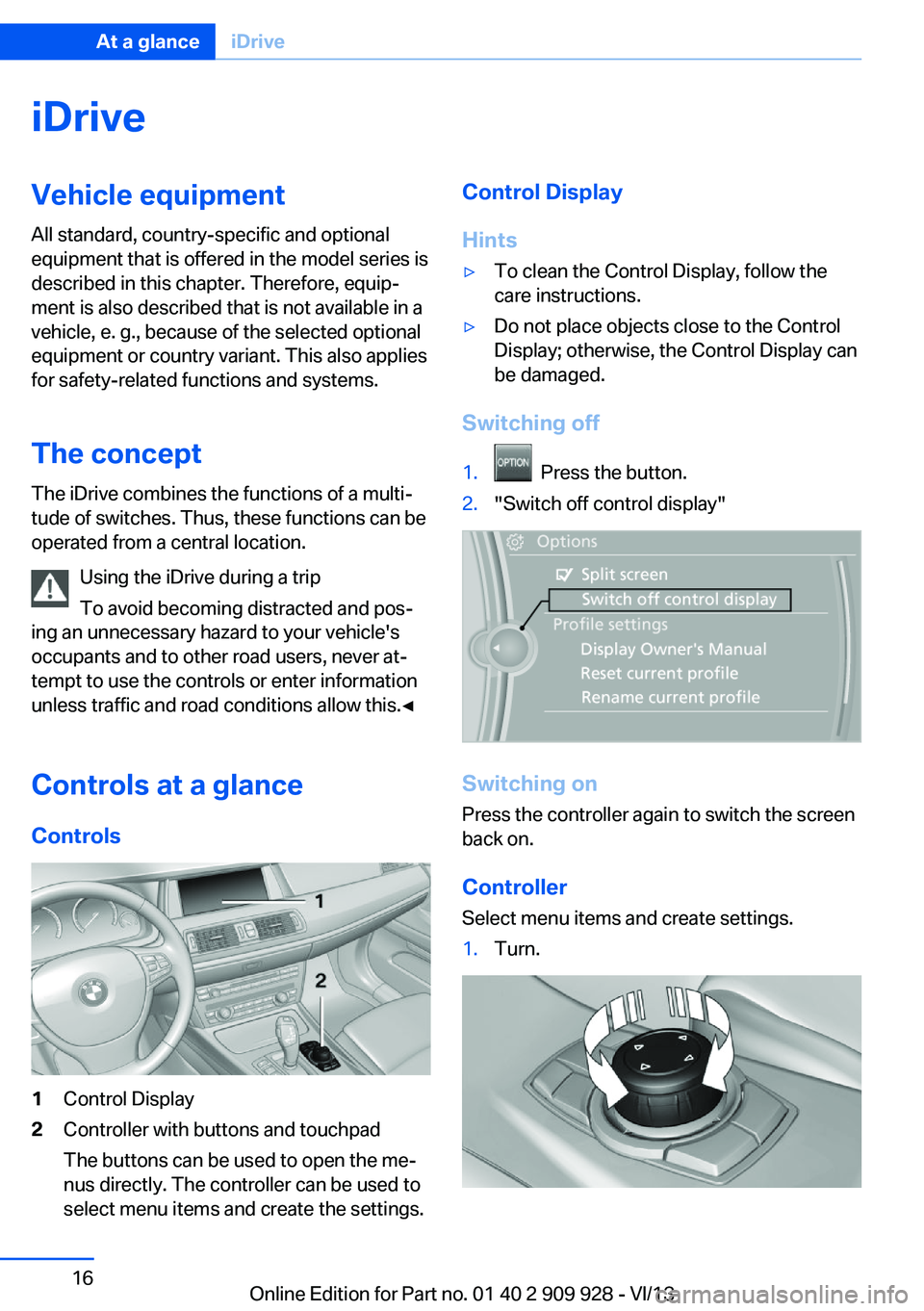

iDriveVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
The concept The iDrive combines the functions of a multi‐
tude of switches. Thus, these functions can be
operated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other road users, never at‐
tempt to use the controls or enter information
unless traffic and road conditions allow this.◀
Controls at a glance Controls1Control Display2Controller with buttons and touchpad
The buttons can be used to open the me‐
nus directly. The controller can be used to
select menu items and create the settings.Control Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Controller
Select menu items and create settings.
1.Turn.Seite 16At a glanceiDrive16
