2014 BMW 428I COUPE Owners Manual

cating in an emergency, enable certain vehicle
data to be transmitted from the vehicle.

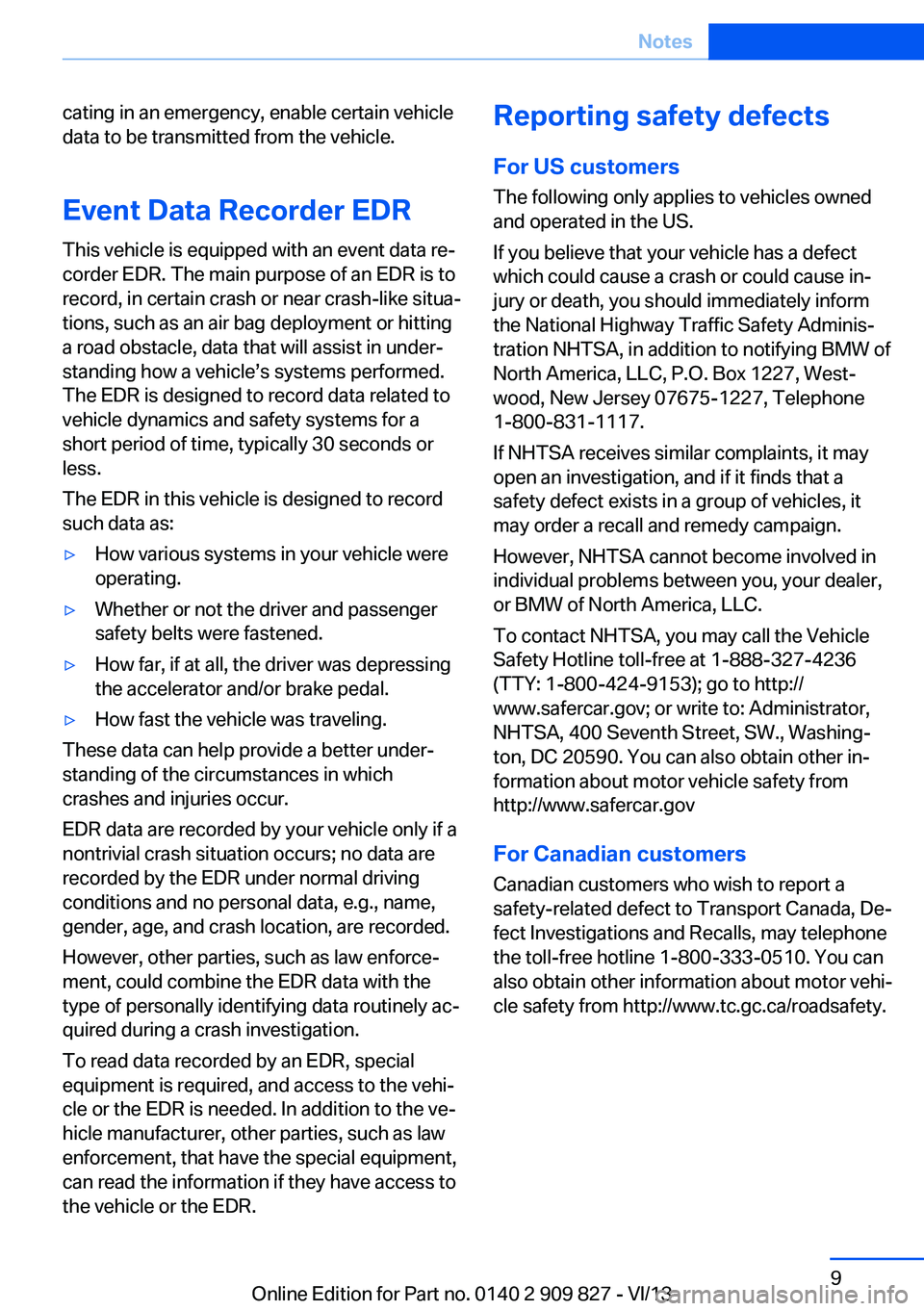

Event Data Recorder EDR
This vehicle is equipped with an event data re‐
corder EDR. The main purpose of an EDR is to
record, in certain crash or near crash-like situa‐
tions, such as an air bag deployment or hitting
a road obstacle, data that will assist in under‐
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to record
such data as:▷How various systems in your vehicle were
operating.▷Whether or not the driver and passenger
safety belts were fastened.▷How far, if at all, the driver was depressing
the accelerator and/or brake pedal.▷How fast the vehicle was traveling.
These data can help provide a better under‐
standing of the circumstances in which
crashes and injuries occur.
EDR data are recorded by your vehicle only if a
nontrivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data, e.g., name,
gender, age, and crash location, are recorded.
However, other parties, such as law enforce‐
ment, could combine the EDR data with the
type of personally identifying data routinely ac‐
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required, and access to the vehi‐
cle or the EDR is needed. In addition to the ve‐
hicle manufacturer, other parties, such as law
enforcement, that have the special equipment,
can read the information if they have access to
the vehicle or the EDR.
Reporting safety defects
For US customers
The following only applies to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause in‐
jury or death, you should immediately inform
the National Highway Traffic Safety Adminis‐
tration NHTSA, in addition to notifying BMW of
North America, LLC, P.O. Box 1227, West‐
wood, New Jersey 07675-1227, Telephone
1-800-831-1117.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer,
or BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washing‐
ton, DC 20590. You can also obtain other in‐
formation about motor vehicle safety from
http://www.safercar.gov
For Canadian customers Canadian customers who wish to report a
safety-related defect to Transport Canada, De‐
fect Investigations and Recalls, may telephone
the toll-free hotline 1-800-333-0510. You can
also obtain other information about motor vehi‐
cle safety from http://www.tc.gc.ca/roadsafety.Seite 9Notes9
Online Edition for Part no. 0140 2 909 827 - VI/13

Online Edition for Part no. 0140 2 909 827 - VI/13

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 0140 2 909 827 - VI/13

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.

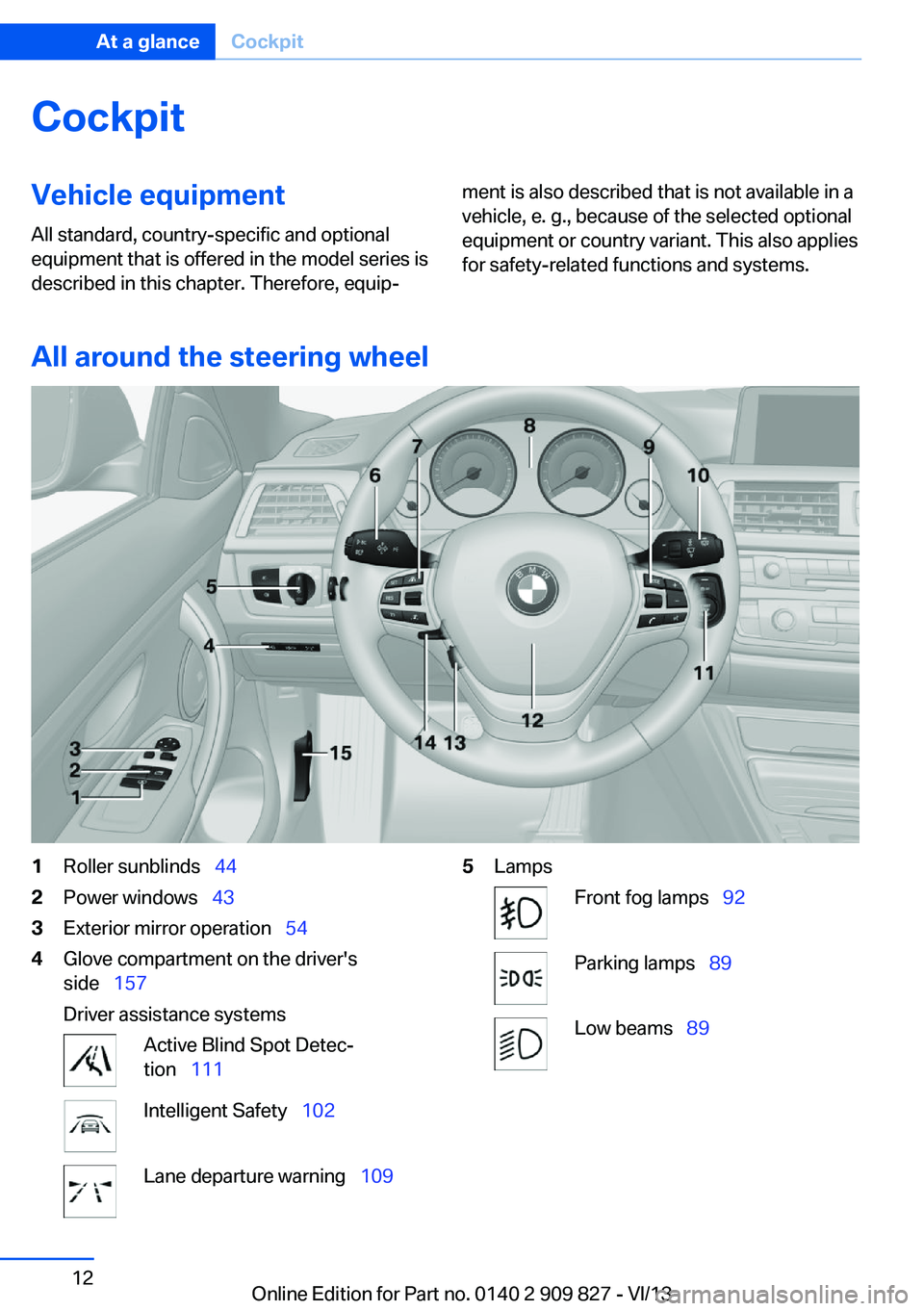

All around the steering wheel
1Roller sunblinds   442Power windows  433Exterior mirror operation   544Glove compartment on the driver's
side   157
Driver assistance systemsActive Blind Spot Detec‐
tion   111Intelligent Safety   102Lane departure warning   1095LampsFront fog lamps  92Parking lamps  89Low beams  89Seite 12At a glanceCockpit12
Online Edition for Part no. 0140 2 909 827 - VI/13

Automatic headlamp con‐
trol   90
Daytime running lights   90
Adaptive Light Control   90
High-beam Assistant   91Instrument lighting  926Steering column stalk, leftTurn signal  66High beams, head‐
lamp flasher   66High-beam Assistant   91Roadside parking lamps   90Computer  847Steering wheel buttons, leftStore speed   126Resume speed   128Cruise control on/off, interrupt‐
ing   127Active Cruise Control on/off, in‐
terrupting   120Reduce distance   122Increase distance   122Cruise control rocker switch   127,  1218Instrument cluster   739Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  24Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   8410Steering column stalk, rightWindshield wipers  66Rain sensor  67Clean the windshields and head‐
lamps   6811Start/stop the engine and switch
the ignition on/off   62Auto Start/Stop function   6312Horn13Steering wheel heating  5614Adjust steering wheel  5615Unlock hood  191Seite 13CockpitAt a glance13
Online Edition for Part no. 0140 2 909 827 - VI/13

All around the center console1Headliner  152Control Display   163Ventilation  1474Hazard warning system   210Central locking system  355Glove compartment  1576Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication7Climate control   1428Controller with buttons   169Parking brake  6510PDC Park Distance Control   128
Rearview camera   131
Parking assistant   137
Surround View   13111Driving Dynamics Control   117DSC Dynamic Stability Con‐
trol   11512Automatic transmission selector
lever   69
Manual transmission selector lever   69Seite 14At a glanceCockpit14
Online Edition for Part no. 0140 2 909 827 - VI/13

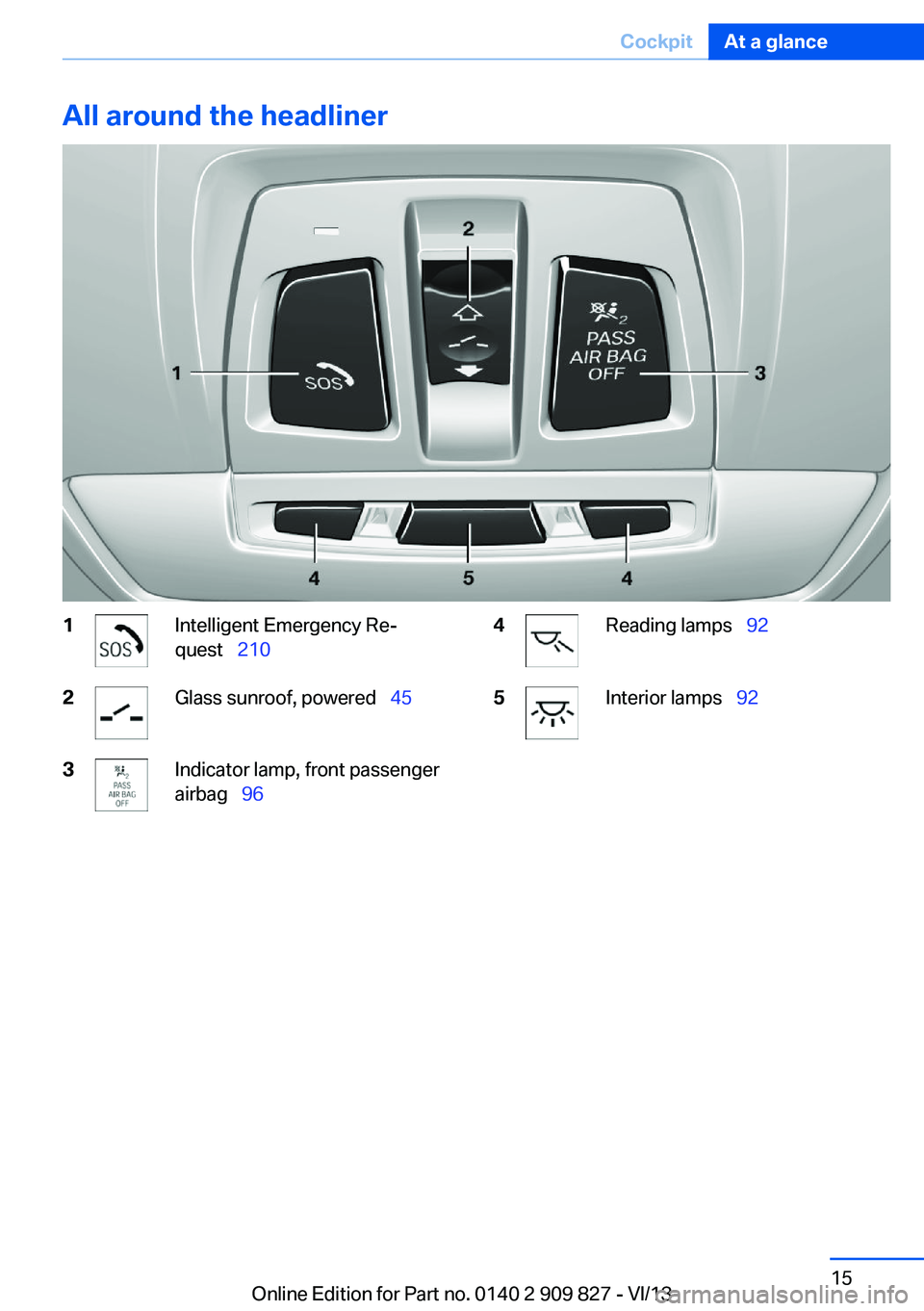

All around the headliner1Intelligent Emergency Re‐
quest   2102Glass sunroof, powered   453Indicator lamp, front passenger
airbag   964Reading lamps   925Interior lamps  92Seite 15CockpitAt a glance15
Online Edition for Part no. 0140 2 909 827 - VI/13

iDriveVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
The concept The iDrive combines the functions of a multi‐
tude of switches. Thus, these functions can be
operated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other road users, never at‐
tempt to use the controls or enter information
unless traffic and road conditions allow this.◀
Controls at a glance Controls1Control Display2Controller with buttons and touchpad
The buttons can be used to open the me‐
nus directly. The controller can be used to
select menu items and create the settings.Control Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Controller with navigation system
Select menu items and create settings.
1.Turn.Seite 16At a glanceiDrive16
Online Edition for Part no. 0140 2 909 827 - VI/13
