2014 BMW 328XI SPORTS WAGON heating

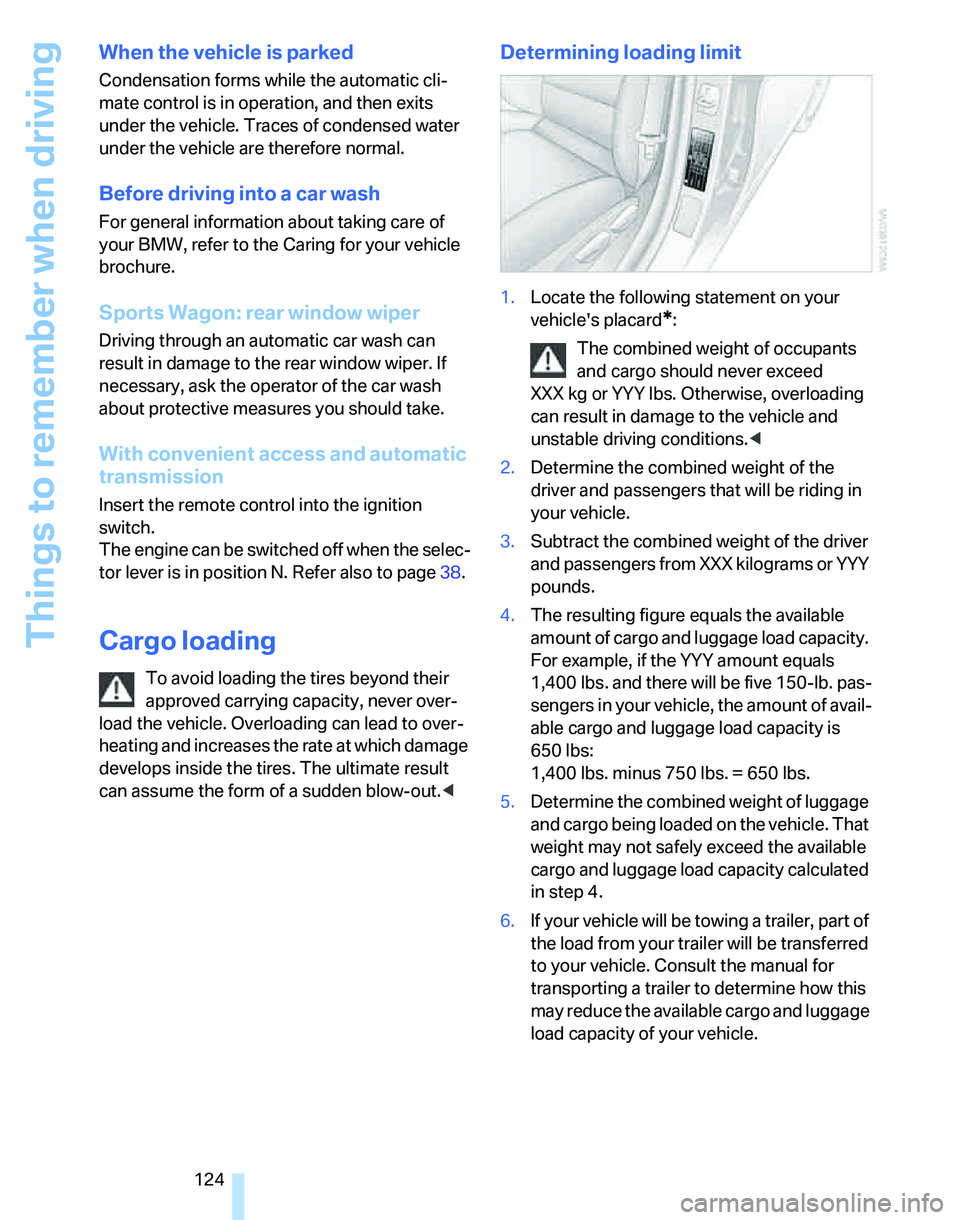

Things to remember when driving
124
When the vehicle is parked
Condensation forms while the automatic cli-
mate control is in operation, and then exits
under the vehicle. Traces of condensed water
under the vehicle are therefore normal.
Before driving into a car wash
For general information about taking care of
your BMW, refer to the Caring for your vehicle
brochure.
Sports Wagon: rear window wiper
Driving through an automatic car wash can
result in damage to the rear window wiper. If
necessary, ask the operator of the car wash
about protective measures you should take.
With convenient access and automatic
transmission
Insert the remote control into the ignition
switch.
The engine can be switched off when the selec-
tor lever is in position N. Refer also to page38.
Cargo loading
To avoid loading the tires beyond their
approved carrying capacity, never over-
load the vehicle. Overloading can lead to over-
heating and increases the rate at which damage
develops inside the tires. The ultimate result
can assume the form of a sudden blow-out.<
Determining loading limit
1.Locate the following statement on your
vehicle's placard
*:
The combined weight of occupants
and cargo should never exceed
XXX kg or YYY lbs. Otherwise, overloading
can result in damage to the vehicle and
unstable driving conditions.<
2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.
3.Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY
pounds.
4.The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the YYY amount equals
1,400 lbs. and there will be five 150-lb. pas-
sengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is
650 lbs:
1,400 lbs. minus 750 lbs. = 650 lbs.
5.Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in step 4.
6.If your vehicle will be towing a trailer, part of
the load from your trailer will be transferred
to your vehicle. Consult the manual for
transporting a trailer to determine how this
may reduce the available cargo and luggage
load capacity of your vehicle.

Everything from A - Z
252 Entering the intersection133
"Entertainment"156
Entry lamps, refer to Interior
lamps100
Environmentally friendly
driving, refer to Energy
Control73
"Equalizer", refer to Tone
control158
Equalizer, refer to Tone
control158
Error messages, refer to
Check Control82
"ESN"164
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control87
Event data recorders220
Exhaust system, refer to Hot
exhaust system122
Expanding the cargo bay115
Exterior mirrors50
– adjusting50
– automatic dimming
feature51
– automatic heating50
– folding in and out50
External audio
device111,173
Eyes
– for tow-starting and towing
away231
– for tying down loads125
F
Fader, tone control157
Failure messages, refer to
Check Control82
Failure of an electrical
consumer227
False alarm
– avoiding unintentional
alarm36
– switching off an alarm36
Fastening safety belts, refer to
Safety belts49Fastest route for
navigation141
Fast forward
– CD changer170
– CD player170
"Fast route" in navigation141
Filter
– refer to Microfilter/activated-
charcoal filter for automatic
climate control105
Fine wood, refer to Caring for
your vehicle brochure
First aid pouch229
Fixture for remote control,
refer to Ignition lock57
Flashlight, refer to
Rechargeable flashlight110
Flash when locking/
unlocking30
Flat
– Run-Flat Tires212
– Tire Pressure Monitor
TPM91
Flat tire
– Tire Pressure Monitor91
Flat Tire Monitor FTM90
– indicating a flat tire91
– indicator/warning lamp91
– initializing the system90
– malfunction91
– snow chains90,213
– system limits90
Flat tires, refer to Tire
condition211
Floor mats, carpets, refer to
Caring for your vehicle
brochure
Fluid reservoir, refer to
Washer fluid reservoir64
"FM", waveband156,160
FM, waveband160
Fog lamps99
– indicator lamp13,99
Folding in the mirrors, before
driving into a car wash50
Folding rear seat backrest115
Folding up the floor panel117
Footbrake, refer to Braking
safely123Footwell lamps, refer to
Interior lamps100
For your own safety5
Four-wheel drive, refer to
xDrive88
Front airbags95
FTM, refer to Flat Tire
Monitor90
Fuel201
– average consumption74
– display73
– high-quality brands201
– quality201
– specifications201
– tank contents, refer to
Capacities241
Fuel clock, refer to Fuel
gauge73
Fuel display, refer to Fuel
gauge73
Fuel-efficient driving, refer to
Energy Control73
Fuel filler door200
– releasing in the event of
electrical malfunction200
Fuses227
G
Garage door opener, refer to
Integrated universal remote
control107
Gasoline, refer to Required
fuel201
Gasoline display, refer to Fuel
gauge73
Gasoline engine, checking oil
level215
Gear indicator
– automatic transmission with
Steptronic59
Gearshift lever
– automatic transmission with
Steptronic60
– manual transmission59
Gearshifts
– automatic transmission with
Steptronic60
– manual transmission59

Reference 253
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
General driving notes122
Glass sunroof, electric39
– closing after electrical
malfunction40
– convenient operation30,31
– initializing40
– opening, closing40
– operation with convenient
access37
– pinch protection system40
– power failure40
– raising39
– remote control30
Glove compartment110
– rechargeable flashlight110
GPS navigation, refer to
Navigation system130
Grills101
Gross vehicle weight, refer to
Weights239
H
Halogen lamps
– replacing bulbs222
Handbrake, refer to Parking
brake59
Hand lamp, refer to
Rechargeable flashlight110
Hands-free system14
Hazard warning flashers14
HDC Hill Descent Control88
Head airbags95
Headlamp control,
automatic97
Headlamp cover222
Headlamp flasher61
– indicator lamp11,13
Headlamps
– care, refer to Caring for your
vehicle brochure
– replacing bulbs222
Head restraints46
– front, removing47
– rear, removing47
– sitting safely44Heated
– mirrors50
– rear window104
– seats48
Heating
– mirrors50
– rear window104
– residual heat104
– seats48
Heating and ventilation, refer
to Climate101
Heating while at a standstill,
refer to Using residual
heat104
Heavy loads, refer to Stowing
cargo125
Height, refer to
Dimensions237
Height adjustment
– seats45
– steering wheel51
High beams99
– headlamp flasher99
– indicator lamp13
– replacing bulbs222
High water, refer to Driving
through water123
Highways, refer to Route
criteria141
Hill Descent Control HDC88
Hills123
Holders for cups111
Home address140
"Home address" in
navigation141
Homepage BMW4
Hood214
Hooks for shopping bags116
Horn10,11
Hotel function34
Hot exhaust system122
"Hour memo"81
"House number" in
destination entry134
Hydraulic brake assist, refer to
Dynamic Brake Control
DBC87
Hydroplaning123
I
Ice warning, refer to Outside
temperature
warning72
ID3 tag, refer to Information
about the track168
Identification marks
– Run-Flat Tires212
– tire coding210
iDrive16
– adjusting brightness85
– assistance window20
– automatic climate
control102
– changing language85
– changing units of measure
and display format77
– confirming selection or
entry19
– controls16
– displays, menus17
– menu guidance17
– operating principle16
– overview16
– selecting a menu item19
– setting the date and time80
– start menu17
– status information20
– switching menu pages19
– symbols18
iDrive operating principle16
Ignition57
– switched off57
– switched on57
Ignition key, refer to Remote
control with integrated
key28
Ignition key position 1, refer to
Radio readiness57
Ignition key position 2, refer to
Ignition on57
Ignition lock57
i menu18
Indicator and warning
lamps13
– Tire Pressure Monitor
TPM93
Individual air distribution102

Reference 255

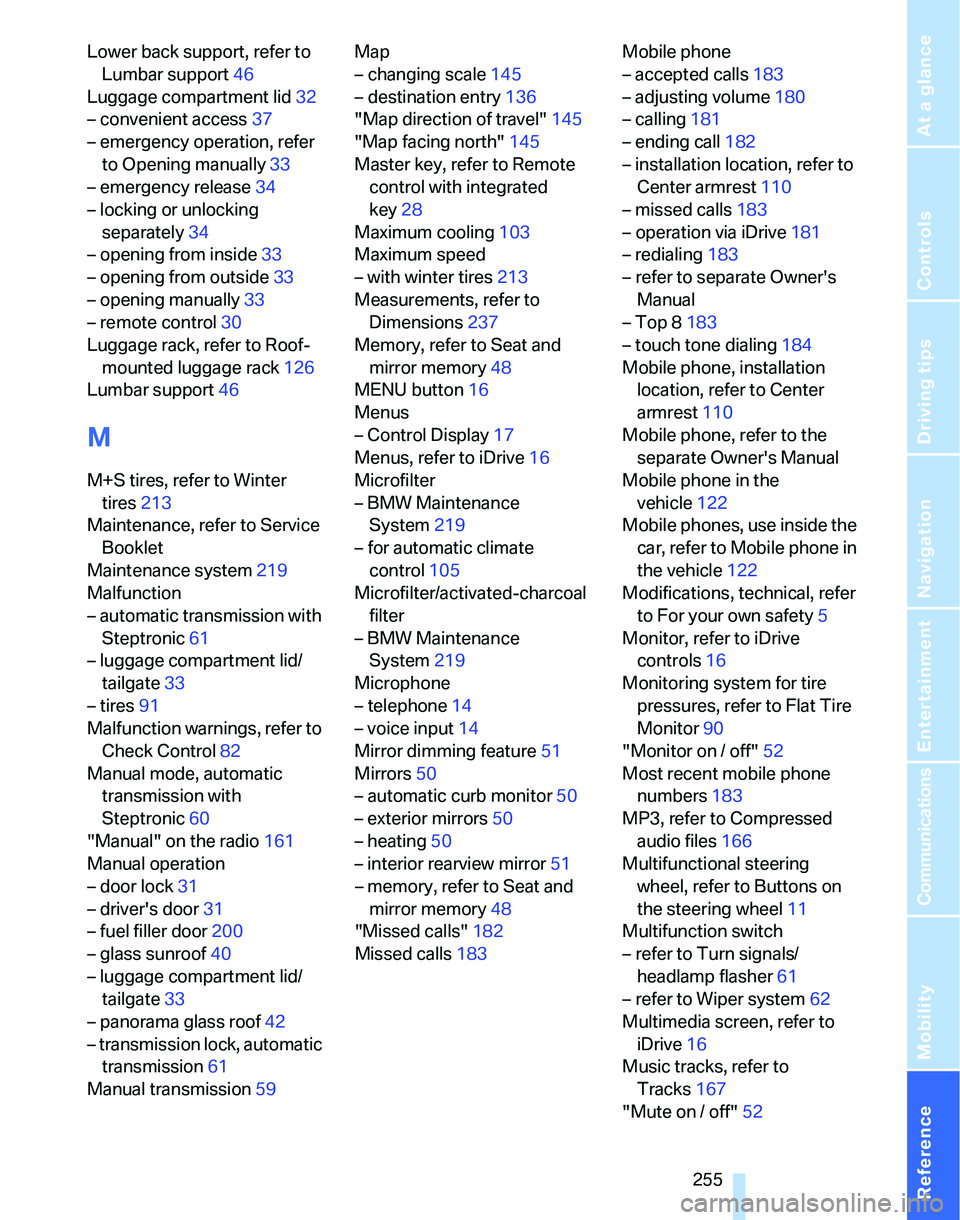

At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Lower back support, refer to
Lumbar support46
Luggage compartment lid32
– convenient access37
– emergency operation, refer
to Opening manually33
– emergency release34
– locking or unlocking
separately34
– opening from inside33
– opening from outside33
– opening manually33
– remote control30
Luggage rack, refer to Roof-
mounted luggage rack126
Lumbar support46
M
M+S tires, refer to Winter
tires213
Maintenance, refer to Service
Booklet
Maintenance system219
Malfunction
– automatic transmission with
Steptronic61
– luggage compartment lid/
tailgate33
– tires91
Malfunction warnings, refer to
Check Control82
Manual mode, automatic
transmission with
Steptronic60
"Manual" on the radio161
Manual operation
– door lock31
– driver's door31
– fuel filler door200
– glass sunroof40
– luggage compartment lid/
tailgate33
– panorama glass roof42
– transmission lock, automatic
transmission61
Manual transmission59Map
– changing scale145
– destination entry136
"Map direction of travel"145
"Map facing north"145
Master key, refer to Remote
control with integrated
key28
Maximum cooling103
Maximum speed
– with winter tires213
Measurements, refer to
Dimensions237
Memory, refer to Seat and
mirror memory48
MENU button16
Menus
– Control Display17
Menus, refer to iDrive16
Microfilter
– BMW Maintenance
System219
– for automatic climate
control105
Microfilter/activated-charcoal
filter
– BMW Maintenance
System219
Microphone
– telephone14
– voice input14
Mirror dimming feature51
Mirrors50
– automatic curb monitor50
– exterior mirrors50
– heating50
– interior rearview mirror51
– memory, refer to Seat and
mirror memory48
"Missed calls"182
Missed calls183Mobile phone
– accepted calls183
– adjusting volume180
– calling181
– ending call182
– installation location, refer to
Center armrest110
– missed calls183
– operation via iDrive181
– redialing183
– refer to separate Owner's
Manual
– Top 8183
– touch tone dialing184
Mobile phone, installation
location, refer to Center
armrest110
Mobile phone, refer to the
separate Owner's Manual
Mobile phone in the
vehicle122
Mobile phones, use inside the
car, refer to Mobile phone in
the vehicle122
Modifications, technical, refer
to For your own safety5
Monitor, refer to iDrive
controls16
Monitoring system for tire
pressures, refer to Flat Tire
Monitor90
"Monitor on / off"52
Most recent mobile phone
numbers183
MP3, refer to Compressed
audio files166
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher61
– refer to Wiper system62
Multimedia screen, refer to
iDrive16
Music tracks, refer to
Tracks167
"Mute on / off"52

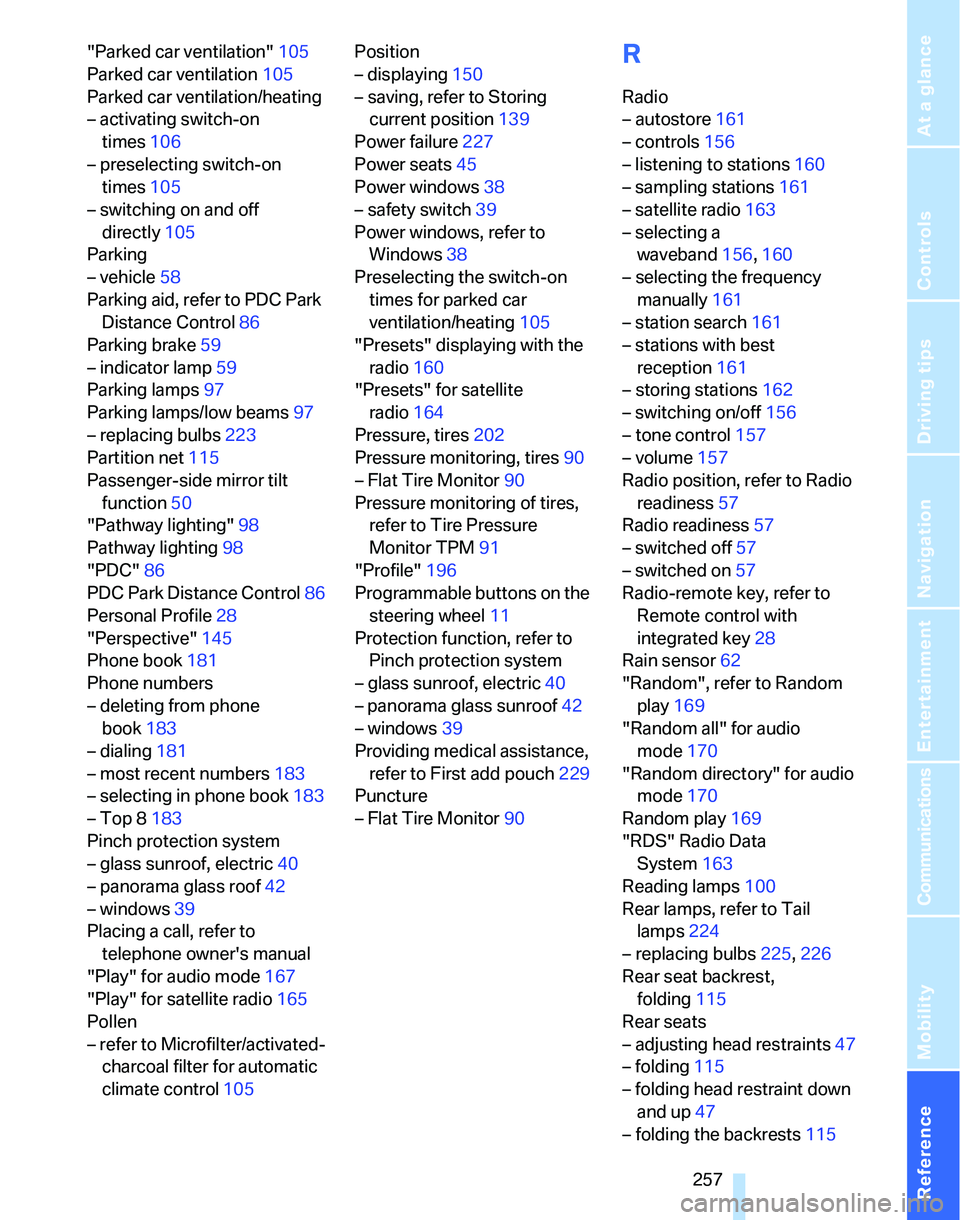

Reference 257
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Parked car ventilation"105
Parked car ventilation105
Parked car ventilation/heating
– activating switch-on
times106
– preselecting switch-on
times105
– switching on and off
directly105
Parking
– vehicle58
Parking aid, refer to PDC Park
Distance Control86
Parking brake59
– indicator lamp59
Parking lamps97
Parking lamps/low beams97
– replacing bulbs223
Partition net115
Passenger-side mirror tilt
function50
"Pathway lighting"98
Pathway lighting98
"PDC"86
PDC Park Distance Control86
Personal Profile28
"Perspective"145
Phone book181
Phone numbers
– deleting from phone
book183
– dialing181
– most recent numbers183
– selecting in phone book183
– Top 8183
Pinch protection system
– glass sunroof, electric40
– panorama glass roof42
– windows39
Placing a call, refer to
telephone owner's manual
"Play" for audio mode167
"Play" for satellite radio165
Pollen
– refer to Microfilter/activated-
charcoal filter for automatic
climate control105Position
– displaying150
– saving, refer to Storing
current position139
Power failure227
Power seats45
Power windows38
– safety switch39
Power windows, refer to
Windows38
Preselecting the switch-on
times for parked car
ventilation/heating105
"Presets" displaying with the
radio160
"Presets" for satellite
radio164
Pressure, tires202
Pressure monitoring, tires90
– Flat Tire Monitor90
Pressure monitoring of tires,
refer to Tire Pressure
Monitor TPM91
"Profile"196
Programmable buttons on the
steering wheel11
Protection function, refer to
Pinch protection system
– glass sunroof, electric40
– panorama glass sunroof42
– windows39
Providing medical assistance,
refer to First add pouch229
Puncture
– Flat Tire Monitor90
R
Radio
– autostore161
– controls156
– listening to stations160
– sampling stations161
– satellite radio163
– selecting a
waveband156,160
– selecting the frequency
manually161
– station search161
– stations with best
reception161
– storing stations162
– switching on/off156
– tone control157
– volume157
Radio position, refer to Radio
readiness57
Radio readiness57
– switched off57
– switched on57
Radio-remote key, refer to
Remote control with
integrated key28
Rain sensor62
"Random", refer to Random
play169
"Random all" for audio
mode170
"Random directory" for audio
mode170
Random play169
"RDS" Radio Data
System163
Reading lamps100
Rear lamps, refer to Tail
lamps224
– replacing bulbs225,226
Rear seat backrest,
folding115
Rear seats
– adjusting head restraints47
– folding115
– folding head restraint down
and up47
– folding the backrests115

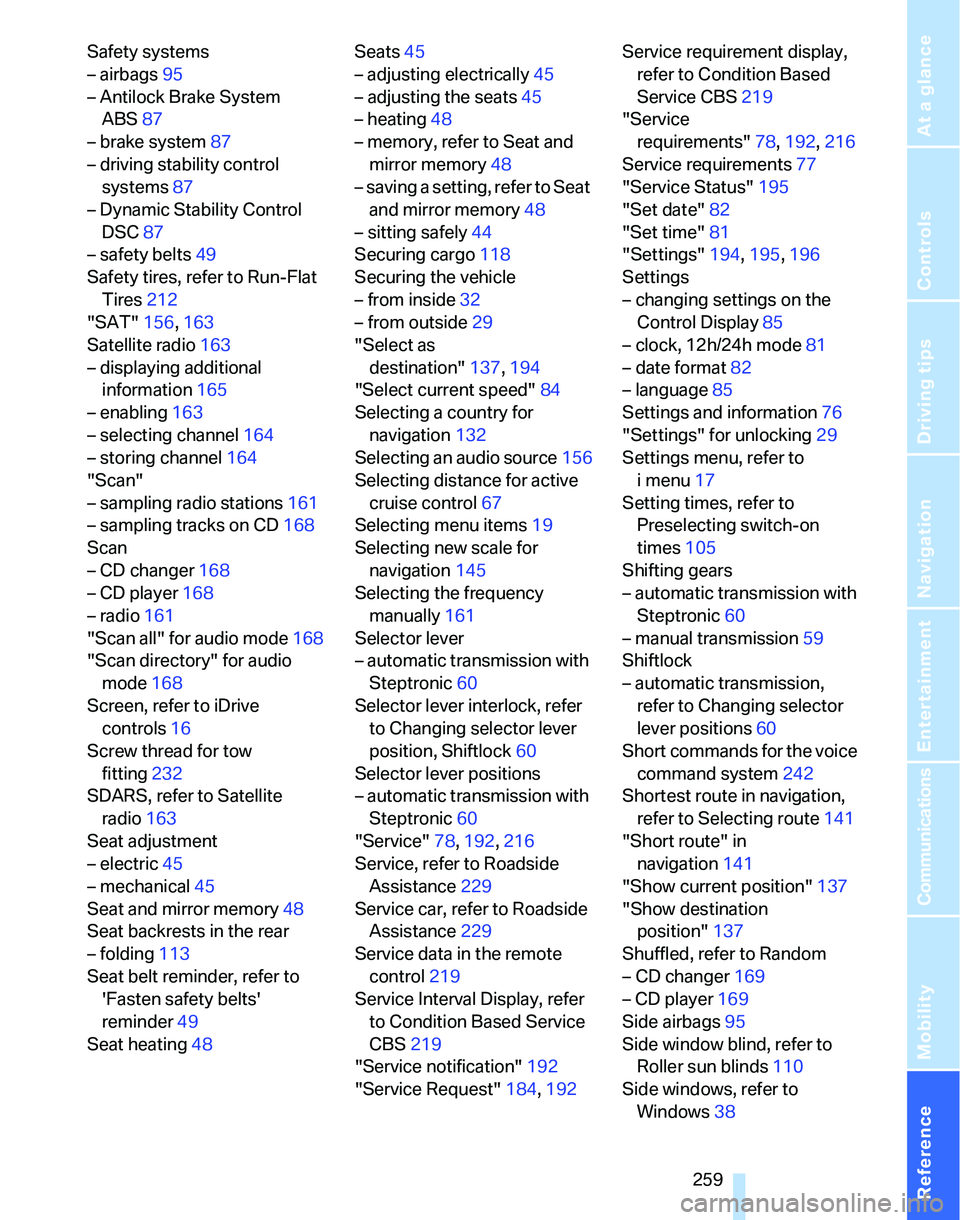

Reference 259
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Safety systems
– airbags95
– Antilock Brake System
ABS87
– brake system87
– driving stability control
systems87
– Dynamic Stability Control
DSC87
– safety belts49
Safety tires, refer to Run-Flat
Tires212
"SAT"156,163
Satellite radio163
– displaying additional
information165
– enabling163
– selecting channel164
– storing channel164
"Scan"
– sampling radio stations161
– sampling tracks on CD168
Scan
– CD changer168
– CD player168
– radio161
"Scan all" for audio mode168
"Scan directory" for audio
mode168
Screen, refer to iDrive
controls16
Screw thread for tow
fitting232
SDARS, refer to Satellite
radio163
Seat adjustment
– electric45
– mechanical45
Seat and mirror memory48
Seat backrests in the rear
– folding113
Seat belt reminder, refer to
'Fasten safety belts'
reminder49
Seat heating48Seats45
– adjusting electrically45
– adjusting the seats45
– heating48
– memory, refer to Seat and
mirror memory48
– saving a setting, refer to Seat
and mirror memory48
– sitting safely44
Securing cargo118
Securing the vehicle
– from inside32
– from outside29
"Select as
destination"137,194
"Select current speed"84
Selecting a country for
navigation132
Selecting an audio source156
Selecting distance for active
cruise control67
Selecting menu items19
Selecting new scale for
navigation145
Selecting the frequency
manually161
Selector lever
– automatic transmission with
Steptronic60
Selector lever interlock, refer
to Changing selector lever
position, Shiftlock60
Selector lever positions
– automatic transmission with
Steptronic60
"Service"78,192,216
Service, refer to Roadside
Assistance229
Service car, refer to Roadside
Assistance229
Service data in the remote
control219
Service Interval Display, refer
to Condition Based Service
CBS219
"Service notification"192
"Service Request"184,192Service requirement display,
refer to Condition Based
Service CBS219
"Service
requirements"78,192,216
Service requirements77
"Service Status"195
"Set date"82
"Set time"81
"Settings"194,195,196
Settings
– changing settings on the
Control Display85
– clock, 12h/24h mode81
– date format82
– language85
Settings and information76
"Settings" for unlocking29
Settings menu, refer to
imenu17
Setting times, refer to
Preselecting switch-on
times105
Shifting gears
– automatic transmission with
Steptronic
60
– manual transmission59
Shiftlock
– automatic transmission,
refer to Changing selector
lever positions60
Short commands for the voice
command system242
Shortest route in navigation,
refer to Selecting route141
"Short route" in
navigation141
"Show current position"137
"Show destination
position"137
Shuffled, refer to Random
– CD changer169
– CD player169
Side airbags95
Side window blind, refer to
Roller sun blinds110
Side windows, refer to
Windows38

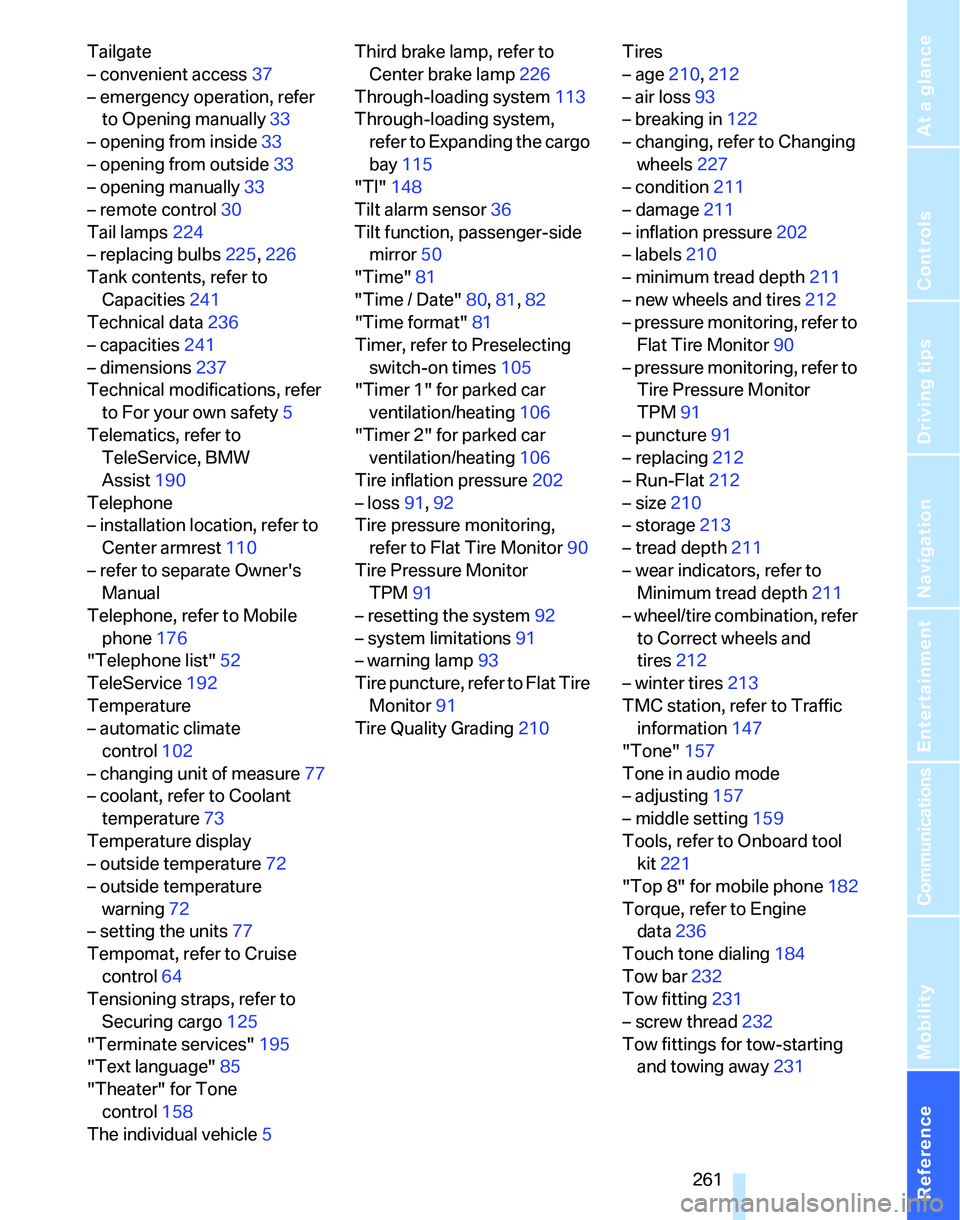

Reference 261
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Tailgate
– convenient access37
– emergency operation, refer
to Opening manually33
– opening from inside33
– opening from outside33
– opening manually33
– remote control30
Tail lamps224
– replacing bulbs225,226
Tank contents, refer to
Capacities241
Technical data236
– capacities241
– dimensions237
Technical modifications, refer
to For your own safety5
Telematics, refer to
TeleService, BMW
Assist190
Telephone
– installation location, refer to
Center armrest110
– refer to separate Owner's
Manual
Telephone, refer to Mobile
phone176
"Telephone list"52
TeleService192
Temperature
– automatic climate
control102
– changing unit of measure77
– coolant, refer to Coolant
temperature73
Temperature display
– outside temperature72
– outside temperature
warning72
– setting the units77
Tempomat, refer to Cruise
control64
Tensioning straps, refer to
Securing cargo125
"Terminate services"195
"Text language"85
"Theater" for Tone
control158
The individual vehicle5Third brake lamp, refer to
Center brake lamp226
Through-loading system113
Through-loading system,
refer to Expanding the cargo
bay115
"TI"148
Tilt alarm sensor36
Tilt function, passenger-side
mirror50
"Time"81
"Time / Date"80,
81,82
"Time format"81
Timer, refer to Preselecting
switch-on times105
"Timer 1" for parked car
ventilation/heating106
"Timer 2" for parked car
ventilation/heating106
Tire inflation pressure202
– loss91,92
Tire pressure monitoring,
refer to Flat Tire Monitor90
Tire Pressure Monitor
TPM91
– resetting the system92
– system limitations91
– warning lamp93
Tire puncture, refer to Flat Tire
Monitor91
Tire Quality Grading210Tires
– age210,212
– air loss93
– breaking in122
– changing, refer to Changing
wheels227
– condition211
– damage211
– inflation pressure202
– labels210
– minimum tread depth211
– new wheels and tires212
– pressure monitoring, refer to
Flat Tire Monitor90
– pressure monitoring, refer to
Tire Pressure Monitor
TPM91
– puncture91
– replacing212
– Run-Flat212
– size210
– storage213
– tread depth211
– wear indicators, refer to
Minimum tread depth211
– wheel/tire combination, refer
to Correct wheels and
tires212
– winter tires213
TMC station, refer to Traffic
information147
"Tone"157
Tone in audio mode
– adjusting157
– middle setting159
Tools, refer to Onboard tool
kit
221
"Top 8" for mobile phone182
Torque, refer to Engine
data236
Touch tone dialing184
Tow bar232
Tow fitting231
– screw thread232
Tow fittings for tow-starting
and towing away231
