cating in an emergency, enable certain vehicle
data to be transmitted from the vehicle.
Event Data Recorder EDR
This vehicle is equipped with an event data re‐
corder EDR. The main purpose of an EDR is to
record, in certain crash or near crash-like situa‐
tions, such as an air bag deployment or hitting
a road obstacle, data that will assist in under‐
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to record
such data as:▷How various systems in your vehicle were
operating.▷Whether or not the driver and passenger
safety belts were fastened.▷How far, if at all, the driver was depressing
the accelerator and/or brake pedal.▷How fast the vehicle was traveling.
These data can help provide a better under‐
standing of the circumstances in which
crashes and injuries occur.
EDR data are recorded by your vehicle only if a
nontrivial crash situation occurs; no data are
recorded by the EDR under normal driving
conditions and no personal data, e.g., name,
gender, age, and crash location, are recorded.
However, other parties, such as law enforce‐
ment, could combine the EDR data with the
type of personally identifying data routinely ac‐
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required, and access to the vehi‐
cle or the EDR is needed. In addition to the ve‐
hicle manufacturer, other parties, such as law
enforcement, that have the special equipment,
can read the information if they have access to
the vehicle or the EDR.
Reporting safety defects
For US customers
The following only applies to vehicles owned
and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause in‐
jury or death, you should immediately inform
the National Highway Traffic Safety Adminis‐
tration NHTSA, in addition to notifying BMW of
North America, LLC, P.O. Box 1227, West‐
wood, New Jersey 07675-1227, Telephone
1-800-831-1117.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may order a recall and remedy campaign.
However, NHTSA cannot become involved in
individual problems between you, your dealer,
or BMW of North America, LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washing‐
ton, DC 20590. You can also obtain other in‐
formation about motor vehicle safety from
http://www.safercar.gov
For Canadian customers Canadian customers who wish to report a
safety-related defect to Transport Canada, De‐
fect Investigations and Recalls, may telephone
the toll-free hotline 1-800-333-0510. You can
also obtain other information about motor vehi‐
cle safety from http://www.tc.gc.ca/roadsafety.Seite 9Notes9
Online Edition for Part no. 0140 2 920 413 - VI/13

Online Edition for Part no. 0140 2 920 413 - VI/13

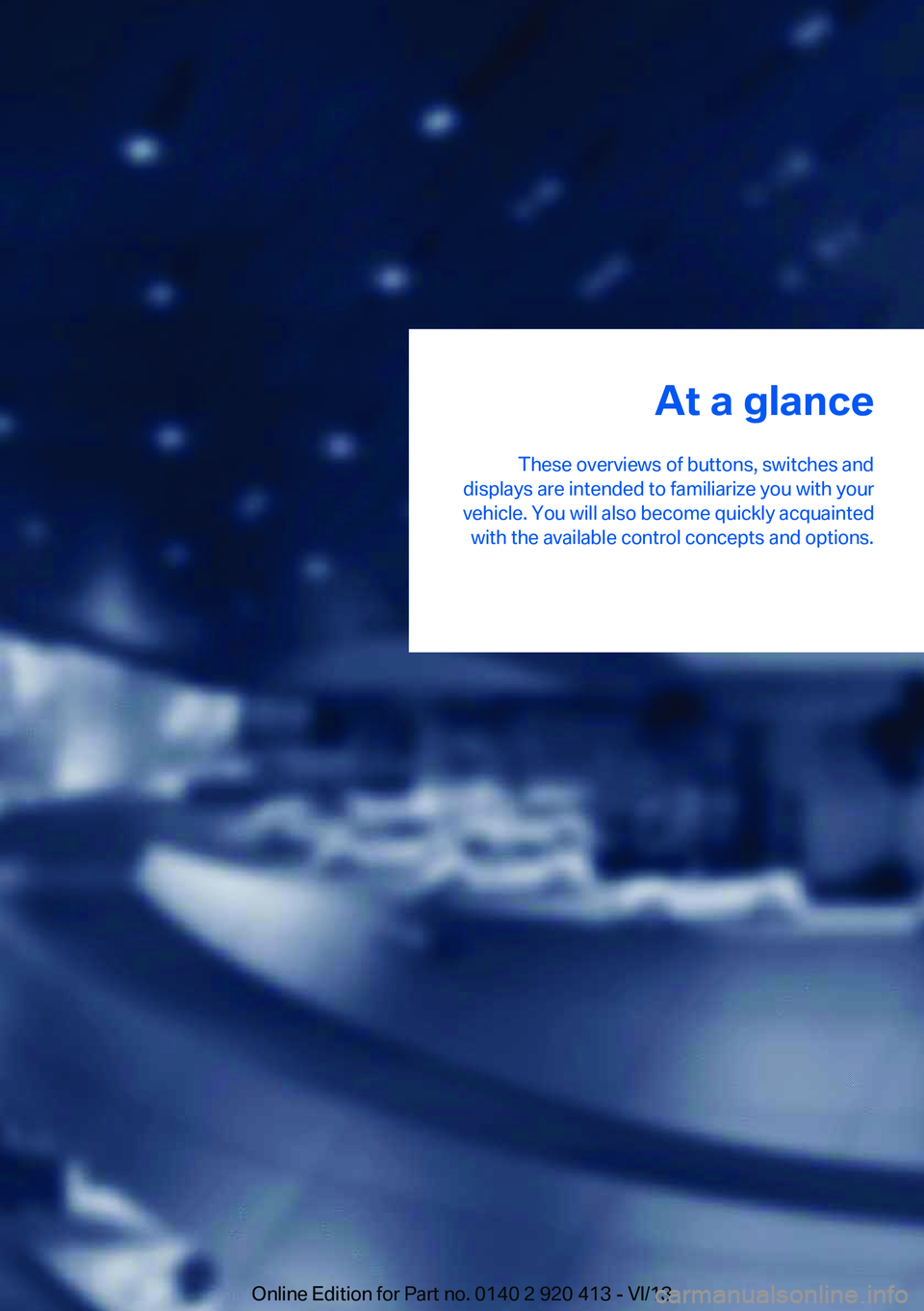

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 0140 2 920 413 - VI/13

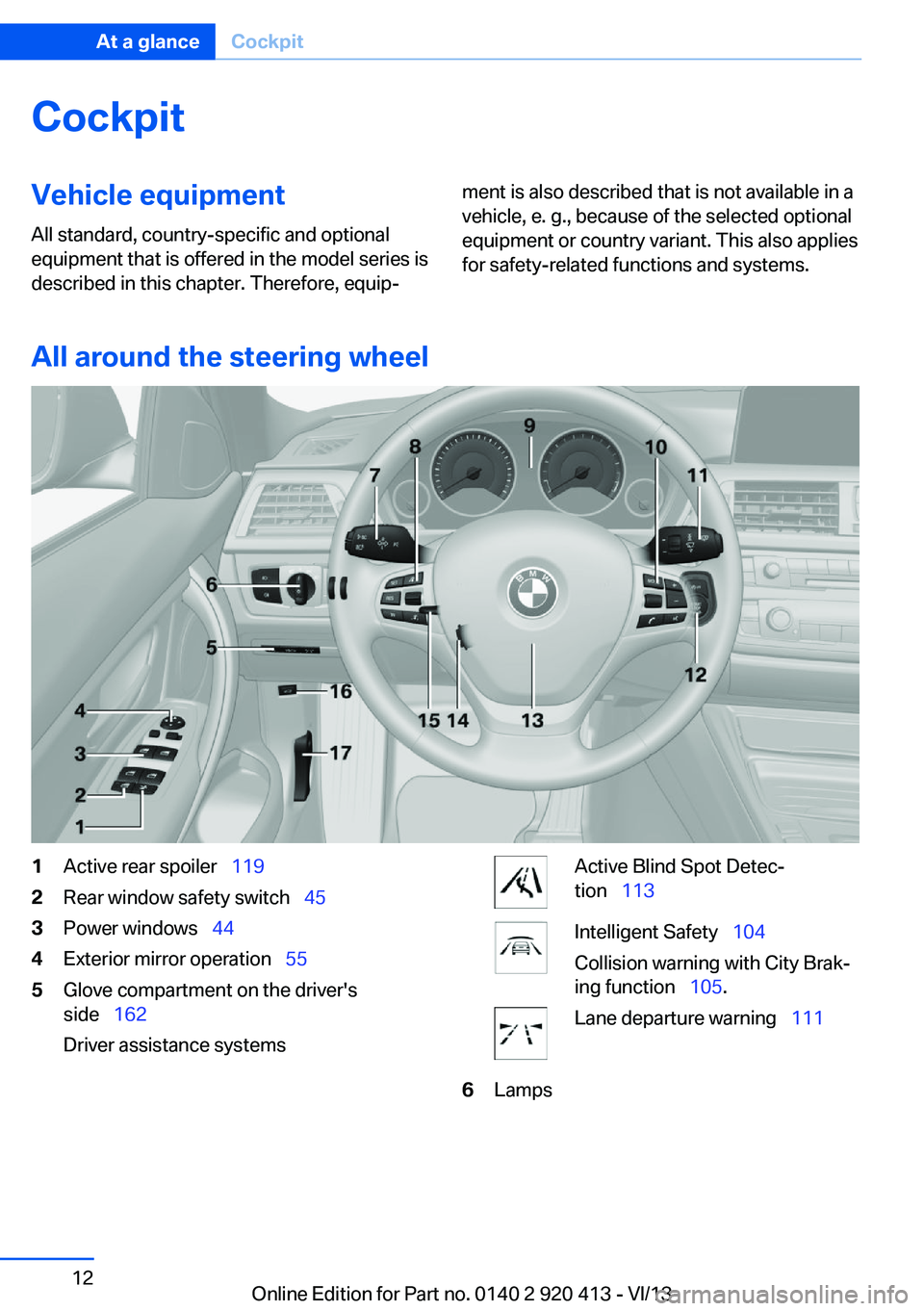

CockpitVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
All around the steering wheel
1Active rear spoiler   1192Rear window safety switch   453Power windows  444Exterior mirror operation   555Glove compartment on the driver's
side   162
Driver assistance systemsActive Blind Spot Detec‐
tion   113Intelligent Safety   104
Collision warning with City Brak‐
ing function   105.Lane departure warning   1116LampsSeite 12At a glanceCockpit12
Online Edition for Part no. 0140 2 920 413 - VI/13

Front fog lamps  93Parking lamps  90Low beams  90Automatic headlamp con‐
trol   91
Daytime running lights   91
Adaptive Light Control   91
High-beam Assistant   92Instrument lighting  937Steering column stalk, leftTurn signal  67High beams, head‐
lamp flasher   67High-beam Assistant   92Roadside parking lamps   91Computer  858Steering wheel buttons, leftStore speed   129Resume speed   131Cruise control on/off, interrupt‐
ing   130Active Cruise Control on/off, in‐
terrupting   123Reduce distance   125Increase distance   125Cruise control rocker switch   130,  1249Instrument cluster   7410Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  24Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   8511Steering column stalk, rightWindshield wipers  67Rain sensor  68Clean the windshields and head‐
lamps   6912Start/stop the engine and switch
the ignition on/off   63Auto Start/Stop function   6413Horn14Steering wheel heating  5715Adjust steering wheel  5716Open the tailgate  38Seite 13CockpitAt a glance13
Online Edition for Part no. 0140 2 920 413 - VI/13

17Unlock hood  196
All around the center console
1Headliner  152Control Display   163Ventilation  1514Hazard warning system   214Central locking system  355Glove compartment  1626Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication7Climate control   1468Controller with buttons   169Parking brake  6610PDC Park Distance Control   131
Rearview camera   134
Parking assistant   140
Surround View   13411Driving Dynamics Control   120DSC Dynamic Stability Con‐
trol   11712Automatic transmission selector
lever   70
Manual transmission selector lever   70Seite 14At a glanceCockpit14
Online Edition for Part no. 0140 2 920 413 - VI/13

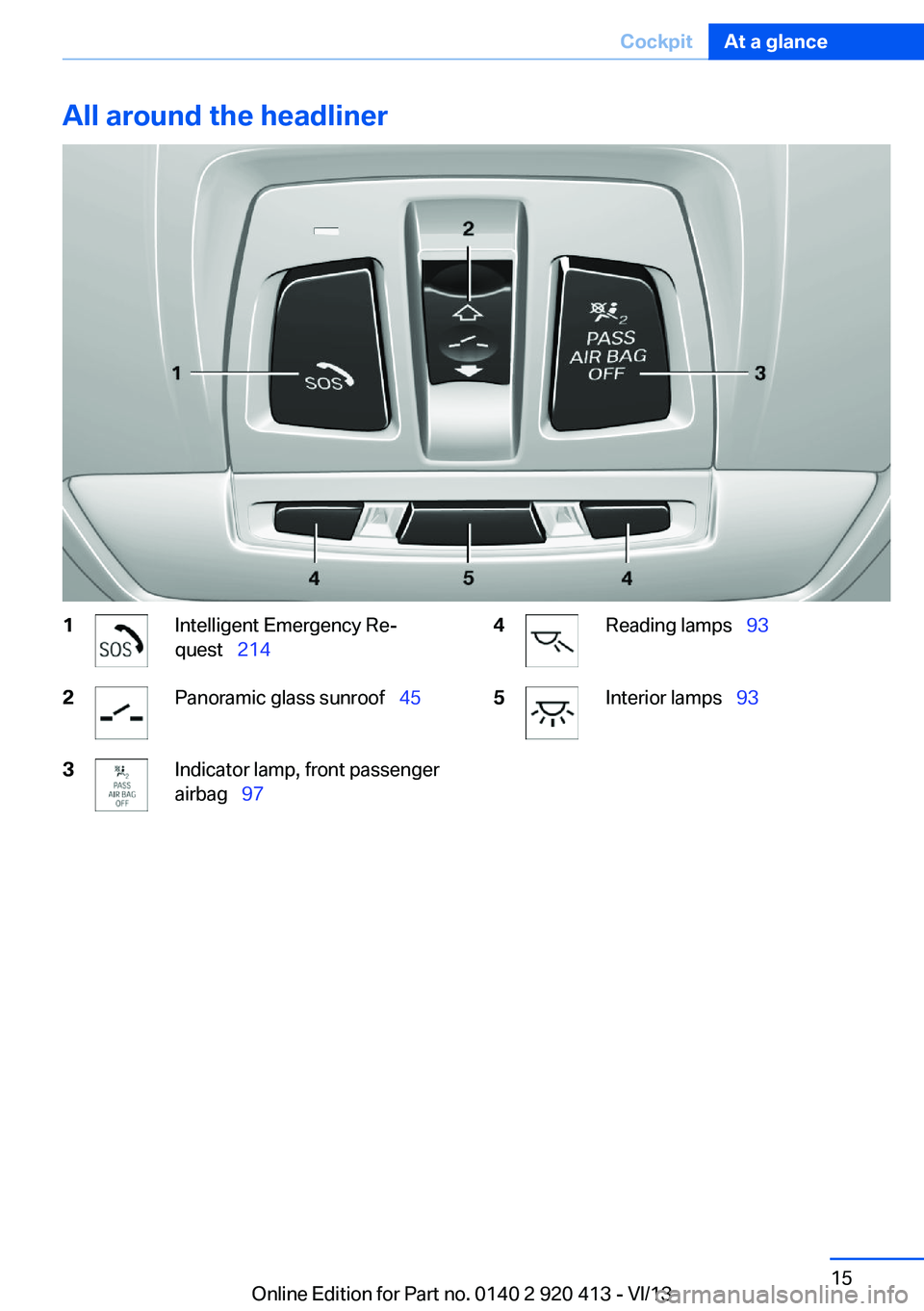

All around the headliner1Intelligent Emergency Re‐
quest   2142Panoramic glass sunroof   453Indicator lamp, front passenger
airbag   974Reading lamps   935Interior lamps  93Seite 15CockpitAt a glance15
Online Edition for Part no. 0140 2 920 413 - VI/13

iDriveVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is not available in a
vehicle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
The concept The iDrive combines the functions of a multi‐
tude of switches. Thus, these functions can be
operated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other road users, never at‐
tempt to use the controls or enter information
unless traffic and road conditions allow this.◀
Controls at a glance Controls1Control Display2Controller with buttons and touchpad
The buttons can be used to open the me‐
nus directly. The controller can be used to
select menu items and create the settings.Control Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Controller with navigation system
Select menu items and create settings.
1.Turn.Seite 16At a glanceiDrive16
