2014 BMW 3 SERIES SPORTS WAGON Owner's Manual

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 956 752 - X/14

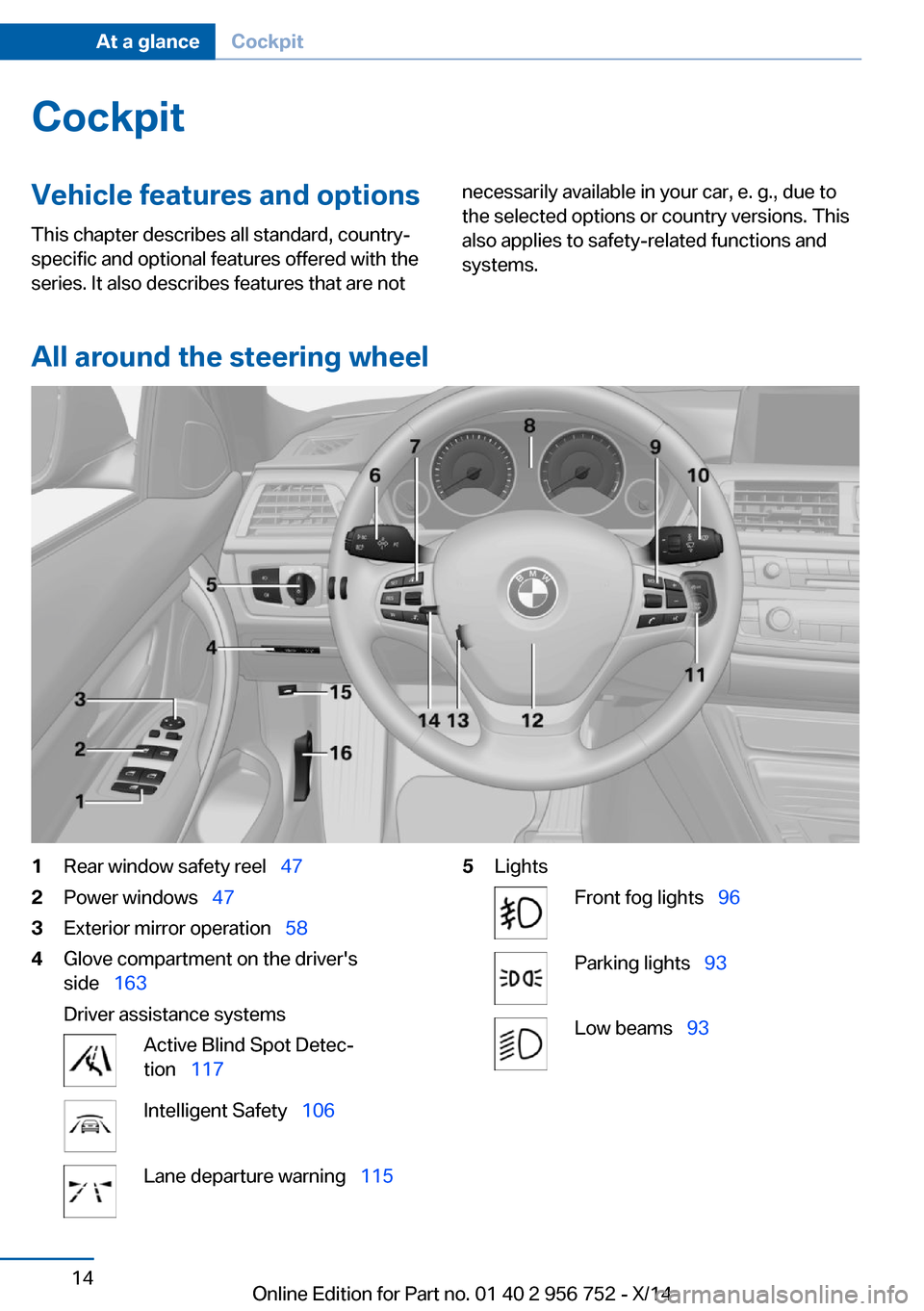

CockpitVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are notnecessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
All around the steering wheel
1Rear window safety reel   472Power windows  473Exterior mirror operation   584Glove compartment on the driver's
side   163
Driver assistance systemsActive Blind Spot Detec‐
tion   117Intelligent Safety   106Lane departure warning   1155LightsFront fog lights  96Parking lights  93Low beams  93Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 956 752 - X/14

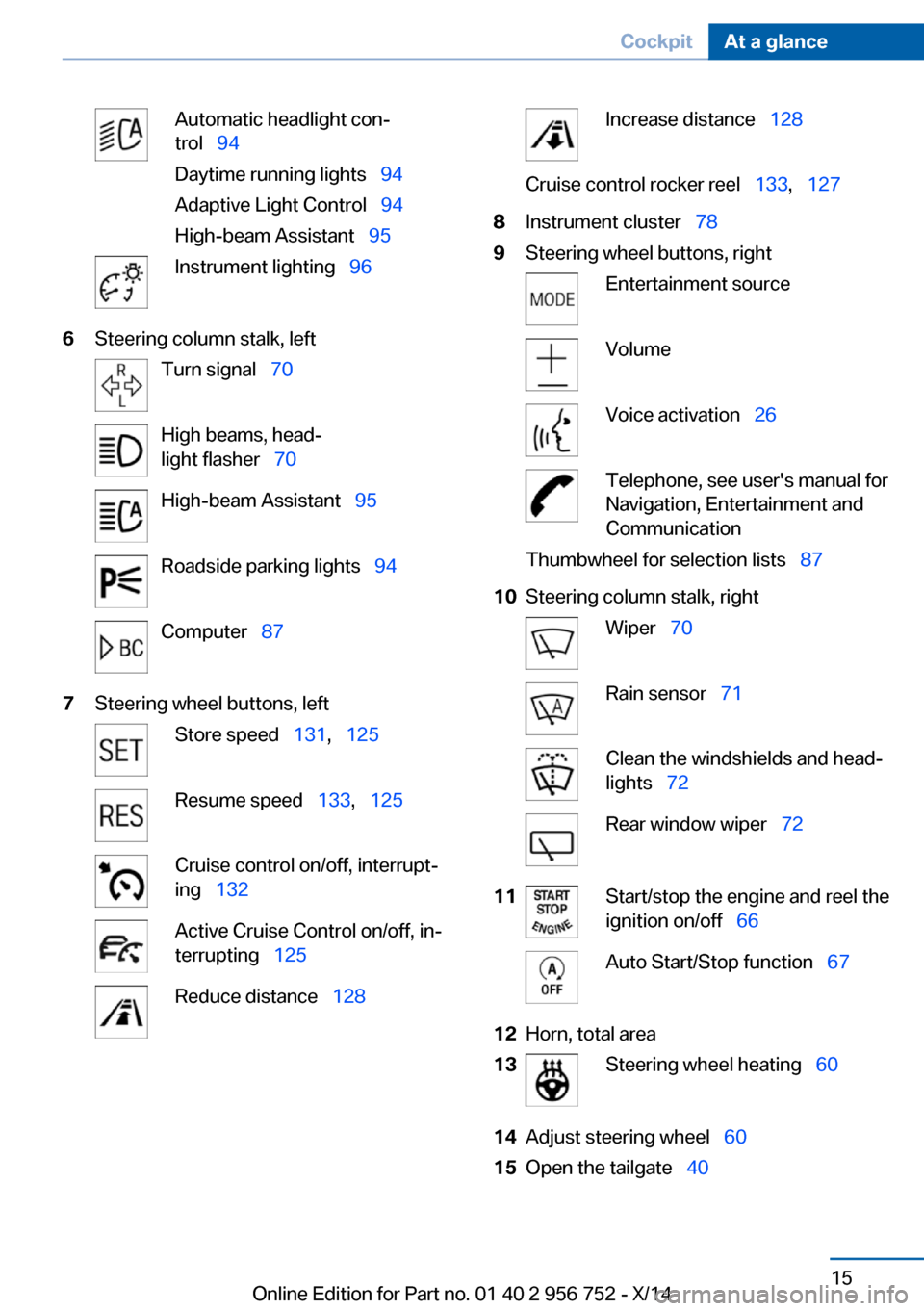

Automatic headlight con‐
trol   94
Daytime running lights   94
Adaptive Light Control   94
High-beam Assistant   95Instrument lighting  966Steering column stalk, leftTurn signal  70High beams, head‐
light flasher   70High-beam Assistant   95Roadside parking lights   94Computer  877Steering wheel buttons, leftStore speed   131,  125Resume speed   133,  125Cruise control on/off, interrupt‐
ing   132Active Cruise Control on/off, in‐
terrupting   125Reduce distance   128Increase distance   128Cruise control rocker reel   133,  1278Instrument cluster   789Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  26Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   8710Steering column stalk, rightWiper  70Rain sensor   71Clean the windshields and head‐
lights   72Rear window wiper   7211Start/stop the engine and reel the
ignition on/off   66Auto Start/Stop function   6712Horn, total area13Steering wheel heating  6014Adjust steering wheel  6015Open the tailgate  40Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 956 752 - X/14

16Unlock hood  202
All around the center console
1Control Display   182Ventilation  1513Hazard warning system   221Central locking system  394Glove compartment  1635Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication6Climate control   1467Controller with buttons   188Parking brake  699PDC Park Distance Control   133
Rearview camera   136
Parking assistant   141
Surround View   136Side View  13810Driving Dynamics Control   122DSC Dynamic Stability Con‐
trol   12011Steptronic transmission selector
lever   73
Manual transmission selector lever   73Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 956 752 - X/14

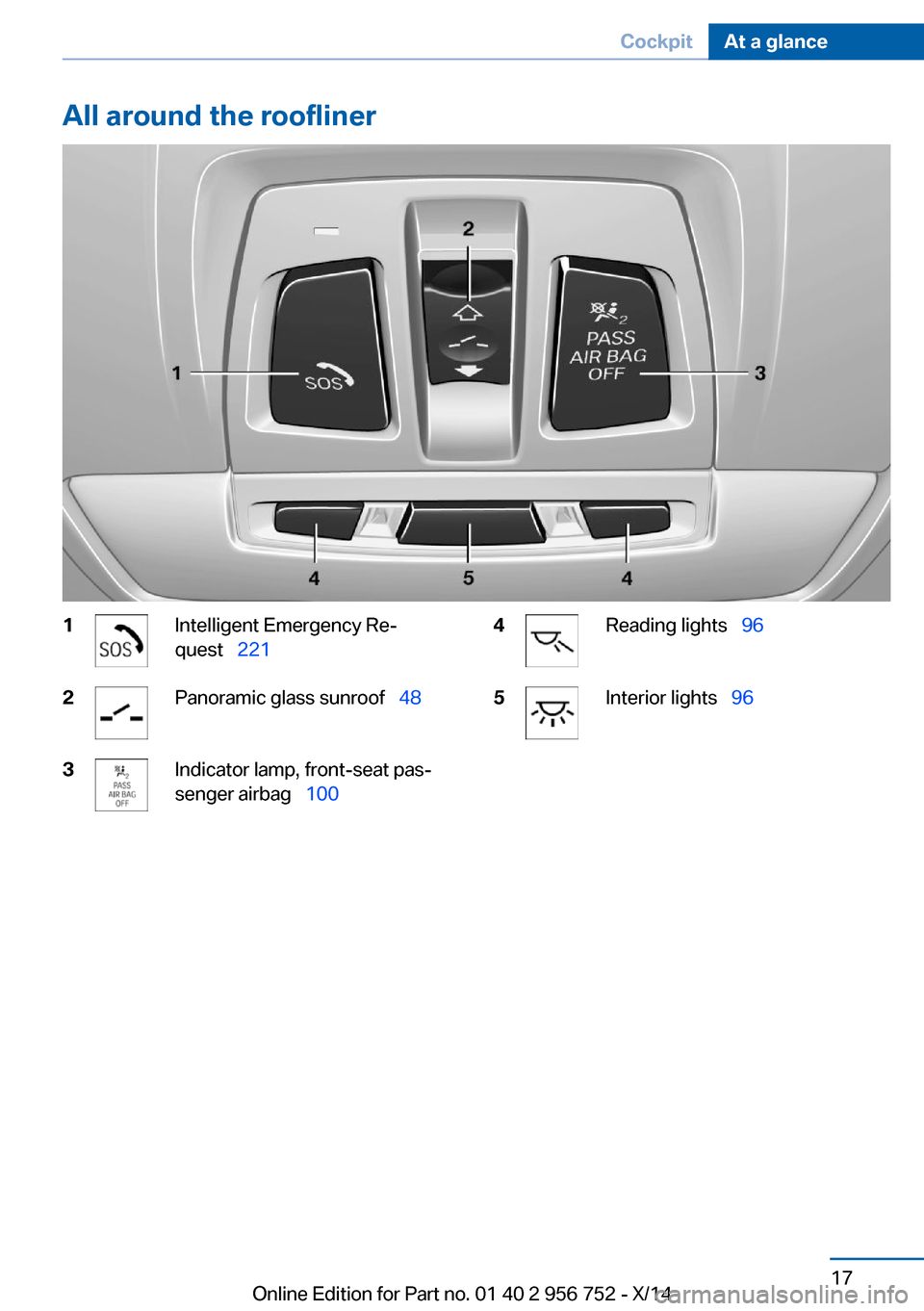

All around the roofliner1Intelligent Emergency Re‐
quest   2212Panoramic glass sunroof   483Indicator lamp, front-seat pas‐
senger airbag   1004Reading lights   965Interior lights  96Seite 17CockpitAt a glance17
Online Edition for Part no. 01 40 2 956 752 - X/14

iDriveVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
The concept
The iDrive combines the functions of many
switches. Thus, these functions can be oper‐
ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other traffic, never attempt
to use the controls or enter information unless
traffic and road conditions allow it.◀
Control elements at a glance Control elements1Control Display2Controller with buttons and, depending on
the equipment version, with touchpadControl Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.▷In the case of very high temperatures on
the Control Display, e.g. due to intense so‐
lar radiation, the brightness may be re‐
duced down to complete deactivation.
Once the temperature is reduced, e.g.
through shadow or climate control system,
the normal functions are re-established.
Switching on
1.Switch on the ignition.2.Press the controller.
Switch off
1. Press button.2."Turn off control display"
Controller with navigation system
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and enter the settings.
Some iDrive functions can be operated using
the touchpad on the controller.
Seite 18At a glanceiDrive18
Online Edition for Part no. 01 40 2 956 752 - X/14

1.Turn.2.Press.3.Move in four directions.
Buttons on controller
Press buttonFunctionMENUOpen the main menu.RADIOOpens the Radio menu.MEDIAOpens the Multimedia menu.NAVOpens the Navigation menu.TELOpens the phone menu.Press buttonFunctionBACKDisplays the previous panel.OPTIONOpens the Options menu.
Controller without navigation system
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and enter the settings.
1.Turn.2.Press.3.Move in two directions.Seite 19iDriveAt a glance19
Online Edition for Part no. 01 40 2 956 752 - X/14

Buttons on controllerPress buttonFunctionMENUOpen the main menu.AudioOpen audio menu last listened
to, reel between audio menus.TELOpens the phone menu.BACKOpen previous panel.OPTIONOpens the Options menu.
Operating concept
Opening the main menu Press button.
The main menu is displayed.
All iDrive functions can be called up via the
main menu.
Selecting menu items
Highlighted menu items can be selected.1.Turn the controller until the desired menu
item is highlighted.2.Press the controller.
Menu items in the Owner's Manual
In the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.
▷Move the controller to the left.
Closes current display and shows previous
display.
Reopens previous display by pressing
BACK button. In this case, the current
panel is not closed.▷Move the controller to the right.
Opens new display on top of previous
screen.Seite 20At a glanceiDrive20
