2014 BMW 2 SERIES fog light bulb

Green lights
Turn signal Turn signal on.
Unusually rapid flashing of the indicator
lamp indicates that a turn signal bulb
has failed.
For additional information, refer to Turn signal, refer to page 67.
Parking lights, headlight control Parking lights or headlights are acti‐
vated.
Front fog lights Front fog lights are activated.
For additional information, refer to
Front fog lights, refer to page 92.
High-beam Assistant High-beam Assistant is switched on.
High beams are activated and off auto‐
matically as a function of the traffic sit‐
uation.
For additional information, refer to High-beam
Assistant, refer to page 91.
Cruise control The system is switched on. It maintains
the speed that was set using the con‐
trol elements on the steering wheel.
Blue lights
High beams High beams are activated.
For additional information, refer to High
beams, refer to page 68.General lamps
Check Control At least one Check Control message is
displayed or is stored (symbol in dis‐
play).
Text messages
Text messages in combination with a symbol
in the instrument cluster explain a Check Con‐ trol message and the meaning of the indicator
and warning lights.
Supplementary text messages
Additional information, such as on the cause of
an error or the required action, can be called up
via Check Control.
With urgent messages the added text will be
automatically displayed on the Control Display.
Symbols
Within the supplementary text, the following
functions can be selected independent of the
check control message.▷ Display additional information about
the Check Control message in the
Integrated Owner's Manual.▷ "Service request"
Contact your service center.▷ "Roadside Assistance"
Contact Roadside Assistance.Seite 79DisplaysControls79
Online Edition for Part no. 01 40 2 956 568 - X/14

Accessing the daytime running lights, high
beams/headlight flasher and parking lights
Follow general instructions, refer to page 187.1.Open the hood, refer to page 180.2.Turn the cover counterclockwise and re‐
move.
Daytime running lights and high beams/
headlight flasher
55-watt bulb, H15.
1.Turn the bulb counterclockwise and re‐
move.2.Install the new bulb in reverse order of re‐
moval. Turn the clockwise bulb here until it
hits the stop.3.Close the headlight housing with the lid.
Make sure that the lid engages.Parking lights
6-watt bulb, H6W.1.Tilt the bulb holder down and then up to
loosen it from the holder and remove it.2.Carefully remove the bulb from the bulb
holder.3.To insert the new bulb, proceed in reverse
order of removal. Make sure you hear the
bulb holder engage.4.Close the headlight housing with the lid.
Xenon headlights
Hints
Because of the long life of these bulbs, the
likelihood of failure is very low. Switching the
lights on and off frequently shortens their life.
If a bulb fails, reel on the front fog lights and
continue the trip with great care. Comply with
local regulations.
Do not perform work/bulb replacement
on xenon headlights
Have any work on the xenon lighting system,
including bulb replacement, performed only by
a service center. Due to the high voltage
present in the system, there is a danger of fatal
injuries if work is carried out improperly.◀
For checking and adjusting headlamp aim,
please contact your BMW center.
Seite 190MobilityReplacing components190
Online Edition for Part no. 01 40 2 956 568 - X/14

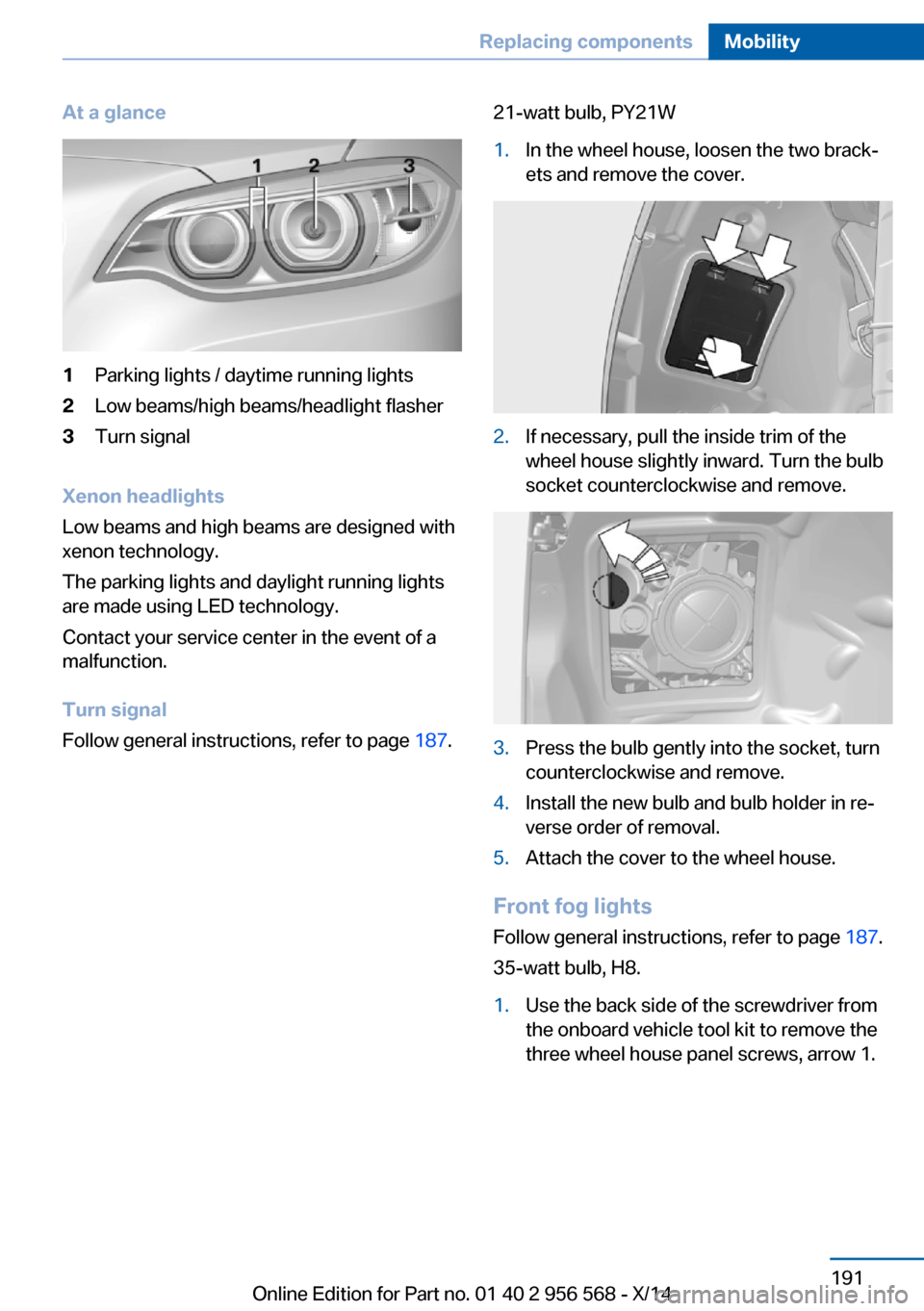

At a glance1Parking lights / daytime running lights2Low beams/high beams/headlight flasher3Turn signal
Xenon headlights
Low beams and high beams are designed with
xenon technology.
The parking lights and daylight running lights
are made using LED technology.
Contact your service center in the event of a
malfunction.
Turn signal
Follow general instructions, refer to page 187.
21-watt bulb, PY21W1.In the wheel house, loosen the two brack‐
ets and remove the cover.2.If necessary, pull the inside trim of the
wheel house slightly inward. Turn the bulb
socket counterclockwise and remove.3.Press the bulb gently into the socket, turn
counterclockwise and remove.4.Install the new bulb and bulb holder in re‐
verse order of removal.5.Attach the cover to the wheel house.
Front fog lights
Follow general instructions, refer to page 187.
35-watt bulb, H8.
1.Use the back side of the screwdriver from
the onboard vehicle tool kit to remove the
three wheel house panel screws, arrow 1.Seite 191Replacing componentsMobility191
Online Edition for Part no. 01 40 2 956 568 - X/14

Carefully raise the wheel house panel, ar‐
row 2.2.Pull off the bulb connector, arrow 1.
Turn the bulb, arrow 2.
Left side of vehicle: turn clockwise.
Right side of vehicle: turn counterclock‐
wise.
Remove the bulb.3.Insert the new bulb, connect the connector
and screw on the wheel house panel.
Turn signal in exterior mirror
The turn signals in the exterior mirrors feature
LED technology. Contact your service center
in the event of a malfunction.
Tail lights, bulb replacement
At a glance1Turn signal2Top brake lamp3Reversing lamp4Rear lamp5Bottom brake lights
Bulb replacement Follow general instructions, refer to page 187.
Turn signal, brake, tail, rear or reversing lamp:
21-watt bulb, P21W
Rear fog lamp: 6-watt bulb, H6W.
Removing the tail lamp
1.Open trunk lid.2.Open the two covers on the tail lamp.3.With the handle of the screwdriver from the
onboard vehicle tool kit, loosen and re‐
move the nuts on the two fasteners. Make
sure that the nuts do not drop into theSeite 192MobilityReplacing components192
Online Edition for Part no. 01 40 2 956 568 - X/14

F
Failure message, see Check Control 77
False alarm, refer to Uninten‐ tional alarm 44
Fan, refer to Air flow 129, 132
Filler neck for engine oil 182
Fine wood, care 205
First aid kit 198
Fitting for towing, see tow fit‐ ting 201
Flat tire, changing wheels 193
Flat Tire Monitor FTM 100
Flat tire, Tire Pressure Moni‐ tor TPM 97
Flat tire, warning lamp 98, 101
Flooding 151
Floor carpet, care 206
Floor mats, care 206
Fogged up windows 129
Fold down the rear seat back‐ rest, see Though-loading
system 141
Fold-out position, wiper 70
Foot brake 151
Front airbags 94
Front-end collision warning with City Braking func‐
tion 103
Front fog lights 92
Front fog lights, front, bulb re‐ placement 191
Front lights 188
front-seat passenger airbags, automatic deactivation 96
Front-seat passenger airbags, indicator lamp 96
FTM Flat Tire Monitor 100
Fuel 168
Fuel consumption, current 81 Fuel consumption, refer to
Average fuel consump‐
tion 86
Fuel filler flap 166
Fuel gauge 80
Fuel lid 166
Fuel quality 168
Fuel recommendation 168
Fuel, tank capacity 212
Fuse 195
G Garage door opener, refer to Universal Integrated Remote
Control 135
Gasoline 168
Gear change, Steptronic transmission 72
Gear shift indicator 82
General driving notes 150
Glare shield 139
Glass sunroof, powered 46
Glove compartment 143
Gross vehicle weight, ap‐ proved 211
H Halogen headlights, bulb re‐ placement 188
Handbrake, refer to parking brake 67
Hand-held transmitter, alter‐ nating code 136
Hazard warning flashers 197
Head airbags 94
Headlight control, auto‐ matic 90
Headlight courtesy delay fea‐ ture 89
Headlight flasher 68
Headlight flasher, bulb re‐ placement 190
Headlight glass 188
Headlights 188 Headlights, care 204
Headlight washer system 68
Head restraints 48
Head restraints, front 53
Head restraints, rear 54
Heavy cargo, stowing 154
High-beam Assistant 91
High beams 68
High beams/low beams, refer to High-beam Assistant 91
High beams, bulb replace‐ ment 190
Hills 152
Hill start assistant, refer to Drive-off assistant 115
Hints 6
Holder for beverages 145
Hood 180
Horn 14
Hotel function, trunk lid 40
Hot exhaust system 151
Hydroplaning 151
I Ice warning, see External temperature warning 81
Icy roads, see External tem‐ perature warning 81
Identification marks, tires 174
Identification number, see ve‐ hicle identification num‐
ber 9
iDrive 18
Ignition key, refer to Remote control 34
Ignition off 63
Ignition on 63
Indication of a flat tire 98, 101
Indicator and alarm lamps, see Check Control 77
Indicator lamp, see Check Control 77
Individual air distribu‐ tion 129, 132 Seite 217Everything from A to ZReference217
