Note
- The parking brake can be applied at any
time -even when the ignition is switched
off. However, the ignition must be switched
on and the brake pedal pressed before the
parking brake can be released.
- The parking brake is applied automatically if
the driver's door is opened while the igni­
tion is on. This is to prevent the vehicle from
accidentally rolling away.
-Any slight noise which may be heard when
the parking brake is applied or released is
quite normal and no cause for concern.
- The parking brake runs an automatic test cy­
cle at regular intervals when the vehicle is
parked. This may cause a slight noise, which
is normal.
- If the warning lamp. appears, there may
be a parking brake malfunction ¢ page 11.
- If the electrical power supply fails, it is not
possible to release the parking brake (if it
was applied) or to apply the parking brake
(if it was released) ¢ .&.. Obtain professional
assistance.
Parking the car
.,. Press the brake pedal to bring the vehicle to a
stop.
.,. To apply the parking brake, pull the switch
¢ page 66, Fig. 74.
.,. Vehicles with automatic gearbox: Move these-
lector lever to position P.
.,. Switch off the engine ¢_&. .
.,. Manual gearbox: Engage first gear.
.,. When parking on a hill or gradient, turn the
steering wheel so that the vehicle would roll in­
to the kerb if it did start to move accidentally.
A WARNING
- Always take the key with you when leaving
your vehicle -even if you only intend to be
gone for a short time. This is especially im­
portant if children are left in the car. They
might otherwise be able to start the engine,
release the parking brake or use power-op- Driving
erated equipment such as the electric win­
dows -this could lead to injuries.
- Do not leave anyone (especially children) in
the vehicle when it is locked. Locked doors
could delay assistance in an emergency, po­
tentially putting lives at risk.
Driving away from a standstill
The parking brake auto release function releases
the parking brake automatically when you wish
to start moving.
Applying the parking brake when stopping
.,. To apply the parking brake, pull the switch
¢page 66, Fig. 74.
Releasing the parking brake when driving
away
Important: The driver's door must be closed and
the driver's seat belt must be buckled.
.,. Press the accelerator in the normal way: the
parking brake will be released automatically
and the vehicle will start moving.
You can apply the parking brake when stopping at
traffic lights, etc. You do not then have to hold
the car with the brake pedal, as the parking brake
will stop it creeping forward while a gear is en­
gaged in the automatic transmission. When you
drive off in the normal way, the parking brake will
be released automatically and the vehicle will
start moving.
Driving away on a slope
When driving away on a gradient, the parking
brake auto release function prevents the vehicle
from rolling back unintentionally. The braking
force of the parking brake is only released when
there is enough power at the wheels to make the
vehicle move in the desired direction.
@ Note
For safety reasons the parking brake will only
release automatically if the driver's seat belt
is engaged in its buckle and the driver's door
is closed .
67

Downloaded from www.Manualslib.com manuals search engine 0
N
co
,-j
\D Lfl
N
Lfl
,-j hold
assist function tempt you into taking any
risks when driving -this can cause accidents.
- The hold assist cannot keep the vehicle sta-
tionary in all conditions on a gradient (e.g. if
the road is slippery or icy).
- Always ensure that the vehicle is stopped
properly and safely -risk of accident!
Switch off the hold assist function before
driving the vehicle into a car wash.
i Note
- The last setting of the hold assist (on/off} is
restored when the ignition is switched on.
The LED in the button is lit when the hold
assist is on.
- Automatic gearbox: When the hold assist
function is switched on, it stops the vehicle
from creeping forwards when you take your
foot off the brake pedal.
- In certain situations, the hold assist cannot
hold the vehicle. The LED in the button will
go out.
Hill hold assist
Applies to vehicles: with hill hold assist
The hill hold assist function makes it easier to
drive away on a slope.
Important: The driver's door must be closed, the
seat belt buckled and the engine running.
The system is activated when you press and hold
the brake pedal for a few seconds.
When you release the brake pedal the braking
force will be maintained for a moment in order to
hold the vehicle and make it easier for you to
drive away.
A WARNING
- The intelligent technology in the hill hold
assist function cannot defy the laws of phys­
ics. Do not let the extra convenience affor­
ded by the hill hold assist function tempt
you into taking any risks when driving -this
can cause accidents. Driving
- The hill hold assist function cannot keep the
vehicle stationary in all conditions on a gra­
dient (e.g. if the road is slippery or icy).
-If you do not drive away immediately after
releasing the brake pedal the vehicle could
start to roll back. You should therefore im­
mediately press the brake pedal or apply the
parking brake.
- If the engine should stall you must immedi­
ately press the brake pedal or apply the
parking brake.
- If you are driving away on a slope in stop­
and-go traffic press and hold the brake ped­
al for a few seconds before driving off. This
will prevent the vehicle from rolling back
unintentionally.
(I) Note
To find out whether your vehicle is equipped
with the hill hold assist function please con­
tact an Audi dealership or qualified workshop.
Kick-down feature
Applies to vehicles: with manual gearbox and efficiency mode
The kick-down feature is designed to give maxi­
mum acceleration.
If you press the accelerator right down past the
point of resistance at full throttle when the drive
select* function is set to efficiency* mode
¢ page 91, the engine power is automatically
controlled to give your vehicle maximum acceler­
ation.
A WARNING
Please note that if the road surface is slippery
or wet, the kick-down feature could cause the
driving wheels to spin, which could result in
skidding.
69

Downloaded from www.Manualslib.com manuals search engine Automatic
gearbox
Automatic gearbox
S tronic
Introduction
Applies to vehicles: with S tronic gearbox
The vehicle is equipped with an electronically
controlled dual-clutch gearbox (S tronic). Torque
between the engine and the gearbox is transmit­
ted via two independent clutches. They enable
smooth, uninterrupted acceleration of the vehi­
cle.
The gearbox shifts up or down automatically and
continuously adapts the timing of the gear
changes to your driving style.
When you drive at moderate speeds the gearbox
will select the most economical shift programme.
It will then change up early and delay the down­
shifts to give better fuel economy.
If you drive at higher speeds with heavy accelera­
tion, if you open the throttle quickly, or if you use
the kick-down or the car's maximum speed, the
gearbox will automatically select the more "spor­
ty" shift programmes.
If desired, you can also select the gears manually
(tiptronic mode).
Selector lever positions
Applies to vehicles: with S tronic gearbox
Fig. 76 Instrument cluster: Selector lever positions
The current selector lever position and the cur­
rent gear are shown in the infotainment display.
P - Parking lock
When the selector lever is in this position, the
driven wheels are locked mechanically. The park-
70 ing
lock must only be engaged when the vehicle
is stationary ¢.&. .
The interlock button (the button in the selector
lever handle) must be pressed in and the brake
pedal must be depressed before moving these­
lector lever either in or out of position P.
R - Reverse gear
Reverse gear must only be engaged when the ve­
hicle is stationary and the engine is idling ¢.&..
To move the selector lever to position R, press in
the interlock button and at the same time press
the brake pedal. The reversing light comes on
when the selector lever is in the R position with
the ignition on.
N - Neutral
In this position, the gearbox is in neutral.
DIS -Drive/Sport (standard position for
driving forwards)
In selector lever position D/S, the gearbox can be
operated in either the standard drive mode (D) or
in sport mode (S). To select sport mode (S), brief­
ly pull the selector lever back. The gearbox will
switch back to drive mode (D) if you pull these­
lector lever again. The selected driving mode is
shown on the infotainment display.
In the standard drive mode (D), the gearbox au­
tomatically selects the best gear ratio. This de­
pends on the engine load, the road speed and the
driving style.
Select sport mode (S) if you wish to take full ad­
vantage of the car's performance. This setting
makes use of the engine's maximum power out­
put. When accelerating the gear shifts may be
noticeable.
Press the brake pedal when moving the selector
lever from N to D/S if the vehicle is stationary or
at speeds below 2 km/h ¢ .&..
E - Efficiency*
In efficiency mode ¢ page 90, Audi drive select
(vehicle set-up functions), the gearbox selects ..,.

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... the
next gear at lower engine speeds. Earlier up­
shifts give improved fuel economy because the
full power reserves of the engine are not used.
In this mode, Eis shown on the display instead of
D ¢Fig. 76.
A WARNING
- The car can roll away even if the ignition is
switched off.
- Never move the selector lever to R or P
when driving, as this could cause an acci­
dent.
- In all selector lever positions except P the
vehicle must always be held with the foot
brake when the engine is running. This is be­
cause an automatic gearbox still transmits
power even at idling speed, and the vehicle
tends to "creep" -risk of accident!
- The accelerator pedal must on no account
be pressed inadvertently when a gear is en­
gaged with the vehicle stationary . The vehi­
cle could otherwise start moving immedi­
ately (in some cases even if the parking
brake is engaged) and possibly cause an ac­
cident.
- Do not press the accelerator while selecting
a gear with the vehicle stationary and the
engine running, as this could cause an acci­
dent.
- The driver should never get out of the vehi­
cle when the engine is running and a gear is
engaged. If you have to leave your vehicle
while the engine is running, you must apply
the parking brake and engage the parking
lock P.
- To avoid accidents, apply the parking brake
and put the selector lever in position P be­
fore opening the bonnet and working on the
vehicle with the engine running. Please ob­
serve the important safety warnings
¢ page 220, Working on components in
the engine compartment.
((D) Note
- Drive select: You can select the sport pro­
gram for gear changes by activating the dy- Automatic
gearbox
namic mode. The infotainment display will
show S instead of D.
- If the lever is moved accidentally to N when
driving, take your foot off the accelerator
and let the engine speed drop to idling be­
fore selecting Dor S again.
- It is not possible to move the selector lever
out of position P if the electrical power sup­
ply fails. In this case, the selector lever can
be released manually. Left-hand drive
vehicles ¢ page 78, right-hand drive
vehicles ¢ page 79.
Selector lever lock
Applies to vehicles: with S tronic gearbox
The selector Lever Lock prevents gears from being
engaged inadvertently, so that the vehicle is not
set in motion unintentionally.
•
Fig. 77 Selector lever lock
The sele ctor lever lock is released as follows:
... Switch on the ignition.
... Pr ess the brake pedal and at the same time
press in the interlock button.
Automatic selector lever lock
The sele ctor lever is locked in the P and N posi­
tions when the ignition is on. To move the selec­
tor lever out of these positions the driver must
press the brake pedal. To move out of position P,
the interlock button must also be pressed. The
following message appears in the display as a re­
minder for the driver when the selector lever is in
position P or N:
To select a gear please press brake pedal and in-
terlock button on gear selector lever
..,.
71

Downloaded from www.Manualslib.com manuals search engine Automatic
gearbox
The selector lever lock only works if the vehicle is
stationary or driving at speeds up to 2 km/h. At
higher speeds the selector lever lock in the N po­
sition is disengaged automatically.
The selector lever lock is not engaged if the selec­
tor lever is moved quickly through position N
(e.g. when shifting from R to D). This makes it
possible, for instance, to "rock" the vehicle back­
wards and forwards if it is stuck in snow or mud.
The selector lever lock engages automatically if
the brake pedal is not depressed and the lever is
in position N for more than about two seconds.
Interlock button
The interlock button on the selector lever handle
prevents the driver from inadvertently engaging
particular gears. The illustration shows the selec­
tor lever positions in which the button has to be
pressed, highlighted in colour¢ Fig. 77.
@ Note
- If the selector lever does not lock automati­
cally, a malfunction has occurred. In this
case, the power transmission is interrupted
to prevent the vehicle from moving uninten­
tionally. Proceed as follows to engage the
selector lever lock again:
- Press the brake pedal briefly.
- If the vehicle does not move forwards or
backwards even though a gear is selected,
proceed as follows:
- If the vehicle does not move in the desired
direction, the system may have failed to en­
gage the gear correctly. In this case, press
the brake pedal and select the gear again.
- If the vehicle still does not move in the de­
sired direction, a system malfunction has
occurred. Seek professional assistance and
have the system checked.
72 General
notes on driving an automatic
Applies to vehicles: with S tronic gearbox
The gearbox changes the forward gears up and
down automatically.
Fig. 78 Detail of the centre console: Selector Lever with in­
terlock button
The engine can only be started when the selector
lever is in P or N. In the case of low outside tem­
peratures (below -10 °(), the engine can only be
started when the selector lever is in position P.
Driving away from a standstill
� Press and hold the brake pedal.
� Press and hold the interlock button (the button
in the selector lever handle), set the selector
lever to the desired position (e.g. D) ¢ page 70
and release the interlock button.
� Wait for the gearbox to engage the gear (a
slight movement can be felt).
� Release the brake and press the accelerator
¢ A .
Stopping briefly
� Press the brake pedal to hold the vehicle when
stationary (for instance at traffic lights).
� Do not press the accelerator.
� To prevent the vehicle from rolling away, apply
the parking brake before moving off on steep
gradients ¢ A.
� As soon as you accelerate as normal with your
seat belt fastened, the parking brake will auto­
matically be released and the vehicle will start
moving.
Stopping/parking the car
If you open the driver's door while the selector
lever is not in position P, the vehicle can roll
away. The message Shift to P, otherwise vehicle
�

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D U'l
N
U'l
.... can
roll away. Doors do not lock if lever is not in
P appears on vehicles with convenience key*. A
buzzer will also sound.
,. Pr ess and hold the brake pedal¢ A_ .
,. Apply the parking brake.
,. Move the selector lever to P.
Stopping on a slope
,. Always keep your foot on the brake pedal to
hold the vehicle and prevent it from rolling
back down the slope ¢ A_ . Do not try to stop
the vehicle "rolling back" by increasing the en­
gine speed when a gear is engaged ¢(D.
Driving away on a slope (vehicles without hill
hold assist* / Audi hold assist*)
,. Apply the parking brake.
,. Once you have engaged a gear press the accel­
erator carefully. The parking brake will be re­
leased automatically if you are wearing your
seat belt.
Driving away on a slope (vehicles with hill
hold assist*)
,. Once you have engaged a gear, release the foot­
brake and press the accelerator ¢ page 69, Hill
hold assist.
Driving away on a slope (vehicles with hold
assist*)
,. Once you have engaged a gear, release the foot­
brake and press the accelerator ¢ page 68,
Hold assist.
In some situations (such as when driving on
mountain roads) it can be advantageous to
switch temporarily to the manual shift pro­
gramme so that the gear ratios can be selected
manually to suit the driving conditions
¢page 75.
On level ground it is sufficient to move the selec­
tor lever to P. On a gradient the parking brake
should be applied first and the selector lever
should be moved to P ¢ page 66. This reduces
the load on the locking mechanism and makes it
easier to move the selector lever out of position
P Automatic
gearbox
_&. WARNING
- The driver should never get out of the vehi­
cle when the engine is running and a gear is
engaged. If you have to leave your vehicle
while the engine is running, you must apply
the parking brake and engage the parking
lock P.
- If the engine is running and a gear is engag­
ed {D/S or R) or the vehicle is in "tiptronic"
mode, you will need to hold the car with the
footbrake. Otherwise, the car will "creep"
forwards as the power transmission is not
fully interrupted even when the engine is
idling.
- The accelerator pedal must on no account
be pressed inadvertently when the vehicle is
stationary . The vehicle could otherwise start
moving immediately (in some cases even if
the parking brake is engaged) and possibly
cause an accident.
- Do not press the accelerator while selecting
a gear with the vehicle stationary and the
engine running, as this could cause an acci­
dent.
- Never move the selector lever to R or P
when driving at normal speeds, as this could
cause an accident.
- Before you drive down a steep gradient, re­
duce the speed and use "tiptronic" to select
a low gear.
- Never allow the brake to drag when driving
downhill and do not use the brake pedal too
often or for long periods. Constant braking
will cause the brakes to overheat and will
considerably reduce the effectiveness of the
brakes. It will increase the braking distance
and could cause the brake system to fail.
- To avoid rolling back on gradients always
hold the vehicle with the footbrake or park­
ing brake if you have to stop.
- Never attempt to hold the vehicle with the
clutch when stopping on a gradient. The
clutch is disengaged automatically if it is
overloaded and becomes too hot -accident
risk! If the clutch is overloaded, the indica­
tor lamp [!l will light up and a message will
appear¢ page 77.
�
73

Downloaded from www.Manualslib.com manuals search engine Automatic
gearbox

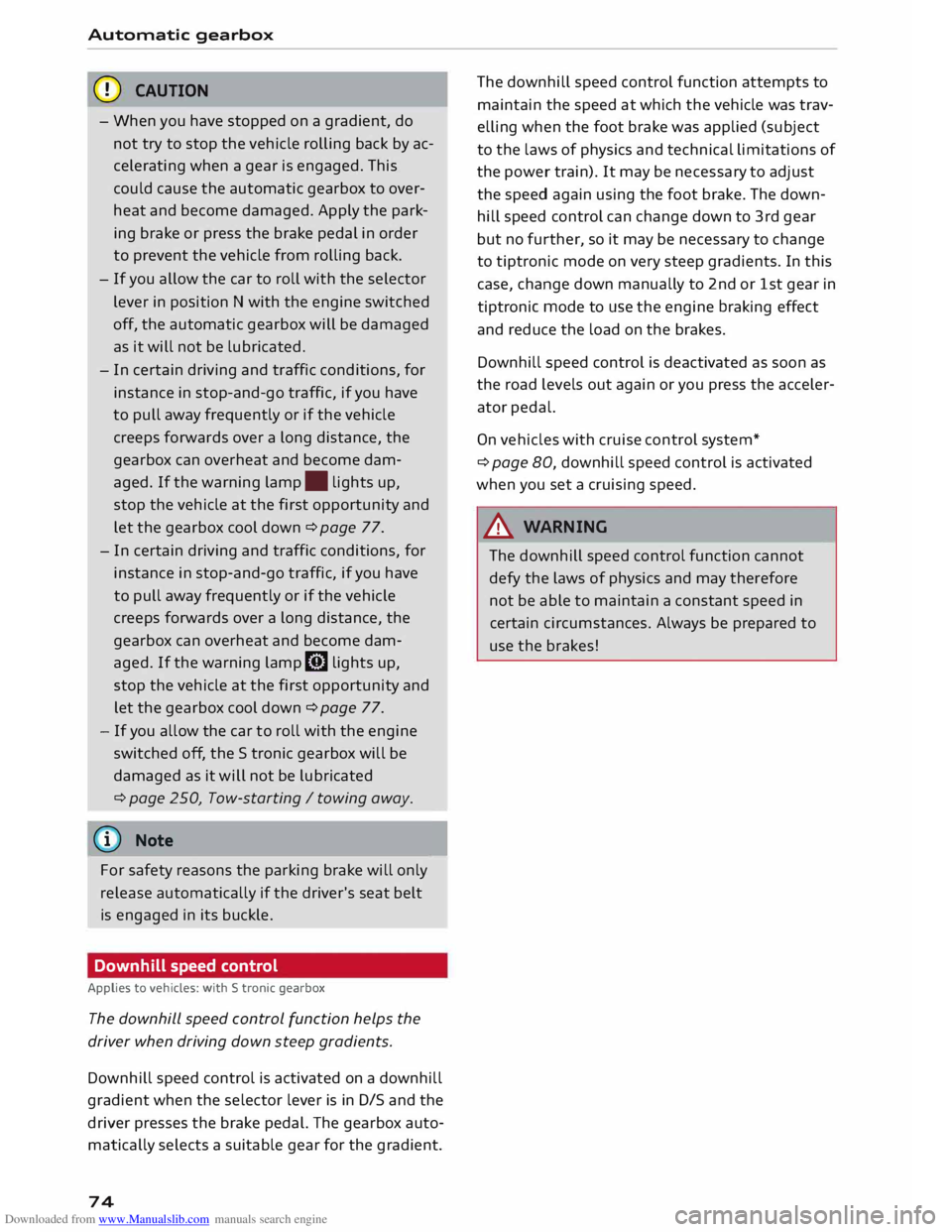

CD CAUTION
- When you have stopped on a gradient, do
not try to stop the vehicle rolling back by ac­
celerating when a gear is engaged. This
could cause the automatic gearbox to over­
heat and become damaged. Apply the park­
ing brake or press the brake pedal in order
to prevent the vehicle from rolling back.
- If you allow the car to roll with the selector
lever in position N with the engine switched
off, the automatic gearbox will be damaged
as it will not be lubricated.
- In certain driving and traffic conditions, for
instance in stop-and-go traffic, if you have
to pull away frequently or if the vehicle
creeps forwards over a long distance, the
gearbox can overheat and become dam­
aged. If the warning lamp. lights up,
stop the vehicle at the first opportunity and
let the gearbox cool down ¢ page 77.
- In certain driving and traffic conditions, for
instance in stop-and-go traffic, if you have
to pull away frequently or if the vehicle
creeps forwards over a long distance, the
gearbox can overheat and become dam­
aged. If the warning lamp� Lights up,
stop the vehicle at the first opportunity and
let the gearbox cool down ¢ page 77.
- If you allow the car to roll with the engine
switched off, the 5 tronic gearbox will be
damaged as it will not be lubricated
¢ page 250, Tow-starting I towing away.
(1) Note
For safety reasons the parking brake will only
release automatically if the driver's seat belt
is engaged in its buckle.
Downhill speed control
Applies to vehicles: with S tronic gearbox
The downhill speed control function helps the
driver when driving down steep gradients.
Downhill speed control is activated on a downhill
gradient when the selector lever is in 0/5 and the
driver presses the brake pedal. The gearbox auto­
matically selects a suitable gear for the gradient.
74 The
downhill speed control function attempts to
maintain the speed at which the vehicle was trav­
elling when the foot brake was applied (subject
to the laws of physics and technical limitations of
the power train). It may be necessary to adjust
the speed again using the foot brake. The down­
hill speed control can change down to 3rd gear
but no further, so it may be necessary to change
to tiptronic mode on very steep gradients. In this
case, change down manually to 2nd or 1st gear in
tiptronic mode to use the engine braking effect
and reduce the load on the brakes.
Downhill speed control is deactivated as soon as
the road levels out again or you press the acceler­
ator pedal.
On vehicles with cruise control system*
¢ page 80, downhill speed control is activated
when you set a cruising speed.
& WARNING
The downhill speed control function cannot
defy the laws of physics and may therefore
not be able to maintain a constant speed in
certain circumsta nces. Always be prepared to
use the brakes! -

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... Manual
gear selection (tiptronic mode)
Applies to vehicles: with S tronic gearbox/paddle levers
The tiptronic feature allows the driver to also
change gears manually.
Fig. 79 Centre console: Manual gear selection using selec­
tor lever
Fig. 80 Steering wheel: Manual gear selection with paddle
levers*
Gear selection with selector lever
The tiptronic mode can be selected either with
the vehicle stationary or on the move.
,.. From
position D/S, push the selector lever to
the right into the tiptronic selector gate to acti­
vate tiptronic mode. As soon as the automatic
gearbox has activated this mode, the letter M
will appear on the infotainment display
¢ page 70, Fig. 76; e.g. M4 means that the ve­
hicle is in 4th gear.
,.. Briefly
push the selector lever forwards 0
¢ Fig. 79 to change up a gear.
,.. Briefly pull the selector lever back 0 to change
down a gear.
Gear selection with paddle levers*
You can use the paddle levers when the selector
lever is in position D/S or M (= tiptronic selector
gate). Automatic
gearbox
,.. To shift up a gear, briefly pull the paddle lever
0 ¢Fig. 80.
,.. To shift down a gear, briefly pull the paddle lev-
er 0.
If you use the paddle levers when the selector
lever is in positions D/S, the gearbox will remain
in manual mode for a while. To switch back im­
mediately to automatic mode after changing
gears manually, pull the paddle lever 0
¢ Fig. 80 for approximately 1 second.
If you want to use the paddle levers permanently,
push the selector lever from position D/S to the
right into the tiptronic selector gate.
The gearbox automatically shifts up or down into
the next gear before a critical engine speed is
reached.
The gearbox only allows manual gear changes if
the engine speed would remain within the per­
missible range.
Kick-down feature
Applies to vehicles: with S tronic gearbox
The kick-down feature is designed to give maxi­
mum acceleration.
When the accelerator pedal is pressed right down
past the point of resistance at full throttle, the
gearbox will shift down to a lower gear, depend­
ing on road speed and engine speed. The upshift
to the next higher gear is delayed until the en­
gine reaches maximum rpm.
A WARNING
Please note that if the road surface is slippery
or wet, the kick-down feature could cause the
driving wheels to spin, which could result in
skidding.
Coasting mode
Applies to vehicles: with S tronic gearbox
In coasting mode, you can use the vehicle's kinet­
ic energy to drive without using the accelerator
on certain stretches of road. This saves fuel by al­
lowing you to take your foot off the accelerator
earlier and let the vehicle coast (for instance
.,...
75
