Instrument s and warning /indicator lights 13
can be switched on for about 30 seconds by
pressing the
I CH ECKi button ¢ fig. 6.
Starting the Auto-Check sequence
The Auto-Check system ¢ page 30 constant­
l y monitors certai n ind iv idual funct ions and
components of the ve hicl e when the ignit ion
is t urned on and when the vehicle is moving.
W ith the ignition turned on, you can start the
"Au to-C hec k seque nce" by p res sing the
I CH ECKi button. Yo u ca n pe rform an A uto­
Check sequence when the vehi cle is stationary
and the ign ition is turned on or when the vehi­
cle is mov ing not faster than
3 mph (5 km/h).
The number of keys progr ammed to the vehi­
cle is also displayed. The disp lay
3 \3 indicates
that th ree keys have been programmed . This
allows yo u to make sure you have rece ived a ll
of the keys when you purchase a used vehicle.
F or exam ple, if you on ly receive two keys, you
should take those keys to your a uth orized
Aud i dea ler to have the miss ing key deactivat­
ed so it cannot be used. You sho uld also re­
port the m issi ng key to your insurance compa­
ny.
Calling up the driver informati on
A yellow or red symbol appears in the instru­
ment cluster display, usua lly w ith a driver
message . T he driver message display disap­
pears after about 5 seconds. The driver mes­
sage can be displayed agai n by briefly press ­
in g the
!CHECK I button.
Setting the speed warning
By pressing the ICHECK I button briefly, yo u
can set thres ho ld 1 of the speed warning
while you are driving
o page 29 . By main­
tain ing press ure on the
I CHECK I button, you
de lete th e warning threshold .
Instrument cluster illumination
The basic brightness of the illumination for
the instruments, the center console and the
display can be adjusted.
Fi g. 7 In strument cluster ill um ination
.,. Press the"+" but ton to in cr ease the b right ­
ness during the hours of darkness.
... Press t he "-" button to dec rease the bright-
ness dur ing the hours of darkness.
A lig ht sensor in the instrument cl uster con­
tro ls t he illumination for the instrument clus­
te r, the center conso le and the displays . In a
bright env ironment, us ing the b uttons to
c hange the brightness has no effect .
{l) Tips
The illumination for the inst rument cluster
lights up w henever you switch on the igni­
tion with the vehicle headlights off. As the
day light fades, the inst rument cluste r illu­
mination l ikewise dims automa tica lly and
will go out comp let ely when the o utsi de
li g ht is very low. T his feature is meant t o
r emi nd you t o switch on t he he adlight s
whe n outs ide lig ht con ditions become
p oor .

•
Check engine oi l level
¢ page36
•
Engine oil sensor malfunc-
tion
¢page 36
111
Engine speed limitation*
¢page36
Ill
Diesel particu late filter*
clogged
.
¢page36
Ill
Adapt ive light* defective
¢page37
m
I gnition lock malfunction
¢page 37
m
Windshield wiper defective
¢page37
[I]
Tire pressure monitoring
system
L oss of air pressure
¢ page292
mm
Tire pressure monitoring
system
System not avai lab le
¢ page292
I!
Battery in remote contro l
key
¢page39
•
Automatic transmission malfunction
¢ page 141
2e Key not in vehicle
Applies to vehicles: with Convenience key
!I Key not in ve hicle
This reminder appears a long with the !I sym­
bo l if the master key is removed from the ve­
hi cle with the engine running.
It is intended
to remind you (e.g. when changing drivers) not to continue the journey w ithout the mas­
ter key.
If the master key is no longer in the vehicle,
you cannot sw itch
off the ignition after stop-
Dri ver information di spla y 35
ping the engine and you also cannot start the
engine again. What is more, you cannot lock
the ve hicle from the outs ide .
liP Light/rain sensor defective
£I Automatic headlights / automatic w ipers
d efe ctiv e
If the symbol i lluminates, the light sensor has
failed. For safety reasons the low beams are
turned on permanently with the switch in
AU­
T O . However, you can cont inue to turn the
l ights on and
off using the l ight sw itch. In the
case of a defect in the rain sensor, the wind­
shield wipe r lever functions a re still availab le.
Have the light/ rain senso r chec ked as soon as
poss ib le by an au thorized A udi dealer .
.-v ~,
O Windshield washer fluid level too low
II Plea se refill wa she r fluid
If the symbol illum ina tes, add w indshie ld
washe r fl ui d to the washer sys tem and also to
the headlight washer system¢
page 272.
fj)
Fuel supply too low
II) Ple ase refuel
When this symbol II) illuminates for the first
t ime, the fue l reserve in yo ur vehicle is s till
between 2.6 and 3.2 ga llons (10- 12 liters).
Ref uel as soon as possible¢
page 251.
If the symbol lights up, even when there is
amp le fue l in the tank, and the text
Tank sy s­
tem malfuncti on! Contact work shop
appears
in the disp lay, there is a fa ult in the system.
Contact a qualified workshop to have the fault
rect ified.
0 Battery voltage
If the battery's state of charge is not in the
optimal range, the(•] symbol is shown in the
display and the driver message
Low battery
charge : batt ery will be char ged whil e driving
appea rs. .,.

36 Driver in formation d isplay
While this driver notification is displayed, yo u
have to be prepared for limited starting capa­
b ili ty.
Driv er m essage appears and goes out
a ga in
If t his driver message appears after the igni ­
tion is turned on or while driving and it goes
out again after a while, the battery has been
adequately recharged.
Driv er m essage app ear s and do es not g o
out ag ain
If th is driver notification appears after the ig­
n ition is turned on or while driv ing and does
not go out again, the battery's state of charge
is not in the opt imal range . Starting capability
is restricted . Have the battery checked by an
author ized Audi dealer as soon as poss ible.
(0) Worn brake pads
EiJ Brak e pa ds !
If the war ning l ight illum inates, immediately
contact your authorized Audi dealer or quali­
fied workshop to have all brake pads inspect­
ed. On USA models the wa rning light
EiJ
comes on togethe r wi th the warn ing light
1111 . Both sets of brake pads on an axle
must always be replaced at the same time .
.&_ WARNING
Driv ing with bad brakes can cause a colli­
sion and serious personal injury .
-If the warning light EiJ and the warning
light
11111 ) with the message Brake
pads !
comes on in the instrument cluster
display, immediately contact your au­
tho rized Aud i dealer o r qualified work­
shop to have a ll brake pads chec ked or
replaced if necessary.
i.(D Headlight range control
II H eadli ght range c ontrol def ective !
l ) - : USA mod els only
-
If the symbol i lluminates, the dynamic head ­
li ght range control is no lo nger working prop­
erly. Have the system checked and repaired at
your authori zed Aud i dea ler.
~ .. Engine oil level
II Please check o il leve l
When the symbol i lluminates, check the en­
gine oi l leve l as soon as possible
<=> page 262.
Top off the oil at your earliest opportun ity
<=> page 263.
~ .... , Engine oil sensor defective
Ill Oil level ! Sensor d efe ct ive
If the symbol illuminates, contact your au­
thorized Audi dea ler and have the oil sensor
inspected . Until you have this done, check the
o il level each time you refue l just to be on the
safe side <=>
page 262.
! ?)
Engine speed limitation
Applies to vehicles: with engine speed limitation
Iii Do not exc eed ma x. engine speed of
XXXX rpm
T he Iii symbol illum inates when there is an
engi ne cont rol malf unct ion. The indicator
l igh t~ in the instr ument cluster a lso illumi­
nates. The engine speed is limited to the
speed displayed in the driver in format ion sys ­
tem. Keep in mind that the engine speed wi ll
not exceed the val ue d isplayed in the driver in ­
format ion system, for example when down­
shifting.
Please go to an authorized A udi dealer or oth ­
er qualified workshop to have the malfunct ion
repaired.
e, Diesel particulate filter clogged
Applies to vehicles: with diesel eng ine and diese l particu­
late filter
El Particulate filter See owner's manual

42 Openin g and clo sing
readiness light, located in the upper part of
the driver's door panel, will start to blink.
- T he vehicle interior lights turn off.
Unlocking and l ocking with Conven ience
k ey*
On vehicles which a re equipped w ith the C o n­
ve nience k ey*
authorization system, the
doors are unlocked without a key by means of
a proximity sensor in the door handle. The
doors are simi larly locked without a key using
the locking button. Each door has a proximity
sensor and a locking button .
Automatic l ock ing
The automatic locking feature locks all the ve­
hicle doors and the rear lid when you drive
faster than 9 mph (15 km/h). This function can be turned on and off in the MMI
C entr al
lo cking
Menu c:> page 44.
You can un lock the vehicle from the inside by :
- removing the key from the ign it ion sw itch
(the vehicle will automat ica lly unlock itself)
or
- pressing the unlock part of the power lock
switch @or
- pull ing the door handle (twice to open the
rear doors).
Unintent ionall y locking yourself out
In the following cases there safeguards to
prevent you locking your remote master key in
the vehicle :
- The veh icle does not lock with the power
locking sw itch
c:> page 44 if the driver's
door is open.
- On vehicles with Convenience key* , if the
most recently used master key is in the lug­
gage compartment, the rear lid is automati­
cal ly unloc ked aga in after it is closed.
Do not lock your vehicle with the
r e mot e m as ­
t e r k ey or Convenienc e key*
until all doors
and the rea r lid are closed. In t his way you
avoid locking yourse lf out accidenta lly.
A WARNING
- When you lock your vehicle from outside,
nobody- espec ially children -should re ­
main inside the vehicle . Remember,
when you lock the vehicle from the out­
side the windows cannot be opened from
the inside.
- When you leave the veh icle, always re­
move the ignition key and take it with
you . This will prevent passengers (chil­
dren, for example) from accidentally be ­
ing locked in the vehicle should they acci­
dentally press the power locking switch
in the front doors.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be imposs ible to open the doors from
the outside without the key.
(D Tips
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
matically unlocked to give access to the
vehicle occupants from the outside.
- If the power locking system sho uld mal­
function, you can lock each door individ­
ually using the vehicle key
c:> page 45 .
-If the power locking system shou ld fa il,
you can still open the fuel tank flap in an
emergency
c:> page 254 .
-You are well advised not to keep va lua­
bles inside an unattended vehicle, v is ible
or not. Even a properly locked vehicle
cannot p rov ide the secur ity of a safe .

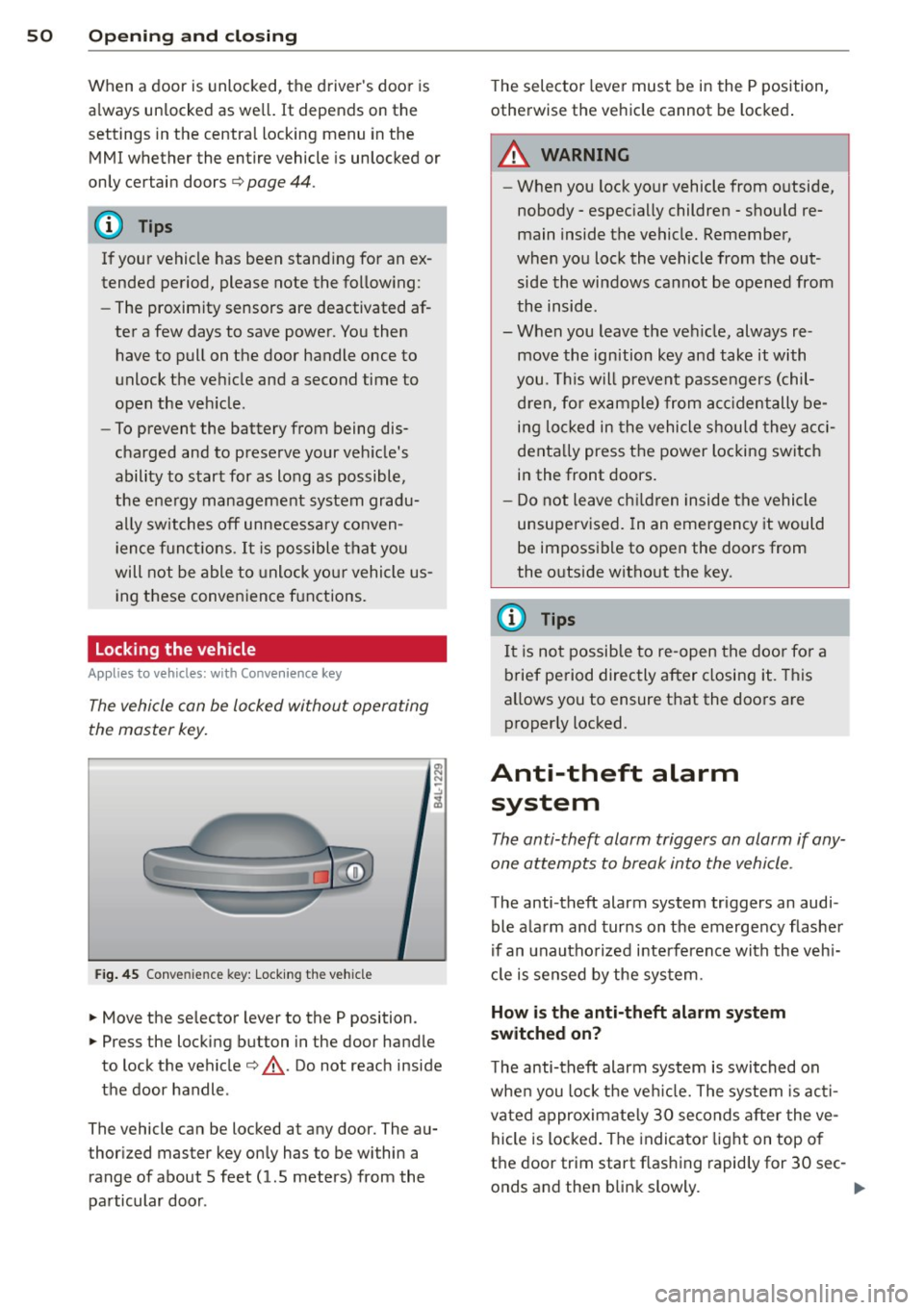

50 Openin g and clo sing
When a door is unlocked, the driver 's door is
a lways unlocked as we ll.
It depends on the
settings in the central locking menu in the
MMI whether the entire vehicle is unlocked or
only certain doors ¢
page 44.
{O) Tips
If your vehicle has been stand ing for an ex­
tended period, please note the following:
- The proximity sensors are deactivated af-
ter a few days to save power. You then
have to pull on the door handle once to
unlock the vehicle and a second time to
open the veh icle.
- To prevent the battery from being dis­
charged and to preserve your veh icle's
ability to start for as long as possible,
the energy management system gradu­
a lly switches off unnecessary co nven­
i ence f unct io ns.
It is possible that you
will not be able to unlock your vehicle us­
ing these convenience f unctions.
Locking the vehicle
A ppl ies to vehicles: with Conve nie nce key
The vehicle can be locked without operating
the master key.
Fig . 45 Conve nience key: Lock ing th e ve hicle
.. Move the se lector lever to the P position .
.. Press the locking button in the door handle
to lock the vehicle¢,&.. Do not reach inside
the door handle .
The vehicle can be locked at any door. The au­
thor ized master key on ly has to be within a
range of about 5 feet (1.5 meters) from the
pa rticular door . T
he selec tor lever must be in the P position,
otherwise the ve hicle cannot be locked .
A WARNING
--When you lock yo ur vehicle from o utside,
nobody - espec ia lly children - shou ld re­
main inside the vehicle. Remember,
when you lock the vehicle from the out­
side the wi ndows cannot be opened from
the inside.
- When you leave the veh icle, always re­
move the ign ition key and take it with
you. This will prevent passengers (chil­
d ren, fo r ex ample) from acci dentally be­
i n g lo cked in the vehicle shou ld they acci­
denta lly press the power locking switch
in the front doors.
- Do not leave ch ildren inside the vehicle
unsupervised. In an emergency it would
be impossible to open the doors from
the o utside witho ut the key.
(J} Tips
It i s no t possible to re -open the doo r fo r a
brief pe riod directly after closing it. This
allows you to ensure that the doo rs are
properly locked.
Anti-theft alarm system
The anti-theft alarm triggers an alarm if any­
one attempts to break into the vehicle.
The anti-theft alarm system triggers an audi­
ble ala rm and turns on the emergency flashe r
if an unautho rized interfe rence with the veh i­
cl e is sensed by the sys tem.
How is the anti-theft alarm system
switched on?
T he anti-theft alarm system is switched on
whe n you lock the ve hicle. The system is ac ti­
vated approximate ly 30 seconds after the ve­
hicle is locked. The indicato r ligh t on top o f
the door trim start flashing rapid ly for 30 sec -
onds and then blink slowly. ..,.

Clear vision Lights
Switching the headlights on and off
In the "AUTO" posit ion, a light sensor auto·
matically switch es t he head · and taillights on
and off in r espons e to light conditions .
Fig. 53 Instrumen t pane l: lig ht sw it c h
The ligh t sw itch m ust not be overturned pas t
the stops in
eit her direct ion .
Sw itching on automatic headlight control
,.. Turn the light switch to AUTO ¢ fig. 53.
Sw itching on the side m ark e r lights
,.. Turn the light switch to ,oo::.
Sw itching on the headlights and high
be am
,.. Turn the light switch to tD .
,.. Push the high beam lever forward toward s
the instrument panel¢
page 60 .
Swi tching off the light s
,.. Turn the light switch to 0.
The headlights only wo rk when the ignition is
sw itched on . While s tart ing the engine or
when switching
off the ignition, the head ·
lights will go
off and on ly the s ide marker
lights will be on .
Afte r star ting t he engine, the headlights are
automatically adjusted * to the load and angle
of the vehicle (for example, during accelera ·
tion, braking). This prevents oncom ing traffic
from experiencing unnecessary headlight glare from your headlights.
Clear vi sion 5 7
If the system is not ope rat ing properly, a
warning symbol in the Auto-Check Control is displayed ¢
page 36.
With the side m arker ligh ts or he ad ligh ts
switched on, the symbol next to the light
sw itch i lluminates
:o o:: .
Daytime running lights
- USA model s:
The daytime runn ing lights
w ill come on au tomatically whe n the igni­
tion is turne d on and the l ight sw itch
¢
fig. 53 is in the O position or the AUTO po ­
sition (only in daylight conditions) . The
Day­
time running lights
function can be turned
on and
off in the MMI menu E xter ior l ight ­
ing ¢
page 58.
-Canada models: The dayt ime running lights
w ill come on automatically when the igni·
tion is turned on and the light switch
¢
fig . 53 is in the O position o r the AUTO po ­
sition (only in daylight condit ions) ¢ .&. .
Automatic headlight control
In the switch position AUTO the automatic
headlight control
i s turned on. The low
beams and tail lights are turned on automati­
ca lly through a light sensor as soon as amb i­
ent b rightness (e.g . when driving into a t un­
nel) fa lls below a value p reset a t the factory.
When ambien t brightn ess increases ag ain ,
the low beams are turned
off ag ain autom ati­
ca lly ¢ .&. .
In the
AUTO posi tion the low beams a re
swi tched
off au tom ati cally when the igni tion
is tur ned
off .
Light Sensor Malfunction
In the event of a light sensor malfunction , the
dr ive r is notified in the instrument cluster dis­
play:
g Automatic headlights / automatic w ipers
defective
For safety reasons the low beams are t urned
o n permanently wi th the switch in
AUTO .
However, you can conti nue to turn the lights
o n and
off using the light switch . Hav e the II>

58 Clear vis ion
lig ht sensor checked as soo n as poss ible at an
author ized Audi dealer or qua lified wor kshop .
.&_ WARNING
-Daytime ru nning lights and automatic
headlights are only intended to assist
the driver. They do not relieve the driver
of his respons ib ility to check the head­
lights and to turn them on manually ac­
co rding to the current light and v is ibi lity
condit ions. For example, fog cannot be
dete cted by the light sensors*. So alw ays
switch on the headlights
io u nder these
weather conditions and when driving in
the dark.
- Crashes can happen when yo u cannot see
the road ahead and when you cannot be seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see yo ur car from
the back.
- Please obey a ll laws when using the
lighting systems described here.
@ Tips
- With the switch in AUTO front fog lights
and rear fog lights cannot be turned on in addition.
- The light senso r for headlight contro l is
l ocated in the rear view m irror mount.
You should therefore not app ly any st ick­
ers to the windsh ield in this area in o rder
to preve nt ma lfunctions o r failures.
- Some exterior lighting functions can be
adjusted
c:> page 58.
-When you remove your key from the igni­
tion while the vehicle's lights are turned
on, a buzzer sou nds as long as the driv­
er's door is open .
- In coo l o r damp weather, t he ins ide of
t h e headlights, turn signa ls and tail
li ghts can fog ove r du e to t he tempera­
tu re diffe re n ce between the inside and
outside. They will cle ar sho rtly after
swi tching them on. This does not affect
t h e service li fe of the lighting . -
In the event o f a light sensor malfunc­
tion, the driver is notified in the instru­
ment cl uster display
c:> page 35 .
Adjusting exterior lighting
The functions are set in the MMI.
• Sele ct: I CAR I function butt on > System s*
control but to n > Exterior lighting . Or
.. Select:
I CAR I function button > Car systems *
contro l butto n > Vehicle settings > Exterior
lighting .
Coming home (Lights when leaving car ),
Leaving home (Lights when unlock ing car )
The coming home f unction ill uminates the
area o utside the vehicle when you tu rn the ig­
nition off and open t he driver's door. Depend­
ing on vehicle equ ipment, the f unction can be
switched on and off or the length of t i me the
lights remain on* can be adjusted .
The leaving home illum inates the area outside
t h e ve hicle when yo u unlock the vehicle . This
funct ion can be switched on and off .
The Coming home and Leaving home func­
tions only operate when it is dark and the light switch is in the
AUTO pos ition.
Daytime running lights
USA model s: The daytime r unning lights can
be turned on or off using th is function.
Canada model s: Th e fu nction cannot be
turned off .
It is activated automatically each
time the ignition is t urned on. This menu item
is shown "greyed out" .
Front fog lights
Fig. 54 Instrument pa nel: light switch

Sun shade
Applies to vehicles: with sun shade
The windows in the rear doors and the rear
window ore each equipped with a sun shade .
Fig. 63 Sun shade p ulled up on a rea r window
Fig . 6 4 Sun shade p ulled up on th e rear lid w in d ow
Sun shade (rear doors )
~ Pull the shade out and hang it in the b racket
on the upper door frame
r=;-, fig. 63 .
Sun sh ade (rear window )
~ Pull the shade out and hang i t in the bracket
on the rear lid frame
c> fig . 64 .
Clear vision 63
Wiper and washer
system
Switching the windshield wipers on
The windshield wiper lever controls both the
windshield wipers and the washer system.
F ig . 65 W inds hield w ipe r leve r
The windshield wiper l ever r=;-, fig. 65 has the
follow ing positions:
Acti vating rain sensor
~ Move the lever up to posit ion (!) .
~ Move switch @up or dow n to ad just the
sensitivity of the rain sensor.
L o w wiper speed
~ Move the lever up to posit ion @.
High w ipe r speed
~ Move the lever up to posit ion @.
One-touch wiping
~ Move the lever to position @ , when you
want to wipe the windshield
briefly .
Automat ic wiper /wa sher
~ Pull the lever to position ® (toward the
s t eer ing whee l) and hold.
~ Release the Lever . The washer stops and the
w ipers keep go ing for about four seconds.
Depending on how long the Lever is held ,
different numbers of wash cycles are per­
formed .
Turning off the w ipe rs
~ Move the lever back to position @ .
