2014 AUDI Q5 sensor

168 Airbag system
Monitoring the
Advanced Airbag System
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN ­
GER AIR BA G OFF
light.
The Advanced Airbag System (including the
electronic control unit, sensor circuits and sys­
tem wiring) is monitored continuously to
make sure that it is functioni ng properly
whenever the ignit ion is on. Each t ime you
turn on the ignition, the airbag monitoring in­
d icator light
fl will come on fo r a few seconds
(self diagnosti cs) .
The system must be inspected when the
indicator light
fl:
- does not come on when the ignit ion is
swit ched on,
- does not go out a few seconds after yo u
have swi tched on the ign ition, o r
- comes on w hile d riving .
If an airbag system malfunction is detected,
the indicator light will first start flash ing to
catch the driver's atte ntion and then stay on
continuously to se rve as a constant reminder
to have the system inspected immediately .
If a malfunction occurs that turns the front
a irbag on the passenger side off, the
PASSEN­
GER AIR BAG OFF
li ght will come on and stay
on whenev er the ignition is on.
A WARNING
An air bag system that is not func tioni ng
prope rly ca nnot provide supplemen tal p ro­
t ect ion in a fron tal cr ash .
-If the airbag indic ator light¢ p age 1 6
comes whe n the vehicle is be ing used,
have t he system inspected immediate ly
by yo ur aut ho rized Aud i dea ler . It is pos­
sible that the a irbag will inf late when it
is not s upposed to, or w ill not inflate
when it should.
PASSENGER AIR BAG OFF l ight
Fig . 168 Sec tion fro m the instr ument pa ne l: PASSEN ­
GER AIR SAG OFF lig ht
T he PASSENGER AIR BAG OFF light is loca ted
i n the center of t he in st rument p anel
¢fig. 168 .
The PASSENGER AIR BAG OFF light w ill come
o n and stay o n to tell you w hen the front Ad ­
van ced Air bag o n the pas senge r side has been
tu rned off by the ele ct ronic contro l uni t. Each
t ime you turn on the ignition, the
PASSEN­
GER AIR BAG OFF
light will flas h for a few
seconds and:
- will stay on if the front passenger seat is not
occupied,
- wil l sta y on if t here is a small ch ild or child
restrai nt on the front passenge r seat,
- will go out i f th e front p assenge r sea t is oc­
cupied by an adult as registered by the
weight -sensing mat .
T he
PASSENGER AIR BAG OFF light must
come on and stay on
if the igni tion is on and
- a car bed has been installed on the front
seat, or
- a rearward-facing child restraint has been
installed on the front passenger seat, o r
- a forward-fac ing ch ild restra int has been in­
s talled on the front passenger seat, or
- the weight reg iste red on the front passen­
ger seat is equal to or less than t he com­
b ined weight of a typical 1 year -o ld restra in­
ed in one of the rea r-facing or forwa rd-fac­
ing infant restra ints listed in Federal Motor
Veh icle Safety Stan dard 208 wi th wh ich the
Advanced A irbag System in you r vehicle wa s
cert ified.
II>-

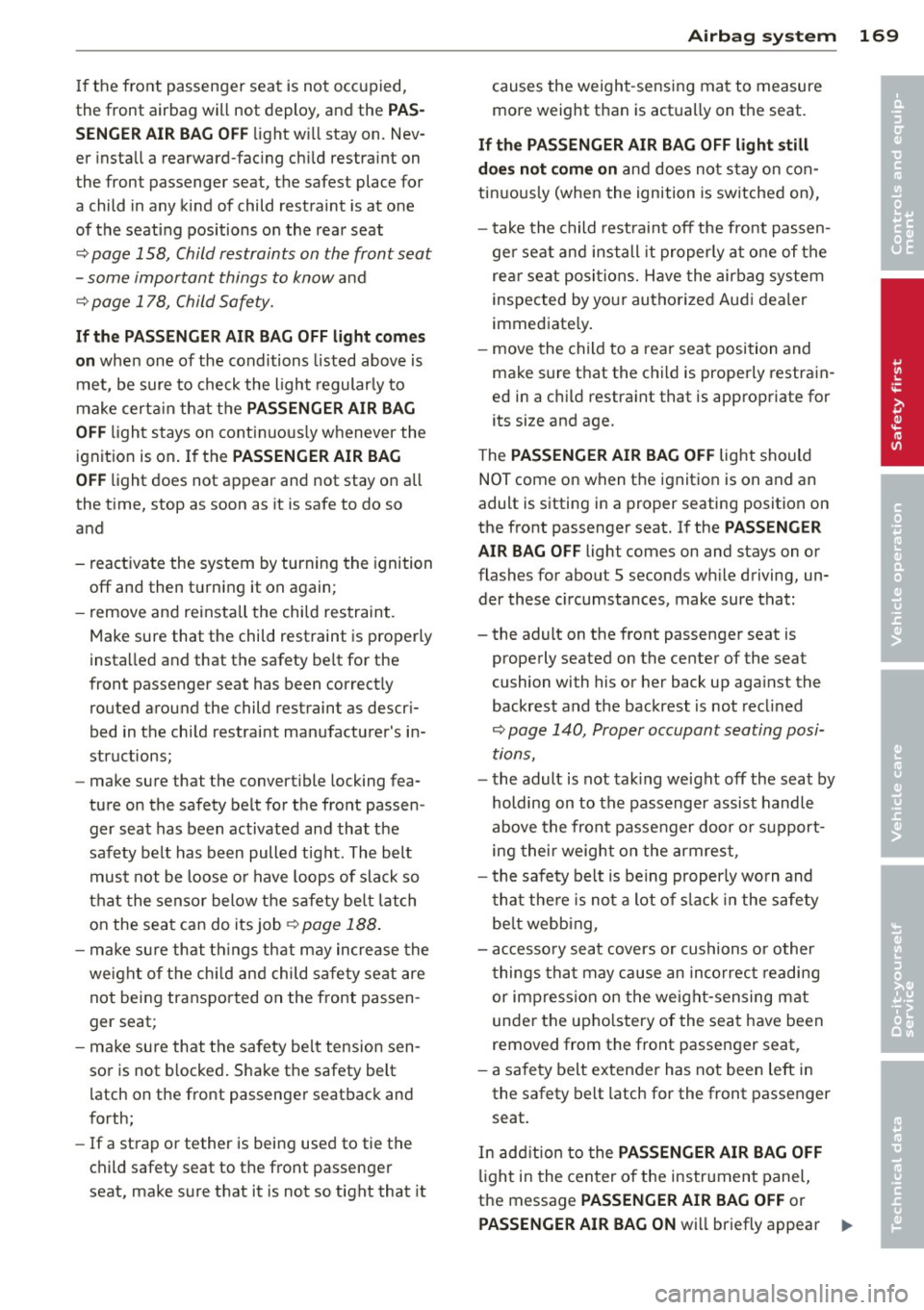

If the fron t passenger seat is not occupied,
the front airbag will not deploy, and the
PAS­
SENGER AIR BAG OF F
light will stay on. Nev­
er in sta ll a rearward-fac ing ch ild restra int on
t he fron t passenger seat, the safest place for
a child in any kind of child restraint is at one
of the seating positions on the rear seat
¢ page 158, Child restraints on the front seat
- some important things to know
and
¢ page 178, Child Safety .
If the PASSENGER AIR BAG OFF light c om es
on
when one of the conditions listed above is
met, be sure to check the light regularly to
make certa in that the
PAS SENGER AIR BAG
O FF
light stays on cont inuous ly whenever the
ignition is on . If the
PASSENGER AIR BAG
OFF
light does not appear and not stay on all
the time, stop as soon as it is safe to do so
and
- reactivate the system by turning the ignition
off and then t urning it on again;
- remove and reinstall the child restraint .
Make sure that the child restraint is properly
installed and that the sa fety be lt for the
front passenger seat has been correct ly
routed around the child restraint a s desc ri­
bed in the child restraint manufacturer 's in­
structions;
- make sure that the convertible locking fea­
ture on the safety be lt for the front passen ­
ger seat has been activated and that the
safety belt has been pulled tight . The belt
mus t not be loose o r have loops of slack so
that the sensor below the safety be lt latch
on the seat can do its job ¢
page 188.
-make su re that th ings that may increase the
weight of the ch ild and child safe ty seat are
not being transported on the front passen ­
ger seat ;
- make su re that the safety bel t tension sen ­
sor is not b locked . Shake t he safety belt
l atch on the front passenger seatback and
forth;
- If a strap or tether is being used to tie the
child safety seat to the front passenger
seat, make sure that it is not so tight that it
A irbag system 169
causes the weight -sensing mat to measure
more weight than is act ually on the seat .
If the PASSENGER AIR BAG OFF light still
d oes not come on
and does not stay on con ­
tin uous ly (when the ignition is switched on) ,
- take the child rest ra int off the front passen-
ge r seat and install it properly a t one of the
rear seat positions. Have the airbag system
inspected by yo ur authorized Audi dealer
immediate ly .
- move the child to a rear seat position and
make sure t hat the child is properly restrain­
ed in a c hild restra int that is appropriate for
its size and age.
T he
PASSENGER AIR BAG OFF light sho uld
NOT come on when the ignition is on and an
adult is sitting in a proper seating position on
the front passenger seat. If the
PASSENGER
AIR BAG OFF
ligh t comes on and stays on or
flashes for about 5 seconds wh ile driving, un­
der these c ircumstances , make sure that:
- the adult on the front passenger seat is
properly seated on the center of the seat
cushion wi th his or her back up aga inst the
backrest and the backrest is not recl ined
¢ page 140, Proper occupant seating posi­
tions,
- the adult is not tak ing weight off the seat by
holding on to the passenger assist handle
above the front passe nger door or support ­
ing their weight on the armrest ,
- the safety belt is being properly wo rn and
tha t there is not a lot of s lack in the safety
be lt webbing ,
- ac cesso ry seat covers or cushions o r other
t hings tha t may cause an incorrect reading
or impression on the we ight-sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat,
- a sa fety belt exten der has not been left in
the safety belt latch for the front passenger
seat.
In add it ion to the
PASSENGER AIR BAG OFF
li ght in the cente r of the instrumen t panel,
the message
PASSENGER AIR BAG OFF or
PASSENGER AIR BAG ON wi ll briefly appear ll-
•
•

172 Airbag system
dealer is familiar with these requirements
and we recommend that you have your
dealer perform this service for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem performs in a crash. For example, using
tire-rim combinations not approved by Audi, lowering the vehicle, changing the stiffness of
the suspension, including the springs, suspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag
sensors and sent to the electronic control
unit. Some suspension changes can, for exam­ ple, increase the force levels measured by the
sensors and make the airbag system deploy in
crashes in which it would not deploy if the
changes had not been made . Other kinds of
changes may reduce the force levels meas­
ured by the sensors and prevent the airbag
from deploying when it should.
The sensors in the safety belt buckle for the
driver and front passenger seat tell the elec­
tronic control module if the safety belt is
latched or not.
If the safety belt is being used,
the front airbag will deploy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular collision, it is possible that an airbag
will not deploy at a seating position where the
safety belt is being used but will inflate at the
position where the safety belt is not being
used. It is important that nothing interfere
with the safety belt buckles so that the sen­
sors can send the correct information about
safety belt use to the electronic control unit.
A WARNING
Changing the vehicle's suspension includ­
ing use of unapproved tire-rim combina­
tions can change Advanced Airbag per­
formance and increase the risk of serious
personal injury in a crash.
- Never install suspension components
that do not have the same performance characteristics as the components origi­
nally installed on your vehicle.
- Never use tire-rim combinations that
have not been approved by Audi.
A WARNING
= -
Items stored between the safety belt
buckle and the center console can cause
the sensors in the buckle to send the
wrong information to the electronic con­
trol module and prevent the Advanced Air­
bag System from working properly.
- Always make sure that nothing can inter­
fere with the safety belt buckles and that
they are not obstructed.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fig. 169 Side a irbag location in the driver's seat
The side airbags are located in the sides of the
front seat backrests¢
fig. 169 and the rear
backrest* facing the doors. They are identified
by the word "AIRBAG".
The side airbag system basically consists of:
-the electronic control module and external
side impact sensors
- the two airbags located in the sides of the
front backrests and the two airbags* located
in the rear backrest
- the airbag warning light in the instrument
cluster.
The airbag system is monitored electronically
to make certain that it is functioning properly ..,.

at all times. Each time you turn on the igni­
tion, the airbag system indicator light will
come on for a few seconds (self diagnostics).
The s ide a irbag sys tem supp lements the safe­
ty belts and can help to reduce the risk of in ­
jury to the driver's and front passenge r's up­
per torso on the side of the vehicle that is
struck in a side co llision. The airbag deploys
only in s ide impacts and on ly when the veh icle
acceleration registered by the control u nit is
h igh enough . If this rate is below the refer­
ence va lue programmed into the control un it,
the side airbags will not be triggered, even
though the ca r may be badly damaged as a re ­
sult of the collision .
It is not possible to de­
fine an ai rbag triggering range that will cover
every possible angle of impact, since the cir­
cumstances wi ll vary considerably between
one co llision and another. Important factors
include, for examp le, the nat ure (hard or soft)
of the impacting object, the ang le of impact,
veh icle speed, etc. c::>
page 174, Important
safety instructions on the side airbag system.
Aside from the ir norma l safety function, safe­
ty belts work to he lp keep the driver or front
passenger in posit ion in the event of a side
coll is ion so that the side a irbags can provide
p rotection.
The airbag system is
not a substitute for your
safety bel t. Rathe r, it is pa rt of the overall oc­
cupant restraint system i n your veh icle . Al­
ways remember that the side airbag sys tem
can only he lp to p rotec t you if yo u are wear ing
your safety belt and wear ing it properly. This
is another reason w hy you sho uld a lways wear
your safety belts, not just beca use the law re­
q uir es you to do soc::>
page 149, General
notes.
It is important to remember that while the
supp lemental side a irbag system is designed
to reduce the like lihood of serious injur ies,
other in juries, for example, swell ing, bruising,
and minor abras ions can also be associated
w ith deployed s ide a irbags. Remember too,
side a irbags w ill deploy on ly once and o nly in
certain kinds of accidents - you r safety belts
are a lways there to offer prote ction.
A irbag system 173
Vehicle damage, repair costs o r even t he lack
of ve hicle damage are not necessarily a n indi­
cation o f ove r-sensitive or failed airbag activa­
tion. In some coll is ions, both front and side
airbags may i nflate. Remember too, that air­
bags will deploy only o nce a nd only in certain
ki nds of coll is ions -your safety belts are al­
ways t he re to offe r protection in those acc i­
den ts in which a irbags a re no t supposed to
deploy or when they have already deployed .
The side airbag system will not deploy:
-when the ignit io n is turned off
- in side co llisions whe n the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear -end co llisions
- in rollove rs .
In some types of ac cidents the front airbags,
s ide cu rtain air bags and s ide air bags may be
trigge red togethe r.
&_ WARNING ~
- Safety belts and the airbag system wi ll
only provide protection when occupants
are in the proper seating position
c::>page 174.
-If the airbag ind icator light c::> page 16
comes when the veh icle is being used,
have the system inspected immediate ly
by your authorized Audi dealer. It is pos­
sible t hat the airbag will inflate when it
is not supposed to, or will not infla te
when it should.
•
•

-Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates .
- Never place or attach accessories or
other objects (such as cupholders, tele­
phone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat
backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys .
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position .
- Always use the built -in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side a irbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be trigge red
once.
If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership .
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must
always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident ~ page 178, Child Safety .
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in ­
side the doors when air escapes through
Airbag system 175
larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed .
- Never drive when parts have been re­
moved from the inside door panel and
the open ings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been p roperly
closed.
- Always make certain that openings are
covered or filled if additiona l speakers
or other equipment is installed in the
inside door panels .
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag sy stem can provide
supplemental protection to properly restrain ­
ed occupants .
e R
'
a: a, m
Fig. 171 Side curta in syst em , dri ver's side: sid e cur tain
airb ag loc ation
The side curtain airbags are located on both
sides of the interior above the front and rear
side windows ~ fig . 171 . They are identified
by the word "AIRBAG" on the windshield
frame and the center roof pillar.
T he side curtain airbag system supplements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck .,.

17 6 Airbag syst em
in a side collision. The side curtain airbag in­
f lates in side impacts and on ly when the vehi­
cle acce lerat ion reg istered by the contro l unit
is high enough. If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
sult of the collision.
It is not possible to de­
fine an a irbag tr igger ing range that will cover
every possible angle of impact, since the c ir­
cumstances w ill vary considerably between
one co llision and another . Important factors
include, for examp le, the nat ure (hard or soft)
of the impacting object, the ang le of impact,
vehicle speed, etc.
c:> page 176, How side cur­
tain airbags work.
Aside from their normal safety function, safe­
ty belts work to he lp keep the driver or front
passenger in position in the event of a co lli­
sion so that the side curtain airbags can pro­
vide p rotection.
The airbag system is not a subst itute for your
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your veh icle. Al­
ways remember that the airbag system can
only help to protect you if you are wea ring
your safety be lt and wear ing it prope rly. This
i s ano ther reason why you shou ld always wear
your safety be lts, not jus t be ca use the law re­
qu ires you to do soc;,
page 149, General
notes.
It
is important to remember that whi le the
side curtain a irbag sys tem is designed to he lp
reduce the like lihood o f serious injuries, other
inj uries, for example, swelling, bruising, and
minor abrasions can also be associated with
these airbags. Remember too, these airbags
will dep loy only once and only in certain k inds
of acc idents - your safety belts are always
there to offer protection.
The side curtain airb ag system b asic all y
consists of:
- The electronic control module and externa l
s ide impact sensors
- The side curtai n airbags above the front and
rear side w indows -
The airbag indicator light in the instrument
panel
T he airbag system is mo nitore d elec tronically
to make certain i t is func tioning properly at all
t imes . Each t ime yo u turn on the ignition, the
airbag system indicator light will come on for
a few seconds (sel f diagnostics).
The side curtain airbag is not activated:
- if the ignition is tur ned off,
- in side co llisions whe n the accele ration
mea sured by the sensor is too low,
- in rear-end col lisions.
A WARNING
- Safety belts and the airbag system will
only provide pro te ction when occupant s
are i n the proper seating posi tion
c:>page 61, General recommendations.
- If th e airbag ind ic a tor light c:>page 16
comes when the veh icle is being used,
have the system ins pected immediately
by your authorized A udi dealer. It is pos­
sible that the airbag will inflate when it
is not supposed to, or will not inflate
when it should.
How side curtain airbags work
Side curtain airbags can work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
Fi g. 172 Illustration of p rinciple: I nflated side curtai n
a irbags on the left side
The side c urtain airbags inflate be tween the
occupant and the windows on the s ide of the
Ill-

-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be
adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety
Child Safety 1 79
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­ cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight -sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the ..,.
•
•

180 Child Saf ety
seat. The weight of a child restraint and its
"footprint" vary for different kinds of chi ld re­
straints and for the d ifferent models of the
same kind of child restraint offered by child
restra int manufacturers .
The weight ranges for the individual types, makes and mode ls of ch ild restra ints that the
NHTSA has specified in the Safety Standard
together with the we ight ranges of typical in­
fants and typical 1 year-old child have been
stored in the control unit of the Advanced A ir­
bag System. When a ch ild restrai nt is being
used on the front passenger seat with a typi ­
cal 1 yea r-old ch ild, the Advanced Airbag Sys­
tem compares the we ight measured by the
weight sensing mat with the in formation stor­
ed in the electronic contro l unit.
The ele ctron ic cont rol unit also registers the
tension on the front passenge r safety belt.
The tension on the safety be lt fo r the front
passenger seat will be different for an ad ult
who is properly using the safety belt as com­
pared to the tension on the be lt when it is
used to attach a child restraint to the seat.
The sensor below the latch for the safety belt
for the front seat passenger measu res the
tension on the be lt . T he input from this sen­
sor is then used with the we ight to "dec ide",
whe ther there is a ch ild restraint w ith a typ ica l
1 year-o ld child on the front passenger seat
and whether or not the airbag must be turned
off .
Child restraints and Advanced Airbags
Regardless of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards a nd has been certified by its manu­
facture r fo r u se w ith an airbag . Always be s ure
that t he ch ild res traint is p rope rly insta lled at
one o f th e rear seat ing pos itions . If in excep­
tional c ircu mstances you must use it on the
front passenger seat, caref ully read all of the
info rmation on c hild safety and Advanced Air­
bags and heed a ll of the applicable WARN­
INGS. Make certain that the child restraint is
correctly recognized by the weig ht-sensing mat
inside the front passenger seat, that the
front passenger airbag is turned off and that
the a irbag stat us is a lways cor rect ly signa led
by the
PASSENGER AIR BAG OFF light.
Many types and models of child res traints
have been available over the years, new mod­
els are introduced regu larly incorporating new
and improved des igns and o lder models are
taken out of product ion. Ch ild restraints are
not standard ized . Child restraints of the same
type typically have d ifferent weights and sizes
and diff erent 'footpr ints,' the s ize and shape
of the bo ttom of the ch ild restra int that sits
o n t he seat, when they a re inst alled on a vehi­
cle sea t. Th ese d ifferences make i t vir tually
impossible to certify compliance with the re ­
quirements for advanced airbags with eac h
and every ch ild restra int that has ever been
sold in the past or will be sold over the course of the useful life of your veh icle.
For t his reason, the United States National
Highway Traffic Safety Adm inistrat ion has
published a list of spec ific type, makes and
models of child restraints that mus t be used
to certify comp liance of the Advanced Airbag
System i n your veh icle w ith the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These chi ld restraints are :
Subpart A - Car bed child restraints
Model Manufactured on or
after
A ngel Guard A ngel September 25, 200 7
R ide AA 2403FOF
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Ce ntury Smart Fit Decembe r 1, 1999
4543
Cosco Arriva September 25, 2007
22-013PAW and base 22-999WHO
E venflo Discovery Ad -December 1, 1999
just Right 212
