2014 AUDI A6 sensor

therefore best to avoid rough tracks and un ­
even terrain as much as possible . Also refer to
<=:> page 203.
A WARNING
Always adjust your driving to road and traf­
fic conditions. Do not let the extra safety
afforded by all-wheel dr ive tempt you into
taking extra risks.
- Although the all-wheel dr ive is very ef­
fective, a lways remember that braking
capacity is limited by t ire traction . Yo u
should therefore not dr ive at excessive
speeds on icy or slippery road su rfaces.
- On wet road su rfaces, be careful not to
dr ive too fast because t he fro nt wheels
c ou ld beg in to s lide on top of the wa ter
(aq uaplaning). If this sho uld occ ur, you
will have no warning from a sudden in ­
crease in engine speed as with a front ­
wheel drive vehicle. A lways drive at
speeds wh ich are suited to the road con­
ditions -risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimi zes the
availability of electrical energy for starting the engine .
If a veh icle wit h a conventional energy system
i s not d riven for a lo ng pe riod o f time, the bat­
tery is discha rged by idling cu rrent co nsu mers
(e .g. immobilizer) . In ce rtain c ircumstances it
can result in there being insufficient ene rgy
avai lab le to start the engine .
I n tell igen t energy m anagemen t in your veh i­
cle hand les the d istribu tion of electrical ener­
gy . Starting ab ility is marked ly imp roved and
the life of the battery is extended.
B asically , energy management consists o f
battery diagnos is , idling current manage­
ment
and dynamic ene rgy man agement.
Int ellig ent technolog y 199
Battery diagnosis
Battery diagnosis continuously de termines
the state of the battery . Sensors de termine
batte ry voltage, battery current and battery
temperature . This determines the current
state of charge and the power of the battery.
Idling current management
Idling curren t management reduces energy
consumption while the vehi cle is standing.
With the ignition switched off, it controls the
energy supply to the various electrica l compo­
nents. Data from battery diagnos is is cons id­
ered .
Depending on the battery's state of charge,
i ndivid ua l cons umers are g radually turned off
to prevent excessive discharge of the battery
and thus maintain starting capability .
Dynamic energy management
While the vehicle is being driven, dynamic en ­
ergy ma nagement distrib utes the energy ge n­
erated accord ing to the needs of the individ u­
al components . It regulates consum ption, so
that more electrical energy is not being used
than is being generated and ensures an opti­
mal state of cha rge for the battery .
(D Tips
-But even ene rgy management cannot
negate the limits of physics. Consider
t hat the powe r and life of a battery are
limited .
- If start ing ability is threatened , the indi­
cator light (•) appears
c::> page 17 .
What you should know
The highest priority is given to maintaining
starting capability.
The battery is severely taxed in short-distance
driv ing, in city traff ic and during the cold time
of year . Abundant electrical energy is re -
quired, but on ly a little is generated . It is also ..,. •
•

Vehicl e ca re a nd cl eanin g 211
A WARNING
-Only wash the vehicle when the ignition
is off and follow the instructions from
the car wash operator to reduce the risk of accidents .
- To reduce the r isk of cuts, protect your­
self from sharp metal components when
wash ing the underbody or the inside of
the wheel housings.
- After washing the vehicle, the braking ef­
fec t may be delayed due to mo isture on
the brake rotors or ice in the winter. The
brakes must be dried first with a few
careful brake applications.
Q) Note
- If you wash t he vehicle in an automatic
car wash, yo u must fold the exterior m ir­
rors in to reduce the r is k of damage to
the mirrors. Power folding exterior mir­
rors* must only be folded in and out us­
ing the power folding function.
- To prevent paint damage, do not wash
the vehicle in direct sunlight . -
To reduce the risk of damage to the sur­
face, do not use insect removing spong­
es, kitchen sponges or similar items.
- Matte finish painted vehicle compo­
nents:
- To reduce the risk of damage to the surface, do not use polishing agents or hard wax.
- Never use car wash cycles that apply protective wax.
It can destroy the
matte fi nish effect.
- Do not place any stickers or magnet ic
signs on vehicle parts painted w ith
matte fi nish paint. The paint cou ld be
damaged when the stickers o r magnets
are removed.
@ For the sake of the environment
Only wash the vehi cle in facilities spec ial ly
designed for that purpose . This will red uce
the risk of dirty water contam inated with
oil from entering the sewer system.
Cleaning and care information
When cleaning and caring for individua l vehi ­
cle components, refer to the fo llow ing tab le.
The information contained there is s imp ly rec­
ommendations. For quest ions or for compo- nents
that are not listed, refer to an author­
ized Audi dea ler or a qualified workshop . Also
fo llow the information found inc>,& .
Cle aning e xterior
Component Situation Solution
Wiper b lades
Dirty i=> page 49, Cleaning windshield wiper blades
Headligh ts / Dirty Soft
sponge with a m ild soap solutional
tail light s
S ensor s/
Dirty Sensors: soft cloth with a solvent-free cleaning product
camera l enses Camera lenses: soft cloth with an alcohol-free cleaning
solution
Snow/ice Hand brush/solvent-free de-icing spray
Wheels Road sa lt Water
Brake dust Acid-free special cleaning solution
Exhau st t ail Road sa lt Water, cleaning solut ion suitable for sta inless steel, if
pi pes necessary
•
•

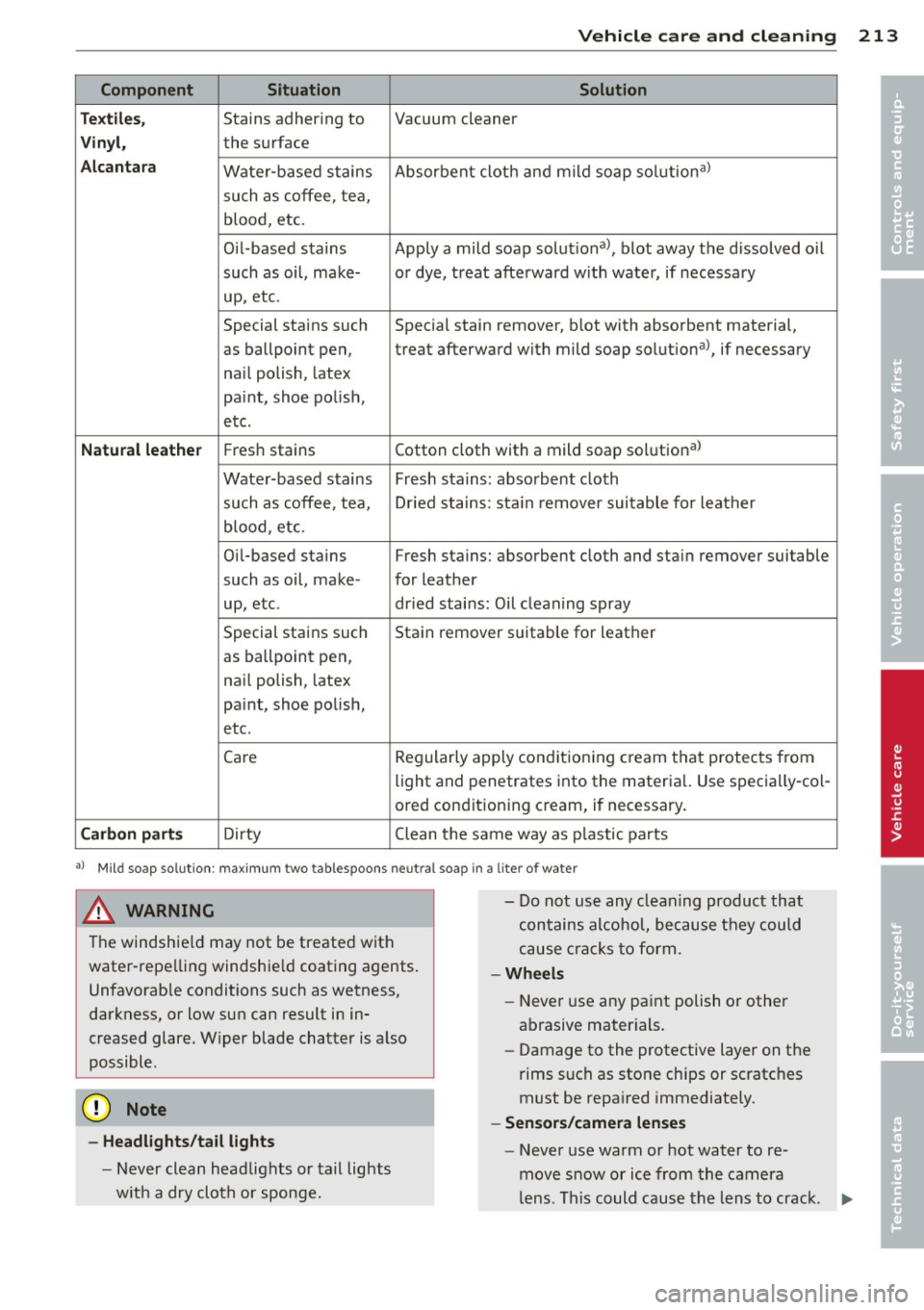

Vehicle care and cleaning 213
Component Situation Solution
Te xtile s,
Stains adhering to Vacuum cleaner
Vinyl, the surface
Alcantara Water-based stains Absorbent cloth and mild soap
solutional
such as coffee, tea, blood, etc.
Oil-based stains Apply a mild soap solutiona l, blot away the d issolved oil
such as oil, make- or dye, treat afterward w ith water, if necessary
up, etc.
Special stains such Special stain remover, b lot with absorbent material,
as ballpoint pen, treat afterward with mild soap solutiona l, if necessary
na il polish, latex
pa int, shoe polish,
etc.
Natural leather Fresh stains Cotton cloth with a mild soap solutiona l
Water-based stains Fresh sta ins: absorbent cloth
such as coffee, tea, Dried stains: stain remover suitable for leather
blood , etc .
Oil-based stains Fresh stains: absorbent cloth and stain remover suitable
such as oil, make- for leather
up , etc . dried sta ins: Oil cleaning spray
Special stains such Sta in remover suitable for leather
as ballpo int pen,
nai l polish, latex
paint, shoe polish,
etc.
Care Regularly apply conditioning cream that protects from
light and penetrates
into the material. Use specially-col-
ored conditioning cream, if necessary.
Carbon parts Dirty Clean the same way as plastic parts
al Mil d soap so lution: m axim um two ta bles poo ns neu tral soa p in a lite r of water
& WARNING
The windshie ld may not be treated with
water-repelling windshie ld coating agents .
Unfavorab le conditions such as wetness,
darkness, or low sun can result in in­
creased glare. W iper blade chatter is also
possible.
- Headlights/tail lights
- Never clean headlights or tail lights
w ith a dry cloth or sponge. -
Do not use any cleaning product that
contains alcohol, because they could
cause cracks to form.
-Wheels
-Never use any paint polish or other
abrasive mater ials.
- Damage to the protective layer on the
rims such as stone chips or scratches
must be repaired immediately .
-Sensors/camera lenses
- Never use warm or hot water to re-
move snow or ice from the camera
len s. This could cause the lens to crack .
IJII>
•
•

232 Check ing and filling
Checking the engine coolant level
The engine coolant level can be checked with
a quick glance .
Fig . 191 Eng ine compartment: cover on the coolant
expa nsion tank
Before you check anything in the engine com­
partment,
a lwa ys re ad and h eed a ll WA RN­
INGS o .A in Working in the engine compart­
ment on page 224 .
., Park your vehicle on a level surface.
., Switch
off the ignit io n.
., Read the eng ine coolant level from the cool ­
ant expans ion tank
o fig . 191, o page 226,
fig. 188. With a cold eng ine, the coolant
level should be between the "min" and
"max" markings. When the engine is warm,
the leve l may be slightly above the "max"
marking.
The location of the coolant exp ans ion tank
can be seen in the engine compartment illus­
tration
o page 226.
To obtain an accurate read ing, the engine
must be switched
off.
The expans ion tank in your vehicle is equipped
with an e lectric coolant level sensor .
When the coolant level is too low, the warning
light in the Auto-Check System
o page 17 will
illum inate unt il you add coolant and the level
has been restored to normal. Even though
there is an electric coolant level senso r, we
still recommend you check the coolant leve l
from time to time.
Coolant loss
Coolant loss may indicate a leak in the cool ing
system. In the event of coolant loss, the cool- ing system shou
ld be inspected immediately
by your authorized Audi dea ler . It is not
enough mere ly to add coolant .
In a
sea le d system, losses can occur on ly if
the boiling point of the coo lant is exceeded as
a resu lt of overheating.
A WARNING
-The cooling system is under pressure and
can get very hot . Red uce the risk of scald­
i ng from hot coolant by fo llow ing these
steps.
- Turn
off the engine and allow it to cool
down.
- Protect your face, hands and arms from
escaping flu id and steam by covering the
cap with a large, th ick rag .
- Turn the cap slowly and very carefully in
a counter-clockwise d irect ion while ap­
plying light, downward pressure on the
top of the cap .
- To avo id being burned, do not sp ill anti­
freeze or coolant on the exhaust system
or hot engine parts . Under certa in cond i­
tions, the ethylene glycol in engine cool­
ant can catch fire.
0 Note
Do not add any type of radiator leak seal­
ant to your veh icle's engine coolant . Add­
i ng radiator repa ir fluid may adverse ly af­
fe ct the funct io n and performance of your
cooling system and could result in damage not covered by your New Vehicle Limited
Warranty.
Adding coolant
Be very careful when adding engine coolant .
Befo re you check anyth ing in the eng ine com­
partment ,
alway s re ad and h eed all WARN­
IN GS o .A in Working in the engine compart­
ment on page 224.
., Tu rn
off the engi ne.
., Let the eng ine cool down.

remain continuously illuminated. This se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended . TPMS
malfunctions may occur for a variety of rea­
sons, including the installation of replace­
ment or alternate tires or wheels on the vehi­
cle that prevent the TPMS from functioning
properly . Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Appl ies to vehicles: with tire pressur e monitoring sys te m
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 200 Display : underinflation warning
Fig. 201 Display: System malfunction
Using the ABS sensors, the tire pressure moni­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires. If the pressure decreases in one
or more tires, this is indicated in the instru-
Tires and wheels 259
ment cluster with a warning symbol [I] and a
message
c::, fig. 200.
The tire pressure monitoring system must be
reset via MMI each time the pressures are ad­
justed (e.g. when switching between partial
and full load pressure) or after changing or re­
placing a tire on your vehicle
c::, page 260. The
TPMS indicator only monitors the tire pres­
sure that you have previously stored. You can
find the recommended tire pressures for your
vehicle on the label on driver's side 8-pillar
~page 244.
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if:
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tire pressure was changed, wheels rotat-
ed or replaced but the TPMS was not reset
c::, page 260 .
Warning symbols
[I] Loss of pressure in at least one tire c::> &..
Check the tire or tires and replace or repair if
necessary. The indicator light
[I] in the instru­
ment cluster also illuminates
c::>page 12.
Check/correct the pressures of all four tires
and reset TPMS via MMI.
i:mJ) (Tire Pressure Monitoring System) Tire
pressure! System malfunction .
If@m appears after switching the ignition on
or while driving
c::, fig. 201 and the indicator
light
[I] in the instrument cluster blinks for
approximately one minute and then stays on,
there is a system malfunction.
Attempt to store the correct tire pressure
c::, page 260. If the indicator light does not
turn off or if it turns on shortly thereafter, im­
mediately drive your vehicle to an authorized
Audi dealer or authorized repair facility to
have the malfunction corrected.

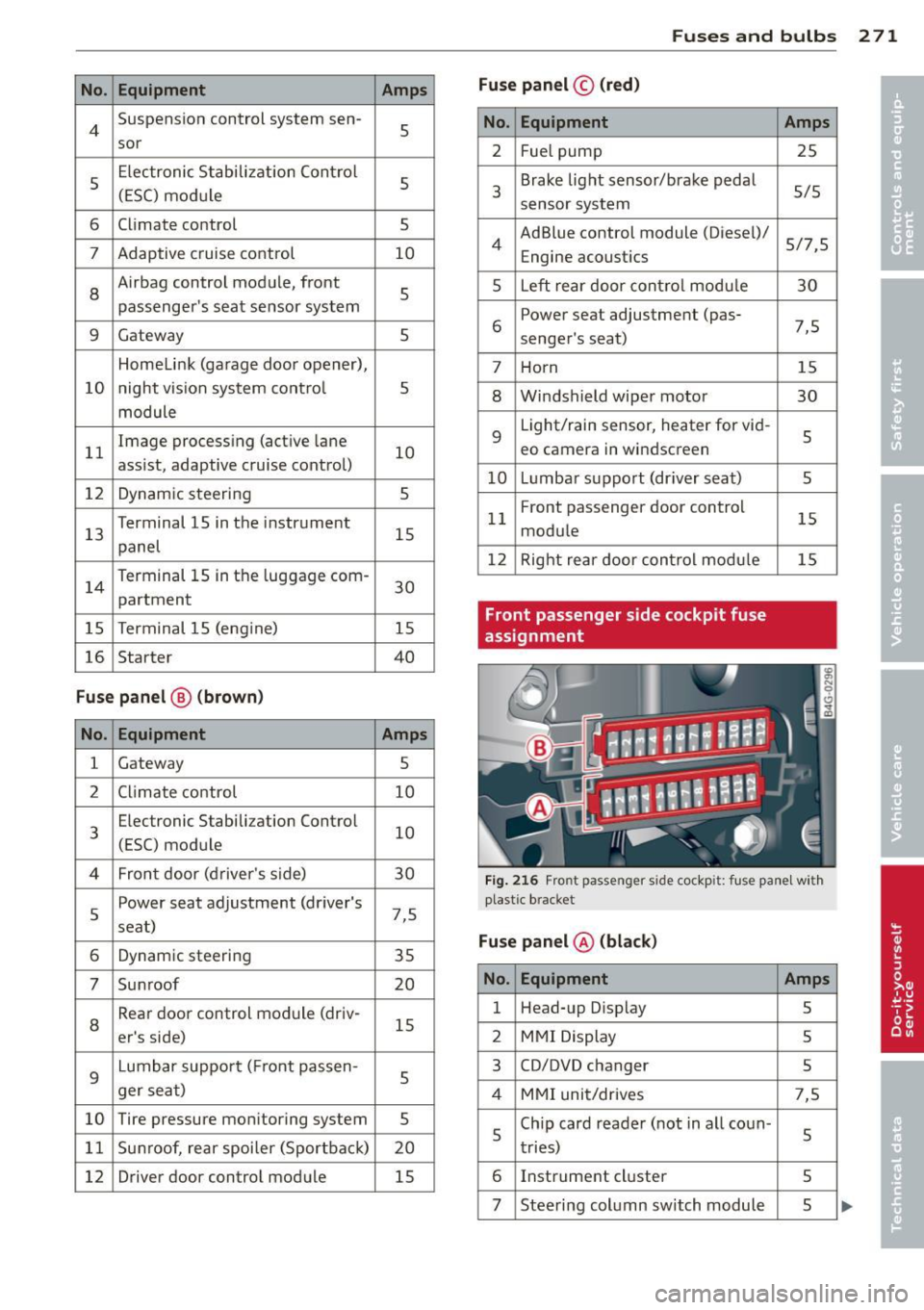

No. Equ ipment Amps
4 Suspension control system sen-s sor
s
E
lectronic Stabilization Cont rol
s (ESC) module
6 Climate control
5
7 Adaptive cruise control 10
8
Airbag control module, front
5
passenger 's seat sensor system
9 Gateway 5
Homelink (garage doo r opener),
10 night vis ion system cont ro l 5
module
11 Image
process ing (act ive lane
10
ass ist, adaptive cruise control)
12 Dynamic steering 5
13 Terminal 15 in
the instrument
15
panel
14 Terminal 15 in
the luggage com-
partment 30
15 Terminal 15 (eng
ine)
15
16 Starter 40
Fuse p anel ® (brown )
No . Equipment Amps
1 Gateway
5
2 C limate control 10
3 E
lectronic Stabili zation Contro l
10
(ESC) module
4 Fron
t door (driver 's side)
30
s
Power seat adjustment (driver's
7,5
seat)
6 Dynam
ic steering
35
7 Su nroof 20
8
Rear door control module (driv-
15
er 's side)
9 Lumbar support (
Front passen-
s ger seat)
10 Tire
pressure monitoring system
5
11 Su
nroof, rear spoi ler (Sport ba ck )
20
12 Driver door
control module
15
Fuse s and bulb s 2 71
Fuse panel © (red )
No . Equipment
2 Fuel pump
3 Brake lig
ht sensor/brake pedal
sensor system
AdBlue control module (Diesel)/
4 Engine acoustics
5 Left rear door cont rol modu le
6 Power seat adjustment
(pas-
senge r's seat)
7 Horn
8 Windshield wiper motor
9 Light/rain sensor, heater
for vid-
eo camera in windscreen
10 L umba r suppo rt (dr iver seat)
1 1 Front
passenger door control
modu le
1 2 Right rea r door cont rol mod ule
Front passenger side cockpit fuse
assignment Amp
s
25
5/5
5/7,S 30
7,5 15
30
s
5
15
15
F ig . 216 Front passenger side cockpit: f use panel w it h
plast ic brac ket
Fuse panel @ (blac k)
No . Equipment Amps
1 Head-up D
isplay
5
2 MMI Display 5
3 CO/DVD changer
5
4 MMI uni t/drives 7,5
5 Chip
card reader ( not in a ll coun -
5
tries)
6 Instrument
cluster
5
7 Steering col umn switch module 5 ...

292 Index
Starting with j umper cab les . ....... . 274
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . 7 5
E ng ine compartment ....... .... .... . 226
C lo sing the hood ....... .. .. .. .. .. . 225
Opening the hood ........ .. .. .... . 224
Safety instructions ..... ... .. .. .... . 224
Working in the engine compartment .. 224
E ng ine coolant .......... .. .. .. .. .. . 23 1
Adding co ol ant ........... .. .. .... . 23 2
Che ckin g the eng ine coolan t leve l .. ... 232
E xpansion tan k ... ..... ... .. .. .... . 23 2
M alfunctio n symbo l . . . . . . . . . . . . . . . . . 17
Radiato r fan . .. .. ..... ... .. .. .... . 233
Temperature ga uge ....... .. .. .. .. . . 11
E ng ine oi l ..... ........... .... .... . 226
Adding .... ... . ...... ... .. .. .... . 229
Addit ives ... ... .. ..... ... .. .. .... . 229
C hanging . .... . ...... ... .. .. .... . 230
Check ing the eng ine o il level .. .. .... . 229
Indications and cond it ions requ iring ex-
tra check ing .. ... .... .... .. .. .. .. . 229
Ind icator light . . . . . . . . . . . . . . . . . . . . . 18
O il consumption ........... ... .. .. . 228
O il g rades .. .. . .......... .. .. .... . 226
Pr ess ure mal function ...... .. .. .. .. . . 18
Recommended oil check in tervals .... . 229
Sensor defective . . . . . . . . . . . . . . . . . . . . 22
Specification and viscos ity . ... .. .. .. . 226
E ng ine sound ............. .. .. .... . 100
Eng ine speed limitat ion ..... .. .. .... .. 22
E ng ine start -stop mode
refer to Start -Stop -System ... ... ... .. 81
E ng ine start system (ind icator lights) .... 18
Environment Break- in period ........... .. .. .. .. . 201
Cata lytic conve rter .. ...... .. .. .. .. . 202
Diese l partic ulate fil ter ..... ... .. ... 202
Di sposing of you r vehicle batte ry .. .. . 238
Dr iving a t high speeds ... .. .. .. .. .. . 20 4
D riving to m inim ize pollu tion and no ise 203
Fu el . .... .. ... ... .... ... .. .. .... . 2 18
Fu el economy .. . ...... ... .. .. .... . 203
L eaks under your veh icle ... .. .. .. .. . 224
Lett ing the vehicle stand and warm up . 204
Proper disposal of dra ined brake f luid . 234 Proper disposal of d
rained eng ine cool -
ant . ... .. .... .. .. ... ..... ... .. .. 232
Proper d isposal of d rained eng ine
o il . . . . . . . . . . . . . . . . . . . . . . . . . 229, 230
Recycling used engine oil ........ .... 229
U nleaded fuel .. .. ................ . 215
What s hou ld I do w ith an o ld battery? . 238
Event Data Recorde r (EDR) ..... ... .. .. 194
E xhaus t tai l pipes
C leaning .. .. .. . .............. .. .. 211
Expansion tank .. .. .......... ...... . 232
Exterior lighting ... .. ... ..... ... .. .. . 43
E xte rior mi rrors
Adjus ting . .... .. .. ........... .... . 50
D imming . ..... .. .. ... ..... ... .. .. . 51
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
E xterior tempera ture display ........... 24
F
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . 182
Co nvertib le child safety seats ........ 180
I n fan t seats ... .. ............. .... 179
Floor mats .. .... .. ............. .... 133
F oot peda ls ..... .. .. ... ..... ... .. .. 133
Fo r the sake of the environment
Gasoli ne fumes and the env ironme nt .. 218
Red ucing engine noise by early upshift -
i ng ....... .. .. .. .. ............... . 11
Ref ueling ..... .. ... .. ..... .... . .. 218
Saving f uel by early ups hifting ... .. .. . 11
Fo ur- zone automatic climate control . .. . 70
Front a irbags
Descrip tion .... ... ................ 151
How they work . .. .......... ...... . 157
Frontal col lisions and the laws of p hysics 139
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 52
Adjus ting . .. .. .. ............. .. .. 130
C hild rest rain ts in the front seat . ... .. 149
Fuel Additives ...... .. ..... ........... . 215
B len ded gaso line .............. .... 215
Cur rent co nsumption ........... .... . 25
E conomy messages (e fficiency p rogram) 2 7
Fuel fi lle r flap emergency release ... .. 220
Fuel fi lle r neck ... .. .... .... ... .. .. 217
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 12

294 Index
K
Key ... . ... ... .. .. ..... ... .. .. .... .. 3 2
Battery rep lacement master key ... .. . . 33
Emergency key . .. ..... ... .. .. .... .. 32
Key not recognized . . . . . . . . . . . . . . . . . . 76
Key replacement ......... .... .... .. 32
Master key . . . . . . . . . . . . . . . . . . . . . . . . 32
M echanical key .............. ... ... . 33
Valet key . .. .. ........ .... ... .. .. .. 32
K ick-down
tiptronic
112
K nee airbags .... .. ..... ... .. .. .... . 164
Descr ipt ion .... . ...... ... .. .. .... . 164
How they work . .. ..... ... .. .. .... . 166
Important safety instructions . . . . . . . . 166
L
Lane assist . . . . . . . . . . . . . . . . . . . . . . . . . 93
L ane Change Ass istant
refer to side ass is t . . . . . . . . . . . . . . . . . . 96
LATC H .. .. .. ............. .... .. ... 187
D .. escnpt 1on .... .... .... .. .. .. .. .. .
Install ing a child restraint ...... .. .. .
L ocat ion .. .... ............. ... ' . .
M ount ing and releasing the an cho rage
hook
. . .. .. ............. .... .. .. .
188
18 9
188
189
Launch Contro l Program . ... .. .. .. .. . 112
Leather cleaning/protection ... .. .... . 2 13
Leaving home ............. .. .. .. .. .. 45
Lift ing jack ............... .. .. .. .. .
266
Lift ing vehicle
L ight 278
Ambience lighting . . . . . . . . . . . . . . . . . . 46
Com ing/ Leavi ng home ..... .. .. ...... 45
D aytime running lights .. .. .. .. .. .. ..
4 3
Eme rgency flashers . . . . . . . . . . . . . . . . . 4 4
Exterior lighting ..... ... .. .. .. .... ..
4 3
H eadlig ht range contro l ... .. .... .. . . 43
High beam ... ........... .. .. .... .. 45
Low beam ....................... ..
43
Rear fog lights ........... .... .... .. 43
Side marker lights .. ... ... .. .. .. .. .. 43
Turn signals ................ ... ... . 45 Li
ght/ rain sensor
Hea dlights . ..... .. ... ..... ... .. .. .
43
Intermittent (w indshie ld w ipers) ... .. . 48
Sensor defective . . . . . . . . . . . . . . . . . . . . 23
Loa ding the roof ra ck ................ . 62
Locking
Power loc king switch .............. .. 37
Remote cont ro l .... ........... .. .. . 35
U si ng the key ................. ..... 3 7
Low beams
Lower universal anchorages (Cana da)
Luggage compartment
43
187
Cargo ne t . . . . . . . . . . . . . . . . . . . . . . . . . 65
En larging . . . . . . . . . . . . . . . . . . . . . . . . .
64
Load ing ... .... .. ... .. ..... ... .. .. . 63
Ski sack ... .... .. ... .. ..... .... . .. . 65
Stowing luggage ... ... ..... ... .. ..
134
Tie -downs . . . . . . . . . . . . . . . . . . . . . . . . . 65
L uggage compartment lid
Movement-act ivated open ing . ... .. .. . 39
L umbar support
Front seats . . . . . . . . . . . . . . . . . . . . . . . . 54
M
Maintenance .. .. .. ..... ....... ... .. 283
Malfunction Ind icator Lamp (MIL) . . 2 1, 30
Manua l shift prog ram ............ ....
111
Massage function
Front seats . . . . . . . . . . . . . . . . . . . . . . . . 54
Matte finish paint clea ning .. ... .. .. ..
210
Mechan ica l key .. .. ................ .. 33
Mirrors Adjusting the exterior mirrors . . . . . . . . . SO
d' . 1mmmg .. .. .. .. ... .. .. ... ..... .. . 51
Vanity mir rors . .. .......... ...... .. 47
Monito ring the Advanced Airbag System 159
Mult if u nct ion steer ing whee l ........ .. . 2 5
mult itron ic (automatic transmission) . .. 107
N
Natura l leather
Cleaning
New t ires and whee ls
N HTSA
213
251
Co ntacting .... .... ... ..... ... .. .. 136
