2014 Alfa Romeo MiTo stop start

PERFORMANCEVersionsTop speed (km/h)Acceleration from 0-100
km/h (secs)
Turbo TwinAir 105 HP184 11,4
1.4 petrol 8V 70 HP160 14,0
1.4 petrol 8V 78 HP165 13.0
1.4 Turbo MultiAir 135 HP207 8,4
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde219 7,5
1.3 JTD
M-2
85 HP174 12,9
1.6 JTD
M
198 9,9
217GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by specific European
Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the car: speed varies between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/accessories,
use of the climate control, car load, presence of roof racks and other situations that adversely affect the aerodynamics or wind resistance lead to
different fuel consumption figures than those measured.
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)Versions Urban Extra-urban Combined
0.9 Turbo TwinAir 105 HP
(*) (**)
5,0 3,8 4,2
1.4 Petrol 8V 70 HP
(***)
7.6 4.7 5.8
1.4 Petrol 8V 78 HP
(**)
7.3 4.6 5.6
1.4 Turbo MultiAir 135 HP7,4 4,5 5,6
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde8,1 4,8 6,0
1.3 JTD
M-2
85 HP
(**)
4.4 2.9 3.5
(*) Type approval test starting in 2
ndgear.
(**) Versions with Start&Stop
(***) Versions without Start&Stop
227GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Versions Urban Extra-urban Combined
1.3 JTD
M-2
85 HP
(**) (****)
4.6 3.0 3.6
1.3 JTD
M-2
85 HP
(**) (****)
4,3 2,8 3,4
1.6 JTD
M(**)
5.3 3.8 4.4
(**) Versions with Start&Stop
(****) For versions/markets, where provided
228GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CO
2
EMISSIONS
The CO
2emission levels given in the following tables refer to combined consumption.
VersionsCO
2emissions according to the current European directive
(g/km)
0.9 Turbo TwinAir 105 HP
(*)
99
1.4 Petrol 8V 70 HP
(**)
134
1.4 Petrol 8V 78 HP
(*)
130
1.4 Turbo MultiAir 135 HP
(***)
128
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde139
1.3 JTD
M-2
85 HP90
1.3 JTD
M-2
85 HP
(***)
95
1.3 JTD
M-2
85 HP
(***)
88
1.6 JTD
M
114
(*) Versions with Start&Stop
(**) Versions without Start&Stop
(***) For versions/markets, where provided
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

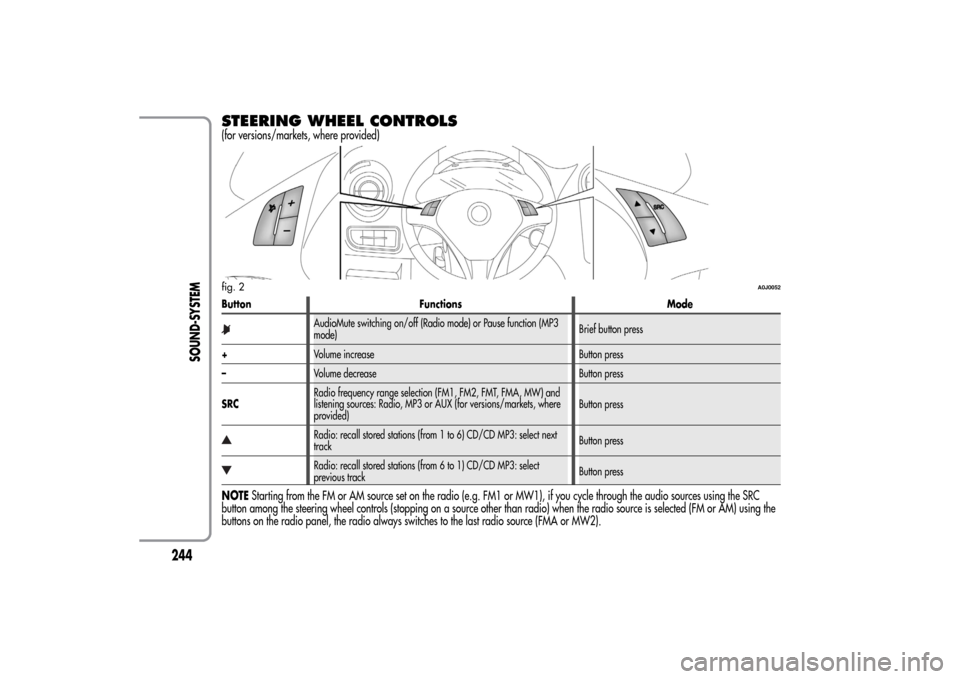

STEERING WHEEL CONTROLS(for versions/markets, where provided)Button Functions Mode
AudioMute switching on/off (Radio mode) or Pause function (MP3
mode)Brief button press
+Volume increase Button press
–Volume decrease Button press
SRCRadio frequency range selection (FM1, FM2, FMT, FMA, MW) and
listening sources: Radio, MP3 or AUX (for versions/markets, where
provided)Button pressRadio: recall stored stations (from 1 to 6) CD/CD MP3: select next
trackButton pressRadio: recall stored stations (from 6 to 1) CD/CD MP3: select
previous trackButton press
NOTEStarting from the FM or AM source set on the radio (e.g. FM1 or MW1), if you cycle through the audio sources using the SRC
button among the steering wheel controls (stopping on a source other than radio) when the radio source is selected (FM or AM) using the
buttons on the radio panel, the radio always switches to the last radio source (FMA or MW2).fig. 2
A0J0052
244
SOUND-SYSTEM

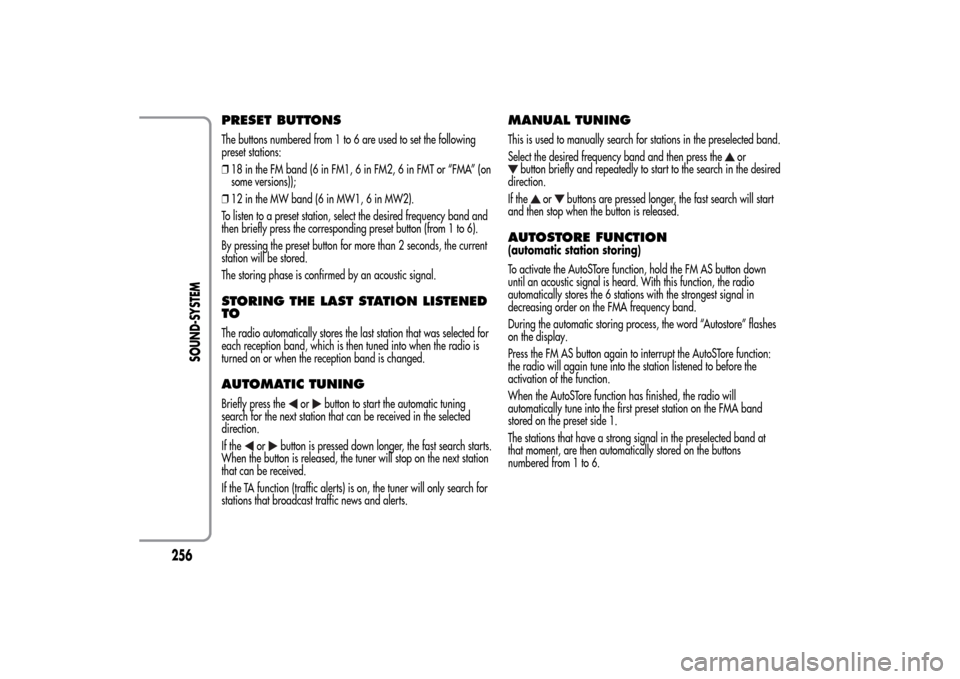

PRESET BUTTONSThe buttons numbered from 1 to 6 are used to set the following
preset stations:
❒18 in the FM band (6 in FM1, 6 in FM2, 6 in FMT or “FMA” (on
some versions));
❒12 in the MW band (6 in MW1, 6 in MW2).
To listen to a preset station, select the desired frequency band and
then briefly press the corresponding preset button (from 1 to 6).
By pressing the preset button for more than 2 seconds, the current
station will be stored.
The storing phase is confirmed by an acoustic signal.STORING THE LAST STATION LISTENED
TOThe radio automatically stores the last station that was selected for
each reception band, which is then tuned into when the radio is
turned on or when the reception band is changed.AUTOMATIC TUNINGBriefly press the
or
button to start the automatic tuning
search for the next station that can be received in the selected
direction.
If the
or
button is pressed down longer, the fast search starts.
When the button is released, the tuner will stop on the next station
that can be received.
If the TA function (traffic alerts) is on, the tuner will only search for
stations that broadcast traffic news and alerts.
MANUAL TUNINGThis is used to manually search for stations in the preselected band.
Select the desired frequency band and then press the
or
button briefly and repeatedly to start to the search in the desired
direction.
If the
or
buttons are pressed longer, the fast search will start
and then stop when the button is released.
AUTOSTORE FUNCTION(automatic station storing)
To activate the AutoSTore function, hold the FM AS button down
until an acoustic signal is heard. With this function, the radio
automatically stores the 6 stations with the strongest signal in
decreasing order on the FMA frequency band.
During the automatic storing process, the word “Autostore” flashes
on the display.
Press the FM AS button again to interrupt the AutoSTore function:
the radio will again tune into the station listened to before the
activation of the function.
When the AutoSTore function has finished, the radio will
automatically tune into the first preset station on the FMA band
stored on the preset side 1.
The stations that have a strong signal in the preselected band at
that moment, are then automatically stored on the buttons
numbered from 1 to 6.
256
SOUND-SYSTEM

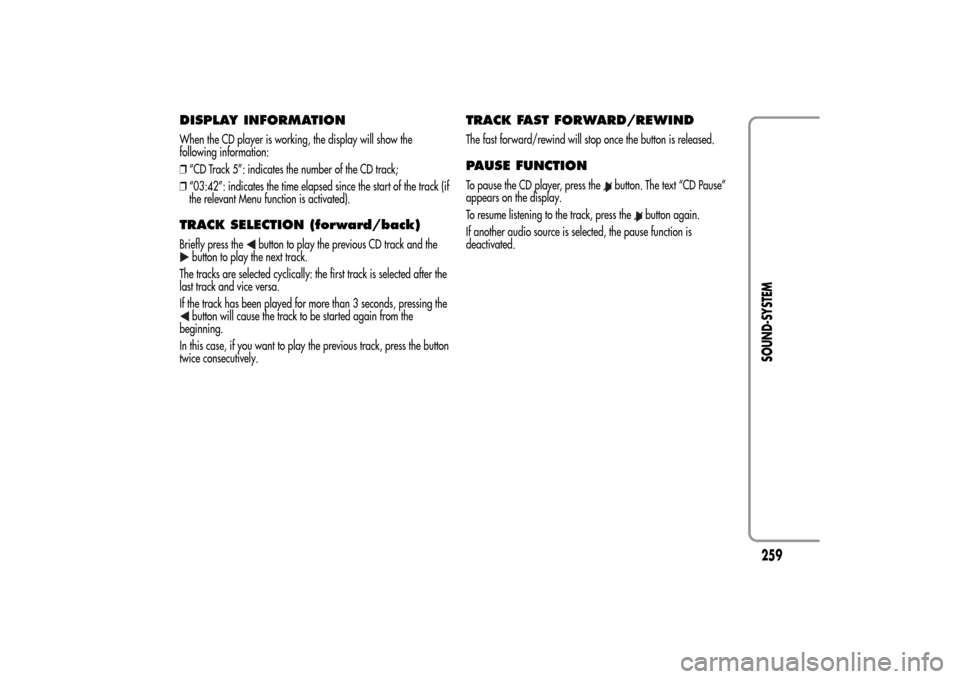

DISPLAY INFORMATIONWhen the CD player is working, the display will show the
following information:
❒“CD Track 5”: indicates the number of the CD track;
❒“03:42”: indicates the time elapsed since the start of the track (if
the relevant Menu function is activated).TRACK SELECTION (forward/back)Briefly press the
button to play the previous CD track and the
button to play the next track.
The tracks are selected cyclically: the first track is selected after the
last track and vice versa.
If the track has been played for more than 3 seconds, pressing thebutton will cause the track to be started again from the
beginning.
In this case, if you want to play the previous track, press the button
twice consecutively.
TRACK FAST FORWARD/REWINDThe fast forward/rewind will stop once the button is released.PAUSE FUNCTIONTo pause the CD player, press the
button. The text “CD Pause”
appears on the display.
To resume listening to the track, press the
button again.
If another audio source is selected, the pause function is
deactivated.
259SOUND-SYSTEM

Rev counter .......................................... 6
Rim Protector (tyres) .............................. 211
Roof lights ........................................... 69
– Courtesy lights ................................ 70
– Front roof light ................................ 69
– Glove compartment light .................. 71
– Luggage compartment roof light ....... 70
– Puddle lights ................................... 70
Roof rack/ski rack ................................ 89Safe Lock device ................................. 39
Saving fuel .......................................... 138
SBR system (Seat Belt Reminder) ............ 114
Scheduled Servicing Plan ...................... 174
Seat belts............................................. 113
– Use ................................................ 113
Seats ................................................... 44
– Easy Entry ...................................... 46
– Front seats ...................................... 44
– Sports configuration front seats......... 46
Setup menu ......................................... 23
Side airbags (Side Bags - Window
Bags) ................................................ 129
Side bags (front side airbags) ............... 130
Side lights/brake lights ......................... 158
Side lights/daytime running lights
(DRL)– bulb replacement............................. 156
Side lights/dipped beam headlights ...... 62
“Smart Bag” system
(Multistage front airbags) ................... 127Snow chains....................................... 141
Snow tyres ........................................... 140
Spark plugs (type) ................................ 200
Speedometer (speed indicator) .............. 6
Starting the engine ............................... 133
Starting the engine ............................... 142
– Bump starting.................................. 143
– Jump starting .................................. 142
Start&Stop system ................................ 98
Steering lock ........................................ 43
Steering system .................................... 208
Steering wheel ..................................... 48
Storing the car ..................................... 141
Sun visors ............................................ 76
Suspension .......................................... 207
Symbols .............................................. 34Technical specifications ....................... 196
The keys .............................................. 36
– Code Card...................................... 36
– Key without remote control ............... 36
– Key with remote control.................... 36Third brake lights
– bulb replacement............................. 159
Towing the car ..................................... 171
– Attaching the tow hook .................... 171
Towing trailers ..................................... 139
– Installing a tow hook........................ 140
TPMS (Tyre Pressure Monitoring
System) ............................................. 107
Transmission ........................................ 206
TRIP button .......................................... 33
Trip Computer ...................................... 31
Ty r e s
– Fix&Go Automatic (kit) .................... 149
– inflation pressure ............................. 214
– reading the tyre code....................... 209
– Rim Protector tyres ........................... 211
– snow tyres ...................................... 212
– tyres provided ................................. 212
Tyres - maintenance .............................. 189
U
sing the Gearbox ............................. 136
W
arning lights on panel .................... 6
Weights............................................... 218
Welcome movement ............................. 22
Wheel rims
– correct reading of the rim code ......... 210
27GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX2
