DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different versions.1. Diffuser for directing air to the side windows 2. Adjustable air vent 3. Exterior light control lever 4. Instrument panel 5. Windscreen wiper/rear
window wiper/trip computer control lever 6. Car radio (for versions/markets, where provided) 7. Adjustable air diffusers 8. Hazard warning lights,
door locking/unlocking button 9. Passenger front airbag 10. Glove compartment 11. Heating/ventilation/climate control system controls 12. Gear
lever 13. "Alfa DNA" system 14. Ignition device 15. Driver side front knee bag (for versions/markets, where provided) 16. Driver front airbag
17. Cruise Control lever (for versions/markets, where provided) 18. Fuse box access flap 19. Panel with various controls.
fig. 1
A0J0330
3GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

The main functions that can be activated with the keys (with or without remote control) are the following:Type of keyUnlocking the
doorsLocking the
doors from the
outsideSafe Lock
activation
(*)
Unlocking the
tailgateLowering
windows
(*)
Raising
windows
(*)
Key without
remote control/
Key with remote
controlAnticlockwise key
turn (driver side)Clockwise key turn
(driver side)----
Key with remote
controlBrief press of
buttonBrief press of
buttonDouble press of
buttonBrief press
of
buttonLong press (more
than 2 seconds) of
buttonLong press (more
than 2 seconds) of
button
Flashing direction
indicators (only
with key with
remote control)2 flashes 1 flash 3 flashes 2 flashes 2 flashes 1 flash
Deterrent LED Switching offSwitching on
constantly for
about 3 seconds,
followed by
deterrence LED
flashingDouble flash,
followed by
deterrence
flashingDeterrence
flashingSwitching offDeterrence
flashing
(*)For versions/markets, where provided.IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation is a consequence of a door
locking control.
40GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

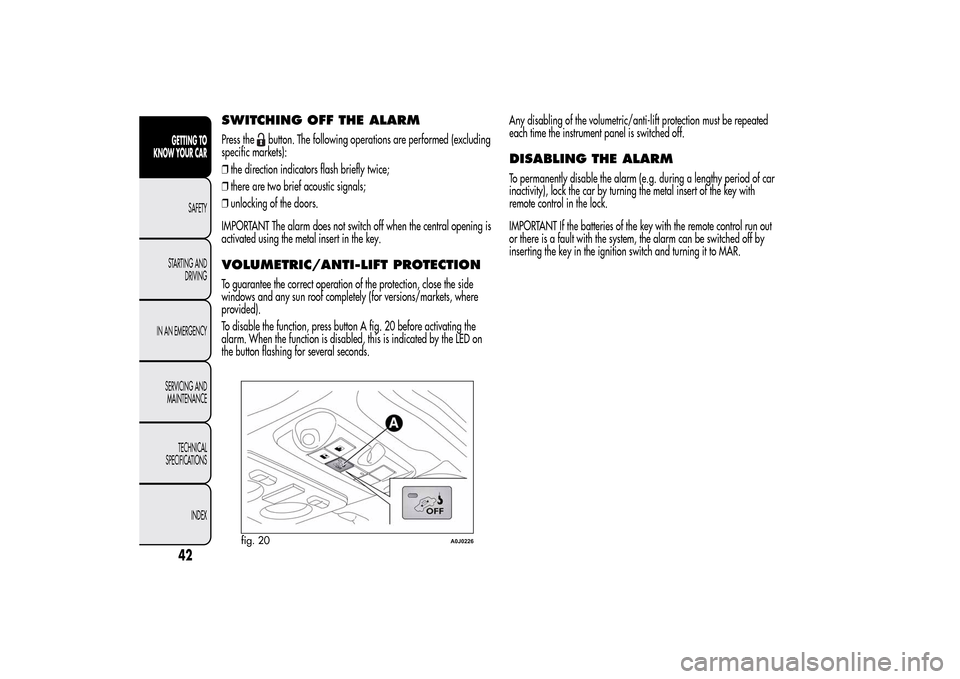

SWITCHING OFF THE ALARMPress the
button. The following operations are performed (excluding
specific markets):
❒the direction indicators flash briefly twice;
❒there are two brief acoustic signals;
❒unlocking of the doors.
IMPORTANT The alarm does not switch off when the central opening is
activated using the metal insert in the key.
VOLUMETRIC/ANTI-LIFT PROTECTIONTo guarantee the correct operation of the protection, close the side
windows and any sun roof completely (for versions/markets, where
provided).
To disable the function, press button A fig. 20 before activating the
alarm. When the function is disabled, this is indicated by the LED on
the button flashing for several seconds.Any disabling of the volumetric/anti-lift protection must be repeated
each time the instrument panel is switched off.
DISABLING THE ALARMTo permanently disable the alarm (e.g. during a lengthy period of car
inactivity), lock the car by turning the metal insert of the key with
remote control in the lock.
IMPORTANT If the batteries of the key with the remote control run out
or there is a fault with the system, the alarm can be switched off by
inserting the key in the ignition switch and turning it to MAR.
fig. 20
A0J0226
42GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CLIMATE CONTROL/HEATING
SYSTEMCONTROLSA - Air temperature adjustment knob
❒blue section = cold air
❒red section = hot air
B - Fan activation/adjustment knob
❒
0 = fan off
❒1-2-3 = fan speed
❒4= maximum fan speed
C - Air distribution knob
❒
air flow towards driver/passenger body;
❒air flow towards driver/passenger body and footwell;❒
air flow towards front and rear footwell;
❒air flow towards footwell and windscreen;
❒air flow towards windscreen
❒4= maximum fan speed
D - Air recirculation on/off button
E - Climate control on/off button (only versions with manual climate
control)
F - Heated rear window on/off button;
fig. 33
A0J0074
52GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

PASSENGER COMPARTMENT
VENTILATIONProceed as follows to adjust the ventilation:
❒turn knob A to blue section;
❒press button D to disable internal air recirculation (LED on button
off);
❒turn knob C to
;
❒turn knob B to desired speed.
CLIMATE CONTROL (cooling) (only
present on versions with manual
climate control)To cool, proceed as follows:
❒turn knob A to blue section;
❒press button D to enable internal air recirculation (LED on button
on);
❒turn knob C to
;
❒press button E to turn the climate control system on and turn knob B
to at least 1 (1
stspeed); for faster action, turn knob B to 4 (maximum
fan speed).
Adjusting cooling
❒turn knob A to the right to increase the temperature;
❒press button D to turn internal air recirculation off (circular LED
around the button off);
❒turn knob B to reduce the fan speed.
PASSENGER COMPARTMENT HEATINGFor rapid heating, proceed as follows:
❒turn knob A to the red section;
❒turn knob C to the desired symbol;
❒turn knob B to desired speed.
Rapid heating
For rapid heating, proceed as follows:
❒turn knob A to the red section;
❒press button D to activate internal air recirculation;
❒turn knob C to
;
❒turn knob B to 4(maximum fan speed).
Then use the controls to maintain the desired comfort conditions and
press button D to turn internal air recirculation off (LED on button
off) and to prevent misting.
IMPORTANT When the engine is cold, it takes a few minutes to obtain
rapid heating.
FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE WINDOWS)The climate control system is very useful for making demisting faster.
Adjust the controls as described previously and switch on the climate
control system by pressing button E.
Proceed as follows:
❒turn knob A to the red section;
❒turn knob B to 4
(maximum fan speed);
53GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒turn knob C to
;
❒press button D to disable internal air recirculation (LED on button
off).
After demisting/defrosting, operate the controls to restore the required
comfort conditions.
Window demisting
The climate control system is very useful in preventing the windows
from misting up in the event of high levels of humidity.
In the event of considerable outside moisture and/or rain and/or
considerable differences in temperature inside and outside the
passenger compartment, proceed as follows to demist the windows:
❒turn knob A to the red section;
❒press button D to disable internal air recirculation (LED on button
off);
❒turn knob C towith the possibility of moving it to position
if
demisting does not occur;
❒turn knob B to the 2
ndspeed.
HEATED REAR WINDOW
DEMISTING/DEFROSTINGPress button F (
) to turn the function on/off. The function is
automatically deactivated after 20 minutes.
For versions/markets where provided, press the
button to activate
demisting/defrosting of door mirrors, heated windscreen (for
versions/markets, where provided) and heated nozzles (for versions/
markets, where provided).
IMPORTANT Do not affix stickers to the inside of the heated rear
window over the heating filaments, to avoid damage that might cause
them to stop working properly.
INTERNAL AIR RECIRCULATIONPress button D (
). It is advisable to switch air recirculation on
while standing in traffic or in tunnels to prevent the introduction of
polluted air.
Do not use the function for a long time, particularly if there are many
passengers on board, to prevent the windows from misting up.
IMPORTANT Internal air recirculation makes it possible to reach the
required heating or cooling conditions more quickly depending on the
mode selected. Do not use the air recirculation function on rainy/cold
days as it would considerably increase the possibility of the windows
misting.
SYSTEM MAINTENANCEIn winter, the climate control system must be turned on at least once a
month for about 10 minutes.
Have the system checked by Alfa Romeo Authorized Services before
summer.
54GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

AUTOMATIC DUAL ZONE
CLIMATE CONTROL(for versions/markets, where provided)CONTROLSA - driver/passenger side MONO function activation button
(alignment of set temperatures);
B - climate control compressor on/off button;
C - internal air recirculation on/off button;
D - display;
E - climate control off button;
F - MAX-DEF function activation button (rapid defrosting/demisting of
front windows);G - heated rear window on/off button;
H - AUTO function activation button (automatic operation) and
passenger side temperature adjustment knob;
I - passenger side air distribution selection button;
L - fan speed increase/decrease;
M - driver side air distribution selection button;
N - AUTO function (automatic operation) activation button and driver
side temperature adjustment knob.fig. 34
A0J0037
55GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DESCRIPTIONThe automatic dual zone climate control system regulates the air
temperatures/distribution in the passenger compartment in two areas:
driver side and passenger side.
The system keeps the passenger compartment comfort level constant
and compensates for any variations in external conditions, including
solar radiation detected by a specific sensor.
The automatically controlled parameters and functions are:
❒air temperature at the driver's/front passenger side vents;
❒air distribution at the driver's/front passenger side vents;
❒fan speed (continuous variation of the air flow);
❒compressor engagement (for cooling/dehumidifying the air);
❒air recirculation.
All these functions can be adjusted manually by operating the system
and selecting one or more functions and modifying their parameters.
Automatic control of the manually changed functions will be
suspended: the system will only override the settings for safety reasons.
Manual selections always have higher priority than automatic settings
and are stored until the AUTO button is pressed, except for cases in
which the system intervenes for safety reasons.
You can adjust one function manually without affecting the automatic
control of the others. The amount of air introduced into the passenger
compartment is not affected by vehicle speed; it is electronically
controlled by a fan.
The air temperature is always automatically controlled according to the
temperature set on the display (except for when the system is off or in
certain conditions when the compressor is not running).The system allows the following to be set or adjusted manually:
❒driver's/passenger side air temperature;
❒fan speed (continuous variation);
❒air distribution to 7 positions (driver/passenger);
❒compressor enabling;
❒rapid defrosting/demisting function;
❒air recirculation;
❒heated rear window;
❒system deactivation.
SWITCHING ON THE CLIMATE
CONTROL SYSTEMThe climate control system can be switched on in different ways: we
recommend pressing one of the AUTO buttons and turning the knobs
to set the desired temperatures.
It is possible to select different temperatures for the driver and
passenger, with a maximum difference of 7°C.
In this way the system operates completely automatically to adjust the
temperature, quantity and distribution of the air introduced into the
passenger compartment. It also manages the air recirculation system
and the activation of the air conditioning compressor.
During fully automatic operation the only manual intervention is the
possible activation of the following functions:
❒MONO, to align the air temperature and distribution set on the
passenger side with that on the driver side;
❒
air recirculation (keeping the function always either on or
off);
56GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
