2014 Alfa Romeo MiTo ESP

GENERAL INFORMATION
1.4 Turbo MultiAir 135 HP
(*)
Type code955A2000
CycleOtto
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 72.0 x 80.4
Total displacement (cm³)1368
Compression ratio9.8
Maximum power (EC) (kW)99
Maximum power (EC) (HP)135
corresponding engine speed (rpm) 5500
NATURAL DYNAMIC
Maximum torque (EC) (Nm) 190 206
Maximum torque (EC) (kgm) 19,3 21
corresponding engine speed (rpm) 4250 1750
Spark plugsNGK IKR9F8
Fuel Unleaded petrol 95 RON or 98 RON (EN 228 specification)(*) For versions/markets, where provided
202GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GENERAL INFORMATION 1.4 Turbo MultiAir 170 HP Quadrifoglio Verde
Type code955A8000
(*)
940A2000
CycleOtto
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 72.0 x 80.4
Total displacement (cm³)1368
Compression ratio9.8
Maximum power (EC) (kW)
120
(*)
/ 125
Maximum power (EC) (HP)
163
(*)
/ 170
corresponding engine speed (rpm)
5500
(*)
/ 5000
NATURAL DYNAMIC
Maximum torque (EC) (Nm) 230 250
Maximum torque (EC) (kgm) 23.4 25.5
corresponding engine speed (rpm) 2500 2500
Spark plugsNGK IKR9F8
Fuel Unleaded petrol 95 RON or 98 RON (EN 228 specification)
(*) For versions/markets, where provided
203GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

GENERAL INFORMATION 1.3 JTD
M-2
85 HP
Type code199B4000
CycleDiesel
Number and arrangement of cylinders 4 in line
Piston diameter and travel (mm) 69.6 x 82
Total displacement (cm³)1248
Compression ratio16,8
Maximum power (EC) (kW)62
Maximum power (EC) (HP)85
corresponding engine speed (rpm) 3500
Maximum torque (EC) (Nm)200
Maximum torque (EC) (kgm)20,4
corresponding engine speed (rpm) 1500
FuelDiesel for automotive engines (EN 590 Specification)
204GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GENERAL INFORMATION
1.6 JTD
M115 HP
(*)
1.6 JTD
M120 HP
Type code 955A4000 955A3000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 79.5 x 80.5 79.5 x 80.5
Total displacement (cm³) 1598 1598
Compression ratio 16,5 16,5
Maximum power (EEC) (kW) 85 88
Maximum power (EEC) (HP) 115 120
corresponding engine speed (rpm) 4000 3750
NATURAL DYNAMIC NATURAL DYNAMIC
Max torque (EEC) (Nm) 260 300 280 320
Maximum torque (EC) (kgm) 26.5 30.6 28.6 32.6
corresponding engine speed (rpm) 1500 1500 1500 1750
Spark plugs – –
FuelDiesel for motor vehicles
(EN 590 specification)Diesel for motor vehicles
(EN 590 specification)
(*) For versions/markets, where provided
205GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

WHEELSRIMS AND TYRESPressed steel or alloy rims. Tubeless radial carcass tyres. The vehicle
registration document also lists all type-approved tyres.
For safe driving, the car must be fitted with tyres of the same make and
type on all wheels.
IMPORTANT If there are any discrepancies between the Owner
handbook and the registration document, take the information from the
latter.
IMPORTANT Do not use tubes with tubeless tires.SPACE-SAVER WHEELPressed steel rim. Tubeless tyre.READING THE TYRE CODEExample fig. 173: 195/55 R 16 87H195
Rated width (S, distance in mm between sidewalls)
55
Height/width ratio (H/S) as a percentage
RRadial tyre16
Rim diameter in inches (Ø)
91
Load rating (capacity)
VMaximum speed indexMaximum speed index
Qup to 160 km/hRup to 170 km/hSup to 180 km/hTup to 190 km/hUup to 200 km/hHup to 210 km/hVup to 240 km/hW
up to 270 km/h
Yup to 300 km/h
Maximum speed index for snow tyresQM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
fig. 173
A0J0139
209GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Load rating (capacity)
60= 250 kg76= 400 kg
61= 257 kg77= 412 kg
62= 265 kg78= 425 kg
63= 272 kg79= 437 kg
64= 280 kg80= 450 kg
65= 290 kg81= 462 kg
66= 300 kg82= 475 kg
67= 307 kg83= 487 kg
68= 315 kg84= 500 kg
69= 325 kg85= 515 kg
70= 335 kg86= 530 kg
71= 345 kg87= 545 kg
72= 355 kg88= 560 kg
73= 365 kg89= 580 kg
74= 375 kg90= 600 kg
75= 387 kg91= 615 kg
CORRECT READING OF THE RIM CODEExample fig. 173:6Jx15H2ET406rim diameter in inches (1).Jrim drop centre outline (side projection where the tyre bead rests)
(2).15
rim fitting diameter in inches (corresponds to diameter of the tyre
to be mounted) (3 = Ø).
H2
shape and number of humps (circumference measurement which
keeps the bead of tubeless tyres in position on the rim).
ET 40
wheel camber (distance between the disc/rim support plane
and the wheel rim centre line).
210GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

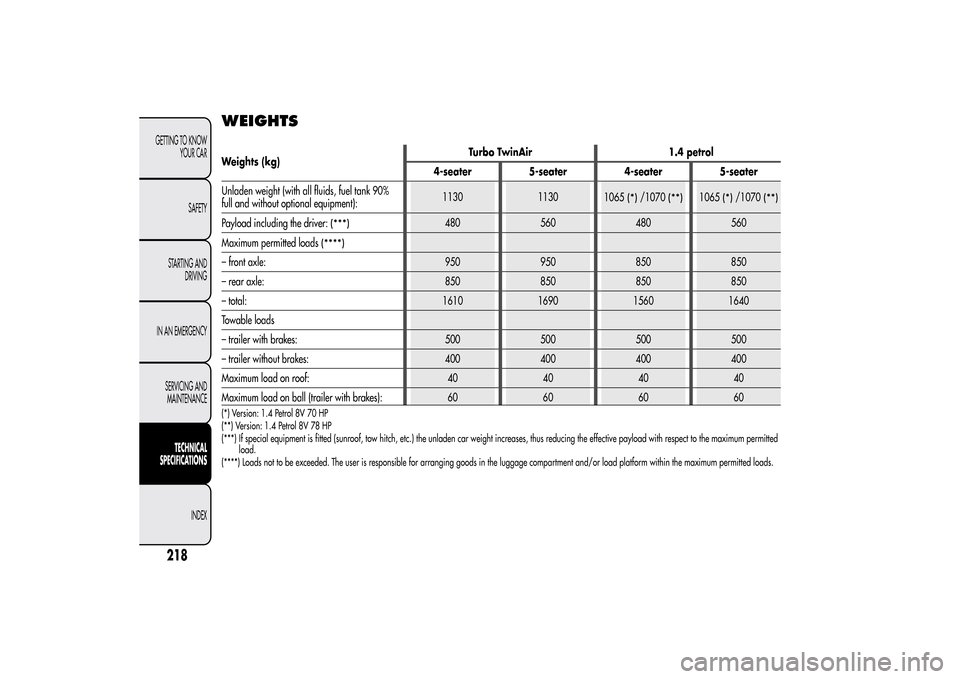

WEIGHTSWeights (kg)Turbo TwinAir 1.4 petrol
4-seater 5-seater 4-seater 5-seater
Unladen weight (with all fluids, fuel tank 90%
full and without optional equipment):1130 1130
1065
(*)
/1070
(**)
1065
(*)
/1070
(**)
Payload including the driver:
(***)
480 560 480 560
Maximum permitted loads
(****)
– front axle: 950 950 850 850
– rear axle: 850 850 850 850
– total: 1610 1690 1560 1640
Towable loads
– trailer with brakes: 500 500 500 500
– trailer without brakes: 400 400 400 400
Maximum load on roof: 40 40 40 40
Maximum load on ball (trailer with brakes): 60 60 60 60(*) Version: 1.4 Petrol 8V 70 HP
(**) Version: 1.4 Petrol 8V 78 HP
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect tothe maximum permitted
load.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
218GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Weights (kg)1.4 Turbo MultiAir
4-seater 5-seater
Weight empty (with all fluids, fuel tank 90% full and
without optional equipment):
Payload including the driver:
(*)
480 560
Maximum permitted loads
(** )
– front axle: 950 950
– rear axle: 850 850
– total: 1625 1705
Towable loads
– trailer with brakes: 500 500
– trailer without brakes: 400 400
Maximum load on roof: 40 40
Maximum load on ball (trailer with brakes): 60 60(* ) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the effective payload with respect to the maximum permitted
load.
(** ) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
219GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
*
*
*
*
1135 / 1145
(*)
1135 / 1145
(*)
(*) Version: 1.4 70 HPTurbo Multi Air 1
