2014 Alfa Romeo MiTo display

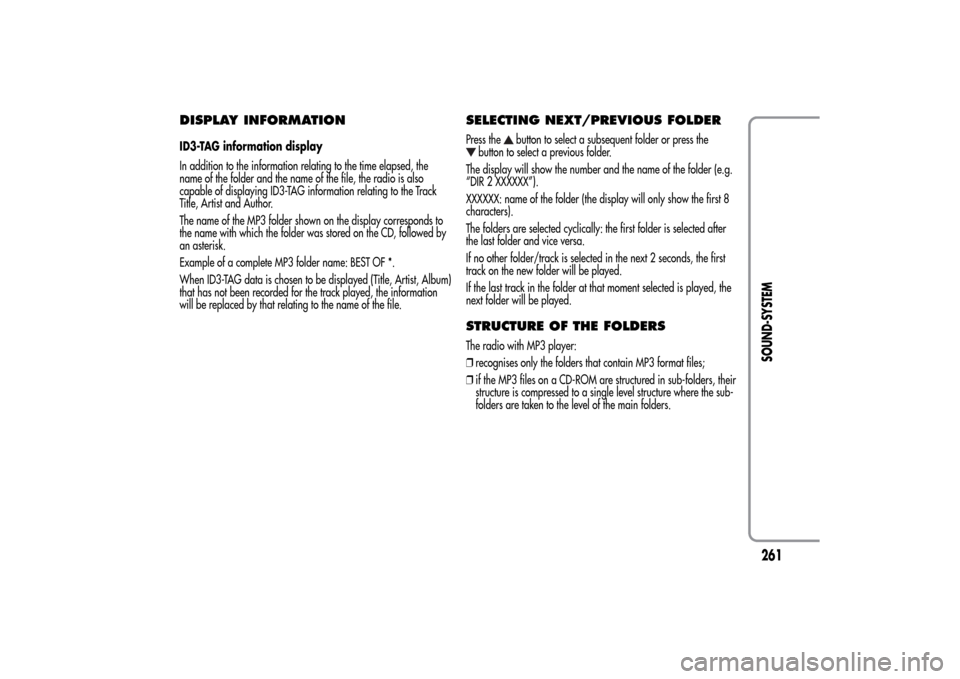

DISPLAY INFORMATIONID3-TAG information display
In addition to the information relating to the time elapsed, the
name of the folder and the name of the file, the radio is also
capable of displaying ID3-TAG information relating to the Track
Title, Artist and Author.
The name of the MP3 folder shown on the display corresponds to
the name with which the folder was stored on the CD, followed by
an asterisk.
Example of a complete MP3 folder name: BEST OF *.
When ID3-TAG data is chosen to be displayed (Title, Artist, Album)
that has not been recorded for the track played, the information
will be replaced by that relating to the name of the file.
SELECTING NEXT/PREVIOUS FOLDERPress the
button to select a subsequent folder or press the
button to select a previous folder.
The display will show the number and the name of the folder (e.g.
“DIR 2 XXXXXX”).
XXXXXX: name of the folder (the display will only show the first 8
characters).
The folders are selected cyclically: the first folder is selected after
the last folder and vice versa.
If no other folder/track is selected in the next 2 seconds, the first
track on the new folder will be played.
If the last track in the folder at that moment selected is played, the
next folder will be played.
STRUCTURE OF THE FOLDERSThe radio with MP3 player:
❒recognises only the folders that contain MP3 format files;
❒if the MP3 files on a CD-ROM are structured in sub-folders, their
structure is compressed to a single level structure where the sub-
folders are taken to the level of the main folders.
261SOUND-SYSTEM

AUX(for versions/markets, where provided)INTRODUCTIONThis section describes the variants regarding the operation of the
AUX source: as far as the operation of the radio is concerned, refer
to the description in the "Functions and Adjustments" section.AUX MODETo activate the AUX source, press the MEDIA button or the SRC
control on the steering wheel repeatedly until the corresponding
source is displayed.
The AUX socket is located on the central tunnel next to the power
socket (or next to the cigar lighter socket, depending on the
versions) fig. 3.IMPORTANT
The functions of the device connected with the AUX socket are
directly managed by the device itself; it is not possible to change
track/folder/playlist with radio or steering wheel controls.
Do not leave the cable of your portable player connected to the
AUX socket after disconnecting, to avoid possible hiss from the
speakers.
fig. 3
A0J041
262
SOUND-SYSTEM

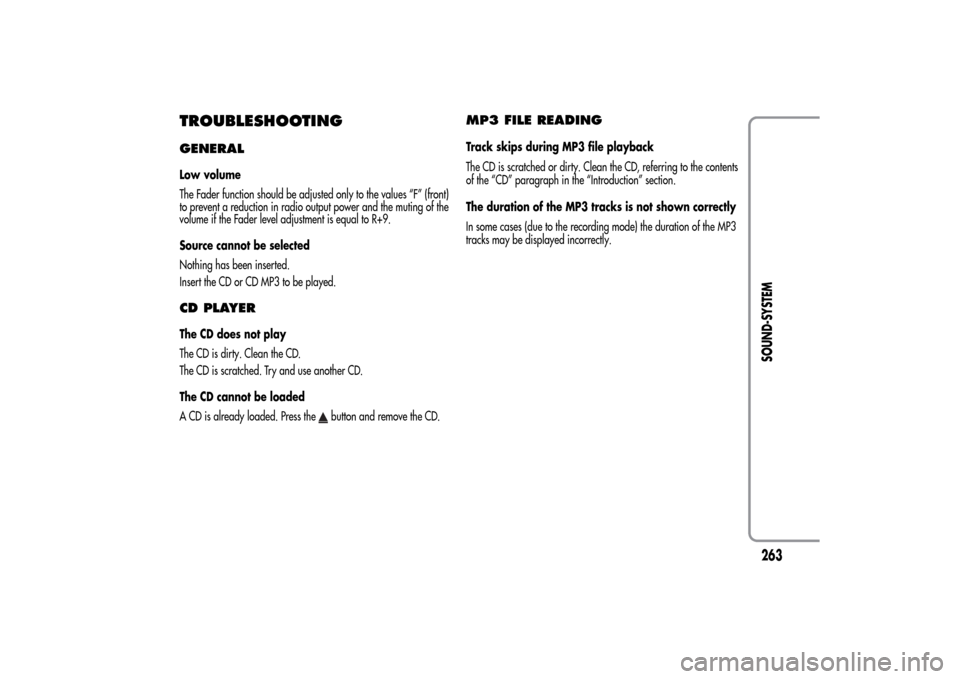

TROUBLESHOOTINGGENERALLow volume
The Fader function should be adjusted only to the values “F” (front)
to prevent a reduction in radio output power and the muting of the
volume if the Fader level adjustment is equal to R+9.
Source cannot be selected
Nothing has been inserted.
Insert the CD or CD MP3 to be played.CD PLAYERThe CD does not play
The CD is dirty. Clean the CD.
The CD is scratched. Try and use another CD.
The CD cannot be loaded
A CD is already loaded. Press the
button and remove the CD.
MP3 FILE READINGTrack skips during MP3 file playback
The CD is scratched or dirty. Clean the CD, referring to the contents
of the “CD” paragraph in the “Introduction” section.
The duration of the MP3 tracks is not shown correctly
In some cases (due to the recording mode) the duration of the MP3
tracks may be displayed incorrectly.
263SOUND-SYSTEM

INDEX
A
BS system ........................................ 91
– Mechanical Brake Assist................... 91
– System intervention.......................... 91
Additional heater ................................. 61
Air cleaner .......................................... 187
Alarm ................................................. 41
“Alfa DNA” system ............................. 95
– Driving modes................................. 95
– Engagement/disengagement of
"All Weather" mode ........................ 97
– Engagement/disengagement of
"Dynamic" mode............................. 96
– "Natural" Mode .............................. 95A
lfa Romeo Code system .................... 35
Ashtray ............................................... 75
ASR system (AntiSlip Regulation) ........... 93
Automatic dual zone climate control ...... 55
Battery .............................................. 187
– advice for extending lifetime............. 187
– replacement .................................... 187
Battery (recharging).............................. 170
Body versions....................................... 198
Bodywork
– body codes ..................................... 198– maintenance ................................... 193
– protection against atmospheric
agents ............................................ 193
– warranty......................................... 193
Bonnet................................................. 87
– Closing ........................................... 88
– Opening ......................................... 87
Brake Assist ......................................... 94
Brakes ................................................. 207
– brake fluid level............................... 186
bulb replacement .......................... 158-159
– interior lights................................... 160
Bulb replacement
– exterior lights .................................. 156
Bulbs
– types of bulbs.................................. 154
Carrying children safely ...................... 118
CBC (Cornering Brake Control) system ... 94
Central locking..................................... 72
Changing a bulb .................................. 153
– General instructions ......................... 153
Changing a wheel ................................ 143
Cigar lighter ........................................ 75
Cleaning and maintenance
– bodywork ....................................... 193– car interior...................................... 194
– engine compartment ........................ 194
– front headlights ............................... 194
– leather parts ................................... 195
– leather seats.................................... 195
– plastic and coated parts ................... 195
– seats and fabric parts ...................... 194
– windows ......................................... 194
Climate control/heating system ............. 52
Climatic comfort ................................... 51
– Diffusers ......................................... 51
Clutch ................................................. 206
CO2 emissions..................................... 229
Code Card........................................... 36
Control buttons..................................... 23
Control panel and instruments ............... 4
– Multifunction display........................ 4
– Reconfigurable multifunction
display ........................................... 5
Controls............................................... 71
Courtesy light
– bulb replacement............................. 161
Cruise Control ...................................... 67
Dashboard ........................................ 3
Daytime running lights (DRL) ................. 61
269GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX

Diesel filter .......................................... 187
Diesel particulate filter (DPF) ................. 111
Dimensions .......................................... 216
Dipped headlights
– bulb replacement............................. 156
Direction indicators ......................... 63-158
– bulb replacement............................. 157
– “Lane change” function .................... 63
Display................................................ 20
Doors .................................................. 80
– Door central locking/unlocking ........ 80
DPF (particulate filter) ........................... 111
Driver side knee bag ............................ 129
DST system (Dynamic Steering
Torque) .............................................. 94
Dusk sensor ......................................... 62
Dynamic Suspension (active shock
absorber system) ................................ 102Electric power steering ........................ 103
Electric sun roof ................................... 77
Electric windows .................................. 81
– Controls .......................................... 81"Electronic Q2" system ("E-Q2") .......... 94Engine codes ...................................... 198
Engine compartment– checking levels ................................ 179
– washing ......................................... 194
Engine coolant temperature gauge ........ 6
Engine................................................. 200
– engine cooling system fluid level ....... 185
– marking.......................................... 197
Engine oil
– consumption ................................... 185
– level check ...................................... 185
EOBD system ....................................... 103
ESC (Electronic Stability Control)
system ............................................... 92
Exterior lights ....................................... 61
– Left stalk ......................................... 61
External courtesy lights ......................... 64
Extinguisher ......................................... 76
Fitting "Universal" child seat ................ 120
Fix&Go Automatic Kit ........................... 149
Flashing .............................................. 63
Fluids and lubricants (specifications) ...... 224
Fog lights........................................ 72-158"Follow Me Home" device ................... 63Front airbags...................................... 127
Front armrest ....................................... 74
Front driver side airbag ........................ 127Front passenger airbag ......................... 128
Front roof light
– bulb replacement............................. 160
Fuel consumption.................................. 227
Fuel cut-off system ................................ 72
Fuel level gauge ................................... 6
Fuel supply .......................................... 206
Fuel tank cap ....................................... 110
Fuses (if a fuse blows) ........................... 163
G
ear Shift Indicator ............................ 22
Glove compartment .............................. 73
Glove compartment light
– bulb replacement............................. 161
H
andbrake ........................................ 135
Hazard warning lights .......................... 71
Headlights ........................................... 90
– Adjusting headlights abroad ............ 91
– bulb replacement............................. 156
– Headlight alignment corrector .......... 90
– Light beam direction ........................ 90
Headlight washers................................ 192
Head restraints..................................... 47
– "Anti-Whiplash" device ................... 47
– Front headrests ................................ 47
– Rear head restraints......................... 48
270GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Hill Holder system ................................ 93Identification data
– bodywork paint plate....................... 197
– Chassis marking .............................. 197
– engine marking ............................... 197
– identification data plate ................... 196
Ignition device ..................................... 43
– Steering lock ................................... 43
Installation of electrical/electronic
devices .............................................. 104
Installing a Universal Isofix child seat ..... 124
Interior fittings ...................................... 73
Interiors (cleaning)................................ 194Jack................................................... 144Light clusters
– front light clusters
(changing a bulb)............................ 156
– rear light clusters
(changing a bulb)............................ 158
Lubricants (features).............................. 224
Luggage compartment .......................... 84
– Closing the luggage compartment..... 84
– Emergency luggage compartment
opening .......................................... 84
– Extending the luggage
compartment................................... 85– Luggage compartment
initialisation .................................... 85
– Opening the luggage
compartment................................... 84
Luggage compartment roof light
– bulb replacement............................. 160
M
ain beam headlights ....................... 63
– bulb replacement............................. 156
Maintenance and care
– heavy-duty use of the car ................. 178
– periodic checks ............................... 178
– scheduled servicing ......................... 173
– scheduled servicing plan .................. 174
Menu options ....................................... 24
MSR system ......................................... 94
Multifunction display ............................ 20
N
umber plate lights
– bulb replacement............................. 159
Parking ............................................. 135
– Handbrake ..................................... 135
Parking lights ....................................... 62
Parking sensors .................................... 105
Performance ........................................ 217
Pollen filter........................................... 187
Power sockets....................................... 74Preparation for "Isofix" child seat .......... 123
Pretensioners........................................ 116
– Load limiters ................................... 116
Protecting the environment .................... 111
Puddle light
– bulb replacement............................. 162
Radio transmitters and mobile
phones.............................................. 104
Rain sensor .......................................... 65
Raising the car ..................................... 171
Rear fog light ....................................... 72
Rear fog light/reversing light................. 159
Rear view mirrors ................................. 49
– Door mirrors ................................... 50
– Internal mirror ................................. 49
Rear window washer jets ...................... 192
Rear window washer
– rear window washer fluid level ......... 186
Rear window washer/wiper .................. 66
Rear Window Wiper
– blade replacement ........................... 191
– blades ............................................ 190
Reconfigurable multifunction display ...... 21
Refuelling ............................................ 221
Refuelling the car ................................. 110
2GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONSINDEX
71
