FRONT ARMREST(for versions/markets, where provided)
This is located between the front seats. To bring it to its standard use
position, push it downwards.
Press button A fig. 48 to raise the upper part of the armrest and access
the compartment inside it. Press lever B to incline the armrest
downwards relative to its standard use position.POWER SOCKETSThese are located on the central tunnel A fig. 49 and on the left side of
the luggage compartment B fig. 49 (for versions/markets, where
provided). They only operate with the ignition key at MAR-ON.
If you request the smokers' kit, the socket on the central tunnel is
replaced with a cigar lighter (see following paragraph).IMPORTANT Do not connect devices with power higher than 180 W to
the socket. Do not damage the socket by using unsuitable adaptors.
fig. 48
A0J0194
fig. 49
A0J0068
74GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CIGAR LIGHTER(for versions/markets, where provided)
This is located on the central tunnel. Press button A fig. 50 to activate
the cigar lighter.
After a few seconds the button automatically returns to its initial
position, and the cigarette lighter is ready for use.
IMPORTANT Always check that the cigar lighter is switched off.
IMPORTANT Do not connect devices with power higher than 180 W to
the socket. Do not damage the socket by using unsuitable adaptors.
The cigar lighter gets very hot. Handle it carefully and
make sure that children don’t use it: risk of fire
and/or burns.
ASHTRAYThe ashtray is a removable spring-loaded plastic box that can be fitted
into the cup/can holders on the central tunnel fig. 51
Do not use the ashtray as a waste paper basket: it
may catch fire in contact with cigarette stubs.
fig. 50
A0J0304
fig. 51
A0J0070
75GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SUN VISORSThese are located at the sides of the interior rear view mirror. They can
be adjusted forwards and sideways.
A courtesy mirror with roof light is fitted on the back of the visors. The
light allows the mirror to be used even in poor visibility conditions.
Lift cover A fig. 52 to access the mirror.
EXTINGUISHER(for versions/markets, where provided)
This is located on the right side of the luggage compartment fig. 53.
fig. 52
A0J0071
fig. 53
A0J0190
76GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ELECTRIC SUN ROOF(for versions/markets, where provided)
The extensively glazed sun roof comprises a moving glass panel and a
sun blind.
The glazed panel, when closed, allows light from the outside to enter
and makes it possible to see the outside from the passenger
compartment.OPERATIONThe sun roof can be operated only with the ignition key turned to MAR.
The controls A and B fig. 54 on the trim next to the front courtesy light
operate the sun roof opening/closing functions.
Roof opening
Pressing button A fig. 54 permits two opening modes for the front
glass panel.Automatic
If button A is held down, the front glass panel is raised from completely
closed to spoiler position.
If the button is pressed again, the panel will start to slide backwards
until it is completely open.
After the initial opening command, the glass panel can be stopped in
intermediate positions by pressing the button again.
Manual
If button A is pressed briefly, the front glass panel moves from
completely closed position and stops in the position where the button is
released. In this case, the panel is opened by pressing the button.
This function makes it possible to place the front panel in intermediate
positions in relation to those produced through automatic opening.
Do not open the sunroof if there is snow or ice on it: you
may damage it.The sun roof must stay closed if a transverse roof rack is
fitted.When leaving the vehicle, always remove the key from
the ignition to avoid the risk of injury to those still
inside the car due to accidental operation of the
sunroof. Improper use of the roof can be dangerous. Before
operation, always check that no-one is at risk of being injured by
the moving sun roof or by objects getting caught and dragged
by it.
fig. 54
A0J0329
77GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

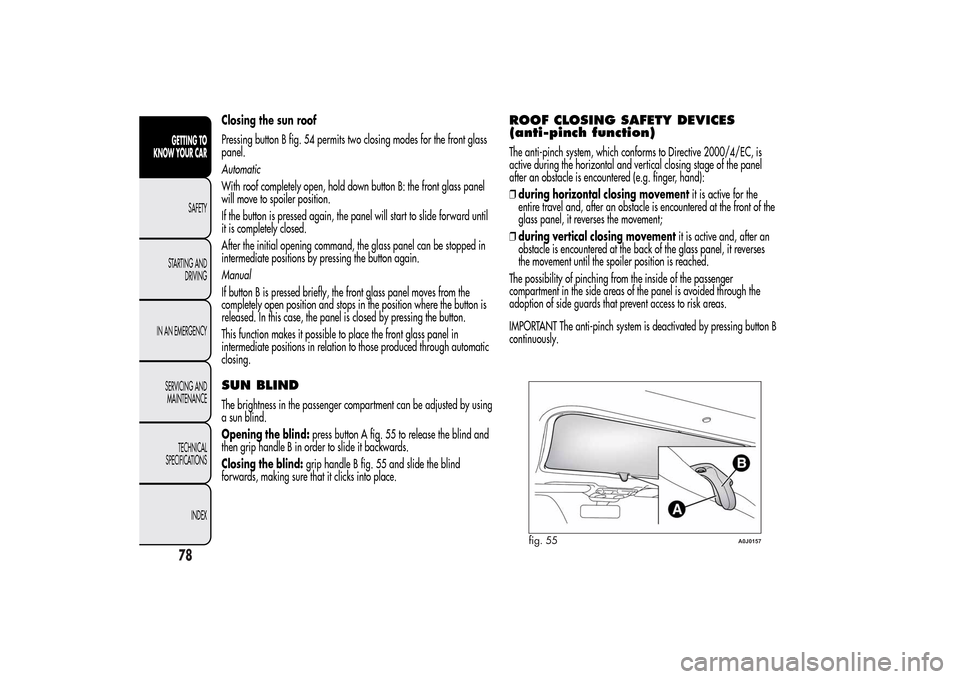

Closing the sun roof
Pressing button B fig. 54 permits two closing modes for the front glass
panel.
Automatic
With roof completely open, hold down button B: the front glass panel
will move to spoiler position.
If the button is pressed again, the panel will start to slide forward until
it is completely closed.
After the initial opening command, the glass panel can be stopped in
intermediate positions by pressing the button again.
Manual
If button B is pressed briefly, the front glass panel moves from the
completely open position and stops in the position where the button is
released. In this case, the panel is closed by pressing the button.
This function makes it possible to place the front glass panel in
intermediate positions in relation to those produced through automatic
closing.SUN BLINDThe brightness in the passenger compartment can be adjusted by using
a sun blind.
Opening the blind:press button A fig. 55 to release the blind and
then grip handle B in order to slide it backwards.
Closing the blind:grip handle B fig. 55 and slide the blind
forwards, making sure that it clicks into place.
ROOF CLOSING SAFETY DEVICES
(anti-pinch function)The anti-pinch system, which conforms to Directive 2000/4/EC, is
active during the horizontal and vertical closing stage of the panel
after an obstacle is encountered (e.g. finger, hand):
❒during horizontal closing movementit is active for the
entire travel and, after an obstacle is encountered at the front of the
glass panel, it reverses the movement;
❒during vertical closing movementit is active and, after an
obstacle is encountered at the back of the glass panel, it reverses
the movement until the spoiler position is reached.
The possibility of pinching from the inside of the passenger
compartment in the side areas of the panel is avoided through the
adoption of side guards that prevent access to risk areas.
IMPORTANT The anti-pinch system is deactivated by pressing button B
continuously.
fig. 55
A0J0157
78GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INITIALISATION PROCEDUREAfter the battery has been disconnected or a fuse has blown, the
operation of the sun roof must be initialised again.
Proceed as follows:
❒press button B fig. 54 until the roof is completely closed. Release the
button;
❒press B button and keep it pressed for at least 10 seconds and/or
until the glass panel clicks forwards. Release the button at this point;
❒within 5 seconds of the previous operation, press button B and hold
it down: the front glass panel will complete a full opening and
closing cycle. Only release the button at the end of this cycle.
MAINTENANCE/EMERGENCYIn the event of emergency or maintenance, the roof can be moved
manually when there is no power supply (opening/closing of the front
glass panel) by carrying out the following operations:
❒remove the protective cap A fig. 56 located on the internal lining,
between the two sun blinds;
❒take the Allen key B supplied, which is located in the on-board
documentation container or in the tool container in the luggage
compartment;
❒introduce the key into housing C and turn it clockwise to open the
roof or anticlockwise to close the roof.
fig. 56
A0J0328
79GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DOORSDOOR CENTRAL LOCKING/
UNLOCKINGLocking from the outside
With the doors closed, press the
button on the key or turn the metal
insert (located inside the key) in the driver side door lock.
The LED above fig. 57 button A switches on to indicate that the doors
have been locked.
The door locking function is operated:
❒with all the doors closed;
❒with all the doors closed and the luggage compartment open:
Door unlocking from the outside
Press the
button on the key or turn the metal insert (located inside
the key) in the driver side door lock.Door locking/unlocking from the inside
Press fig. 57 button A. The button has an LED that indicates whether
the car doors are locked or unlocked.
LED on: doors locked. Press button
once again to centrally unlock
all doors. The LED will switch off.
LED off: doors unlocked. Press the button
again to centrally lock all
doors. The doors will be locked only if all the doors are properly
shut.
Once the doors have been locked via the remote control or the key
pawl, it will no longer be possible to unlock them by pressing button
.
IMPORTANT With the central locking system on, pull the door lever of
one of the doors to open that door only (the LED on button A will
stay on if it is the passenger door).
In the absence of electrical power supply (blown fuse, battery
disconnected, etc.) it is still possible to lock the doors manually.
fig. 57
A0J0030
80GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

PASSENGER SIDE EMERGENCY FRONT
DOOR LOCKING DEVICEThe front passenger side door has a device to lock it when there is no
current.
To lock it, fit the metal insert of the ignition key in the housing A fig. 58
and move it upwards.
IMPORTANT If the battery is disconnected or the protection fuse blows,
the door opening/closing mechanism must be initialised as follows:
❒close all the doors;
❒press button
on the key or button
for locking/unlocking the
doors on the instrument panel;
❒press button
on the key or button
for locking/unlocking the
doors on the instrument panel.
ELECTRIC WINDOWSThese are equipped with an automatic function to raise and lower the
driver side front window.CONTROLSDriver side door fig. 59
❒A - Front left window opening/closing;
❒B - Front right window opening/closing;
Window opening
Push the buttons to open the desired window.
When one of the two buttons is pressed briefly, the window moves in
"stages"; if the button is held down, "continuous automatic" operation
is activated.
fig. 58
A0J0309
fig. 59
A0J0023
