GRAPHICAL INDEX
.
HEADLIGHTS
❒Bulb types ..........................................120
❒ Daytime running lights ......................... 27
❒ Side lights/dipped headlights .............. 27
❒ Main beam headlights ......................... 27
❒ Bulb replacement ................................118
WHEELS
❒Rims and tyres ....................................163
❒ Tyre pressure ......................................166
❒ Wheel repair .......................................115
DOOR MIRRORS
❒Adjustment ......................................... 18
❒ Folding ............................................... 18
DOORS
❒Central opening/closing ...................... 36
SCREEN WASHER / BRAKE FLUID
❒Checking levels ...................................139
WINDSCREEN WIPERS
❒Operation ........................................... 28
❒ Blade replacement ..............................148
TOW HOOK
❒Attachment .........................................130
1
A0L0120
5
24-9-2013 11:49 Pagina 5

GETTING TO KNOW YOUR CAR
In-depth knowledge of your new car
starts here.
The booklet that you are reading simply
and directly explains how it is made
and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see what is described here for
yourself.SYMBOLS ...................................... 10
ALFA ROMEO CODE SYSTEM ....... 10
THE KEYS....................................... 11
ALARM ........................................... 13
IGNITION SWITCH .......................... 14
SEATS ............................................ 15
STEERING WHEEL ......................... 17
REAR VIEW MIRRORS .................... 18
CLIMATE CONTROL ....................... 19
CLIMATIC COMFORT ..................... 20
HEATING AND VENTILATION.......... 21
MANUAL CLIMATE CONTROL........ 24
EXTERIOR LIGHTS ......................... 2
WINDOW CLEANING ...................... 28
CRUISE CONTROL ......................... 29
ROOF LIGHT................................... 31
CONTROLS .................................... 32
INTERIOR FITTINGS ....................... 33
DOORS ........................................... 36
ELECTRIC WINDOWS .................... 37
LUGGAGE COMPARTMENT /
BONNET ......................................... 38
HEADLIGHTS.................................. 40
ESC (ELECTRONIC STABILITY
CONTROL) SYSTEM ....................... 41
“ALFA DNA” SYSTEM (DYNAMIC
CAR CONTROL SYSTEM)............... 45 EOBD SYSTEM (EUROPEAN ON
BOARD DIAGNOSIS) ...................... 48
RADIO SYSTEM .............................. 49
ACCESSORIES PURCHASED BY
THE OWNER .................................. 49
PARKING SENSORS....................... 50
TPMS (TYRE PRESSURE
MONITORING SYSTEM) ................. 53
REFUELLING THE CAR .................. 56
PROTECTING THE
ENVIRONMENT .............................. 57
9
24-9-2013 11:49 Pagina 9
7

27
24-9-2013 11:49 Pagina 27
DAYTIME RUNNING
LIGHTS (DRL)
“Daytime Running Lights”
With the ignition key at MAR-ON and
ring nut A fig. 22 turned to
, the
daytime running lights switch on. The
other lights and interior lighting stay off.
IMPORTANT The daytime running
lights are an alternative to the dipped
headlights for driving during the
daytime in countries where it is
compulsory to have lights on during the
day; where it is not compulsory, the
use of daytime running lights is
permitted.
IMPORTANT Daytime running lights
cannot be used in place of dipped
headlights when driving through tunnels
or at night. The use of daytime running
lights is governed by the Highway Code
of the country in which you are driving.
Comply with legal requirements.
SIDE LIGHTS/DIPPED
HEADLIGHTS
With the ignition key turned to
MAR-ON, turn ring nut A fig. 22 to
.
The daytime running lights are switched
off and the side lights and dipped
headlights are switched on. The
warning light switches on in the
instrument panel. PARKING LIGHTS
These lights can only be switched on
with ignition key at STOP or removed,
by moving ring nut A fig. 22 first to
position
and then to position
.
The
warning light switches on
in the instrument panel.
MAIN BEAM HEADLIGHTS
To activate the main beam headlights,
with ring nut A at
, pull the stalk
towards the steering wheel beyond the
end of travel position. The
warning
light switches on in the instrument
panel. When the stalk is pulled towards
the steering wheel again, beyond the
end of travel position, the main beam
headlights deactivate, the dipped beam
headlights reactivate and the warning
light
switches off.
FLASHING
To do this, pull the stalk towards the
steering wheel (unstable position)
regardless of the position of ring nut A.
Thewarning light switches on in the
instrument panel.
REAR FOG LIGHTS
For the activation and deactivation of
the rear fog lights, refer to the
"Controls" section.
22
A0L0020
EXTERIOR LIGHTS
IN BRIEF
The left stalk fig. 22 operates most of
the exterior lights. The exterior lights
can only be switched on when the
ignition key is at MAR-ON.
The instrument panel and the
dashboard and central tunnel
controls will light up together with the
exterior lights.

CONTROLSHAZARD WARNING
LIGHTS
Operation
Press switch A fig. 26 to switch the
lights on/off.
Warning lights
and
on the panel
are lit up when the hazard warning
lights are on.
16)
REAR FOG LIGHT
Operation
Press the
fig. 27 button to switch
the light on/off.
The LED on the button lights up to
indicate the activation of the rear fog
light. The rear fog light switches on only
when the dipped headlights are on.
CENTRAL LOCKING
Operation
Press thefig. 28 button to lock all
doors at the same time. When the
doors are locked, the LED on the
button lights up.
Locking takes place irrespective of the
position of the ignition key. FUEL CUT-OFF SYSTEM
Operation
This intervenes in the event of impact,
causing:
❒
fuel supply cut-off with the engine
consequently switching off;
❒ the automatic unlocking of the doors;
❒ the switching on of the interior lights;
❒ the switching on of the hazard
warning lights.
The digital
warning light and the
dedicated message on the display
indicate the intervention of the system.
Carefully check the car for fuel leaks, for
instance in the engine compartment,
under the car or near the tank area.
17)
26
A0L0023
27
A0L0024
28
A0L0026
32
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 32

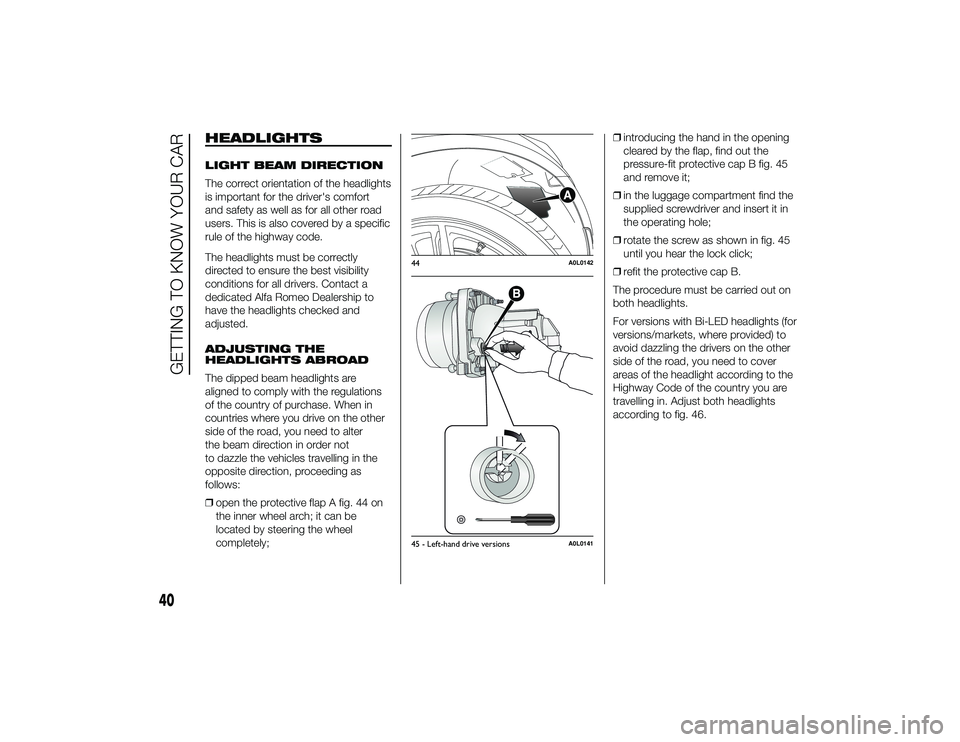

HEADLIGHTSLIGHT BEAM DIRECTION
The correct orientation of the headlights
is important for the driver's comfort
and safety as well as for all other road
users. This is also covered by a specific
rule of the highway code.
The headlights must be correctly
directed to ensure the best visibility
conditions for all drivers. Contact a
dedicated Alfa Romeo Dealership to
have the headlights checked and
adjusted.
ADJUSTING THE
HEADLIGHTS ABROAD
The dipped beam headlights are
aligned to comply with the regulations
of the country of purchase. When in
countries where you drive on the other
side of the road, you need to alter
the beam direction in order not
to dazzle the vehicles travelling in the
opposite direction, proceeding as
follows:
❒open the protective flap A fig. 44 on
the inner wheel arch; it can be
located by steering the wheel
completely; ❒
introducing the hand in the opening
cleared by the flap, find out the
pressure-fit protective cap B fig. 45
and remove it;
❒ in the luggage compartment find the
supplied screwdriver and insert it in
the operating hole;
❒ rotate the screw as shown in fig. 45
until you hear the lock click;
❒ refit the protective cap B.
The procedure must be carried out on
both headlights.
For versions with Bi-LED headlights (for
versions/markets, where provided) to
avoid dazzling the drivers on the other
side of the road, you need to cover
areas of the headlight according to the
Highway Code of the country you are
travelling in. Adjust both headlights
according to fig. 46.
44
A0L0142
45 - Left-hand drive versions
A0L0141
40
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 40

KNOWING THE INSTRUMENT PANEL
This section of the booklet gives you all
the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
INSTRUMENTS ............................... 60
SETUP MENU ................................. 62
MENU OPTIONS ............................. 64
TRIP COMPUTER ........................... 68
WARNING LIGHTS AND
MESSAGES .................................... 71
- LOW BRAKE FLUID / HANDBRAKE
ENGAGED .......................................... 71
- EBD FAILURE .................................. 72
- AIRBAG FAILURE ............................. 72
- SEAT BELTS NOT FASTENED .......... 72
- ABS FAILURE ................................... 73
- PASSENGER AIRBAG
DEACTIVATED .................................... 74
- INJECTION/EOBD SYSTEM
FAILURE ............................................. 75
- TPMS ............................................... 76
- ELECTRONIC STABILITY CONTROL
(ESC) SYSTEM ................................... 77
- ASR FUNCTION DEACTIVATED
WARNING LIGHT ............................... 77
- SIDE LIGHTS AND DIPPED
HEADLIGHTS ..................................... 78
- FOLLOW ME HOME ........................ 78
- LEFT DIRECTION INDICATOR .......... 79
- RIGHT DIRECTION INDICATOR ....... 79
- MAIN BEAM HEADLIGHTS .............. 79
- LOW ENGINE OIL PRESSURE ......... 80
-ENGINE OIL DETERIORATED ........... 80
- ENGINE COOLANT TEMPERATURE
TOO HIGH .......................................... 81
- ALTERNATOR FAILURE ................... 81
- GEARBOX FAILURE ......................... 82
-INCOMPLETE DOOR LOCKING ........ 82
-WORN BRAKE PADS ........................ 82
- ALFA ROMEO CODE SYSTEM
FAILURE ............................................. 82 - FUEL RESERVE/LIMITED RANGE .... 83
- FUEL RESERVE/LIMITED RANGE
SENSOR FAULT ................................. 83
- CRUISE CONTROL .......................... 83
- DOOR MIRROR
DEMISTING/DEFROSTING ................. 83
- EXTERIOR LIGHTS FAULT ............... 84
- SERVICE (SCHEDULED SERVICING)
............................................................ 84
- GENERAL FAILURE ......................... 85
- FUEL CUT-OFF ................................ 85
- LUGGAGE COMPARTMENT OPEN . 86
- POSSIBLE ICE ON ROAD ................ 86
- BRAKE LIGHTS FAILURE ................. 86
- PARKING SENSOR FAILURE ........... 86
- DISPLAY OF SELECTED DRIVING
MODE (“Alfa DNA” system) ................. 86
59
24-9-2013 11:49 Pagina 59

IMPORTANT
5) If, turning the ignition key to MAR-ON, the
warning light does not turn on or if it turns on steadily or flashing
when travelling (on certain versions together with the message on the display), contact the dedicated Alfa Romeo
Dealership as soon as possible.
WARNING
61) Failure of the
warning light is indicated by the
warning light switching on. In addition, the airbag system
automatically disables the passenger side airbag.
Warning lights on panel What it means
What to do
greenSIDE LIGHTS AND DIPPED HEADLIGHTS
The warning light switches on when the side
lights or dipped headlights are turned on.
FOLLOW ME HOME
The warning light switches on (together with a
message shown on the display) when this device
is in use (see "Follow me home device" paragraph
in "Exterior lights" in the "Knowing your car"
chapter).
78
KNOWING THE INSTRUMENT PANEL
24-9-2013 11:49 Pagina 78

Warning lights onpanel What it means
What to do
greenLEFT DIRECTION INDICATOR
The warning light switches on when the direction
indicator control lever is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.greenRIGHT DIRECTION INDICATOR
The warning light turns on when the direction
indicator control lever is moved upwards or,
together with the left indicator, when the hazard
warning light button is pressed.
Warning lights on
panel What it means
What to do
blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main
beam headlights are turned on.
79
24-9-2013 11:49 Pagina 79
